GUN125R-DNTMXW (2019)
Toyota Hilux
Production
Jun 2019
-
Sep 2020
Engine
2GDFTV
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1506- )

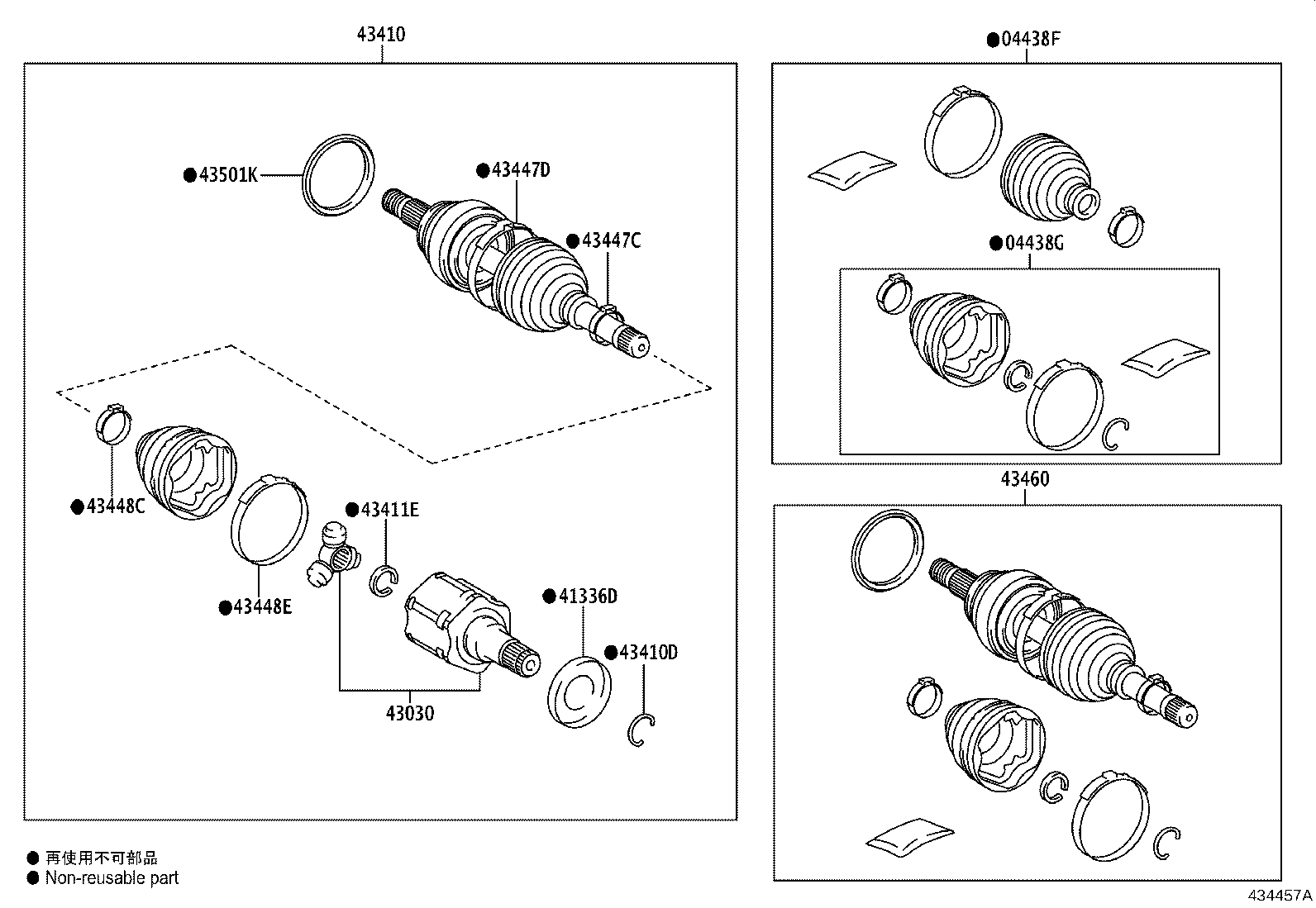

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04427-0K071 |
GUN125..SADCB,SASCB,SAXTR |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04437-0K071 |
GUN125..SADCB,SASCB,SAXTR |
1 | ||
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04427-0K071 |
GUN125..SADCB,SASCB,SAXTR |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04437-0K071 |
GUN125..SADCB,SASCB,SAXTR |
1 | ||
| 43501K - SEAL, DUST (FOR FRONT AXLE HUB RH) | ||||
| 90304-T0001 |
GUN12# |
1 | ||
| 43502K - SEAL, DUST (FOR FRONT AXLE HUB LH) | ||||
| 90304-T0001 |
GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||

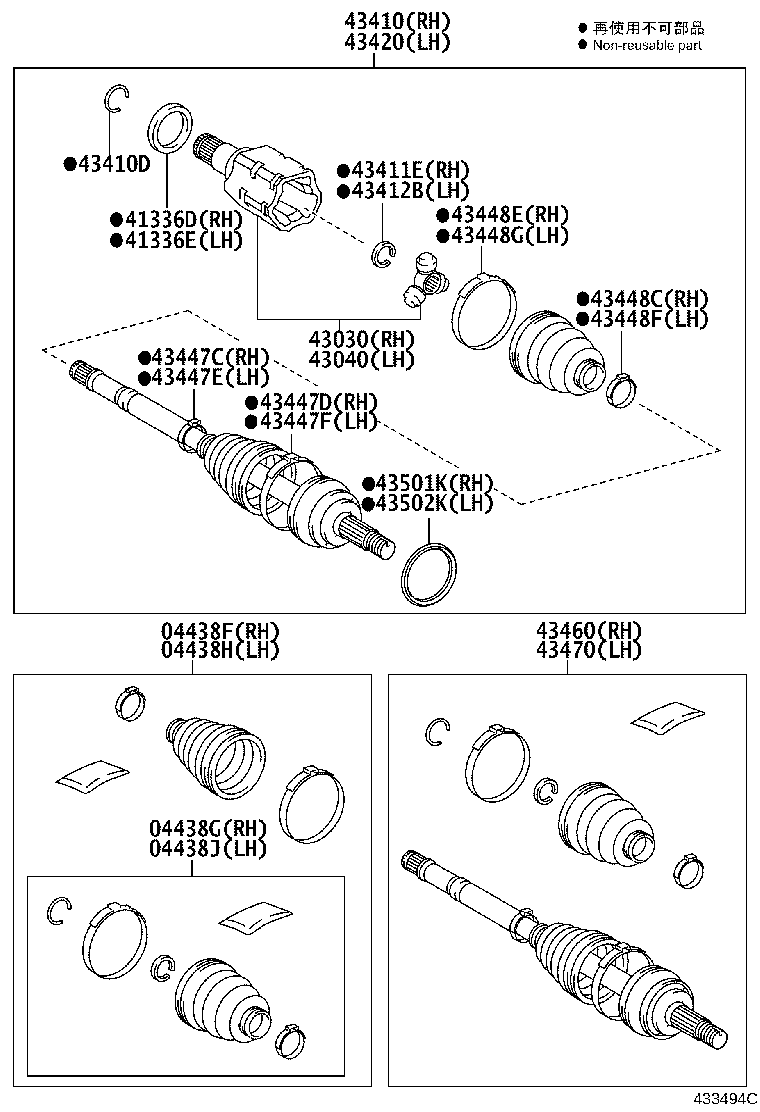

ILLUST NO. 1 OF 2(2006- )
Click highlighted areas on diagram
LH
| Part # | Description | Qty | Price |
|---|

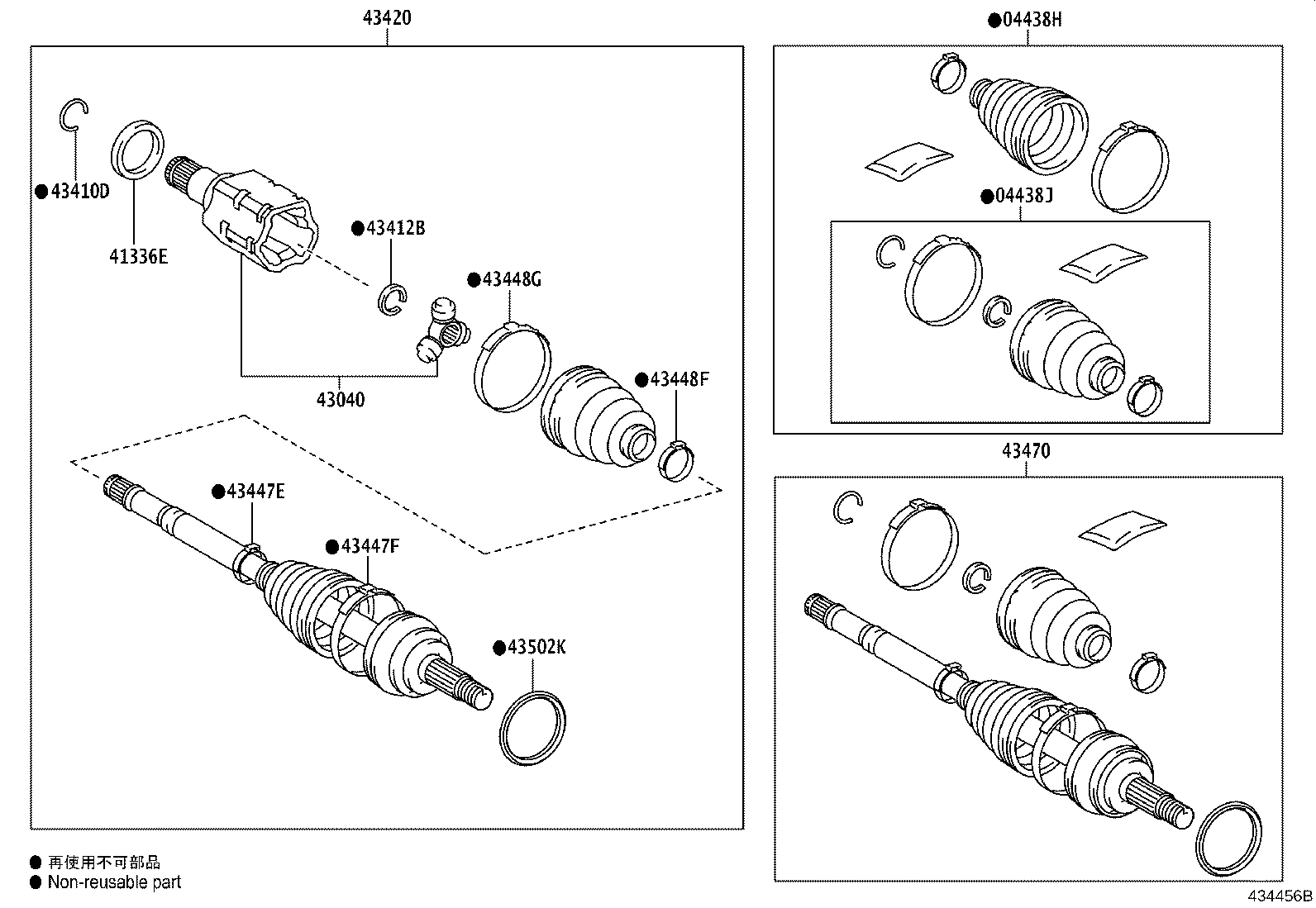

ILLUST NO. 2 OF 2(2006- )
Click highlighted areas on diagram
RH
| Part # | Description | Qty | Price |
|---|
