GUN125R-DNTMXW (2019)
Toyota Hilux

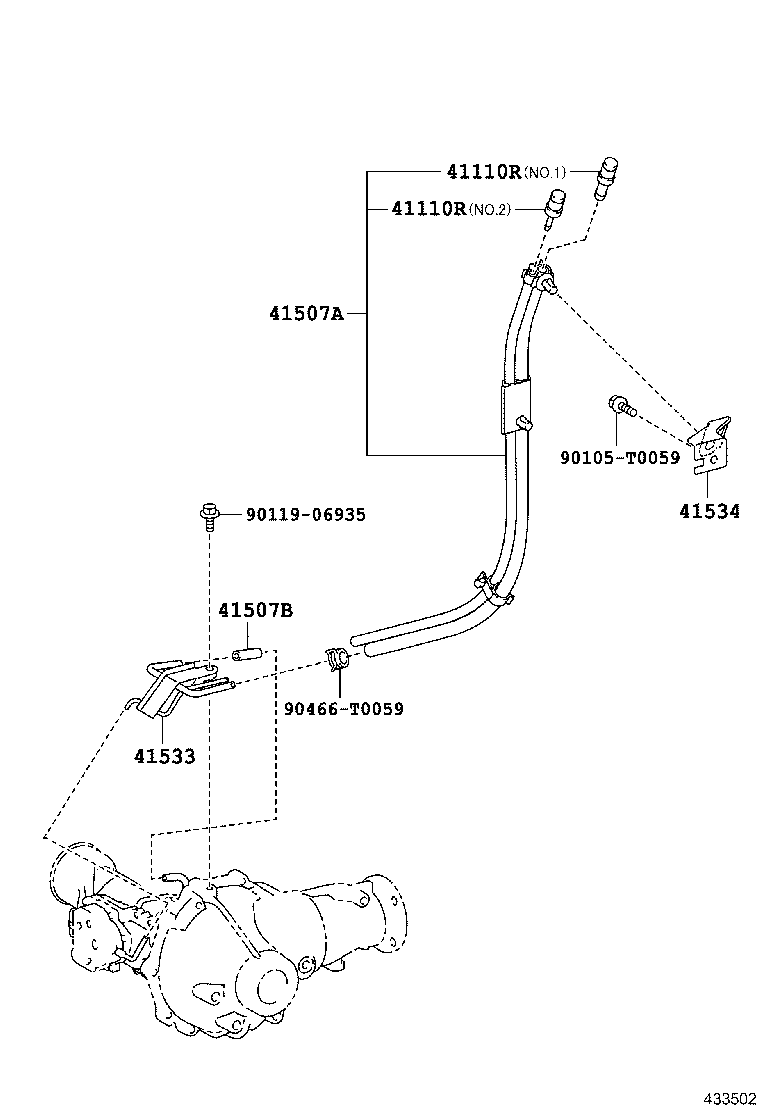

ILLUST NO. 2 OF 2(1506- )GUN12#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41110R - PLUG, BREATHER (FOR FRONT DIFFERENTIAL) | ||||
| 90930-03159 |
GUN12# NO.2:REFER ILLUST. |
1 | ||
| 90930-03219 |
GUN12# NO.1:REFER ILLUST. |
1 | ||
| 41110R - PLUG, BREATHER (FOR FRONT DIFFERENTIAL) | ||||
| 90930-03159 |
GUN12# NO.2:REFER ILLUST. |
1 | ||
| 90930-03219 |
GUN12# NO.1:REFER ILLUST. |
1 | ||
| 41507A - TUBE, FRONT DIFFERENTIAL LOCK ACTUATOR BREATHER, NO.2 | ||||
| 41507-0K090 |
GUN12# |
1 | ||
| 41507B - TUBE, FRONT DIFFERENTIAL LOCK ACTUATOR BREATHER | ||||
| 90445-T0014 |
GUN12# |
1 | ||
| 41533 - TUBE, FRONT DIFFERENTIAL BREATHER | ||||
| 41533-0K050 |
GUN12# |
1 | ||
| Common parts | ||||
| 90105-T0059 | ||||
| 90119-06935 | ||||
| 90466-T0059 | ||||

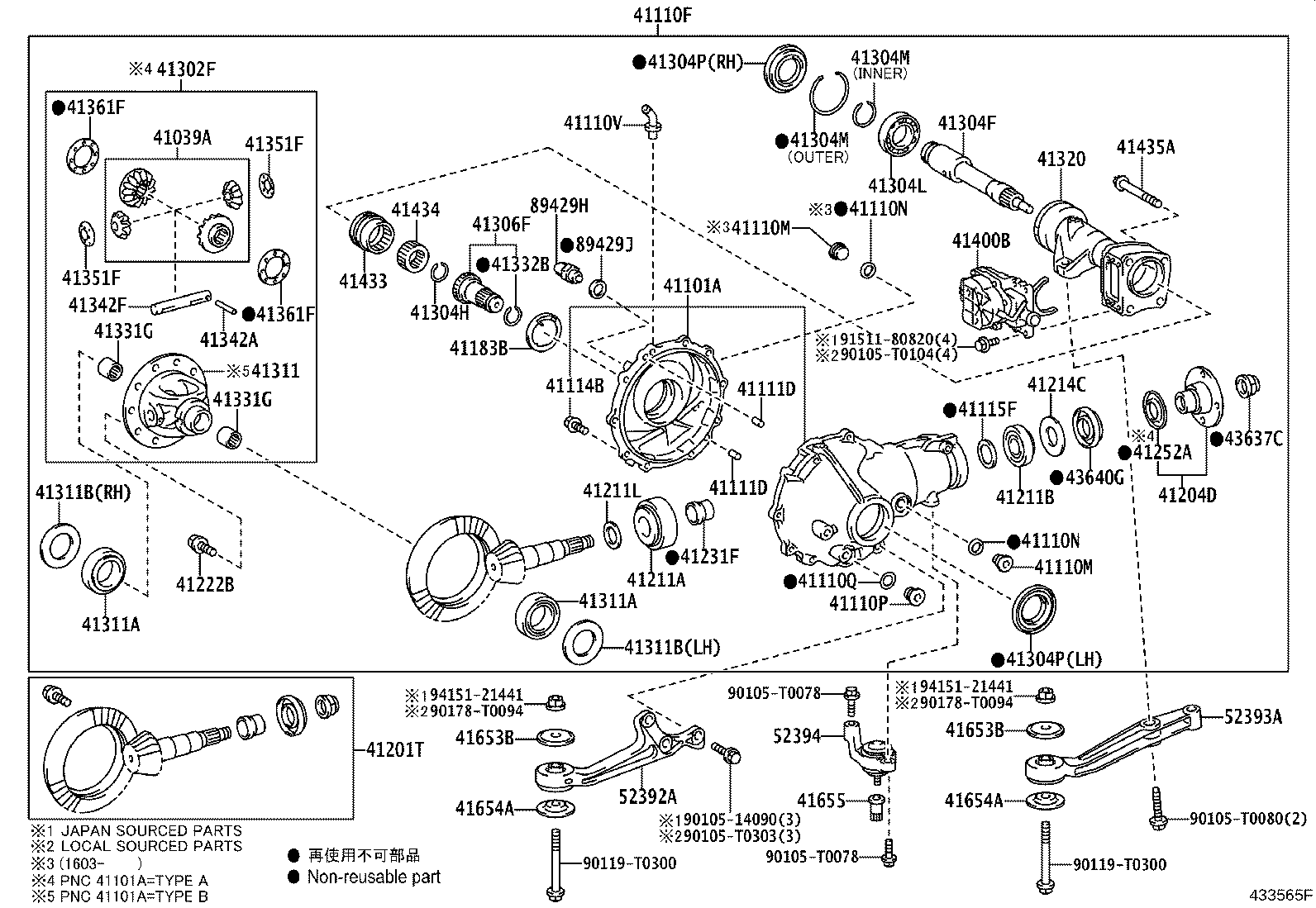

ILLUST NO. 1 OF 2(1506- )GUN12#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41039A - GEAR KIT, DIFFERENTIAL | ||||
| 41039-71040 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE PNC 41101A=TYPE B |
1 | ||
| 41101A - CARRIER SUB-ASSY, DIFFERENTIAL, FRONT | ||||
| 41101-0K060 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE TYPE B:REFER ILLUST. |
1 | ||
| 41110F - CARRIER ASSY, DIFFERENTIAL, FRONT | ||||
| 41110-0KB00 |
GUN125..THDCB..6FC;GUN125..SADCB..6FC..DCRE *FGR=41:10=4.100,PNC 41101A=TYPE B |
1 | ||
| 41110-0KA80 |
GUN125..6F..DCRE;GUN125..THDCB..6F..HDCR *FGR=43:12=3.583,PNC 41101A=TYPE B |
1 | ||
| 41110M - PLUG, FRONT DIFFERENTIAL FILLER | ||||
| 90341-T0002 |
GUN12# (L),PNC 41101A=T/P B |
1 | ||
| 41110M - PLUG, FRONT DIFFERENTIAL FILLER | ||||
| 90341-T0002 |
GUN12# (L),PNC 41101A=T/P B |
1 | ||
| 41110N - GASKET, FRONT DIFFERENTIAL FILLER PLUG | ||||
| 12157-10010 |
GUN12# PNC 41101A=TYPE B |
1 | ||
| 41110N - GASKET, FRONT DIFFERENTIAL FILLER PLUG | ||||
| 12157-10010 |
GUN12# PNC 41101A=TYPE B |
1 | ||
| 41110P - PLUG, FRONT DIFFERENTIAL DRAIN | ||||
| 90341-T0003 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE PNC 41101A=TYPE B |
1 | ||
| 41110Q - GASKET, FRONT DIFFERENTIAL DRAIN PLUG | ||||
| 90430-24003 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE PNC 41101A=TYPE B |
1 | ||
| 41110V - UNION (FOR FRONT DIFFERENTIAL) | ||||
| 90404-08004 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE PNC 41101A=TYPE B |
1 | ||
| 41111D - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER) | ||||
| 90250-T0004 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE PNC 41101A=TYPE B |
2 | ||
| 41111D - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER) | ||||
| 90250-T0004 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE PNC 41101A=TYPE B |
2 | ||
| 41114B - BOLT, FRONT DIFFERENTIAL BEARING CAP | ||||
| 90105-T0101 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE PNC 41101A=TYPE B |
10 | ||
| 41115F - RING, FRONT DIFFERENTIAL OIL STORAGE | ||||
| 41115-0K010 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE PNC 41101A=TYPE B |
1 | ||
| 41183B - DEFLECTOR, FRONT DIFFERENTIAL SIDE BEARING RETAINER | ||||
| 41183-0K010 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE PNC 41101A=TYPE B |
1 | ||
| 41201T - FINAL GEAR KIT, DIFFERENTIAL, FRONT | ||||
| 41201-09C70 |
GUN125..THDCB..6FC;GUN125..SADCB..6FC..DCRE *FGR=41:10=4.100,PNC 41101A=TYPE B |
1 | ||
| 41201-09D00 |
GUN125..6F..DCRE;GUN125..THDCB..6F..HDCR *FGR=43:12=3.583,PNC 41101A=TYPE B |
1 | ||
| 41204D - FLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT | ||||
| 41204-0K120 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE PNC 41101A=TYPE B |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-T0016 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE PNC 41101A=TYPE B |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-T0013 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE PNC 41101A=TYPE B |
1 | ||
| 41211L - SHIM (FOR DIFFERENTIAL DRIVE PINION) | ||||
| 90564-35114 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE OD=52,T=1.85,PNC41101A=T/PB,OD=52 |
1 | ||
| 90564-35117 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE OD=52,T=1.94,PNC41101A=T/PB,OD=52 |
1 | ||
| 90564-35113 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE OD=52,T=1.82,PNC41101A=T/PB,OD=52 |
1 | ||
| 90564-35109 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE OD=52,T=1.70,PNC41101A=T/PB,OD=52 |
1 | ||
| 90564-35111 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE OD=52,T=1.76,PNC41101A=T/PB,OD=52 |
1 | ||
| 90564-35115 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE OD=52,T=1.88,PNC41101A=T/PB,OD=52 |
1 | ||
| 90564-35119 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE OD=52,T=2.00,PNC41101A=T/PB,OD=52 |
1 | ||
| 90564-35126 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE OD=52,T=2.18,PNC41101A=T/PB,OD=52 |
1 | ||
| 90564-35127 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE OD=52,T=2.21,PNC41101A=T/PB,OD=52 |
1 | ||
| 90564-35124 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE OD=52,T=2.12,PNC41101A=T/PB,OD=52 |
1 | ||
| 90564-35116 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE OD=52,T=1.91,PNC41101A=T/PB,OD=52 |
1 | ||
| 90564-35128 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE OD=52,T=2.24,PNC41101A=T/PB,OD=52 |
1 | ||
| 90564-35123 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE OD=52,T=2.09,PNC41101A=T/PB,OD=52 |
1 | ||
| 90564-35110 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE OD=52,T=1.73,PNC41101A=T/PB,OD=52 |
1 | ||
| 90564-35121 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE OD=52,T=2.06,PNC41101A=T/PB,OD=52 |
1 | ||
| 90564-35131 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE OD=52,T=2.33,PNC41101A=T/PB,OD=52 |
1 | ||
| 90564-35118 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE OD=52,T=1.97,PNC41101A=T/PB,OD=52 |
1 | ||
| 90564-35125 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE OD=52,T=2.15,PNC41101A=T/PB,OD=52 |
1 | ||
| 90564-35129 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE OD=52,T=2.27,PNC41101A=T/PB,OD=52 |
1 | ||
| 90564-35120 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE OD=52,T=2.03,PNC41101A=T/PB,OD=52 |
1 | ||
| 90564-35112 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE OD=52,T=1.79,PNC41101A=T/PB,OD=52 |
1 | ||
| 90564-35130 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE OD=52,T=2.30,PNC41101A=T/PB,OD=52 |
1 | ||
| 41214C - SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26011 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE PNC 41101A=TYPE B |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90901-05002 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE (J),PNC 41101A=T/P B |
10 | ||
| 90105-T0310 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE (L),PNC 41101A=T/P B |
10 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-35040 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE PNC 41101A=TYPE B |
1 | ||
| 41304F - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH | ||||
| 41337-35060 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE PNC 41101A=TYPE B |
1 | ||
| 41304H - RING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90520-T0028 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE PNC 41101A=TYPE B |
1 | ||
| 41304L - BEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH) | ||||
| 90363-T0014 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE PNC 41101A=TYPE B |
1 | ||
| 41304M - RING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH) | ||||
| 90521-T0002 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE PNC41101A=T/PB,OUTER |
1 | ||
| 90520-T0027 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE PNC41101A=T/PB,INNER |
1 | ||
| 41304M - RING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH) | ||||
| 90521-T0002 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE PNC41101A=T/PB,OUTER |
1 | ||
| 90520-T0027 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE PNC41101A=T/PB,INNER |
1 | ||
| 41304P - SEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-T0101 |
GUN12# LH,PNC 41101A=TYPE B |
1 | ||
| 90311-T0084 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE RH,PNC 41101A=TYPE B |
1 | ||
| 90311-47035 |
GUN12# LH,PNC 41101A=TYPE A |
1 | ||
| 90311-T0083 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE LH,PNC 41101A=TYPE B |
1 | ||
| 90311-47038 |
GUN12# RH,PNC 41101A=TYPE A |
1 | ||
| 90311-T0102 |
GUN12# RH,PNC 41101A=TYPE B |
1 | ||
| 41304P - SEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-T0101 |
GUN12# LH,PNC 41101A=TYPE B |
1 | ||
| 90311-T0084 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE RH,PNC 41101A=TYPE B |
1 | ||
| 90311-47035 |
GUN12# LH,PNC 41101A=TYPE A |
1 | ||
| 90311-T0083 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE LH,PNC 41101A=TYPE B |
1 | ||
| 90311-47038 |
GUN12# RH,PNC 41101A=TYPE A |
1 | ||
| 90311-T0102 |
GUN12# RH,PNC 41101A=TYPE B |
1 | ||
| 41306F - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR INTER | ||||
| 41306-0K020 |
GUN12# |
1 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41311-0K060 |
GUN125..6F..DCRE;GUN125..THDCB..6F..HDCR PNC 41101A=TYPE B |
1 | ||
| 41311-0K070 |
GUN12#..THDCB..6FC;GUN125..SADCB..6FC..DCRE PNC 41101A=TYPE B |
1 | ||
| 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90366-T0031 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE PNC 41101A=TYPE B |
2 | ||
| 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90366-T0031 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE PNC 41101A=TYPE B |
2 | ||
| 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90564-50124 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.60,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50128 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.72,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50126 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.66,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50132 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.84,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50136 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.96,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50142 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.14,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50156 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.66,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50154 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.60,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50134 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.90,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50140 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.08,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50160 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.78,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50130 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.78,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50185 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.62,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50158 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.72,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50162 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.84,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50166 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.96,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50168 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.02,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50186 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.64,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50184 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.58,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50170 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.08,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50188 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.70,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50138 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.02,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50190 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.76,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50196 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.94,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50198 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.00,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50172 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.14,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50195 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.92,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50192 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.82,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50189 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.74,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50202 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.12,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50193 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.86,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50187 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.68,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50191 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.80,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50164 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.90,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50197 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.98,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50200 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.06,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50205 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.62,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50206 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.64,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50199 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.04,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50201 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.10,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50204 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.58,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50209 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.74,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50208 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.70,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50212 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.82,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50203 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.16,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50207 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.68,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50213 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.86,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50210 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.76,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50194 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.88,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50220 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.06,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50219 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.04,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50214 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.88,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50221 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.10,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50211 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.80,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50216 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.94,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50217 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.98,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50218 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.00,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50222 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.12,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50215 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.92,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50223 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.16,RH,PNC 41101A=TYPE B |
1 | ||
| 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90564-50124 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.60,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50128 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.72,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50126 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.66,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50132 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.84,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50136 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.96,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50142 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.14,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50156 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.66,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50154 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.60,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50134 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.90,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50140 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.08,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50160 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.78,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50130 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.78,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50185 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.62,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50158 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.72,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50162 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.84,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50166 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.96,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50168 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.02,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50186 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.64,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50184 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.58,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50170 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.08,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50188 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.70,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50138 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.02,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50190 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.76,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50196 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.94,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50198 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.00,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50172 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.14,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50195 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.92,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50192 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.82,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50189 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.74,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50202 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.12,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50193 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.86,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50187 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.68,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50191 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.80,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50164 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.90,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50197 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.98,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50200 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.06,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50205 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.62,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50206 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.64,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50199 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.04,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50201 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.10,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50204 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.58,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50209 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.74,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50208 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.70,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50212 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.82,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50203 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.16,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50207 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.68,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50213 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.86,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50210 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.76,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50194 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.88,LH,PNC 41101A=TYPE B |
1 | ||
| 90564-50220 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.06,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50219 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.04,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50214 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.88,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50221 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.10,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50211 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.80,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50216 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.94,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50217 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.98,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50218 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.00,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50222 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.12,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50215 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.92,RH,PNC 41101A=TYPE B |
1 | ||
| 90564-50223 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=2.16,RH,PNC 41101A=TYPE B |
1 | ||
| 41320 - TUBE ASSY, FRONT DIFFERENTIAL | ||||
| 41320-0K020 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE PNC 41101A=TYPE B |
1 | ||
| 41331G - BEARING, NEEDLE ROLLER(FOR FRONT DIFFERENTIAL SIDE GEAR | ||||
| 90364-T0009 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE PNC 41101A=TYPE B |
2 | ||
| 41331G - BEARING, NEEDLE ROLLER(FOR FRONT DIFFERENTIAL SIDE GEAR | ||||
| 90364-T0009 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE PNC 41101A=TYPE B |
2 | ||
| 41332B - RING, HOLE SNAP (FOR DIFF SIDE GEAR INTERMEDDIATE SHAFT | ||||
| 90521-34003 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE PNC 41101A=TYPE B |
1 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-T0006 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE PNC 41101A=TYPE B |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-0K040 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE PNC 41101A=TYPE B |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-0K010 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE (L),PNC 41101A=T/P B |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-0K010 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE (L),PNC 41101A=T/P B |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K020 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.55,PNC 41101A=TYPE B |
2 | ||
| 41361-0K040 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.65,PNC 41101A=TYPE B |
2 | ||
| 41361-0K030 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.60,PNC 41101A=TYPE B |
2 | ||
| 41361-0K080 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.85,PNC 41101A=TYPE B |
2 | ||
| 41361-0K070 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.80,PNC 41101A=TYPE B |
2 | ||
| 41361-0K060 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.75,PNC 41101A=TYPE B |
2 | ||
| 41361-0K090 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.90,PNC 41101A=TYPE B |
2 | ||
| 41361-0K050 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.70,PNC 41101A=TYPE B |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K020 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.55,PNC 41101A=TYPE B |
2 | ||
| 41361-0K040 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.65,PNC 41101A=TYPE B |
2 | ||
| 41361-0K030 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.60,PNC 41101A=TYPE B |
2 | ||
| 41361-0K080 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.85,PNC 41101A=TYPE B |
2 | ||
| 41361-0K070 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.80,PNC 41101A=TYPE B |
2 | ||
| 41361-0K060 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.75,PNC 41101A=TYPE B |
2 | ||
| 41361-0K090 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.90,PNC 41101A=TYPE B |
2 | ||
| 41361-0K050 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE T=1.70,PNC 41101A=TYPE B |
2 | ||
| 41433 - SLEEVE, DIFFERENTIAL CLUTCH | ||||
| 41433-35010 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE PNC 41101A=TYPE B |
1 | ||
| 41434 - HUB, DIFFERENTIAL CLUTCH | ||||
| 41434-35030 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE PNC 41101A=TYPE B |
1 | ||
| 41435A - BOLT (FOR DIFFERENTIAL CLUTCH CASE SETTING) | ||||
| 90107-T0001 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE *12-1.25PX78-30,PNC 41101A=TYPE B |
4 | ||
| 41653B - STOPPER, DIFFERENTIAL MOUNT, UPPER | ||||
| 41653-0K010 |
GUN12# |
2 | ||
| 41653B - STOPPER, DIFFERENTIAL MOUNT, UPPER | ||||
| 41653-0K010 |
GUN12# |
2 | ||
| 41654A - STOPPER, DIFFERENTIAL MOUNT, LOWER | ||||
| 41654-0K010 |
GUN12# |
2 | ||
| 41654A - STOPPER, DIFFERENTIAL MOUNT, LOWER | ||||
| 41654-0K010 |
GUN12# |
2 | ||
| 41655 - NUT, FRONT DIFFERENTIAL MOUNT, NO.1 | ||||
| 41655-0K011 |
GUN12# |
1 | ||
| 43637C - NUT, CASTLE (FOR FRONT AXLE DRIVE PINION) | ||||
| 90177-22003 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE PNC 41101A=TYPE B |
1 | ||
| 43640G - SEAL, TYPE T OIL (FOR FRONT AXLE DIFFERENTIAL CARRIER) | ||||
| 90311-T0064 |
GUN12#..THDCB;GUN125..(SADCB,SASCB,SAXTR)..DCRE PNC 41101A=TYPE B |
1 | ||
| 89429H - SENSOR, TEMPERATURE | ||||
| 89429-53010 |
GUN126;GUN125..RHD..SADCB;GUN125..LHD..SADCB..6F;GUN125..SASCB,SAXTR,THDCB;GUN125..LHD..SADCB..6FC..DCRE;GUN125..LHD..SADCB..6FC..M..HDCR |
1 | ||
| 89429J - GASKET(FOR TEMPERATURE SENSOR) | ||||
| 90430-14011 |
GUN126;GUN125..RHD..SADCB;GUN125..LHD..SADCB..6F;GUN125..SASCB,SAXTR,THDCB;GUN125..LHD..SADCB..6FC..DCRE;GUN125..LHD..SADCB..6FC..M..HDCR |
1 | ||
| Common parts | ||||
| 90105-14090 | ||||
| 90105-T0078 | ||||
| 90105-T0080 | ||||
| 90105-T0104 | ||||
| 90105-T0303 | ||||
| 90119-T0300 | ||||
| 90178-T0094 | ||||
| 91511-80820 | ||||
| 94151-21441 | ||||
ILLUST NO. 1 OF 2(2006- )GUN12#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-14090 | ||||
| 90105-T0078 | ||||
| 90105-T0080 | ||||
| 90105-T0104 | ||||
| 90105-T0303 | ||||
| 90119-T0300 | ||||
| 90178-T0094 | ||||
| 91511-80820 | ||||
| 94151-21441 | ||||
ILLUST NO. 2 OF 2(2006- )GUN12#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0059 | ||||
| 90119-06935 | ||||
| 90466-T0059 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
