GUN125R-DNTMXW (2019)
Toyota Hilux
Production
Jun 2019
-
Sep 2020
Engine
2GDFTV
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1506- )GUN12#

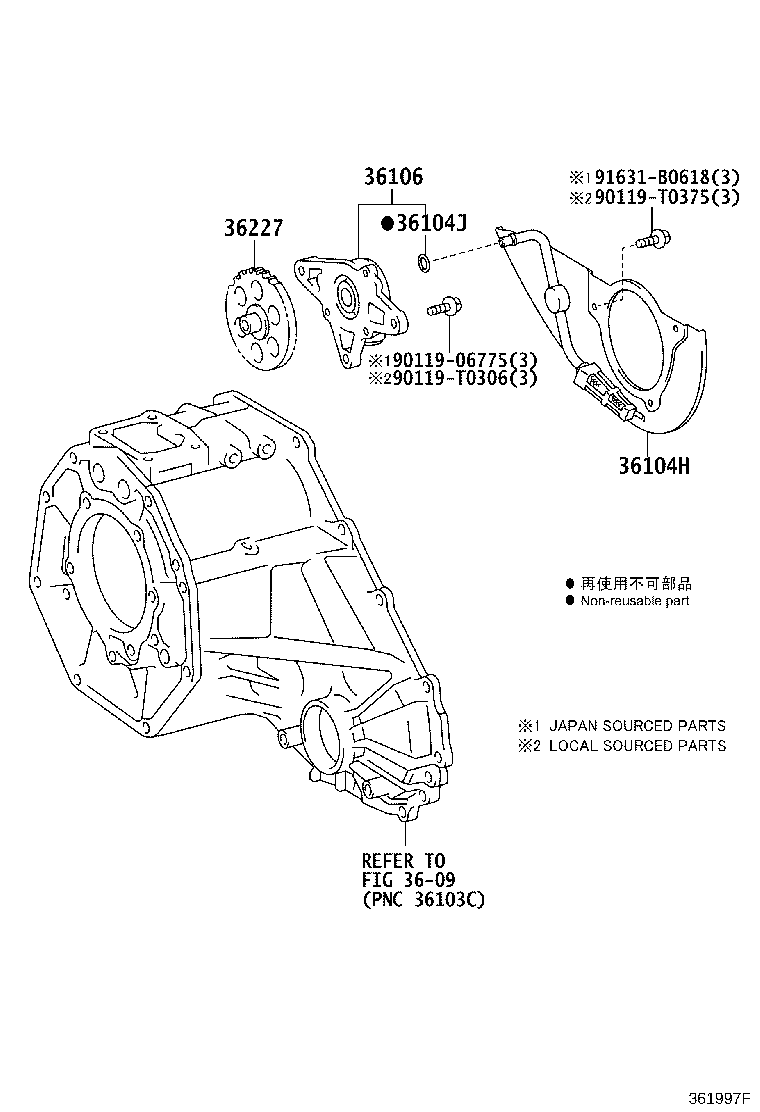

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36104H - SEPARATOR SUB-ASSY, TRANSFER OIL | ||||
| 36104-35021 |
GUN12# *382,*381 |
1 | ||
| 36104J - RING, O (FOR TRANSFER OIL PUMP BODY) | ||||
| 96721-19009 |
GUN12# *382,*381 |
1 | ||
| 36106 - BODY SUB-ASSY, TRANSFER OIL PUMP | ||||
| 36106-0K010 |
GUN12# *382 |
1 | ||
| 36106-35031 |
GUN12# *381 |
1 | ||
| 36227 - GEAR, TRANSFER OIL PUMP | ||||
| 36227-0K010 |
GUN12# *382 |
1 | ||
| 36227-35020 |
GUN12# *381 |
1 | ||
| Common parts | ||||
| 90119-06775 | ||||
| 90119-T0306 | ||||
| 90119-T0375 | ||||
| 91631-B0618 | ||||
| Linked diagrams | ||||
| 3609 | ||||
(2006- )GUN12#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06775 | ||||
| 90119-T0306 | ||||
| 90119-T0375 | ||||
| 91631-B0618 | ||||
| Linked diagrams | ||||
| 3609 | ||||
