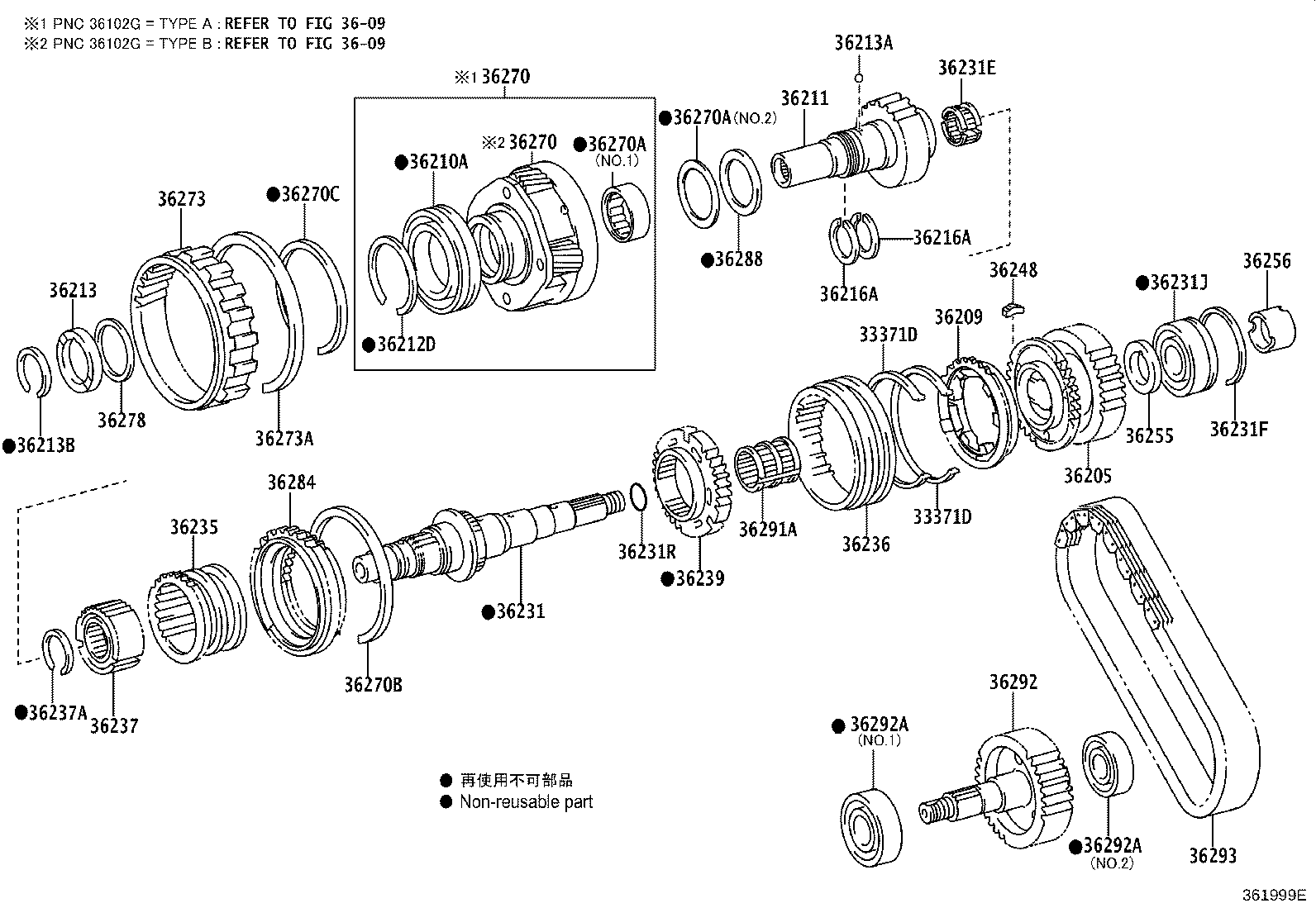

GUN125R-DNTMXW (2019)
Toyota Hilux
(1506- )GUN12#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33371D - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 (FOR TRANSFER) | ||||
| 33371-36030 |
GUN12# *382,*381 |
2 | ||
| 33371D - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 (FOR TRANSFER) | ||||
| 33371-36030 |
GUN12# *382,*381 |
2 | ||
| 36205 - SPROCKET SUB-ASSY, TRANSFER DRIVE | ||||
| 36205-71010 |
GUN12# *381 |
1 | ||
| 36205-0K040 |
GUN12# *382 |
1 | ||
| 36209 - RING SET, TRANSFER SYNCHRONIZER | ||||
| 36209-0K010 |
GUN12# *382 |
1 | ||
| 36209-35022 |
GUN12# *381 |
1 | ||
| 36210A - BEARING (FOR TRANSFER INPUT SHAFT) | ||||
| 90363-75001 |
GUN12# *381 |
1 | ||
| 90363-T0038 |
GUN12# *382 |
1 | ||
| 36211 - SHAFT, TRANSFER INPUT | ||||
| 36201-35130 |
GUN125..6F *381 |
1 | ||
| 36201-0K050 |
GUN12#..6FC *382 |
1 | ||
| 36201-0K070 |
GUN125..6F *382 |
1 | ||
| 36201-71010 |
GUN12#..6FC *381 |
1 | ||
| 36212D - RING, SHAFT SNAP (FOR TRANSFER INPUT BEARING) | ||||
| 90520-72002 |
GUN12# T=1.50,MARK 2,*381 |
1 | ||
| 90520-72001 |
GUN12# T=1.45,MARK 1,*381 |
1 | ||
| 90520-T0136 |
GUN12# T=1.45,MARK 1,*382 |
1 | ||
| 90520-72005 |
GUN12# T=1.65,MARK 5,*381 |
1 | ||
| 90520-T0138 |
GUN12# T=1.55,MARK 3,*382 |
1 | ||
| 90520-T0137 |
GUN12# T=1.50,MARK 2,*382 |
1 | ||
| 90520-72003 |
GUN12# T=1.55,MARK 3,*381 |
1 | ||
| 90520-72004 |
GUN12# T=1.60,MARK 4,*381 |
1 | ||
| 90520-T0140 |
GUN12# T=1.65,MARK 5,*382 |
1 | ||
| 90520-T0139 |
GUN12# T=1.60,MARK 4,*382 |
1 | ||
| 36213 - STOPPER, TRANSFER INPUT GEAR | ||||
| 36213-35020 |
GUN12# *381 |
1 | ||
| 36213-0K010 |
GUN12# *382 |
1 | ||
| 36213A - BALL (FOR TRANSFER INPUT GEAR STOPPER) | ||||
| 90360-05012 |
GUN12# *381 |
1 | ||
| 90360-T0010 |
GUN12# *382 |
1 | ||
| 36213B - RING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER) | ||||
| 90520-44004 |
GUN12# T=2.15-2.20,*381 |
1 | ||
| 90520-44003 |
GUN12# T=2.10-2.15,*381 |
1 | ||
| 90520-44012 |
GUN12# T=2.55-2.60,*381 |
1 | ||
| 90520-44007 |
GUN12# T=2.30-2.35,*381 |
1 | ||
| 90520-44013 |
GUN12# T=2.60-2.65,*381 |
1 | ||
| 90520-44009 |
GUN12# T=2.40-2.45,*381 |
1 | ||
| 90520-44011 |
GUN12# T=2.50-2.55,*381 |
1 | ||
| 90520-44006 |
GUN12# T=2.25-2.30,*381 |
1 | ||
| 90520-44005 |
GUN12# T=2.20-2.25,*381 |
1 | ||
| 90520-44017 |
GUN12# T=2.80-2.85,*381 |
1 | ||
| 90520-44010 |
GUN12# T=2.45-2.50,*381 |
1 | ||
| 90520-44015 |
GUN12# T=2.70-2.75,*381 |
1 | ||
| 90520-44016 |
GUN12# T=2.75-2.80,*381 |
1 | ||
| 90520-44008 |
GUN12# T=2.35-2.40,*381 |
1 | ||
| 90520-44014 |
GUN12# T=2.65-2.70,*381 |
1 | ||
| 90520-44020 |
GUN12# T=2.95-3.00,*381 |
1 | ||
| 90520-T0205 |
GUN12# T=2.25-2.30,*382 |
1 | ||
| 90520-T0203 |
GUN12# T=2.15-2.20,*382 |
1 | ||
| 90520-T0213 |
GUN12# T=2.65-2.70,*382 |
1 | ||
| 90520-T0216 |
GUN12# T=2.80-2.85,*382 |
1 | ||
| 90520-44019 |
GUN12# T=2.90-2.95,*381 |
1 | ||
| 90520-T0204 |
GUN12# T=2.20-2.25,*382 |
1 | ||
| 90520-T0214 |
GUN12# T=2.70-2.75,*382 |
1 | ||
| 90520-T0211 |
GUN12# T=2.55-2.60,*382 |
1 | ||
| 90520-44018 |
GUN12# T=2.85-2.90,*381 |
1 | ||
| 90520-T0219 |
GUN12# T=2.95-3.00,*382 |
1 | ||
| 90520-T0217 |
GUN12# T=2.85-2.90,*382 |
1 | ||
| 90520-T0210 |
GUN12# T=2.50-2.55,*382 |
1 | ||
| 90520-T0206 |
GUN12# T=2.30-2.35,*382 |
1 | ||
| 90520-T0208 |
GUN12# T=2.40-2.45,*382 |
1 | ||
| 90520-T0202 |
GUN12# T=2.10-2.15,*382 |
1 | ||
| 90520-T0215 |
GUN12# T=2.75-2.80,*382 |
1 | ||
| 90520-44021 |
GUN12# T=3.00-3.05,*381 |
1 | ||
| 90520-T0220 |
GUN12# T=3.00-3.05,*382 |
1 | ||
| 90520-T0209 |
GUN12# T=2.45-2.50,*382 |
1 | ||
| 90520-T0207 |
GUN12# T=2.35-2.40,*382 |
1 | ||
| 90520-T0218 |
GUN12# T=2.90-2.95,*382 |
1 | ||
| 90520-T0212 |
GUN12# T=2.60-2.65,*382 |
1 | ||
| 36216A - RING, TRANSFER INPUT SHAFT SEAL, NO.1 | ||||
| 36216-35012 |
GUN12# *382,*381 |
2 | ||
| 36216A - RING, TRANSFER INPUT SHAFT SEAL, NO.1 | ||||
| 36216-35012 |
GUN12# *382,*381 |
2 | ||
| 36231 - SHAFT, TRANSFER OUTPUT, REAR | ||||
| 36231-0K030 |
GUN12# *382 |
1 | ||
| 36231-71020 |
GUN12# *381 |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-28004 |
GUN12# *381 |
1 | ||
| 90364-C0016 |
GUN12# *382 |
1 | ||
| 36231F - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90520-78002 |
GUN12# T=1.65,*381 |
1 | ||
| 90520-T0187 |
GUN12# T=1.65,ID=78.1,*382 |
1 | ||
| 36231J - BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR) | ||||
| 90363-37011 |
GUN12# *381 |
1 | ||
| 90363-T0042 |
GUN12# *382 |
1 | ||
| 36231R - RING, O (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90301-31003 |
GUN12# *381 |
1 | ||
| 90301-T0053 |
GUN12# *382 |
1 | ||
| 36235 - SLEEVE, TRANSFER HIGH & LOW CLUTCH | ||||
| 36235-35022 |
GUN12# *381 |
1 | ||
| 36235-0K030 |
GUN12# *382 |
1 | ||
| 36236 - SLEEVE, FRONT DRIVE CLUTCH | ||||
| 36236-0K040 |
GUN12# *382 |
1 | ||
| 36236-35070 |
GUN12# *381 |
1 | ||
| 36237 - HUB, TRANSFER CLUTCH | ||||
| 36237-0K020 |
GUN12# *382 |
1 | ||
| 36237-35030 |
GUN12# *381 |
1 | ||
| 36237A - RING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB) | ||||
| 90520-39009 |
GUN12# T=2.35-2.40,MARK F,*381 |
1 | ||
| 90520-39004 |
GUN12# T=2.10-2.15,MARK A,*381 |
1 | ||
| 90520-T0192 |
GUN12# T=2.15-2.20,*382 |
1 | ||
| 90520-39007 |
GUN12# T=2.25-2.30,MARK D,*381 |
1 | ||
| 90520-39010 |
GUN12# T=2.40-2.45,MARK G,*381 |
1 | ||
| 90520-39011 |
GUN12# T=2.45-2.50,MARK H,*381 |
1 | ||
| 90520-39006 |
GUN12# T=2.20-2.25,MARK C,*381 |
1 | ||
| 90520-39005 |
GUN12# T=2.15-2.20,MARK B,*381 |
1 | ||
| 90520-T0194 |
GUN12# T=2.25-2.30,*382 |
1 | ||
| 90520-T0196 |
GUN12# T=2.35-2.40,*382 |
1 | ||
| 90520-39014 |
GUN12# T=2.05-2.10,MARK L,*381 |
1 | ||
| 90520-T0191 |
GUN12# T=2.10-2.15,*382 |
1 | ||
| 90520-T0195 |
GUN12# T=2.30-2.35,*382 |
1 | ||
| 90520-39012 |
GUN12# T=2.50-2.55,MARK J,*381 |
1 | ||
| 90520-T0201 |
GUN12# T=2.05-2.10,*382 |
1 | ||
| 90520-T0199 |
GUN12# T=2.50-2.55,*382 |
1 | ||
| 90520-39013 |
GUN12# T=2.00-2.05,MARK K,*381 |
1 | ||
| 90520-T0197 |
GUN12# T=2.40-2.45,*382 |
1 | ||
| 90520-T0198 |
GUN12# T=2.45-2.50,*382 |
1 | ||
| 90520-39008 |
GUN12# T=2.30-2.35,MARK E,*381 |
1 | ||
| 90520-T0193 |
GUN12# T=2.20-2.25,*382 |
1 | ||
| 90520-T0200 |
GUN12# T=2.00-2.05,*382 |
1 | ||
| 36239 - HUB, TRANSFER DRIVE CLUTCH | ||||
| 36239-71010 |
GUN12# *381 |
1 | ||
| 36239-0K050 |
GUN12# *382 |
1 | ||
| 36248 - KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.1 | ||||
| 36248-35031 |
GUN12# *381 |
3 | ||
| 36248-0K010 |
GUN12# *382 |
3 | ||
| 36255 - SPACER, TRANSFER OUTPUT SHAFT, NO.1 | ||||
| 36255-0K020 |
GUN12# *382 |
1 | ||
| 36255-71010 |
GUN12# *381 |
1 | ||
| 36256 - SPACER, TRANSFER OUTPUT SHAFT, NO.2 | ||||
| 36256-0K010 |
GUN12# *382 |
1 | ||
| 36256-71010 |
GUN12# *381 |
1 | ||
| 36270 - GEAR ASSY, TRANSFER LOW PLANETARY | ||||
| 36270-0K020 |
GUN12# *382 |
1 | ||
| 36270-35900 |
GUN12# *381 |
1 | ||
| 36270 - GEAR ASSY, TRANSFER LOW PLANETARY | ||||
| 36270-0K020 |
GUN12# *382 |
1 | ||
| 36270-35900 |
GUN12# *381 |
1 | ||
| 36270A - BEARING (FOR TRANSFER LOW PLANETARY GEAR) | ||||
| 90364-T0033 |
GUN12# *382,NO.1:REFER ILL. |
1 | ||
| 90364-47001 |
GUN12# *381,NO.1:REFER ILL. |
1 | ||
| 90374-49001 |
GUN12# *381,NO.2:REFER ILL. |
1 | ||
| 90374-C0017 |
GUN12# *382,NO.2:REFER ILL. |
1 | ||
| 36270A - BEARING (FOR TRANSFER LOW PLANETARY GEAR) | ||||
| 90364-T0033 |
GUN12# *382,NO.1:REFER ILL. |
1 | ||
| 90364-47001 |
GUN12# *381,NO.1:REFER ILL. |
1 | ||
| 90374-49001 |
GUN12# *381,NO.2:REFER ILL. |
1 | ||
| 90374-C0017 |
GUN12# *382,NO.2:REFER ILL. |
1 | ||
| 36270B - RING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY GEAR) | ||||
| 90521-99056 |
GUN12# T=1.8,*382,*381 |
1 | ||
| 36270C - RING, SHAFT SNAP(FOR TRANSFER LOW PLANETARY GEAR BEARIN | ||||
| 90520-T0188 |
GUN12# *382 |
1 | ||
| 90520-99072 |
GUN12# *381 |
1 | ||
| 36273 - GEAR, TRANSFER LOW PLANETARY RING | ||||
| 36273-0K010 |
GUN12# *382 |
1 | ||
| 36273-35030 |
GUN12# *381 |
1 | ||
| 36273A - RING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR) | ||||
| 90520-99078 |
GUN12# *382,*381 |
1 | ||
| 36278 - WASHER, MANUAL TRANSFER PLANETARY CARRIER | ||||
| 36278-0K010 |
GUN12# T=0.95-1.05,*382 |
1 | ||
| 36278-35020 |
GUN12# T=0.95-1.05,*381 |
1 | ||
| 36284 - PIECE, TRANSFER LOW PLANETARY GEAR SPLINE | ||||
| 36284-0K030 |
GUN12# *382 |
1 | ||
| 36284-34011 |
GUN12# *381 |
1 | ||
| 36288 - RACE, TRANSFER THRUST BEARING, NO.1 | ||||
| 36288-28010 |
GUN12# *381 |
1 | ||
| 36288-0K010 |
GUN12# *382 |
1 | ||
| 36291A - BEARING (FOR TRANSFER DRIVE SPROCKET) | ||||
| 90364-42008 |
GUN12# *381 |
1 | ||
| 90364-T0043 |
GUN12# *382 |
1 | ||
| 36292 - SPROCKET, TRANSFER DRIVEN | ||||
| 36292-35070 |
GUN12# *381 |
1 | ||
| 36292-0K020 |
GUN12# *382 |
1 | ||
| 36292A - BEARING (FOR TRANSFER DRIVEN SPROCKET) | ||||
| 90363-28004 |
GUN12# *381,NO.2:REFER ILL. |
1 | ||
| 90363-32037 |
GUN12# *381,NO.1:REFER ILL. |
1 | ||
| 90363-T0037 |
GUN12# *382,NO.2:REFER ILL. |
1 | ||
| 90363-T0036 |
GUN12# *382,NO.1:REFER ILL. |
1 | ||
| 36292A - BEARING (FOR TRANSFER DRIVEN SPROCKET) | ||||
| 90363-28004 |
GUN12# *381,NO.2:REFER ILL. |
1 | ||
| 90363-32037 |
GUN12# *381,NO.1:REFER ILL. |
1 | ||
| 90363-T0037 |
GUN12# *382,NO.2:REFER ILL. |
1 | ||
| 90363-T0036 |
GUN12# *382,NO.1:REFER ILL. |
1 | ||
| 36293 - CHAIN, TRANSFER FRONT DRIVE | ||||
| 36293-35050 |
GUN12# *382,*381 |
1 | ||
| Linked diagrams | ||||
| 3609 | ||||
(2006- )GUN12#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 3609 | ||||
