GUN125R-DNTMXW (2019)

Toyota Hilux

Production Jun 2019 - Sep 2020
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

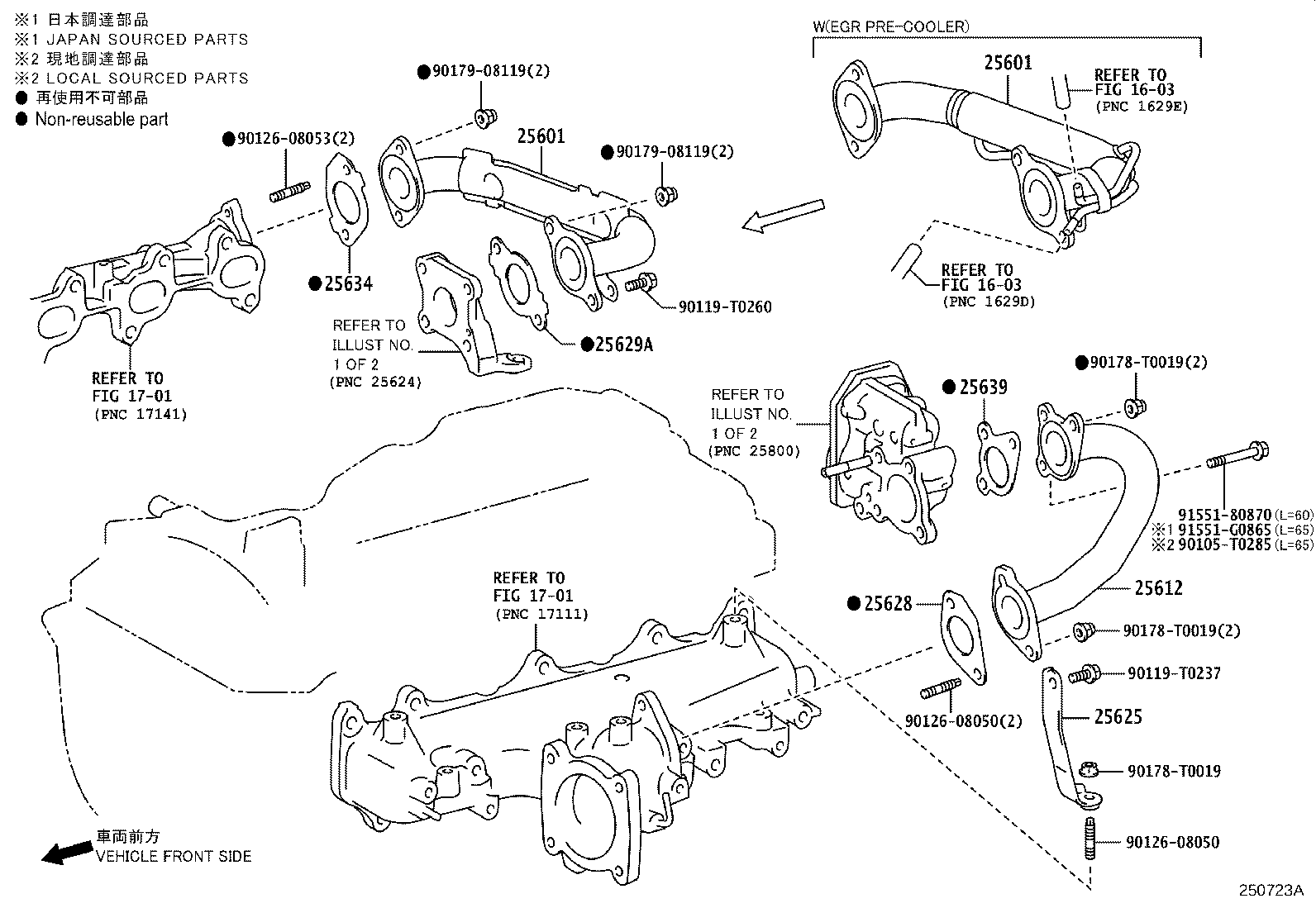

ILLUST NO. 2 OF 2(1506- )

Click highlighted areas on diagram

diagram 1603 1603 1701 1701 25601 25601 25612 25625 25628 25629A 25634 25639 90105T0285 90119T0237 90119T0260 9012608050 9012608050 9012608053 90178T0019 90178T0019 90178T0019 9017908119 9017908119 9155180870 91551G0865
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-11050

2GDFTV..GUN125;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

 1
25601-11050

2GDFTV..GUN125,135..DCRE

(J)

 1
25601-0E020

2GDFTV..GUN125,135..DCRE

(L)

 1
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-11050

2GDFTV..GUN125;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

 1
25601-11050

2GDFTV..GUN125,135..DCRE

(J)

 1
25601-0E020

2GDFTV..GUN125,135..DCRE

(L)

 1
25612 - PIPE, EGR, NO.2
25612-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

THA SOURCED PARTS

 1
25625 - BRACKET, EGR VALVE
25625-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

THA SOURCED PARTS

 1
25628 - GASKET, EGR INLET
25628-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

THA SOURCED PARTS

 1
25629A - GASKET, EGR PIPE, NO.2
25629-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

(L)

 1
25639 - GASKET, EGR PIPE, NO.3
25639-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

THA SOURCED PARTS

 1
Common parts
90105-T0285
90119-T0237
90119-T0260
90126-08050
90126-08053
90178-T0019
90179-08119
91551-80870
91551-G0865
Linked diagrams
1603
1701

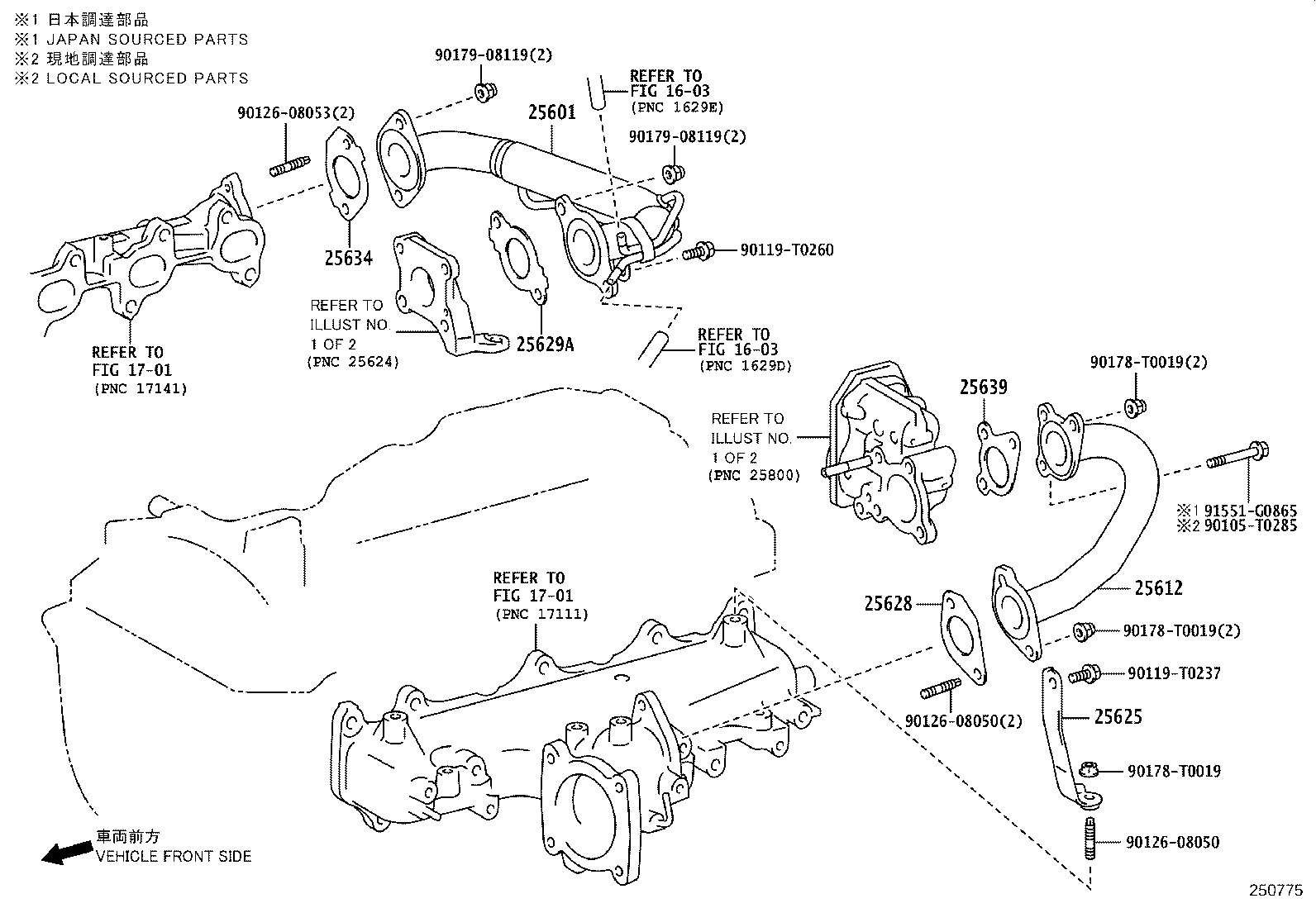

ILLUST NO. 2 OF 2(2006- )

Click highlighted areas on diagram

diagram 1603 1701 1701 25601 25612 25625 25628 25629A 25634 25639 90105T0285 90119T0237 90119T0260 9012608050 9012608050 9012608053 90178T0019 90178T0019 90178T0019 9017908119 9017908119 91551G0865
Part # Description Qty Price
Common parts
90105-T0285
90119-T0237
90119-T0260
90126-08050
90126-08053
90178-T0019
90179-08119
91551-G0865
Linked diagrams
1603
1701

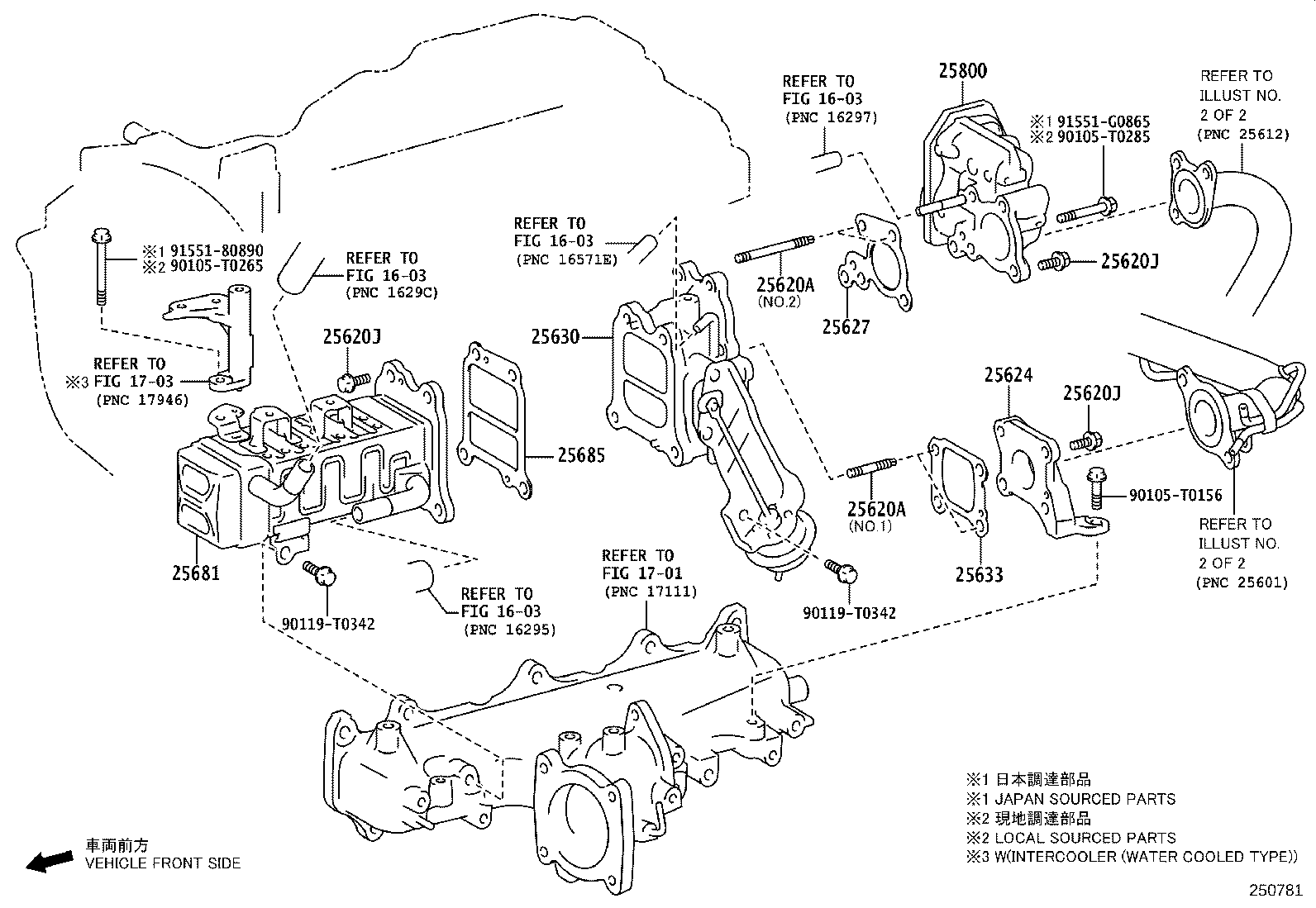

ILLUST NO. 1 OF 2(2006- )

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1701 1703 25620A 25620A 25620J 25620J 25620J 25624 25627 25630 25633 25681 25685 25800 90105T0156 90105T0265 90105T0285 90119T0342 90119T0342 9155180890 91551G0865
Part # Description Qty Price
Common parts
90105-T0156
90105-T0265
90105-T0285
90119-T0342
91551-80890
91551-G0865
Linked diagrams
1603
1701
1703
