GUN125R-DNTMXW (2019)

Toyota Hilux

Production Jun 2019 - Sep 2020
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0507- )

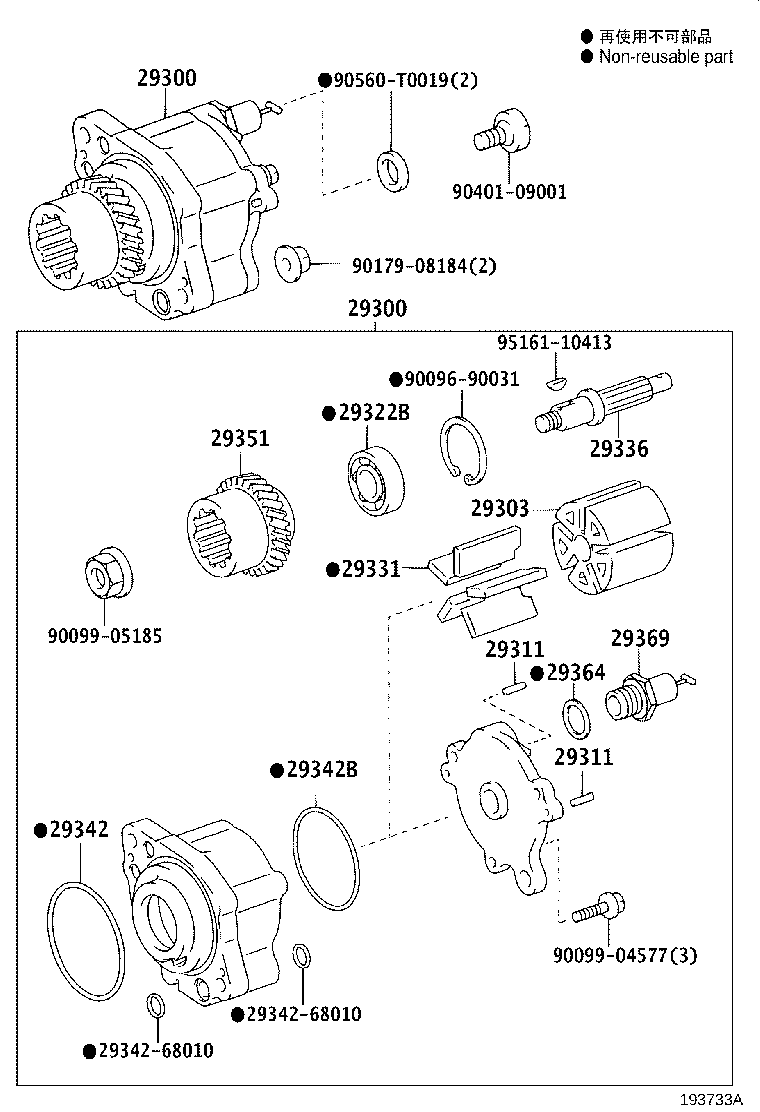

Click highlighted areas on diagram

diagram 29300 29300 29303 29311 29311 29322B 29331 29336 29342 2934268010 2934268010 29342B 29351 29364 29369 9009690031 9009904577 9009905185 9017908184 9040109001 90560T0019 9516110413
Part # Description Qty Price
Common parts
29342-68010
90096-90031
90099-04577
90099-05185
90179-08184
90401-09001
90560-T0019
95161-10413

(1506- )

Click highlighted areas on diagram

diagram 1708 29300 29300 29300F 29314A 29329 29329 29331A 29343 29344 29345 293630E010 2936325010 4703 90105T0121 9040109001 90560T0019 90560T0019
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-0E010

1GDFTV,2GDFTV..GUN12#,135

*501

 1
29300 - PUMP ASSY, VACUUM
29300-0E010

1GDFTV,2GDFTV..GUN12#,135

*501

 1
29300F - UNION
90405-09194

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

(J)

 1
90405-T0001

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

(L)

 1
29314A - COVER, END
29314-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

(L),*501

 1
29329 - CAP, VACUUM PUMP VANE
29329-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

(L),*501

 2
29329 - CAP, VACUUM PUMP VANE
29329-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

(L),*501

 2
29331A - VANE, VACUUM PUMP
29331-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

(L),*501

 1
29343 - RING, O VACUUM PUMP, NO.1
29343-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

(L),*501

 1
29344 - RING, O VACUUM PUMP, NO.2
29344-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

(L),*501

 1
29345 - RING, O VACUUM PUMP, NO.3
29345-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

(L),*501

 1
Common parts
29363-0E010
29363-25010
90105-T0121
90401-09001
90560-T0019
Linked diagrams
1708
4703
