GUN125R-DNTMXW (2019)
Toyota Hilux
Production
Jun 2019
-
Sep 2020
Engine
2GDFTV
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

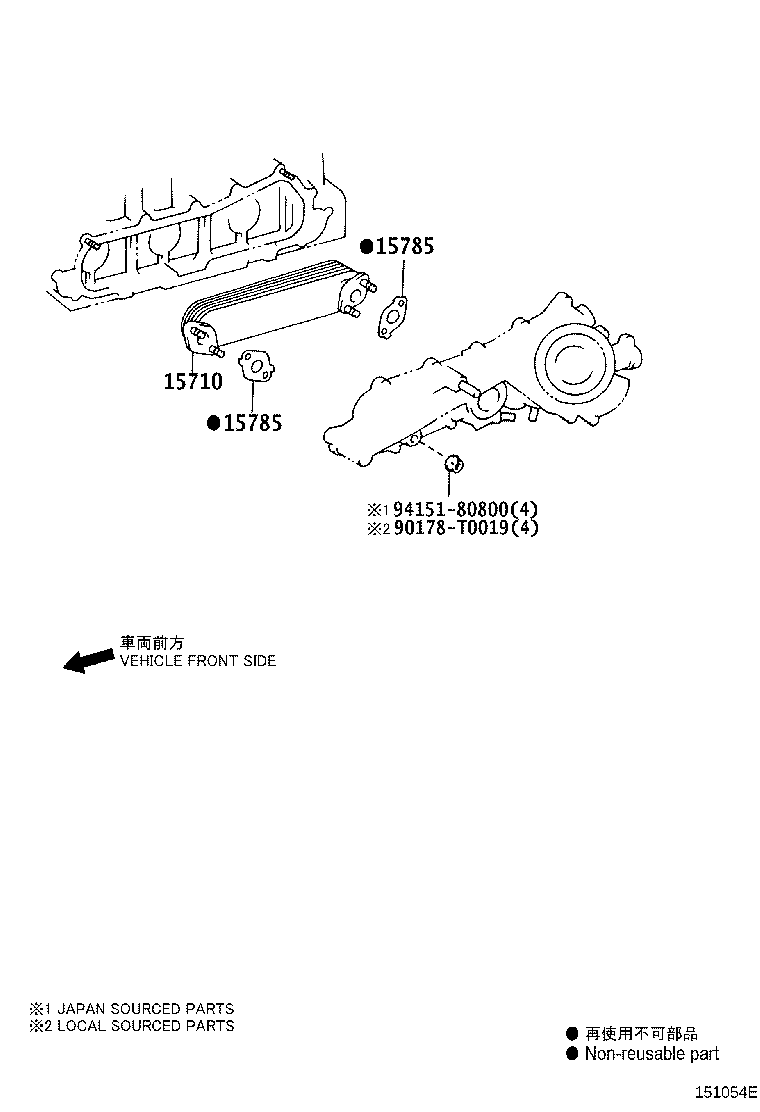

(0507- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90178-T0019 | ||||
| 94151-80800 | ||||

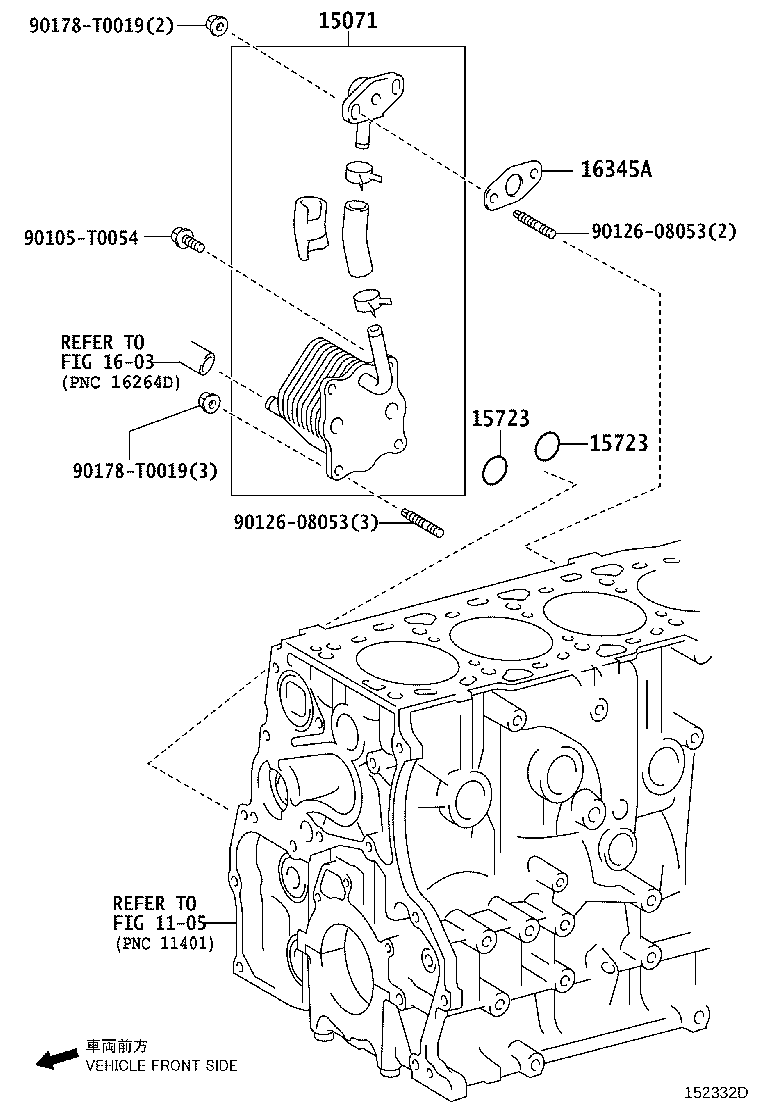

(1506- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15071 - COOLER SET, ENGINE OIL | ||||
| 15071-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 15723 - RING, O | ||||
| 90301-T0010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
2 | ||
| 15723 - RING, O | ||||
| 90301-T0010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
2 | ||
| 16345A - GASKET, WATER OUTLET PIPE | ||||
| 16345-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| Common parts | ||||
| 90105-T0054 | ||||
| 90126-08053 | ||||
| 90178-T0019 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1603 | ||||

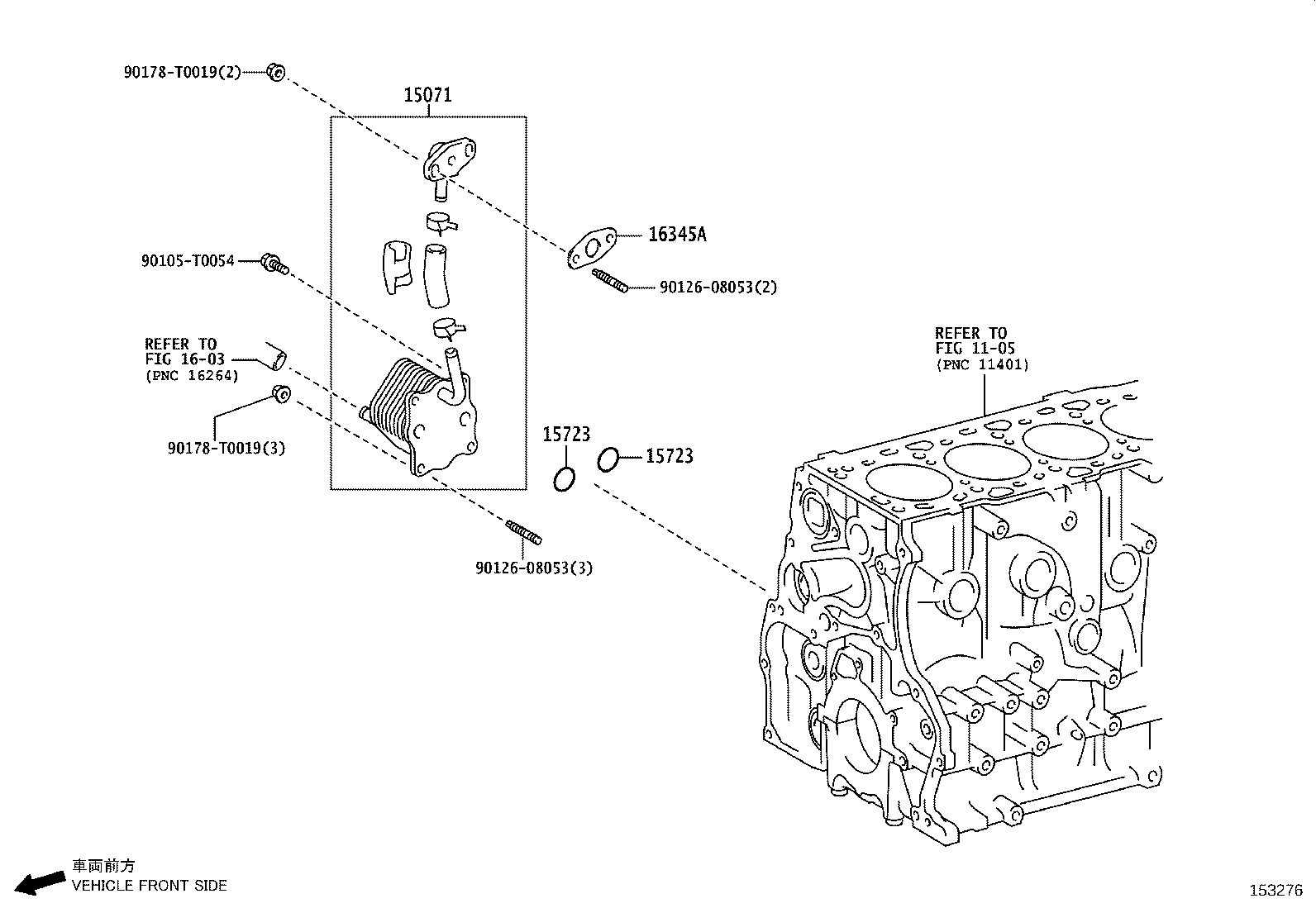

(2006- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0054 | ||||
| 90126-08053 | ||||
| 90178-T0019 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1603 | ||||
