GUN125R-DNTMXW (2019)
Toyota Hilux
(1506- )

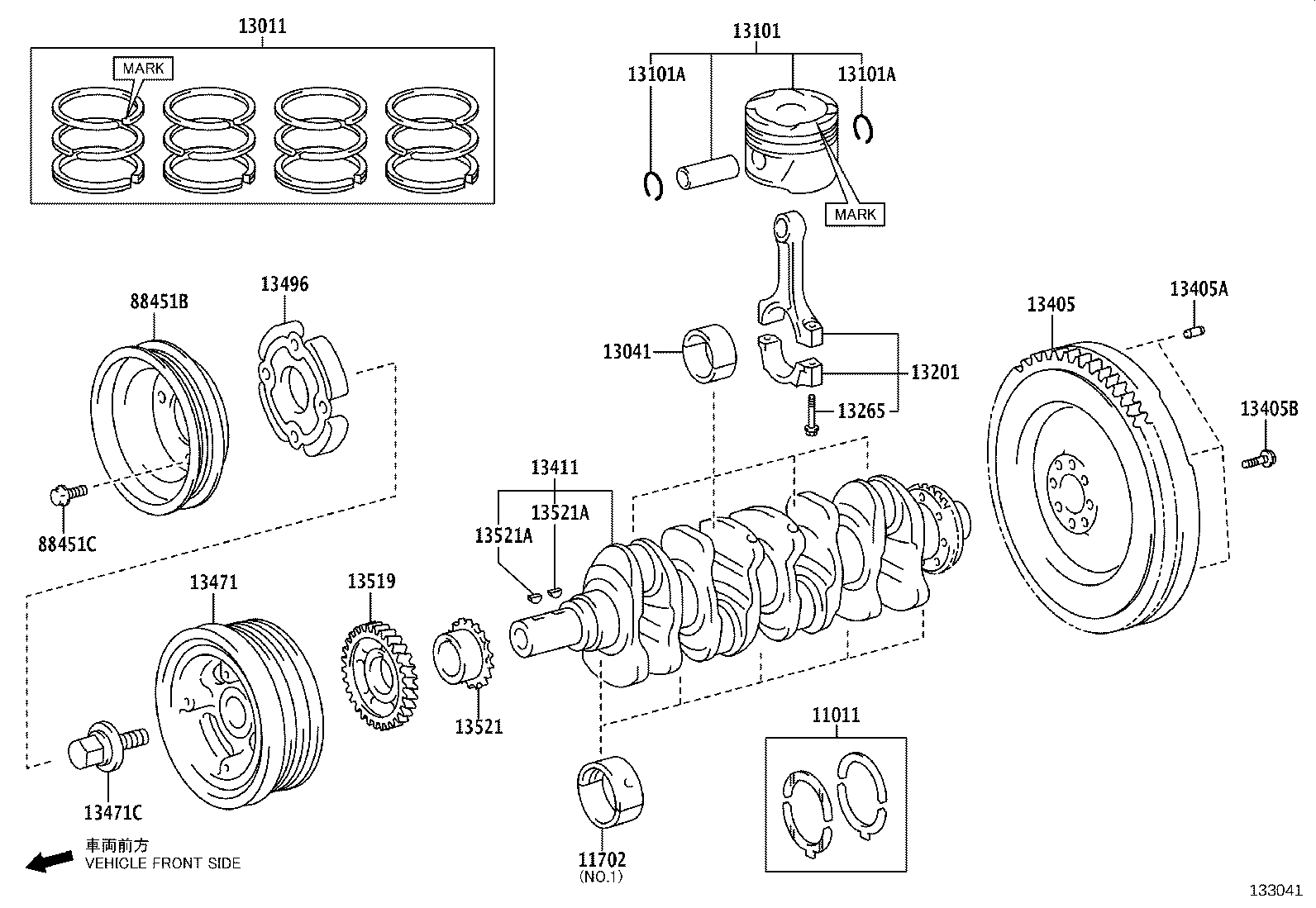

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-0L020 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB STD,(L) |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11701-0E01002 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 2,NO.1,*652 |
3 | ||
| 11701-0E01004 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 4,NO.1,*652 |
3 | ||
| 11701-0E01006 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 6,NO.1,*652 |
3 | ||
| 11701-0E02004 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 4,NO.2,*652 |
2 | ||
| 11701-0E02005 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 5,NO.2,*652 |
2 | ||
| 11701-0E01005 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 5,NO.1,*652 |
3 | ||
| 11701-0E02002 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 2,NO.2,*652 |
2 | ||
| 11701-0E02003 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 3,NO.2,*652 |
2 | ||
| 11701-0E02006 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 6,NO.2,*652 |
2 | ||
| 11701-0E01003 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 3,NO.1,*652 |
3 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11701-0E01002 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 2,NO.1,*652 |
3 | ||
| 11701-0E01004 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 4,NO.1,*652 |
3 | ||
| 11701-0E01006 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 6,NO.1,*652 |
3 | ||
| 11701-0E02004 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 4,NO.2,*652 |
2 | ||
| 11701-0E02005 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 5,NO.2,*652 |
2 | ||
| 11701-0E01005 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 5,NO.1,*652 |
3 | ||
| 11701-0E02002 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 2,NO.2,*652 |
2 | ||
| 11701-0E02003 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 3,NO.2,*652 |
2 | ||
| 11701-0E02006 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 6,NO.2,*652 |
2 | ||
| 11701-0E01003 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 3,NO.1,*652 |
3 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11701-0E01002 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 2,NO.1,*652 |
3 | ||
| 11701-0E01004 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 4,NO.1,*652 |
3 | ||
| 11701-0E01006 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 6,NO.1,*652 |
3 | ||
| 11701-0E02004 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 4,NO.2,*652 |
2 | ||
| 11701-0E02005 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 5,NO.2,*652 |
2 | ||
| 11701-0E01005 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 5,NO.1,*652 |
3 | ||
| 11701-0E02002 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 2,NO.2,*652 |
2 | ||
| 11701-0E02003 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 3,NO.2,*652 |
2 | ||
| 11701-0E02006 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 6,NO.2,*652 |
2 | ||
| 11701-0E01003 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 3,NO.1,*652 |
3 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11701-0E01002 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 2,NO.1,*652 |
3 | ||
| 11701-0E01004 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 4,NO.1,*652 |
3 | ||
| 11701-0E01006 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 6,NO.1,*652 |
3 | ||
| 11701-0E02004 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 4,NO.2,*652 |
2 | ||
| 11701-0E02005 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 5,NO.2,*652 |
2 | ||
| 11701-0E01005 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 5,NO.1,*652 |
3 | ||
| 11701-0E02002 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 2,NO.2,*652 |
2 | ||
| 11701-0E02003 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 3,NO.2,*652 |
2 | ||
| 11701-0E02006 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 6,NO.2,*652 |
2 | ||
| 11701-0E01003 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 3,NO.1,*652 |
3 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11701-0E01002 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 2,NO.1,*652 |
3 | ||
| 11701-0E01004 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 4,NO.1,*652 |
3 | ||
| 11701-0E01006 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 6,NO.1,*652 |
3 | ||
| 11701-0E02004 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 4,NO.2,*652 |
2 | ||
| 11701-0E02005 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 5,NO.2,*652 |
2 | ||
| 11701-0E01005 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 5,NO.1,*652 |
3 | ||
| 11701-0E02002 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 2,NO.2,*652 |
2 | ||
| 11701-0E02003 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 3,NO.2,*652 |
2 | ||
| 11701-0E02006 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 6,NO.2,*652 |
2 | ||
| 11701-0E01003 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 3,NO.1,*652 |
3 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11701-0E01002 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 2,NO.1,*652 |
3 | ||
| 11701-0E01004 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 4,NO.1,*652 |
3 | ||
| 11701-0E01006 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 6,NO.1,*652 |
3 | ||
| 11701-0E02004 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 4,NO.2,*652 |
2 | ||
| 11701-0E02005 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 5,NO.2,*652 |
2 | ||
| 11701-0E01005 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 5,NO.1,*652 |
3 | ||
| 11701-0E02002 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 2,NO.2,*652 |
2 | ||
| 11701-0E02003 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 3,NO.2,*652 |
2 | ||
| 11701-0E02006 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 6,NO.2,*652 |
2 | ||
| 11701-0E01003 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 3,NO.1,*652 |
3 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11701-0E01002 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 2,NO.1,*652 |
3 | ||
| 11701-0E01004 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 4,NO.1,*652 |
3 | ||
| 11701-0E01006 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 6,NO.1,*652 |
3 | ||
| 11701-0E02004 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 4,NO.2,*652 |
2 | ||
| 11701-0E02005 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 5,NO.2,*652 |
2 | ||
| 11701-0E01005 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 5,NO.1,*652 |
3 | ||
| 11701-0E02002 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 2,NO.2,*652 |
2 | ||
| 11701-0E02003 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 3,NO.2,*652 |
2 | ||
| 11701-0E02006 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 6,NO.2,*652 |
2 | ||
| 11701-0E01003 |
2GDFTV..GUN135..6FC;2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE MARK 3,NO.1,*652 |
3 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-0E041 |
2GDFTV..GUN125,135..DCRE STD,MARK=1H,*652 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0E01003 |
2GDFTV..GUN125;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB MARK 3,THA SOURCED PARTS |
4 | ||
| 13041-0E01002 |
2GDFTV..GUN125;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB MARK 2,THA SOURCED PARTS |
4 | ||
| 13041-0E01004 |
2GDFTV..GUN125;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB MARK 4,THA SOURCED PARTS |
4 | ||
| 13041-0E01006 |
2GDFTV..GUN125;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB MARK 6,THA SOURCED PARTS |
4 | ||
| 13041-0E01005 |
2GDFTV..GUN125;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB MARK 5,THA SOURCED PARTS |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-32013 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB |
8 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-32013 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB |
8 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-22031 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-0E030 |
2GDFTV..GUN125..6F;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..6F THA SOURCED PARTS |
1 | ||
| 13405-0E020 |
1GDFTV,2GDFTV..GUN12#,135..6FC THA SOURCED PARTS |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-T0013 |
1GDFTV,2GDFTV..GUN12#,135..6FC L=15,OD=5,(L) |
1 | ||
| 90250-T0008 |
2GDFTV..GUN125..6F;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..6F L=22,OD=10,(L) |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-T0113 |
1GDFTV,2GDFTV..GUN12#..6FC (L) |
8 | ||
| 90105-T0113 |
2GDFTV..GUN125..6F;2GDFTV..GUN135..SAXTR..S;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..6F (L) |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-0E010 |
2GDFTV..GUN125;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB THA SOURCED PARTS |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB THA SOURCED PARTS |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-T0218 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB (L) |
1 | ||
| 13496 - COVER, CRANKSHAFT PULLY | ||||
| 13496-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB |
1 | ||
| 13519 - GEAR, OIL PUMP DRIVE | ||||
| 13519-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB THA SOURCED PARTS |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB THA SOURCED PARTS |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-T0002 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB (L) |
2 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-T0002 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB (L) |
2 | ||
| 88451B - PULLEY, CRANKSHAFT(FOR VISCOUS HEATER) | ||||
| 88451-0K020 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 88451C - BOLT, FLANGE W/WASHER | ||||
| 90119-T0236 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
4 | ||

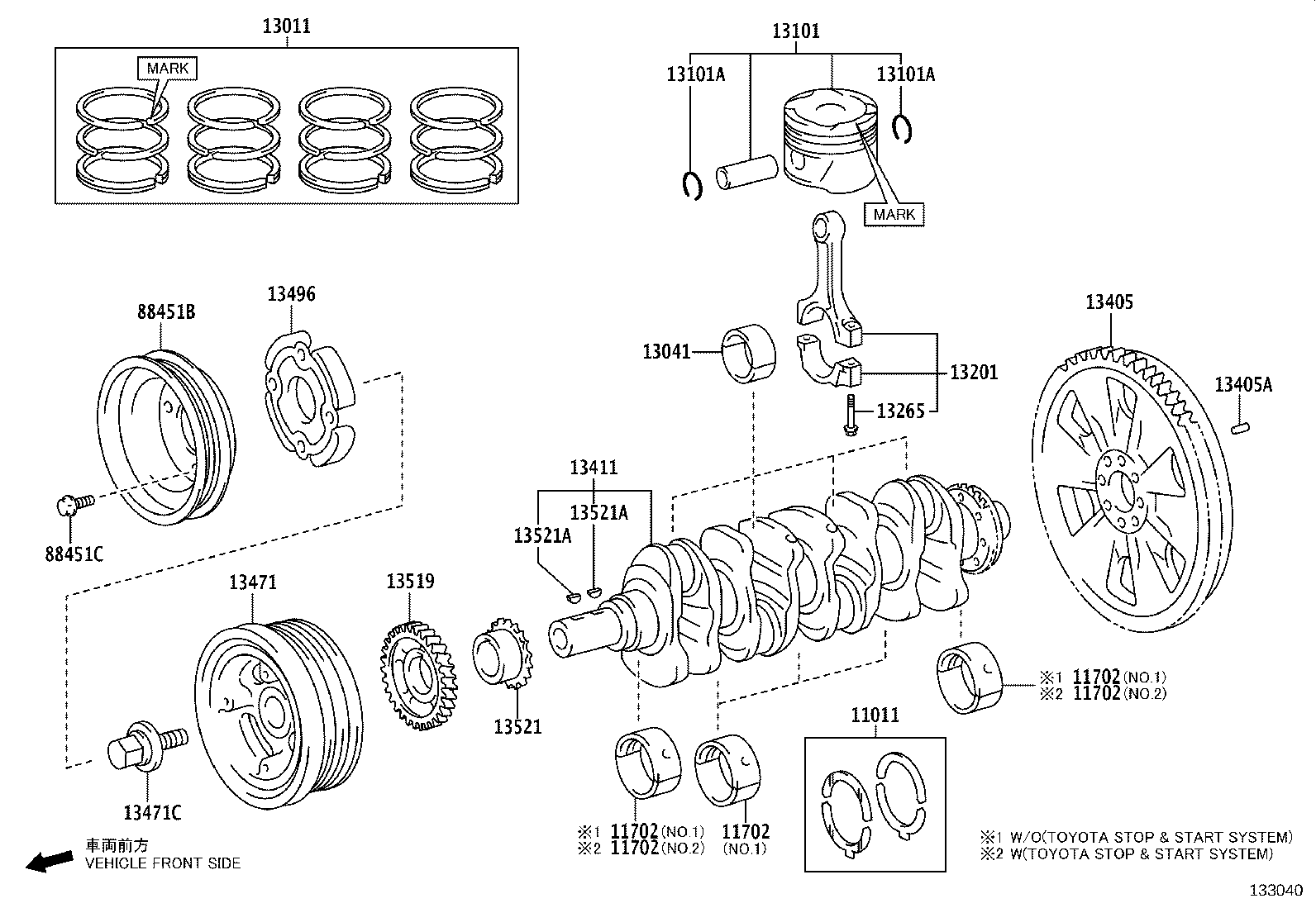

(2006- )1GDFTV,2GDFTV..6FC
| Part # | Description | Qty | Price |
|---|

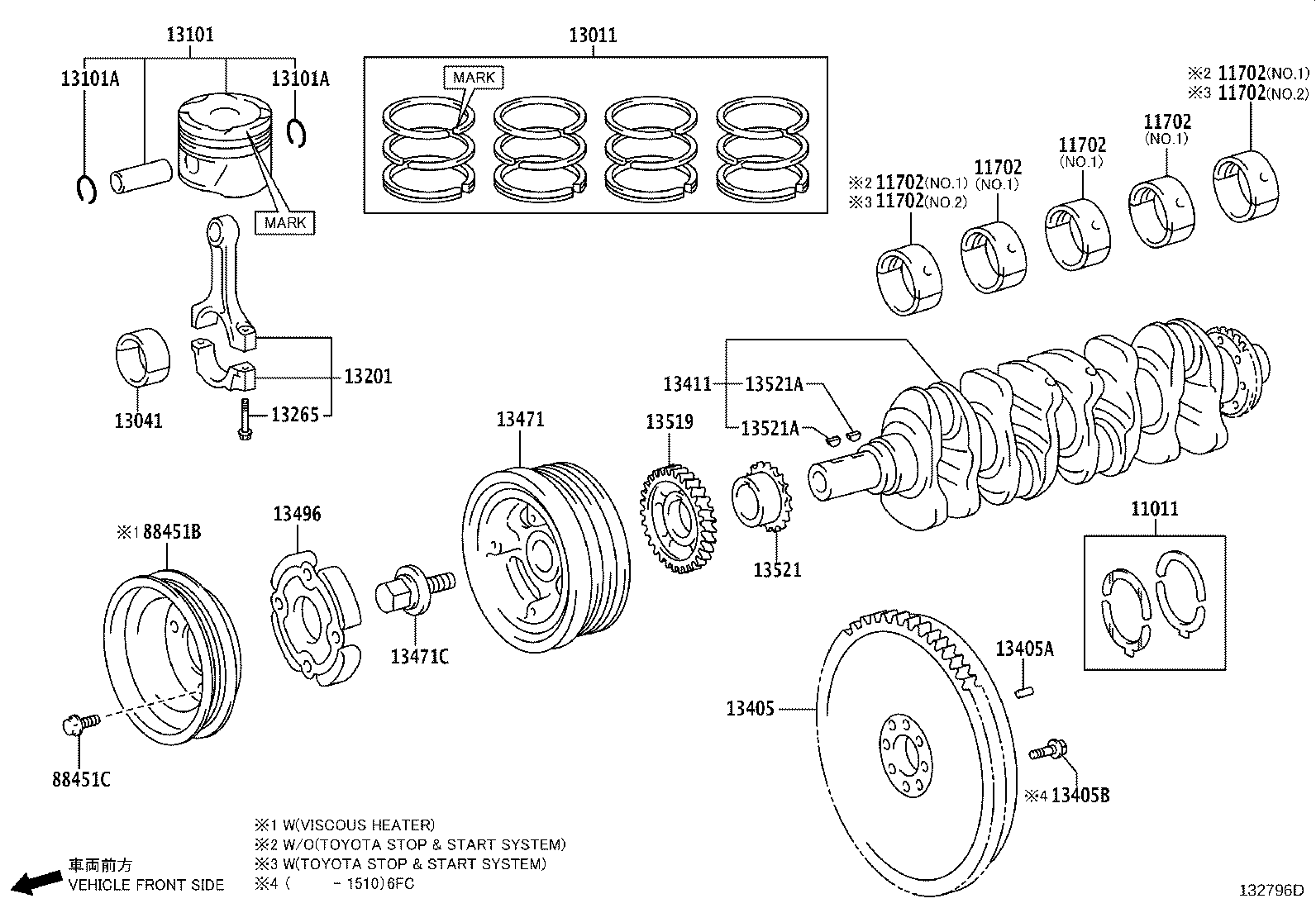

(2006- )1GDFTV,2GDFTV..6F
