GUN125R-DNTMXW (2019)

Toyota Hilux

Production Jun 2019 - Sep 2020
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

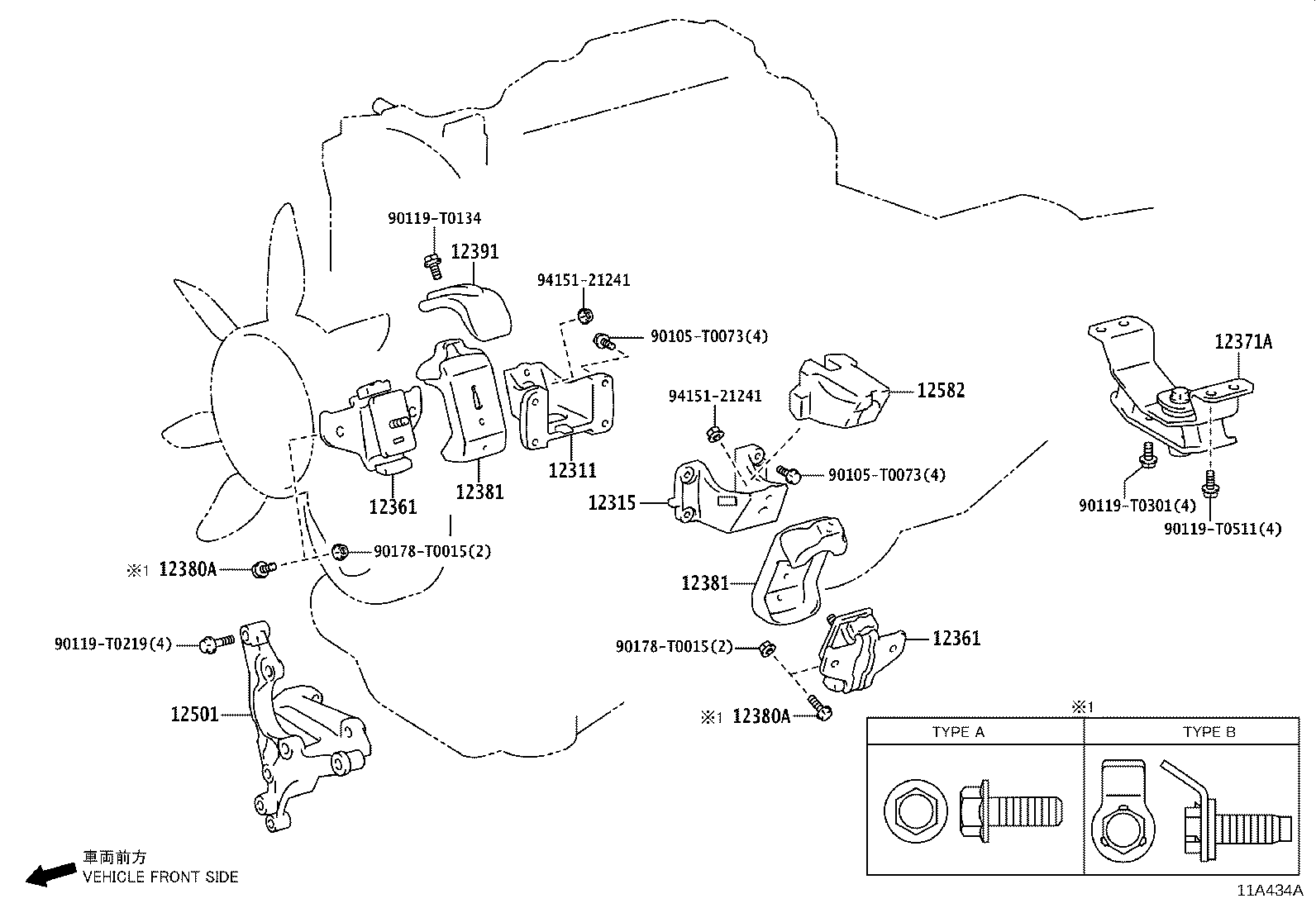

(1506- )1GDFTV,2GDFTV..GUN12#

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371A 12380A 12380A 12381 12381 12391 12501 12582 90105T0073 90105T0073 90119T0134 90119T0219 90119T0301 90119T0511 90178T0015 90178T0015 9415121241 9415121241
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-0E020

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

*582

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

*582

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-0L021

2GDFTV..GUN125,135..DCRE

*231,*501,*502,*468

 2
12361-0L020

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

*231,*501,*502,*468

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-0L021

2GDFTV..GUN125,135..DCRE

*231,*501,*502,*468

 2
12361-0L020

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

*231,*501,*502,*468

 2
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-0L210

1GDFTV,2GDFTV..GUN12#

 1
12380A - BOLT(FOR ENGINE MOUNTING INSURATOR)
90910-03003

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

TYPE B:REFER ILLUST.

 4
90105-T0174

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

TYPE A:REFER ILLUST.

 4
12380A - BOLT(FOR ENGINE MOUNTING INSURATOR)
90910-03003

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

TYPE B:REFER ILLUST.

 4
90105-T0174

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

TYPE A:REFER ILLUST.

 4
12381 - STABILIZER, ENGINE MOUNTING
12381-0L081

2GDFTV..GUN125,135..DCRE

*231,*501,*502,*468

 2
12381-0L080

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

*231,*501,*502,*468

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-0L081

2GDFTV..GUN125,135..DCRE

*231,*501,*502,*468

 2
12381-0L080

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

*231,*501,*502,*468

 2
12501 - BRACKET SUB-ASSY, ALTERNATOR
12501-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..S;2GDFTV..GUN135..SADCB,SASCB,THDCB

*582

 1
12582 - INSULATOR, CYLINDER BLOCK, NO.2
12582-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

*582

 1
Common parts
90105-T0073
90119-T0134
90119-T0219
90119-T0301
90119-T0511
90178-T0015
94151-21241

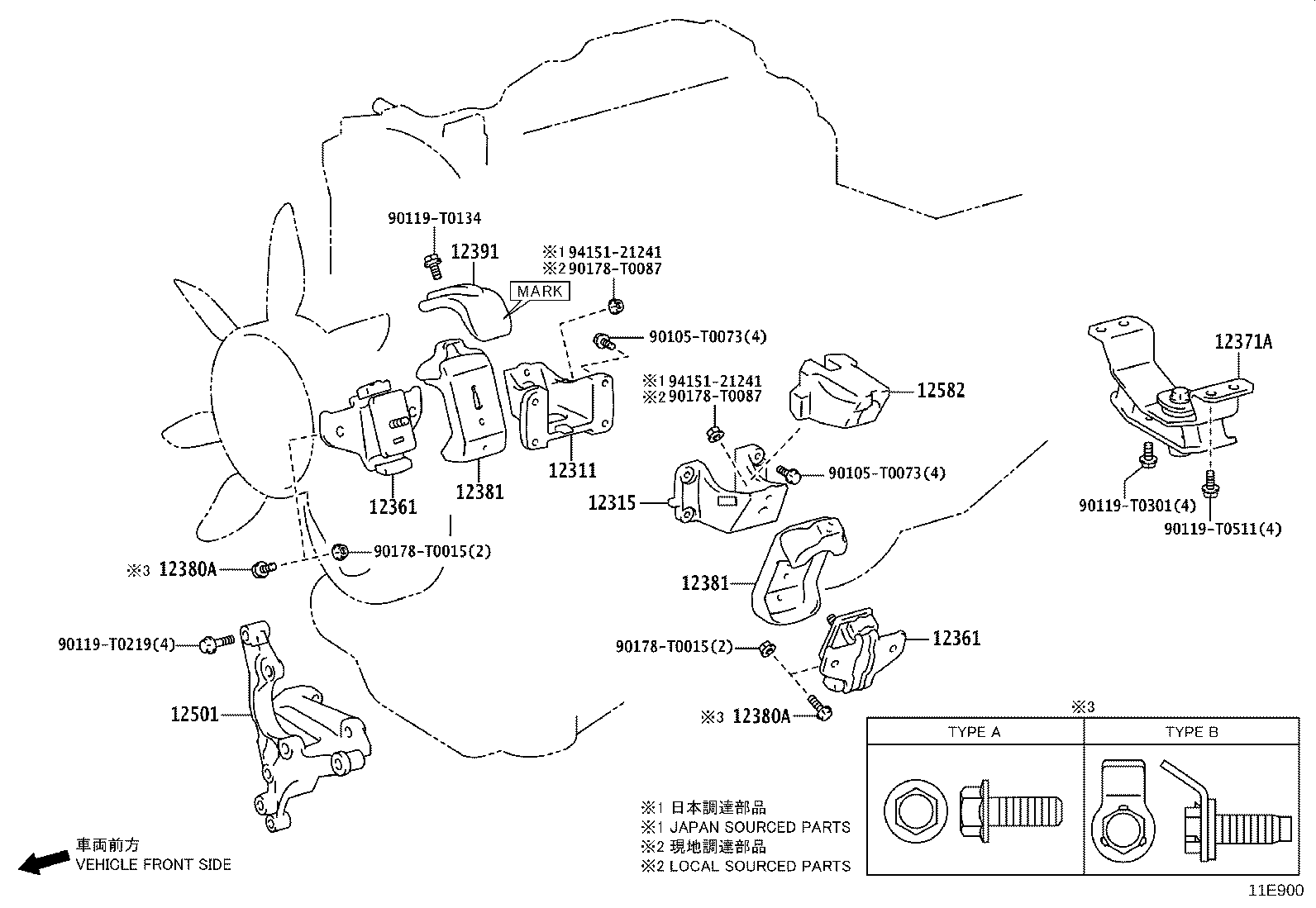

(2006- )1GDFTV,2GDFTV..GUN12#

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371A 12380A 12380A 12381 12381 12391 12501 12582 90105T0073 90105T0073 90119T0134 90119T0219 90119T0301 90119T0511 90178T0015 90178T0015 90178T0087 90178T0087 9415121241 9415121241
Part # Description Qty Price
Common parts
90105-T0073
90119-T0134
90119-T0219
90119-T0301
90119-T0511
90178-T0015
90178-T0087
94151-21241
