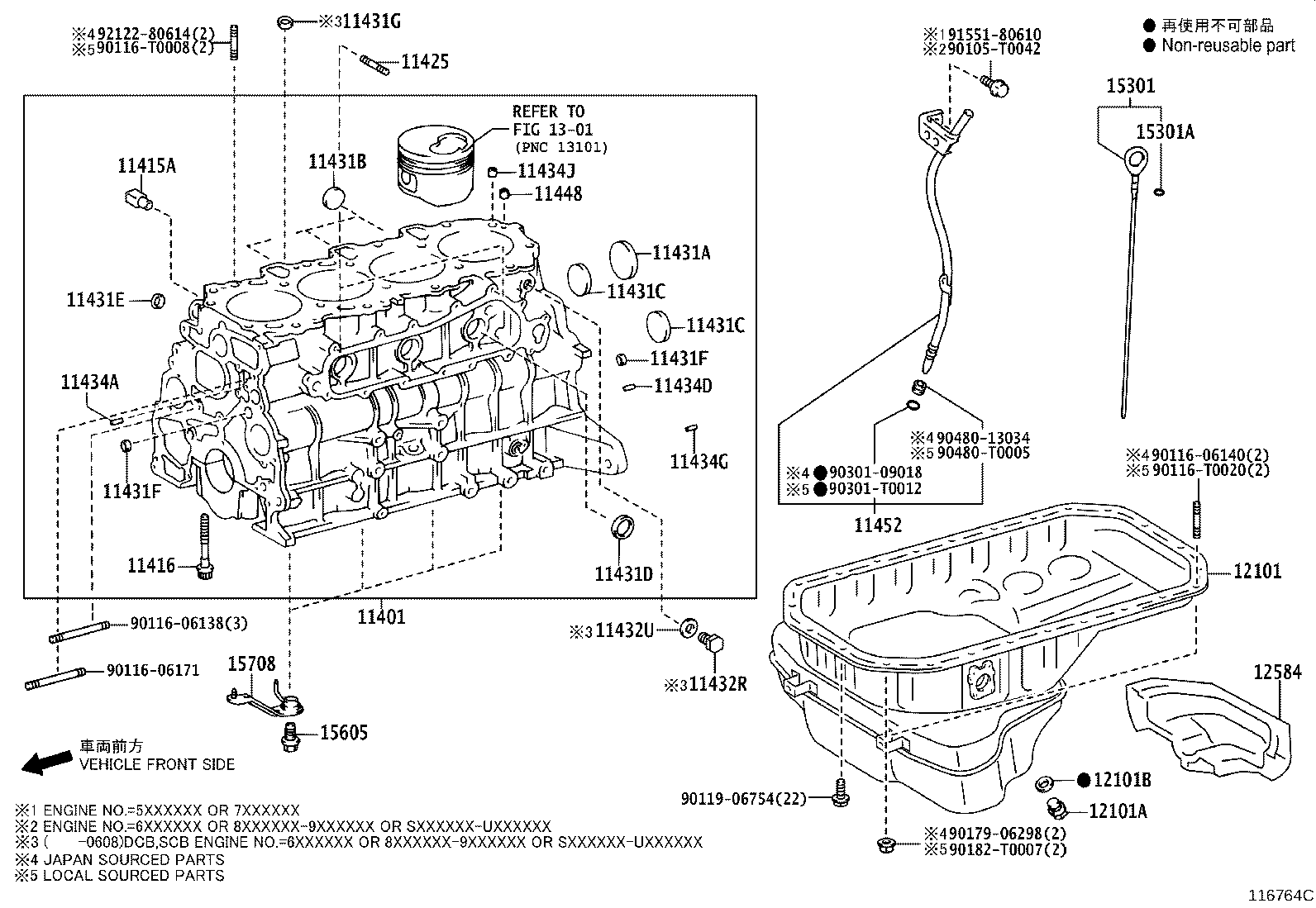

GUN125R-DNTMXW (2019)
Toyota Hilux
(0507- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0042 | ||||
| 90116-06138 | ||||
| 90116-06140 | ||||
| 90116-06171 | ||||
| 90116-T0008 | ||||
| 90116-T0020 | ||||
| 90119-06754 | ||||
| 90179-06298 | ||||
| 90182-T0007 | ||||
| 90301-09018 | ||||
| 90301-T0012 | ||||
| 90480-13034 | ||||
| 90480-T0005 | ||||
| 91551-80610 | ||||
| 92122-80614 | ||||
| Linked diagrams | ||||
| 1301 | ||||

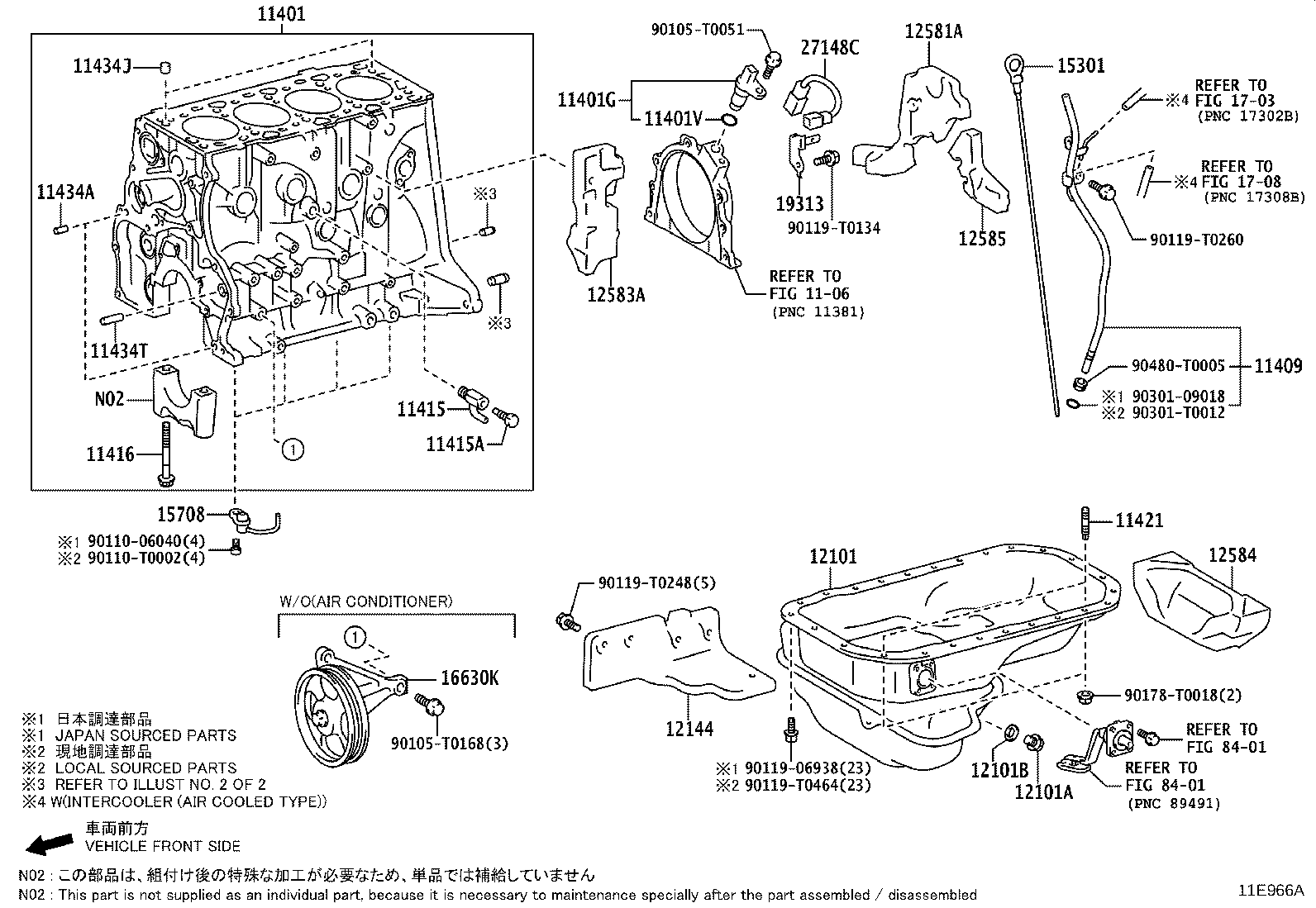

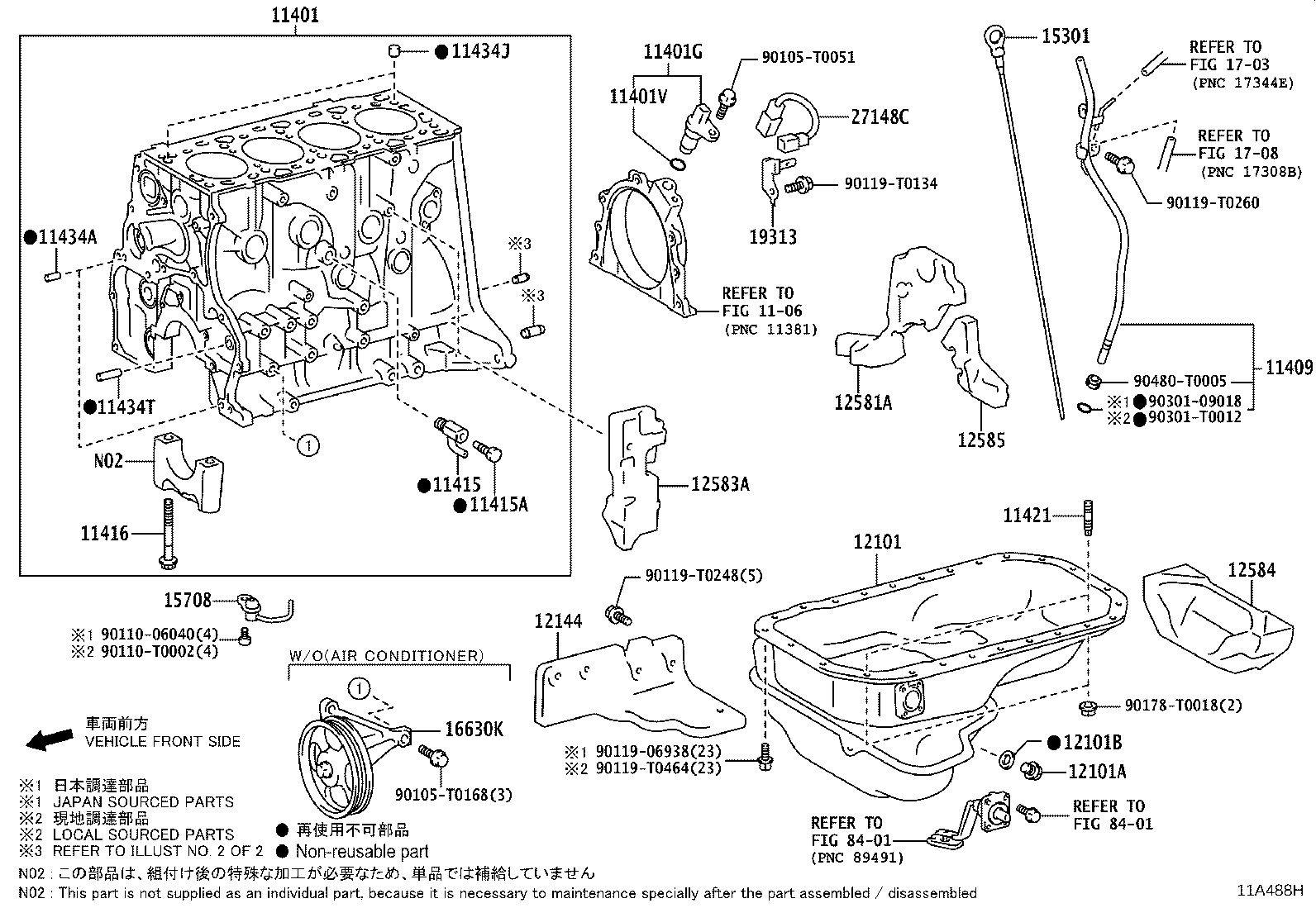

ILLUST NO. 1 OF 2(1506- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-09841 |
2GDFTV..GUN125,135..DCRE |
1 | ||
| 11401G - SENSOR, CRANK POSITION | ||||
| 90919-05073 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB |
1 | ||
| 11401V - O-RING, CRANK POSITION SENSOR | ||||
| 90301-14016 |
2GDFTV..GUN125,135..DCRE;2GDFTV..GUN125..THDCB..6F..S..HDCR;1GDFTV,2GDFTV..GUN12#..THDCB..(H,M)..HDCR |
1 | ||
| 11409 - GUIDE SUB-ASSY, OIL LEVEL GAGE | ||||
| 11409-0E010 |
1GDFTV,2GDFTV..GUN12#,135 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09128 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
1GDFTV,2GDFTV..GUN12#,135 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-T2009 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
10 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90126-06028 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB |
2 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-T0007 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB L=18,OD=8,*582 |
2 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-T0002 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
2 | ||
| 11434T - PIN, RING(FOR TIMING BELT IDLER BRACKET SET) | ||||
| 90250-10030 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB (J) |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-T0004 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90080-43030 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 12144 - SILENCER, OIL PAN COVER | ||||
| 12144-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 12581A - INSULATOR, CYLINDER BLOCK, NO.1 | ||||
| 12581-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 12583A - INSULATOR, CYLINDER BLOCK, NO.3 | ||||
| 12583-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 12584 - INSULATOR, CYLINDER BROCK, NO.4 | ||||
| 12584-0E010 |
1GDFTV,2GDFTV..GUN12#,135 |
1 | ||
| 12585 - INSULATOR, CYLINDER BROCK, NO.5 | ||||
| 12585-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..S;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB (L) |
4 | ||
| 16630K - PULLEY ASSY, IDLER | ||||
| 16630-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB |
1 | ||
| 19313 - BRACKET, CRANK POSITION SENSOR HARNESS | ||||
| 19313-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 27148C - WIRE, CONNECTING | ||||
| 27148-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB MADE IN THAILAND |
1 | ||
| Common parts | ||||
| 90105-T0051 | ||||
| 90105-T0168 | ||||
| 90110-06040 | ||||
| 90110-T0002 | ||||
| 90119-06938 | ||||
| 90119-T0134 | ||||
| 90119-T0248 | ||||
| 90119-T0260 | ||||
| 90119-T0464 | ||||
| 90178-T0018 | ||||
| 90301-09018 | ||||
| 90301-T0012 | ||||
| 90480-T0005 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1703 | ||||
| 1708 | ||||
| 8401 | ||||

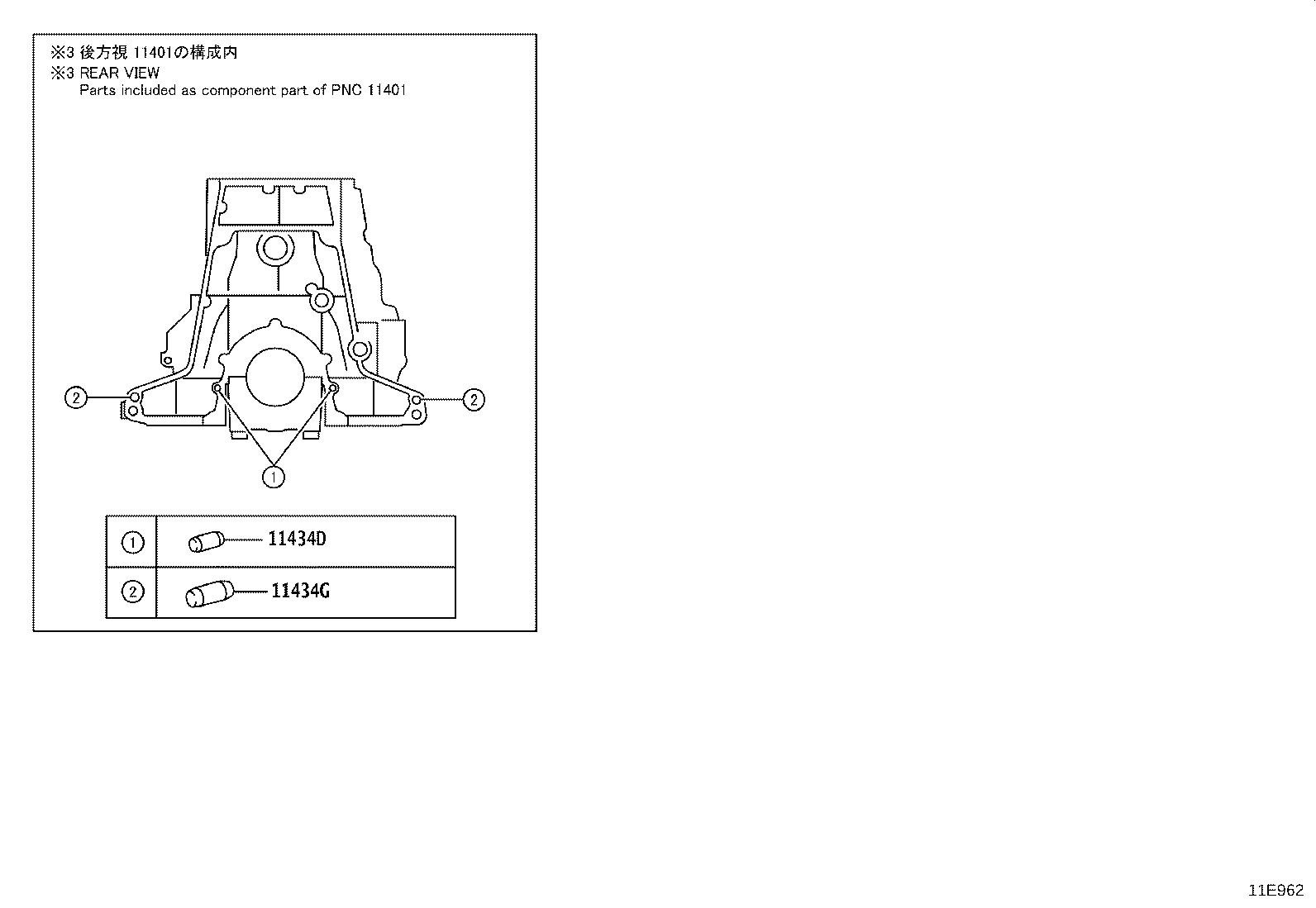

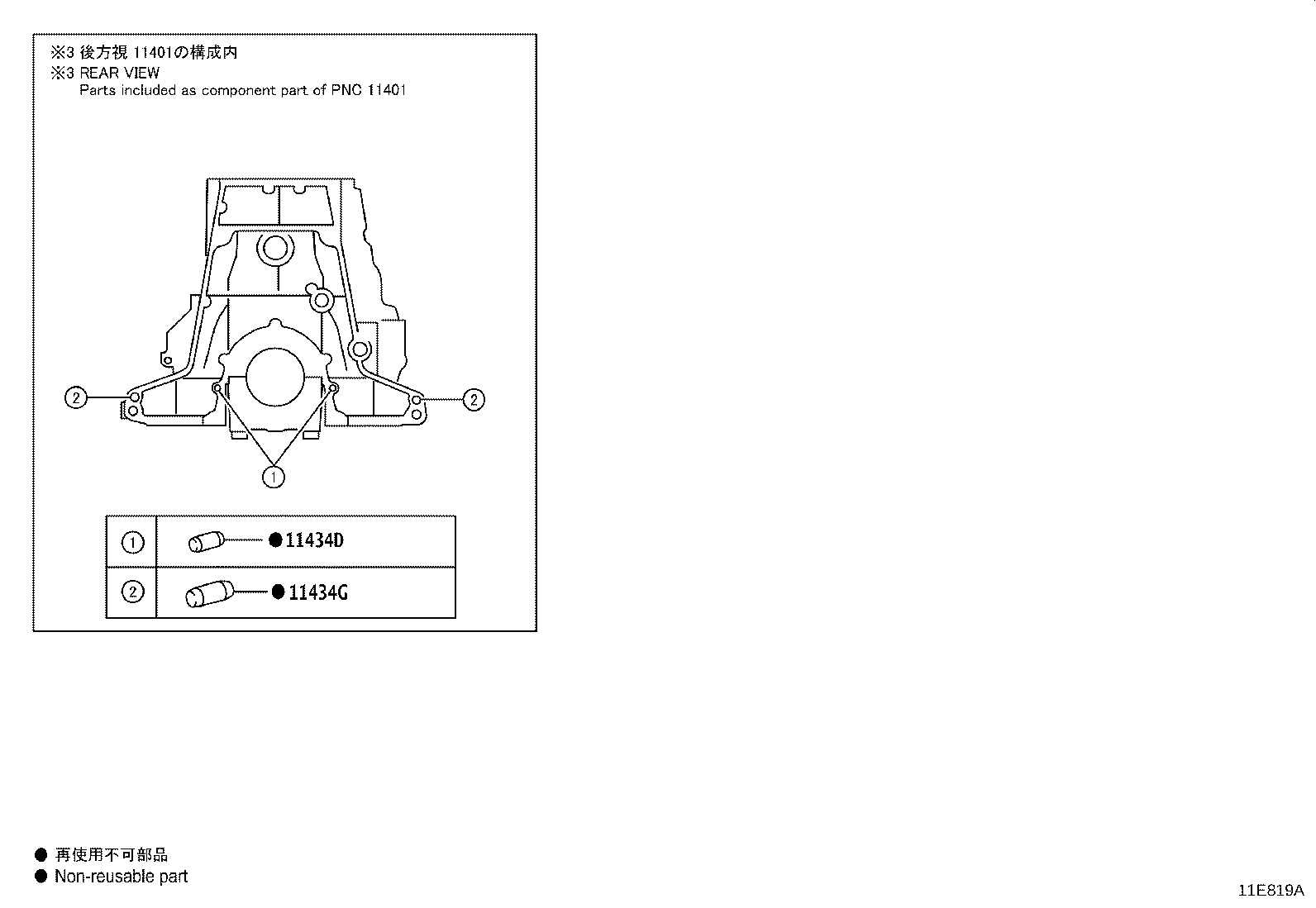

ILLUST NO. 2 OF 2(1506- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-T0012 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB L=11,OD=6,*582 |
2 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-T0008 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
2 | ||
ILLUST NO. 2 OF 2(2006- )
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 1 OF 2(2006- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0051 | ||||
| 90105-T0168 | ||||
| 90110-06040 | ||||
| 90110-T0002 | ||||
| 90119-06938 | ||||
| 90119-T0134 | ||||
| 90119-T0248 | ||||
| 90119-T0260 | ||||
| 90119-T0464 | ||||
| 90178-T0018 | ||||
| 90301-09018 | ||||
| 90301-T0012 | ||||
| 90480-T0005 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1703 | ||||
| 1708 | ||||
| 8401 | ||||
