GUN125R-DNFSHW (2016)

Toyota Hilux

Production Apr 2016 - May 2019
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1604- )RHD

Click highlighted areas on diagram

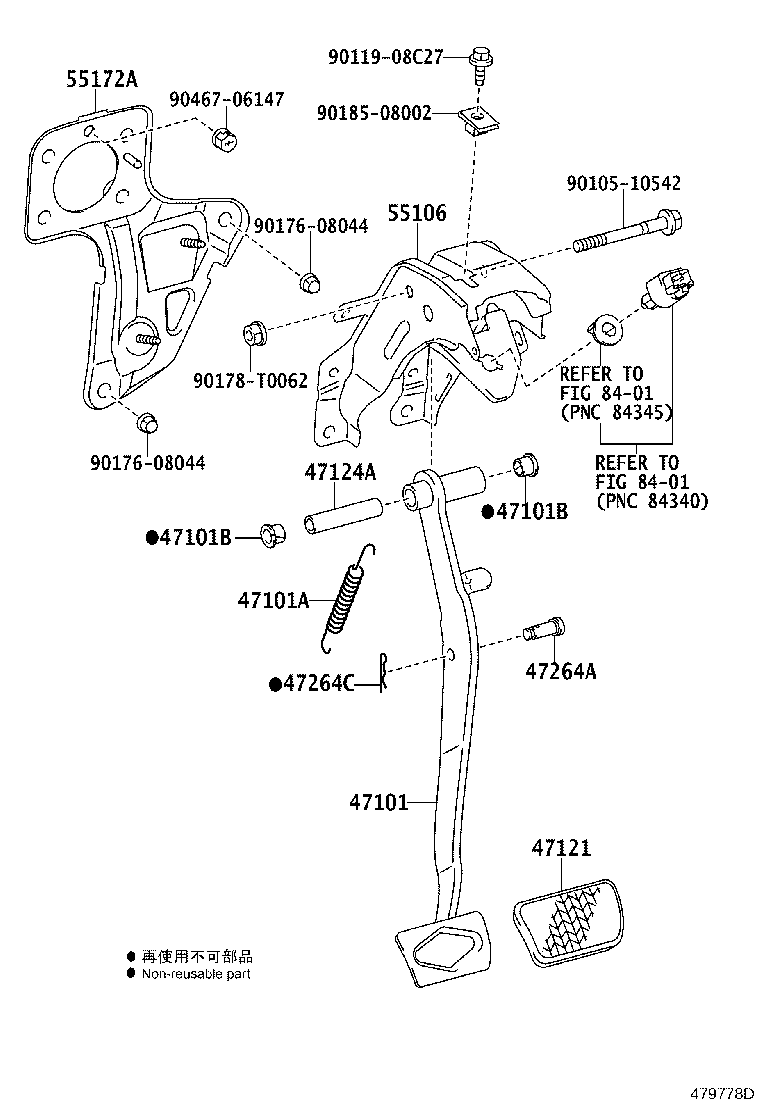

diagram 47101 47101A 47101B 47101B 47121 47124A 47264A 47264C 55106 55172A 8401 8401 9010510542 9011908C27 9017608044 9017608044 90178T0062 9018508002 9046706147
Part # Description Qty Price
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-T0002

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 2
47121 - PAD, BRAKE PEDAL
31321-02020

GUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10121

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 1
47264A - PIN(FOR PUSH ROD)
47148-35010

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 1
47264C - CLIP(FOR PUSH ROD CLEVIS PIN)
90468-16012

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-KK010

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 1
Common parts
90105-10542
90119-08C27
90176-08044
90178-T0062
90185-08002
90467-06147
Linked diagrams
8401
