GUN125R-DNFHHW (2016)

Toyota Hilux

Production Apr 2016 - May 2019
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

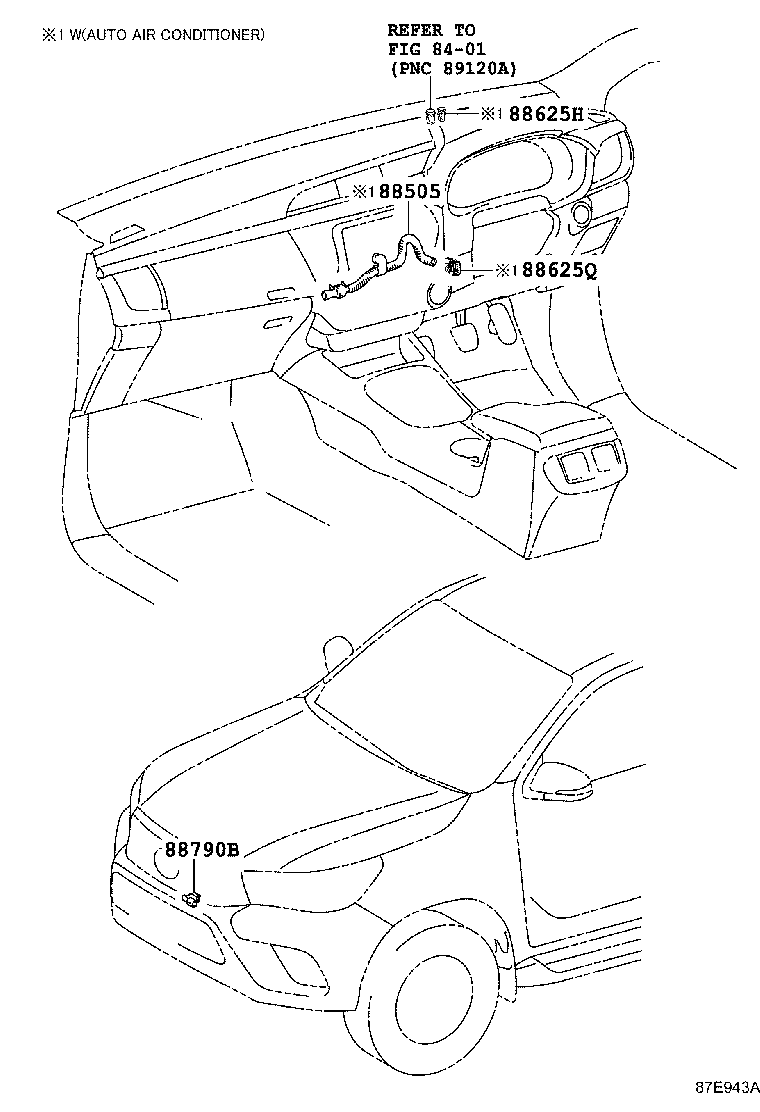

ILLUST NO. 3 OF 3(1604- )RHD

Click highlighted areas on diagram

SENSOR

diagram 8401 88505 88625H 88625Q 88790B
Part # Description Qty Price
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-0K010

GUN12#..H;GUN125,135..M..DCRE

FRONT AIR CONDITIONER-AUTO

 1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-0K020

GUN12#..H;GUN125,135..M..DCRE

FRONT AIR CONDITIONER-AUTO

 1
88790B - THERMISTOR ASSY
88790-0K010

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 1
Linked diagrams
8401

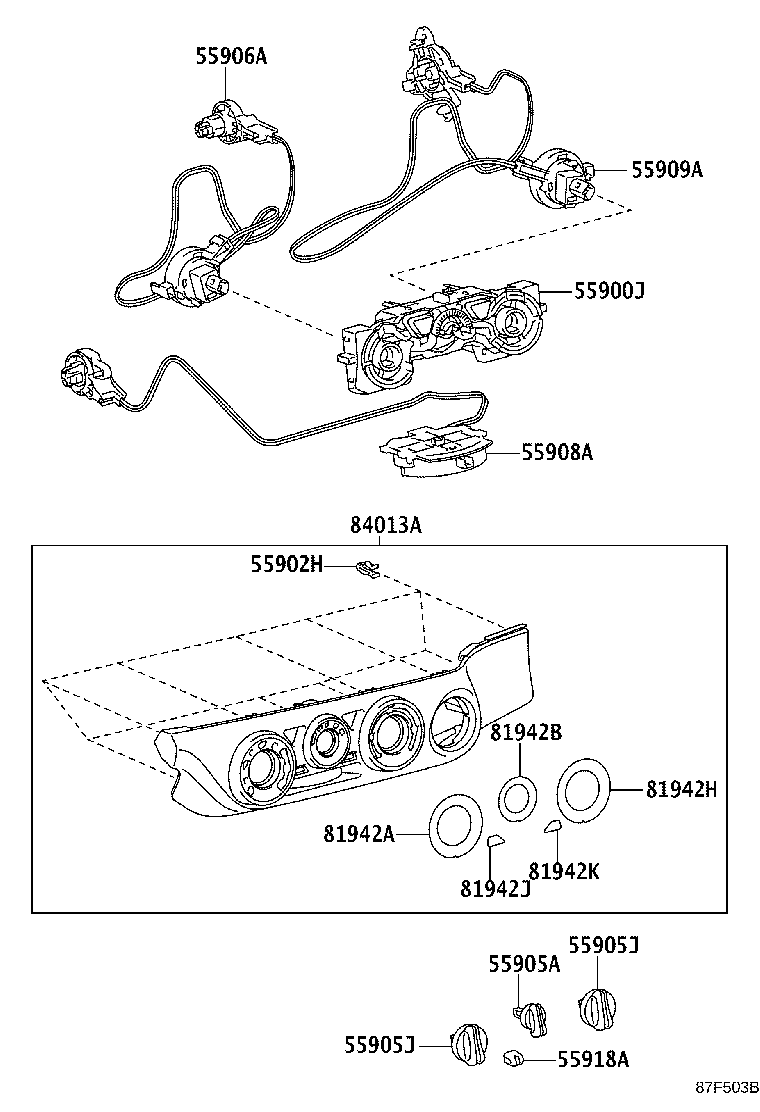

ILLUST NO. 1 OF 3(1604- )RHD

Click highlighted areas on diagram

MANUAL HEATER CONTROL

diagram 55900J 55902H 55905A 55905J 55905J 55906A 55908A 55909A 55918A 81942A 81942B 81942H 81942J 81942K 84013A
Part # Description Qty Price
55902H - CLIP(FOR AIR CONDITIONER PANEL)
90467-05171

GUN135..M..HDCR;GUN135..SADCB..M..DCRE;GUN12#..(SADCB,SAXTR)..(H,M)

FRONT AIR CONDITIONER-AUTO

 9
90467-05171

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 9
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-0K060

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 1
55906-0K060

GUN135..M..HDCR;GUN135..SADCB..M..DCRE;GUN12#..(SADCB,SAXTR)..(H,M)

FRONT AIR CONDITIONER-AUTO

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-0K060

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 1
55909-0K060

GUN135..M..HDCR;GUN135..SADCB..M..DCRE;GUN12#..(SADCB,SAXTR)..(H,M)

FRONT AIR CONDITIONER-AUTO

 1
84013A - PANEL SUB-ASSY, INTEGRATION
55406-KK150C0

GUN125..RHD..(H,M)

FRONT AIR CONDITIONER-AUTO,BLACK,TRIM2#,3#,4#

 1
55406-KK150C0

GUN125..RHD..(H,M)

BLACK,TRIM2#,3#,4#

 1

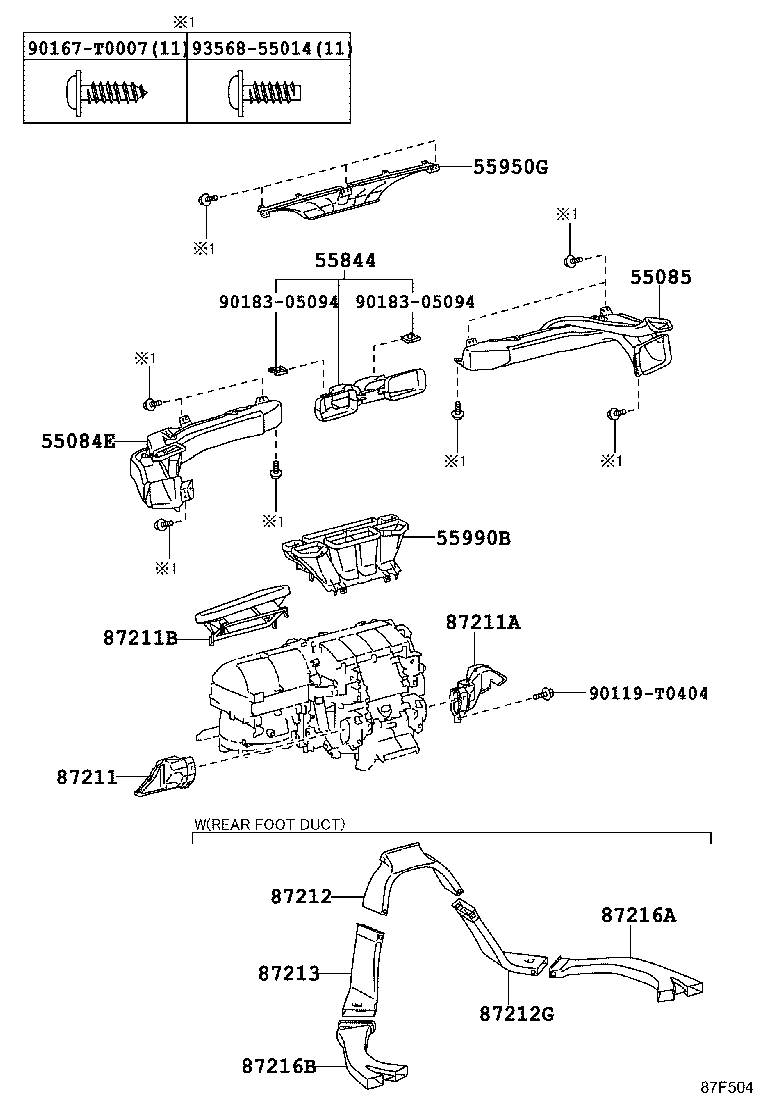

ILLUST NO. 2 OF 3(1604- )RHD

Click highlighted areas on diagram

AIR DUCT

diagram 55084E 55085 55844 55950G 55990B 87211 87211A 87211B 87212 87212G 87213 87216A 87216B 90119T0404 90167T0007 9018305094 9018305094 9356855014
Part # Description Qty Price
55950G - NOZZLE ASSY, DEFROSTER
55950-KK030

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 1
55990B - NOZZLE ASSY, DEFROSTER, LOWER
55990-KK020

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 1
87212 - DUCT, AIR, REAR NO.1
87214-KK010

GUN12#,135..SADCB,THDCB

 1
87212G - DUCT, AIR, REAR NO.3
87212-KK010

GUN12#,135..SADCB,THDCB

 1
87213 - DUCT, AIR, REAR NO.2
87213-KK010

GUN12#,135..SADCB,THDCB

 1
87216A - DUCT, AIR, REAR NO.5
87215-KK010

GUN12#,135..SADCB,THDCB

 1
87216B - DUCT, AIR, REAR NO.4
87216-KK010

GUN12#,135..SADCB,THDCB

 1
Common parts
90119-T0404
90167-T0007
90183-05094
93568-55014
