GUN125R-DNFHHW (2016)

Toyota Hilux

Production Apr 2016 - May 2019
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1604- )RHD

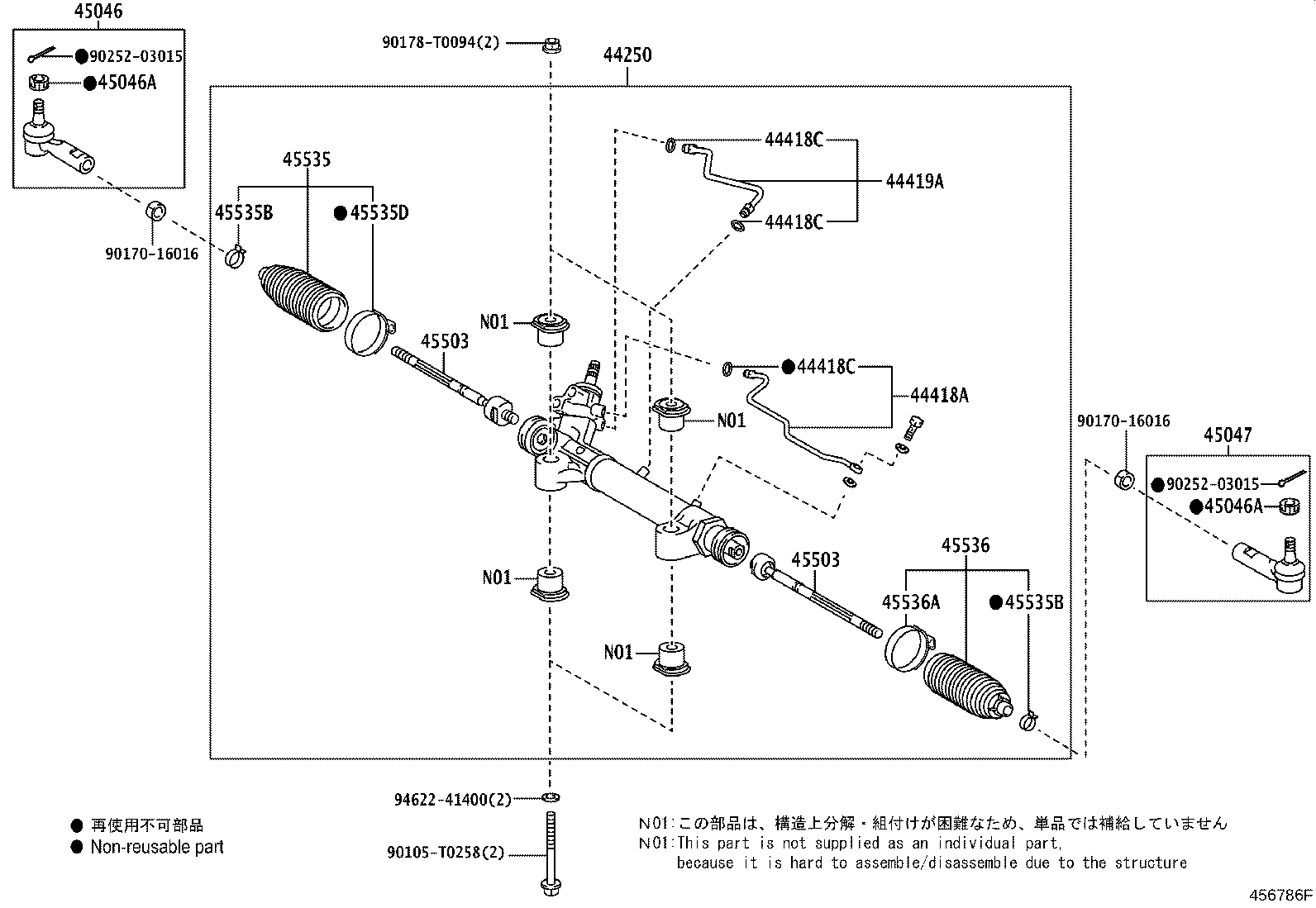

Click highlighted areas on diagram

diagram 44250 44418A 44418C 44418C 44418C 44419A 45046 45046A 45046A 45047 45503 45503 45535 45535B 45535B 45535D 45536 45536A 90105T0258 9017016016 9017016016 90178T0094 9025203015 9025203015 9462241400
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-09800

GUN125..RHD;GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..LHD..(SADCB,THDCB);GUN125..LHD..(SASCB,SAXTR)..DCRE

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-T0002

GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-T0002

GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE

 2
45047 - END SUB-ASSY, TIE ROD, LH
45046-09800

GUN125..RHD;GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..LHD..(SADCB,THDCB);GUN125..LHD..(SASCB,SAXTR)..DCRE

 1
Common parts
90105-T0258
90170-16016
90178-T0094
90252-03015
94622-41400
