GUN125R-CNFSXW3 (2020)
Toyota Hilux
Production
Sep 2020
-
Sep 2021
Engine
2GDFTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

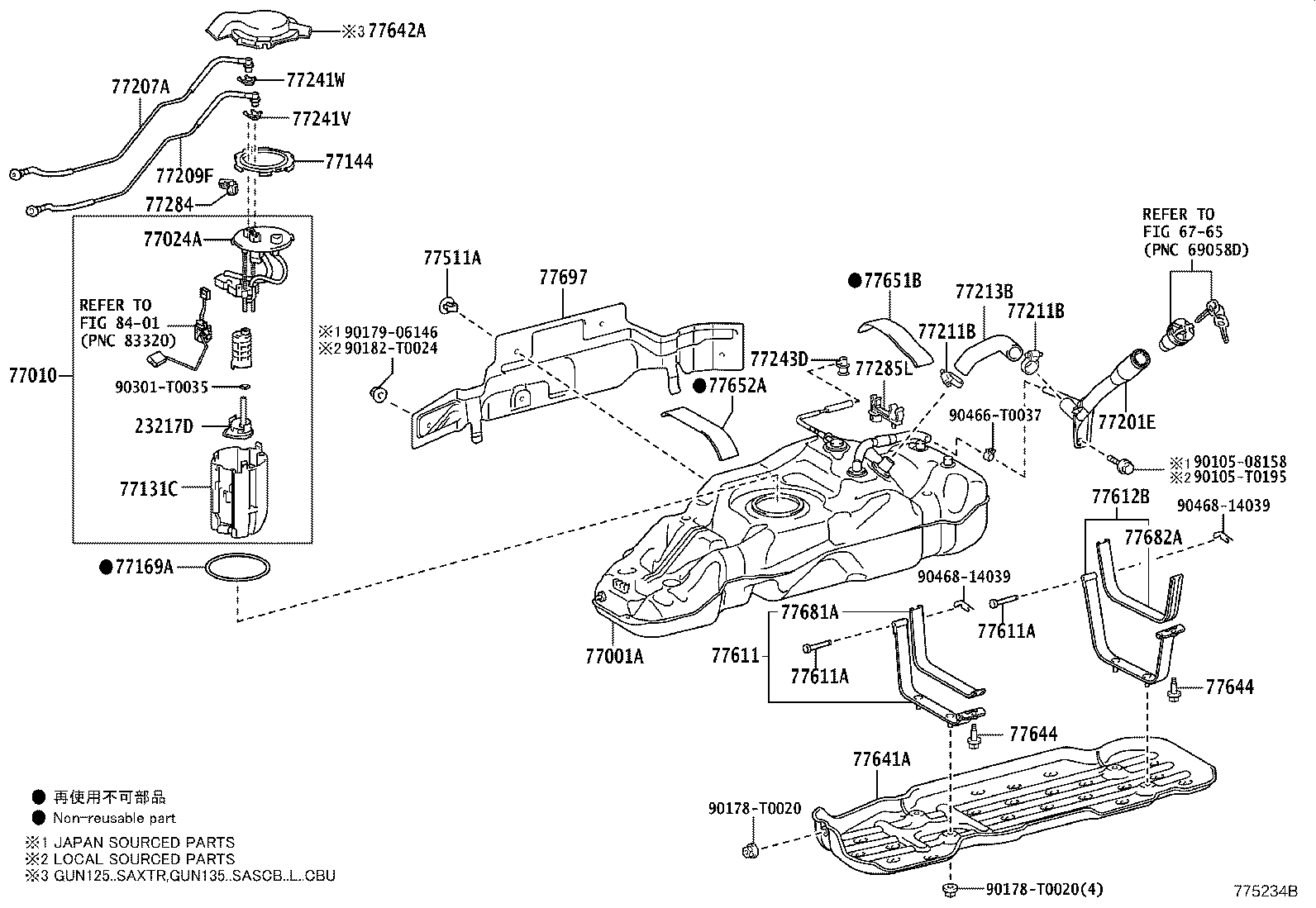

ILLUST NO. 1 OF 3(2009- )IV3
Click highlighted areas on diagram
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-0L020 |
1GDFTV,2GDFTV..GUN12#,135 |
1 | ||
| 77001A - TANK SUB-ASSY, FUEL | ||||
| 77001-0K670 |
GUN125,135..IV3 |
1 | ||
| 77010 - TUBE ASSY, FUEL TANK VENT | ||||
| 77010-0K201 |
GUN12#,135 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-0K190 |
GUN12#,135 |
1 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77131-0K200 |
GUN12#,135 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-0K040 |
GUN12#,135 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-0K040 |
GUN12#,135 |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-71030 |
GUN125,135..IV3 |
1 | ||
| 77207A - TUBE SUB-ASSY, FUEL RETURN | ||||
| 77204-0K140 |
GUN12#,135 |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0K200 |
GUN12#,135 |
1 | ||
| 77211B - CLAMP (FOR FUEL FILLER PIPE) | ||||
| 90460-46005 |
GUN12#,135 |
2 | ||
| 77211B - CLAMP (FOR FUEL FILLER PIPE) | ||||
| 90460-46005 |
GUN12#,135 |
2 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-KK010 |
GUN12#,135 |
1 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-0K020 |
GUN12#,135 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-0K010 |
GUN12#,135 |
1 | ||
| 77243D - JOINT, FUEL TUBE, NO.1 | ||||
| 77245-71010 |
GUN125,135..IV3 |
1 | ||
| 77284 - CLAMP, FUEL TUBE | ||||
| 77289-0K050 |
GUN12#,135 |
1 | ||
| 77285L - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0K250 |
GUN12#,135 |
1 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77644-0K010 |
GUN12#,135 |
4 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-KK100 |
GUN12#,135 (L) |
1 | ||
| 77601-71010 |
GUN12#,135 (J) |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-0K041 |
GUN12#,135 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-0K041 |
GUN12#,135 |
2 | ||
| 77612B - BAND, FUEL TANK, NO.2 | ||||
| 77602-71010 |
GUN12#,135 (J) |
1 | ||
| 77602-KK080 |
GUN12#,135 (L) |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-KK030 |
GUN12#,135..SADCB,SASCB,SAXTR |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77641-0K170 |
GUN12#,135..SAXTR |
1 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-35030 |
GUN12#,135 |
2 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-35030 |
GUN12#,135 |
2 | ||
| 77651B - CUSHION, FUEL TANK | ||||
| 77651-0K110 |
GUN12#,135..SADCB,SASCB,SAXTR |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-0K140 |
GUN12#,135 |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-71010 |
GUN12#,135 (J) |
1 | ||
| 77681-KK060 |
GUN12#,135 (L) |
1 | ||
| 77682A - SEAT, FUEL TANK BAND, NO.2 | ||||
| 77682-71010 |
GUN12#,135 (J) |
1 | ||
| 77682-KK060 |
GUN12#,135 (L) |
1 | ||
| 77697 - INSULATOR, FUEL TANK HEAT, NO.1 | ||||
| 77697-0K250 |
GUN12#,135..SADCB,SASCB,SAXTR |
1 | ||
| Common parts | ||||
| 90105-08158 | ||||
| 90105-T0195 | ||||
| 90178-T0020 | ||||
| 90179-06146 | ||||
| 90182-T0024 | ||||
| 90301-T0035 | ||||
| 90466-T0037 | ||||
| 90468-14039 | ||||
| Linked diagrams | ||||
| 6765 | ||||
| 8401 | ||||
