GUN125R-CNFSXW3 (2020)

Toyota Hilux

Production Sep 2020 - Sep 2021
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2009- )2GDFTV..GUN135..SADCB ; (2009- )1GDFTV,2GDFTV..GUN12#..SADCB,SAXTR

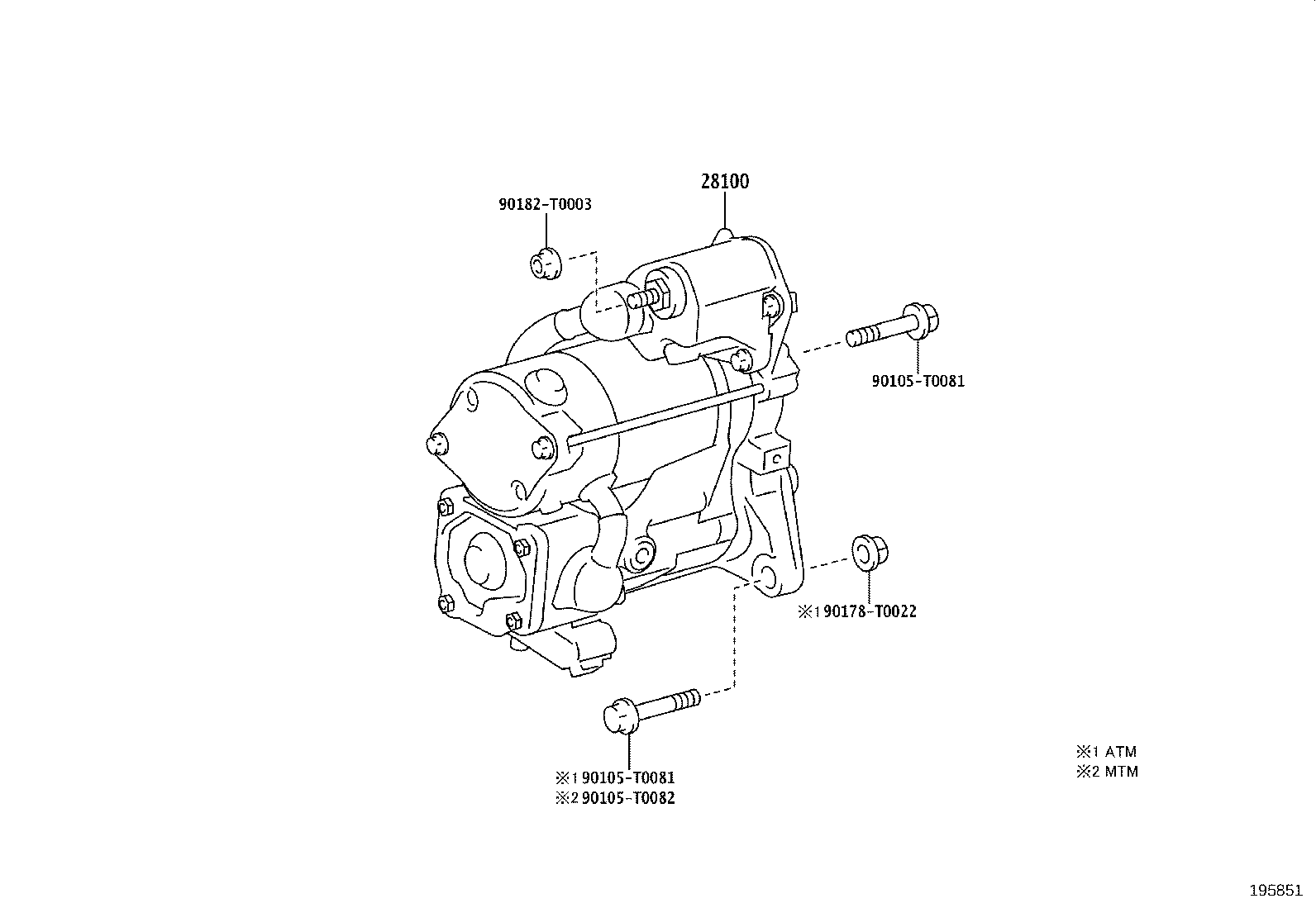

Click highlighted areas on diagram

12V 2.4KW

diagram 28100 90105T0081 90105T0081 90105T0082 90178T0022 90182T0003
Part # Description Qty Price
28100 - STARTER ASSY
28100-0L052

2GDFTV..GUN135..SADCB;2GDFTV..GUN125..LHD..SADCB..H;1GDFTV..GUN126..LHD..SADCB..6FC;2GDFTV..GUN125..(SADCB,SAXTR)..(L,S)

12V 2.7KW,TOYOTA STOP & START SYSTEM-WITHOUT

 1
28100-30110

2GDFTV..GUN135..SADCB;1GDFTV,2GDFTV..GUN12#..SADCB,SAXTR

12V 2.4KW

 1
Common parts
90105-T0081
90105-T0082
90178-T0022
90182-T0003
