GUN125R-BNFSXW (2020)

Toyota Hilux

Production Sep 2020 - Sep 2021
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2009- )SADCB,SASCB,SAXTR

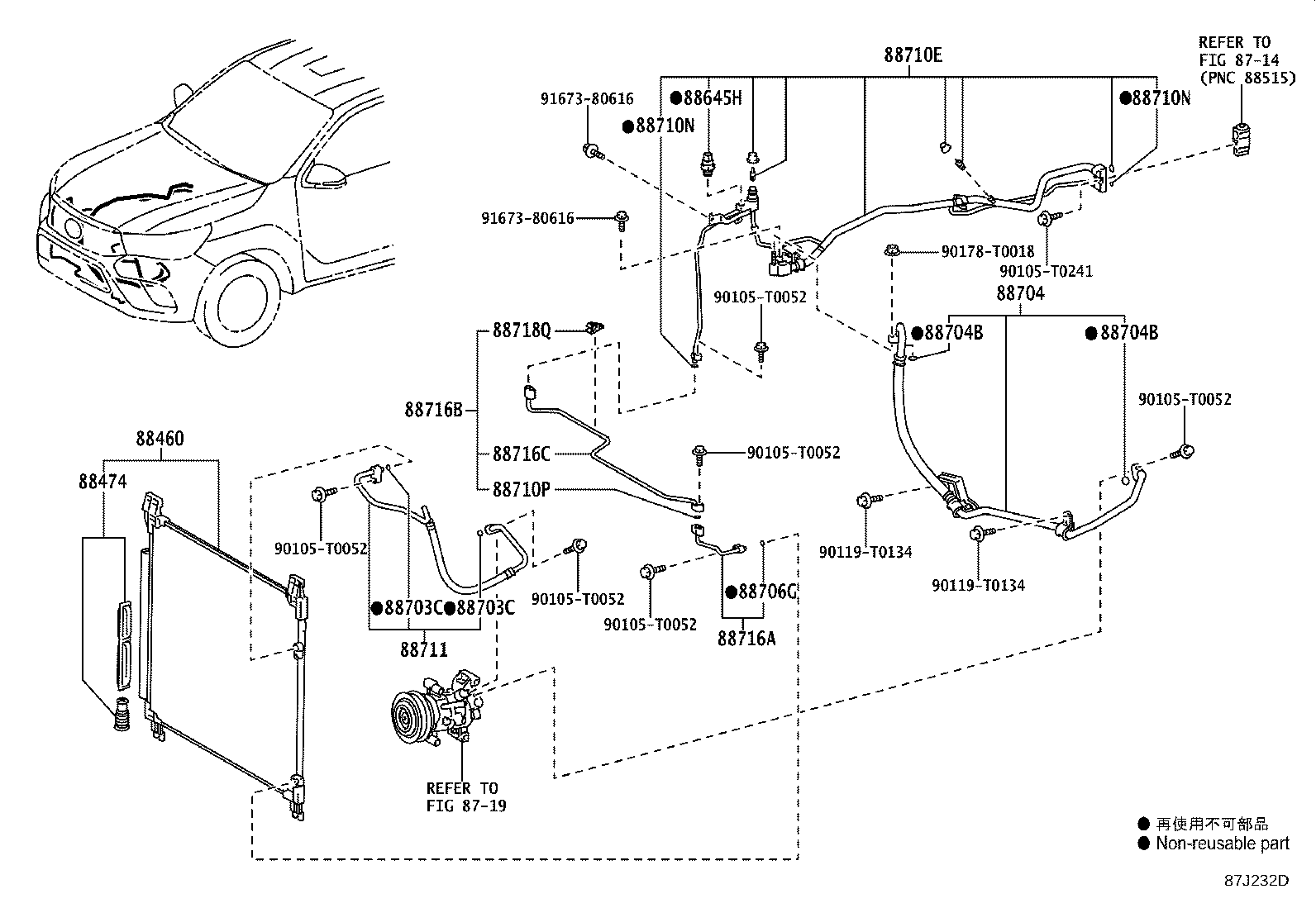

Click highlighted areas on diagram

diagram 8714 8719 88460 88474 88645H 88703C 88703C 88704 88704B 88704B 88706G 88710E 88710N 88710N 88710P 88711 88716A 88716B 88716C 88718Q 90105T0052 90105T0052 90105T0052 90105T0052 90105T0052 90105T0052 90105T0241 90119T0134 90119T0134 90178T0018 9167380616 9167380616
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-0K820

GUN12#,135..SADCB,SASCB,SAXTR

 1
88474 - DRYER, COOLER
88474-0K030

GUN12#,135..SADCB,SASCB,SAXTR

 1
88645H - SWITCH, PRESSURE NO.1
88645-0K040

GUN12#,135..SADCB,SASCB,SAXTR

 1
88703C - RING, O(FOR DISCHARGE HOSE)
90068-14022

GUN12#,135..SADCB,SASCB,SAXTR

ID=10.8,OD=15.6

 2
88703C - RING, O(FOR DISCHARGE HOSE)
90068-14022

GUN12#,135..SADCB,SASCB,SAXTR

ID=10.8,OD=15.6

 2
88704 - HOSE SUB-ASSY, SUCTION
88704-0KF60

GUN12#,135..SADCB,SASCB,SAXTR

 1
88704B - RING, O(FOR SUCTION HOSE)
90068-14024

GUN12#,135..SADCB,SASCB,SAXTR

ID=13.4,OD=18.2

 2
88704B - RING, O(FOR SUCTION HOSE)
90068-14024

GUN12#,135..SADCB,SASCB,SAXTR

ID=13.4,OD=18.2

 2
88706G - RING, O(FOR LIQUID TUBE)
90068-14023

GUN12#,135..SADCB,SASCB,SAXTR

ID=6.7,OD=10.3

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-0KQ80

GUN12#,135..SADCB,SASCB,SAXTR

 1
88710N - RING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE
90068-14023

GUN12#,135..SADCB,SASCB,SAXTR

ID=6.7,OD=10.3

 2
88710N - RING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE
90068-14023

GUN12#,135..SADCB,SASCB,SAXTR

ID=6.7,OD=10.3

 2
88710P - RING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE
90068-14023

GUN12#,135..SADCB,SASCB,SAXTR

ID=6.7,OD=10.3

 2
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0KA30

GUN12#,135..SADCB,SASCB,SAXTR

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-0KL50

GUN12#,135..SADCB,SASCB,SAXTR

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88710-0KN80

GUN12#,135..SADCB,SASCB,SAXTR

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-0KM10

GUN12#,135..SADCB,SASCB,SAXTR

 1
88718Q - CLAMP, PIPING
88718-F4100

GUN12#,135..SADCB,SASCB,SAXTR

 1
Common parts
90105-T0052
90105-T0241
90119-T0134
90178-T0018
91673-80616
Linked diagrams
8714
8719
