GUN125L-DTTSXW (2019)

Toyota Hilux

Production May 2019 - May 2020
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

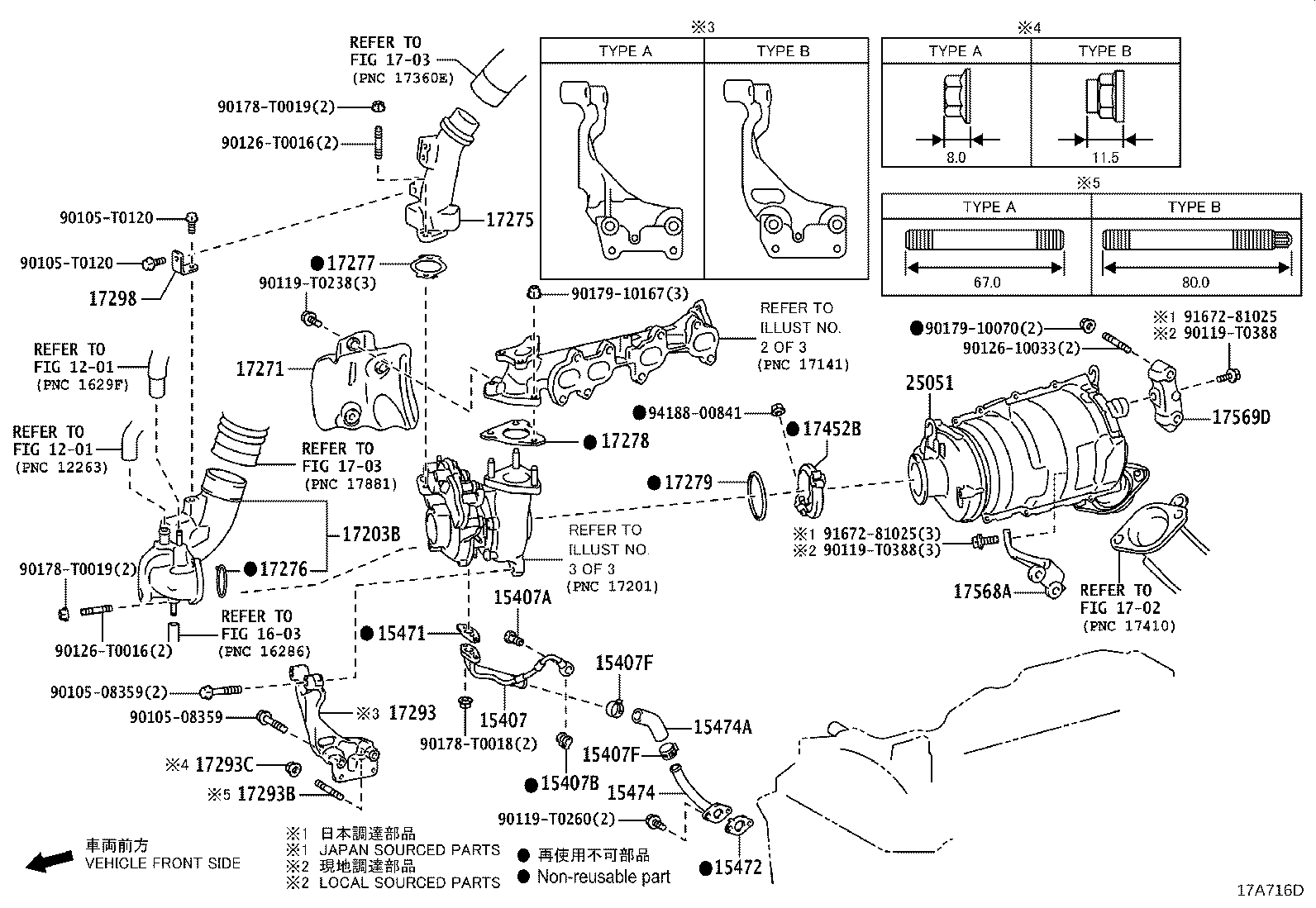

ILLUST NO. 1 OF 3(1905- )2GDFTV..DCRE

Click highlighted areas on diagram

diagram 1201 1201 15407 15407A 15407B 15407F 15407F 15471 15472 15474 15474A 1702 1703 1703 17203B 17271 17275 17276 17277 17278 17279 17293 17293B 17293C 17298 17452B 17568A 17569D 25051 9010508359 9010508359 90105T0120 90105T0120 90119T0238 90119T0260 90119T0388 90119T0388 9012610033 90126T0016 90126T0016 90178T0018 90178T0019 90178T0019 9017910070 9017910167 9167281025 9167281025 9418800841
Part # Description Qty Price
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-11030

1GDFTV,2GDFTV..GUN12#,135

*582

 1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-T0004

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

*582

 1
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90430-T0006

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

*582

 1
15407F - CLAMP OR CLIP, OIL HOSE
96137-42501

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

 2
15407F - CLAMP OR CLIP, OIL HOSE
96137-42501

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

 2
15471 - GASKET, TURBO OIL INLET
15471-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

*582

 1
15472 - GASKET, TURBO OIL OUTLET, NO.1
15472-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

*582

 1
15474 - PIPE, TURBO OIL OUTLET
15474-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

*582

 1
15474A - HOSE, TURBO OIL OUTLET
15491-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

*582

 1
17271 - INSULATOR, TURBO, NO.1
17271-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

*582

 1
17275 - ELBOW, COMPRESSOR OUTLET
17275-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..S;2GDFTV..GUN135..SADCB,SASCB,THDCB

*582,PNC17293=TYPE B

 1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-0E010

1GDFTV,2GDFTV..GUN12#,135

*582

 1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-11020

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

 1
17293 - STAY, TURBOCHARGER
17293-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..S;2GDFTV..GUN135..SADCB,SASCB,THDCB

TYPE B,*652

 1
17298 - STAY, COMPRESSOR ELBOW
17298-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

*582

 1
17452B - CLAMP, EXHAUST PIPE
17452-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

*582

 1
17568A - STAY, EXHAUST PIPE SUPPORT
17568-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

THA SOURCED PARTS

 1
17569D - STAY, EXHAUST PIPE SUPPORT, NO.2
17569-0E020

2GDFTV..GUN125;1GDFTV..GUN126..SADCB;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

THA SOURCED PARTS

 1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-0E020

2GDFTV..GUN125..THDCB..(H,S);2GDFTV..GUN125..THDCB..6FC..M

*114=TOYOTA/*395/Y,ISRAEL SPEC(EURO 5 REGULATION)

 1
25051-0E020

2GDFTV..GUN125..THDCB..S

*114=TOYOTA/*395/Y,RUSSIA & UKRAINE SPEC

 1
25051-0E020

1GDFTV..GUN126..THDCB;2GDFTV..GUN135..THDCB..6F;2GDFTV..GUN125..THDCB..6F..M

*114=TOYOTA/*395/Y

 1
Common parts
90105-08359
90105-T0120
90119-T0238
90119-T0260
90119-T0388
90126-10033
90126-T0016
90178-T0018
90178-T0019
90179-10070
90179-10167
91672-81025
94188-00841
Linked diagrams
1201
1702
1703

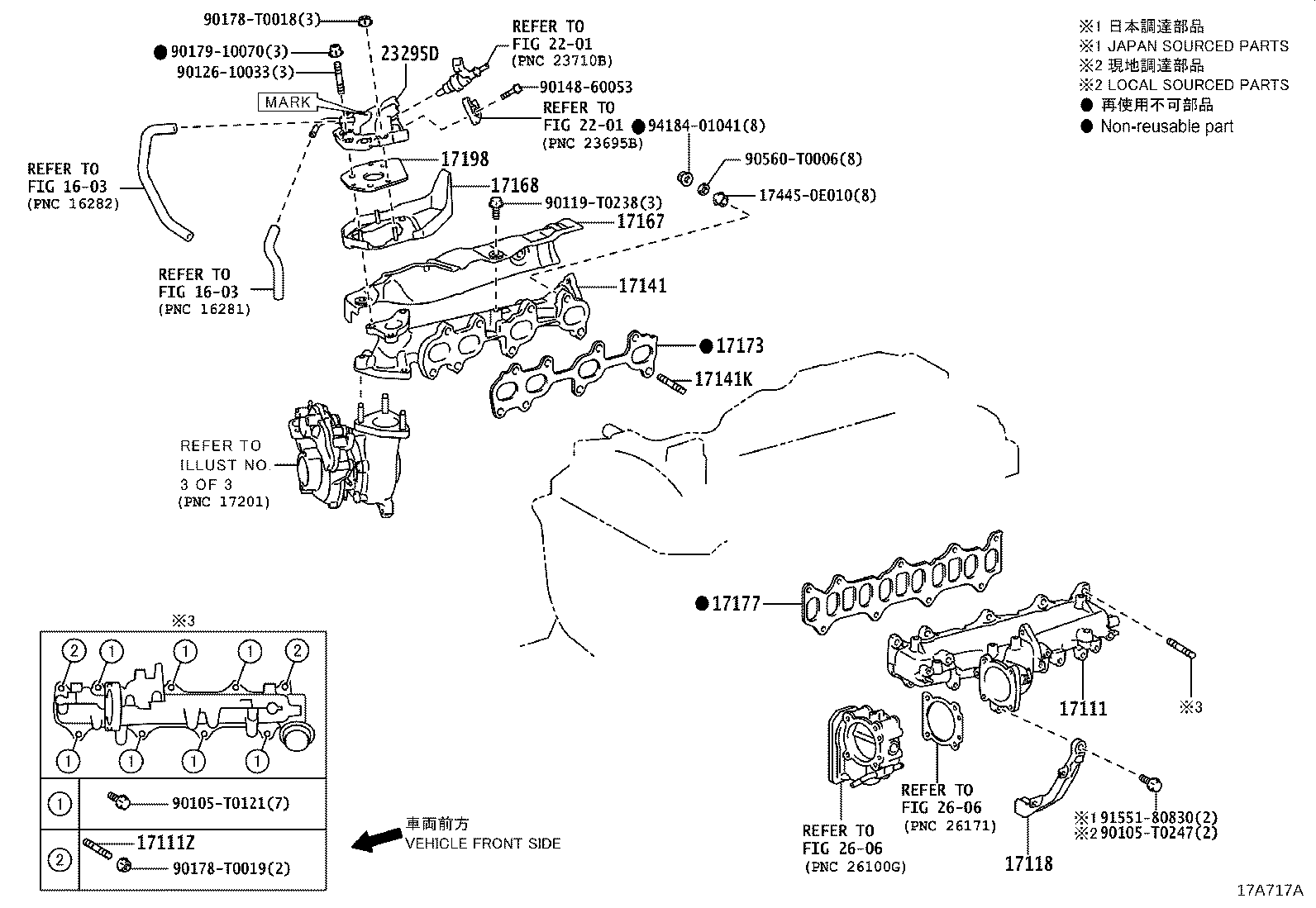

ILLUST NO. 2 OF 3(1905- )2GDFTV..DCRE

Click highlighted areas on diagram

diagram 1603 1603 17111 17111Z 17118 17141 17141K 17167 17168 17173 17177 17198 174450E010 2201 2201 23295D 2606 2606 90105T0121 90105T0247 90119T0238 9012610033 9014860053 90178T0018 90178T0019 9017910070 90560T0006 9155180830 9418401041
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-0E010

2GDFTV..GUN125;2GDFTV..GUN135..SAXTR..S;2GDFTV..GUN135..SADCB,SASCB,THDCB

*582

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
92122-80822

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

(J)

 2
17118 - STAY, MANIFOLD
17118-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

*582

 1
17141 - MANIFOLD, EXHAUST
17141-0E020

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

*582

 1
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
90126-10034

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

*582

 8
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-0E020

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

*582

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

*582

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

*582

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

*582

 1
17198 - GASKET, EXHAUST MANIFOLD, NO.2
17198-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

*582

 1
23295D - HOLDER, INJECTOR, NO.1
23295-11020

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

(J),NO MARK

 1
23295-0E020

2GDFTV..GUN135..DCRE;1GDFTV,2GDFTV..GUN12#

(L),NO MARK

 1
Common parts
17445-0E010
90105-T0121
90105-T0247
90119-T0238
90126-10033
90148-60053
90178-T0018
90178-T0019
90179-10070
90560-T0006
91551-80830
94184-01041
Linked diagrams
1603
2201
2606

ILLUST NO. 3 OF 3(1905- )2GDFTV..DCRE

Click highlighted areas on diagram

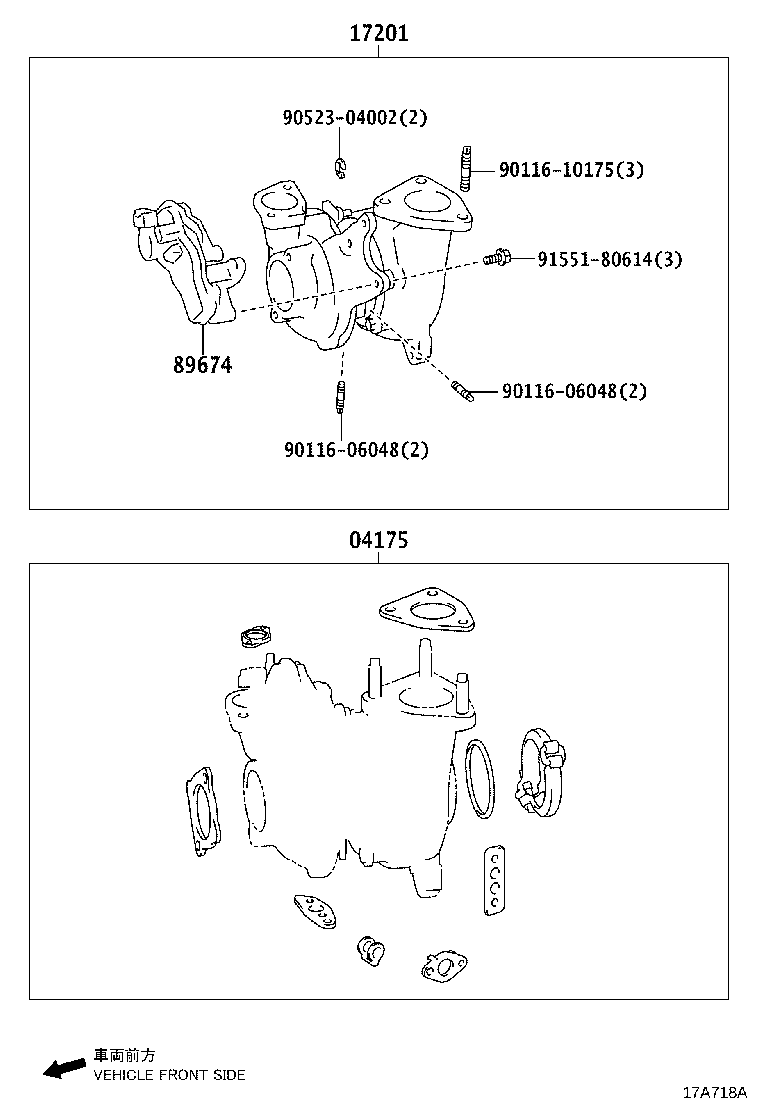

TURBOCHARGER

diagram 04175 17201 89674 9011606048 9011606048 9011610175 9052304002 9155180614
Part # Description Qty Price
04175 - GASKET KIT, TURBOCHARGER
04175-0E021

1GDFTV,2GDFTV..GUN12#,135

 1
89674 - MOTOR, TURBOCHARGER VARIABLE NOZZLE
89674-71020

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 1
Common parts
90116-06048
90116-10175
90523-04002
91551-80614
