GUN125L-DTTMHW (2015)

Toyota Hilux

Production Jun 2015 - May 2020
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )THDCB

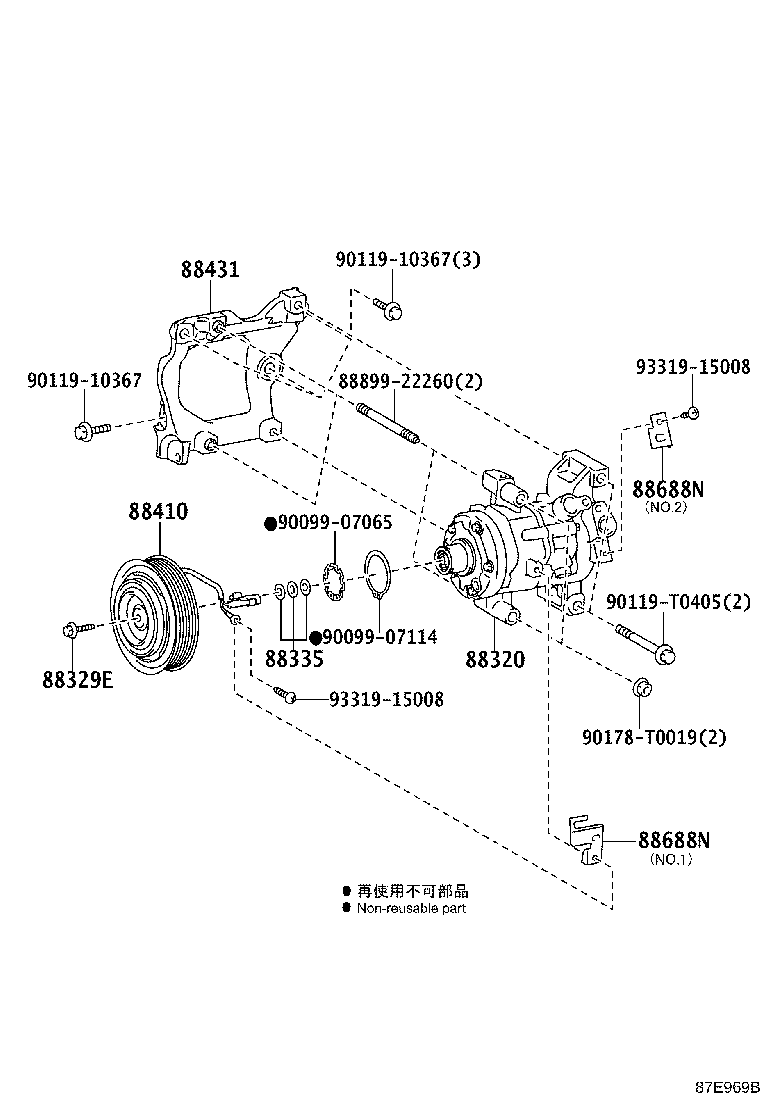

Click highlighted areas on diagram

diagram 88320 88329E 88335 88410 88431 88688N 88688N 8889922260 9009907065 9009907114 9011910367 9011910367 90119T0405 90178T0019 9331915008 9331915008
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-0K520

GUN12#,135..THDCB..M..HDCR

FRONT AIR CONDITIONER-AUTO

 1
88320-0K520

GUN12#,135..THDCB..(M,S)

FRONT AIR CONDITIONER-MANUAL

 1
88320-0K520

GUN12#..THDCB..H;GUN125,135..THDCB..M..DCRE

FRONT AIR CONDITIONER-AUTO

 1
88329E - BOLT, COMPRESSOR, NO.1
90099-04349

GUN12#,135..THDCB..(M,S)

FRONT AIR CONDITIONER-MANUAL

 1
90099-04349

GUN12#,135..THDCB..M..HDCR

FRONT AIR CONDITIONER-AUTO

 1
90099-04349

GUN12#..THDCB..H;GUN125,135..THDCB..M..DCRE

FRONT AIR CONDITIONER-AUTO

 1
88335 - GASKET KIT, OVERHAUL
88335-14020

GUN12#,135..THDCB..M..HDCR

FRONT AIR CONDITIONER-AUTO

 1
88335-14020

GUN12#,135..THDCB..(M,S)

FRONT AIR CONDITIONER-MANUAL

 1
88335-14020

GUN12#..THDCB..H;GUN125,135..THDCB..M..DCRE

FRONT AIR CONDITIONER-AUTO

 1
88410 - CLUTCH ASSY, MAGNET
88410-0K600

GUN12#,135..THDCB..(M,S)

FRONT AIR CONDITIONER-MANUAL

 1
88410-0K600

GUN12#,135..THDCB..M..HDCR

FRONT AIR CONDITIONER-AUTO

 1
88410-0K600

GUN12#..THDCB..H;GUN125,135..THDCB..M..DCRE

FRONT AIR CONDITIONER-AUTO

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-0K140

GUN12#,135..THDCB..(M,S)

FRONT AIR CONDITIONER-MANUAL

 1
88431-0K140

GUN12#,135..THDCB..M..HDCR

FRONT AIR CONDITIONER-AUTO

 1
88431-0K140

GUN12#..THDCB..H;GUN125,135..THDCB..M..DCRE

FRONT AIR CONDITIONER-AUTO

 1
88688N - BRACKET, COOLER
88849-0K020

GUN12#,135..THDCB..(M,S)

FRONT AIR CONDITIONER-MANUAL,NO.2

 1
88849-0K020

GUN12#,135..THDCB..M..HDCR

FRONT AIR CONDITIONER-AUTO,NO.2

 1
88849-0K020

GUN12#..THDCB..H;GUN125,135..THDCB..M..DCRE

FRONT AIR CONDITIONER-AUTO,NO.2

 1
88849-0K010

GUN12#..THDCB..H;GUN125,135..THDCB..M..DCRE

FRONT AIR CONDITIONER-AUTO,NO.1

 1
88849-0K010

GUN12#,135..THDCB..(M,S)

FRONT AIR CONDITIONER-MANUAL,NO.1

 1
88849-0K010

GUN12#,135..THDCB..M..HDCR

FRONT AIR CONDITIONER-AUTO,NO.1

 1
88688N - BRACKET, COOLER
88849-0K020

GUN12#,135..THDCB..(M,S)

FRONT AIR CONDITIONER-MANUAL,NO.2

 1
88849-0K020

GUN12#,135..THDCB..M..HDCR

FRONT AIR CONDITIONER-AUTO,NO.2

 1
88849-0K020

GUN12#..THDCB..H;GUN125,135..THDCB..M..DCRE

FRONT AIR CONDITIONER-AUTO,NO.2

 1
88849-0K010

GUN12#..THDCB..H;GUN125,135..THDCB..M..DCRE

FRONT AIR CONDITIONER-AUTO,NO.1

 1
88849-0K010

GUN12#,135..THDCB..(M,S)

FRONT AIR CONDITIONER-MANUAL,NO.1

 1
88849-0K010

GUN12#,135..THDCB..M..HDCR

FRONT AIR CONDITIONER-AUTO,NO.1

 1
Common parts
88899-22260
90099-07065
90099-07114
90119-10367
90119-T0405
90178-T0019
93319-15008
