GUN125L-DTTMHW (2015)

Toyota Hilux

Production Jun 2015 - May 2020
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )HDCR

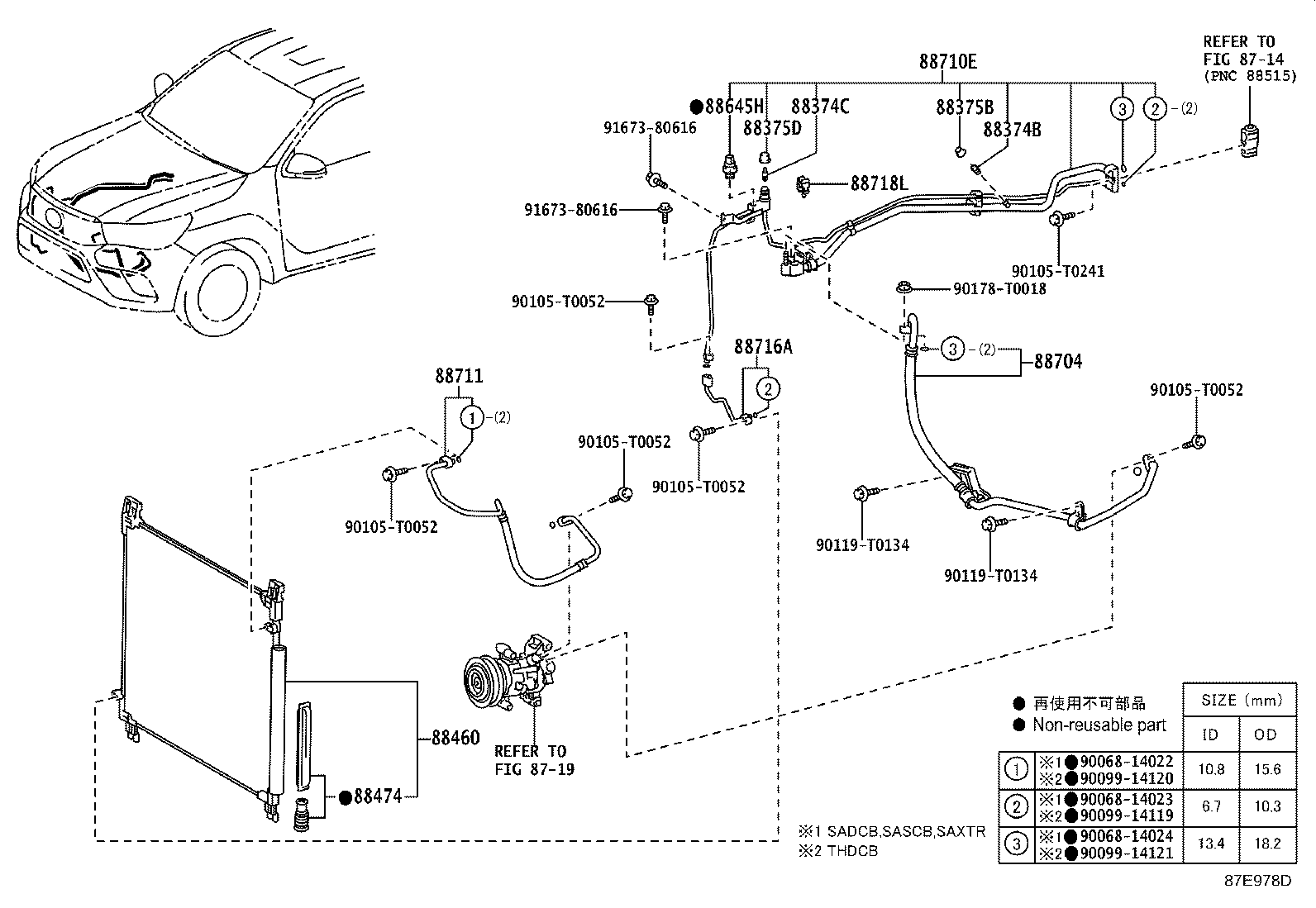

Click highlighted areas on diagram

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88474 88645H 88704 88710E 88711 88716A 88718L 9006814022 9006814023 9006814024 9009914119 9009914120 9009914121 90105T0052 90105T0052 90105T0052 90105T0052 90105T0052 90105T0241 90119T0134 90119T0134 90178T0018 9167380616 9167380616
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

GUN12#,135..THDCB..M..HDCR

FRONT AIR CONDITIONER-AUTO

 1
88374-30010

GUN12#..THDCB..H;GUN125,135..THDCB..M..DCRE

FRONT AIR CONDITIONER-AUTO

 1
88374-30010

GUN12#,135..THDCB..(M,S)

FRONT AIR CONDITIONER-MANUAL

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

GUN12#,135..THDCB..(M,S)

FRONT AIR CONDITIONER-MANUAL

 1
88374-30010

GUN12#..THDCB..H;GUN125,135..THDCB..M..DCRE

FRONT AIR CONDITIONER-AUTO

 1
88374-30010

GUN12#,135..THDCB..M..HDCR

FRONT AIR CONDITIONER-AUTO

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

GUN12#,135..THDCB..(M,S)

FRONT AIR CONDITIONER-MANUAL

 1
88375-30290

GUN12#..THDCB..H;GUN125,135..THDCB..M..DCRE

FRONT AIR CONDITIONER-AUTO

 1
88375-30290

GUN12#,135..THDCB..M..HDCR

FRONT AIR CONDITIONER-AUTO

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

GUN12#..THDCB..H;GUN125,135..THDCB..M..DCRE

FRONT AIR CONDITIONER-AUTO

 1
88375-30280

GUN12#,135..THDCB..(M,S)

FRONT AIR CONDITIONER-MANUAL

 1
88375-30280

GUN12#,135..THDCB..M..HDCR

FRONT AIR CONDITIONER-AUTO

 1
88460 - CONDENSER ASSY, COOLER
88460-0K350

GUN12#,135..THDCB..(M,S)..HDCR

FRONT AIR CONDITIONER-MANUAL

 1
88460-0K350

GUN12#,135..THDCB..M..HDCR

FRONT AIR CONDITIONER-AUTO

 1
88460-0K350

GUN12#..THDCB..H..HDCR

FRONT AIR CONDITIONER-AUTO

 1
88474 - DRYER, COOLER
88474-12020

GUN12#..THDCB..H..HDCR

FRONT AIR CONDITIONER-AUTO

 1
88474-12020

GUN12#,135..THDCB..(M,S)..HDCR

FRONT AIR CONDITIONER-MANUAL

 1
88474-12020

GUN12#,135..THDCB..M..HDCR

FRONT AIR CONDITIONER-AUTO

 1
88645H - SWITCH, PRESSURE NO.1
88645-0K030

GUN126..H;GUN125..THDCB..H;GUN125..SADCB..H..HDCR;GUN125,135..THDCB..M..DCRE

FRONT AIR CONDITIONER-AUTO

 1
88645-0K030

GUN12#..(M,S,X)..HDCR;GUN135..SAXTR..S..HDCR;GUN125,135..THDCB..(M,S)..DCRE;GUN135..(SADCB,SASCB,THDCB)..HDCR

FRONT AIR CONDITIONER-MANUAL

 1
88645-0K030

GUN12#,135..THDCB..M..HDCR

FRONT AIR CONDITIONER-AUTO

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-0KF50

GUN12#..THDCB..H;GUN125,135..THDCB..M..DCRE

FRONT AIR CONDITIONER-AUTO

 1
88704-0KF50

GUN12#,135..THDCB..(M,S)

FRONT AIR CONDITIONER-MANUAL

 1
88704-0KF50

GUN12#,135..THDCB..M..HDCR

FRONT AIR CONDITIONER-AUTO

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-0KE70

GUN12#,135..THDCB..(M,S)

FRONT AIR CONDITIONER-MANUAL

 1
88710-0KE70

GUN12#..THDCB..H;GUN125,135..THDCB..M..DCRE

FRONT AIR CONDITIONER-AUTO

 1
88710-0KE70

GUN12#,135..THDCB..M..HDCR

FRONT AIR CONDITIONER-AUTO

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0KB50

GUN12#..THDCB..H..HDCR

FRONT AIR CONDITIONER-AUTO

 1
88711-0KB50

GUN12#,135..THDCB..M..HDCR

FRONT AIR CONDITIONER-AUTO

 1
88711-0KB50

GUN12#,135..THDCB..(M,S)..HDCR

FRONT AIR CONDITIONER-MANUAL

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-0KQ80

GUN12#..THDCB..H..HDCR

FRONT AIR CONDITIONER-AUTO

 1
88716-0KQ80

GUN12#,135..THDCB..(M,S)..HDCR

FRONT AIR CONDITIONER-MANUAL

 1
88716-0KQ80

GUN12#,135..THDCB..M..HDCR

FRONT AIR CONDITIONER-AUTO

 1
88718L - CLAMP, PIPING
88718-0KF20

GUN12#,135..THDCB..M..HDCR

FRONT AIR CONDITIONER-AUTO

 1
88718-0KF20

GUN12#,135..THDCB..(M,S)

FRONT AIR CONDITIONER-MANUAL

 1
88718-0KF20

GUN12#..THDCB..H;GUN125,135..THDCB..M..DCRE

FRONT AIR CONDITIONER-AUTO

 1
Common parts
90068-14022
90068-14023
90068-14024
90099-14119
90099-14120
90099-14121
90105-T0052
90105-T0241
90119-T0134
90178-T0018
91673-80616
Linked diagrams
8714
8719
