GUN125L-DTTMHW (2015)
Toyota Hilux

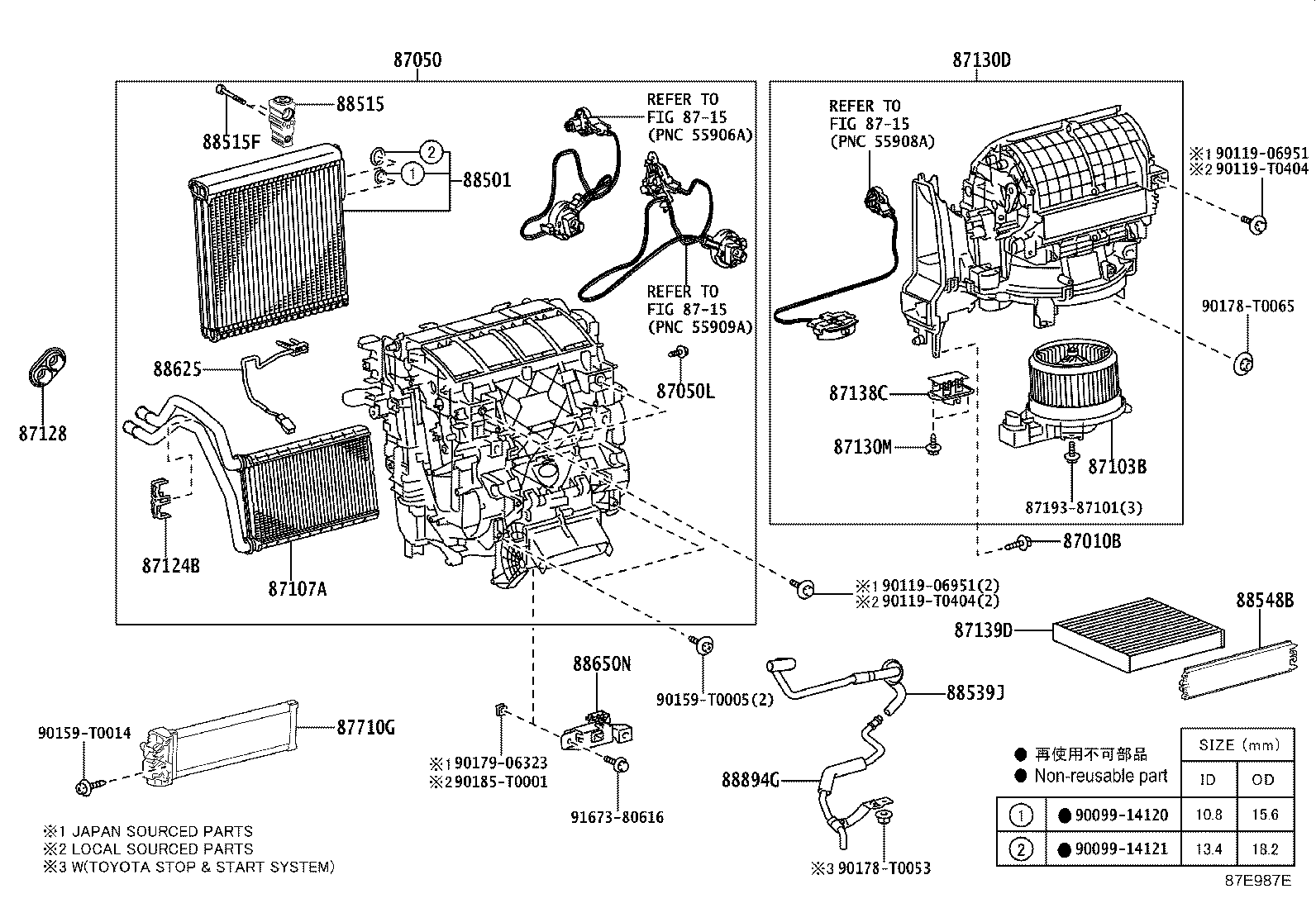

(1506- )LHD
MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010B - SCREW(FOR AIR CONDITIONER UNIT) | ||||
| 88718-0A020 |
GUN12#,135..THDCB |
2 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0KD20 |
GUN12#,135..THDCB |
1 | ||
| 87050-0KD90 |
GUN12#..THDCB..H;GUN125,135..THDCB..M..DCRE FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87050-0KD90 |
GUN12#,135..THDCB..M..HDCR FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87050L - SCREW(FOR AIR CONDITIONER RADIATOR) | ||||
| 88718-0A020 |
GUN12#,135..THDCB |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0K391 |
GUN12#,135..THDCB |
1 | ||
| 87103-0K390 |
GUN12#,135..THDCB |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-0K110 |
GUN12#,135..THDCB |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-06140 |
GUN12#,135..THDCB |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0K180 |
GUN12#,135..THDCB |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0K630 |
GUN12#..THDCB..H;GUN125,135..THDCB..M..DCRE FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87130-0K580 |
GUN12#,135..THDCB |
1 | ||
| 87130-0K631 |
GUN12#,135..THDCB..(H,M) FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87130-0K581 |
GUN12#,135..THDCB |
1 | ||
| 87130-0K630 |
GUN12#,135..THDCB..M..HDCR FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87130M - SCREW(FOR BLOWER) | ||||
| 88718-0A020 |
GUN12#,135..THDCB |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-0K350 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-58010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB DEODORANT FILTER |
1 | ||
| 87139-0K070 |
GUN12#,135..THDCB POLLEN FILTER |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-0K100 |
GUN12#,135..THDCB |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0K390 |
GUN12#,135..THDCB |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K580 |
GUN125..THDCB;GUN125..SADCB..HDCR;GUN135..THDCB..DCRE;GUN126,135..(SADCB,THDCB)..HDCR |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
GUN12#,135..THDCB |
2 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-0K380 |
GUN12#,135..THDCB |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0K080 |
GUN12#,135..THDCB |
1 | ||
| 88899-06330 |
GUN12#,135..THDCB |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0K010 |
GUN12#,135..SADCB,THDCB |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0K460 |
GUN12#..THDCB..H FRONT AIR CONDITIONER-AUTO |
1 | ||
| 88650-0K420 |
GUN12#..M,S,X;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88650-0K520 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 88894G - CONNECTOR, DRAIN HOSE | ||||
| 88894-0K010 |
GUN12#,135..THDCB |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90159-T0005 | ||||
| 90159-T0014 | ||||
| 90178-T0053 | ||||
| 90178-T0065 | ||||
| 90179-06323 | ||||
| 90185-T0001 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8715 | ||||

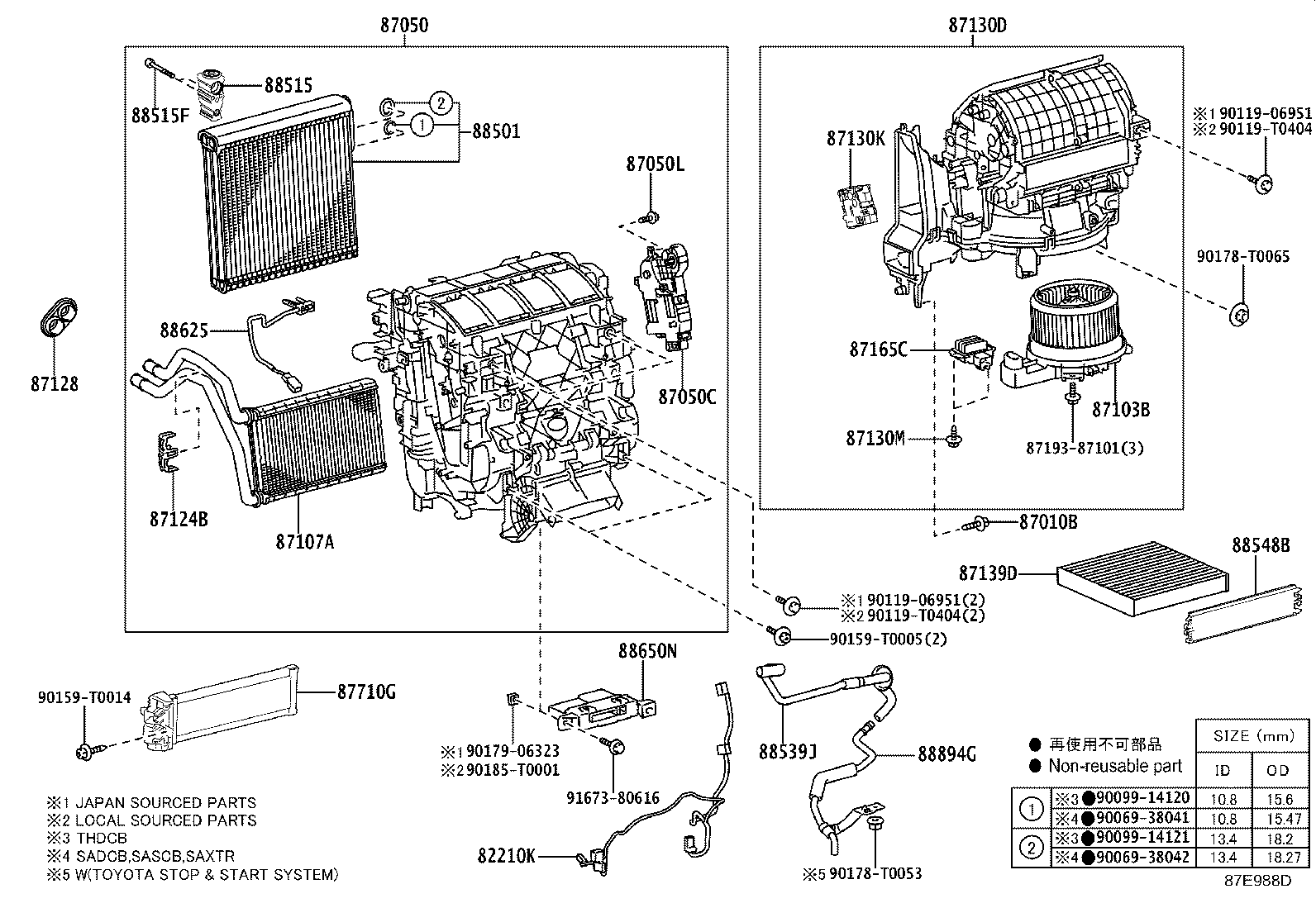

(1506- )LHD
AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-0K060 |
GUN12#..LHD..H;GUN125,135..LHD..M..DCRE FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87010B - SCREW(FOR AIR CONDITIONER UNIT) | ||||
| 88718-0A020 |
GUN12#,135..THDCB |
2 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0KD20 |
GUN12#,135..THDCB |
1 | ||
| 87050-0KD90 |
GUN12#..THDCB..H;GUN125,135..THDCB..M..DCRE FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87050-0KD90 |
GUN12#,135..THDCB..M..HDCR FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-0K210 |
GUN12#..H;GUN125,135..M..DCRE FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87050L - SCREW(FOR AIR CONDITIONER RADIATOR) | ||||
| 88718-0A020 |
GUN12#,135..THDCB |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0K391 |
GUN12#,135..THDCB |
1 | ||
| 87103-0K390 |
GUN12#,135..THDCB |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-0K110 |
GUN12#,135..THDCB |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-06140 |
GUN12#,135..THDCB |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0K180 |
GUN12#,135..THDCB |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0K630 |
GUN12#..THDCB..H;GUN125,135..THDCB..M..DCRE FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87130-0K580 |
GUN12#,135..THDCB |
1 | ||
| 87130-0K631 |
GUN12#,135..THDCB..(H,M) FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87130-0K581 |
GUN12#,135..THDCB |
1 | ||
| 87130-0K630 |
GUN12#,135..THDCB..M..HDCR FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-0K240 |
GUN12#..THDCB..H;GUN125,135..THDCB..M..DCRE FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87106-0K240 |
GUN12#..THDCB..M..HDCR FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87130M - SCREW(FOR BLOWER) | ||||
| 88718-0A020 |
GUN12#,135..THDCB |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-58010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB DEODORANT FILTER |
1 | ||
| 87139-0K070 |
GUN12#,135..THDCB POLLEN FILTER |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-0K060 |
GUN12#..H;GUN125,135..M..DCRE FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-0K100 |
GUN12#,135..THDCB |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0K390 |
GUN12#,135..THDCB |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K580 |
GUN125..THDCB;GUN125..SADCB..HDCR;GUN135..THDCB..DCRE;GUN126,135..(SADCB,THDCB)..HDCR |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
GUN12#,135..THDCB |
2 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-0K380 |
GUN12#,135..THDCB |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0K080 |
GUN12#,135..THDCB |
1 | ||
| 88899-06330 |
GUN12#,135..THDCB |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0K010 |
GUN12#,135..SADCB,THDCB |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0K460 |
GUN12#..THDCB..H FRONT AIR CONDITIONER-AUTO |
1 | ||
| 88650-0K420 |
GUN12#..M,S,X;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88650-0K520 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 88894G - CONNECTOR, DRAIN HOSE | ||||
| 88894-0K010 |
GUN12#,135..THDCB |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90069-38041 | ||||
| 90069-38042 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90159-T0005 | ||||
| 90159-T0014 | ||||
| 90178-T0053 | ||||
| 90178-T0065 | ||||
| 90179-06323 | ||||
| 90185-T0001 | ||||
| 91673-80616 | ||||

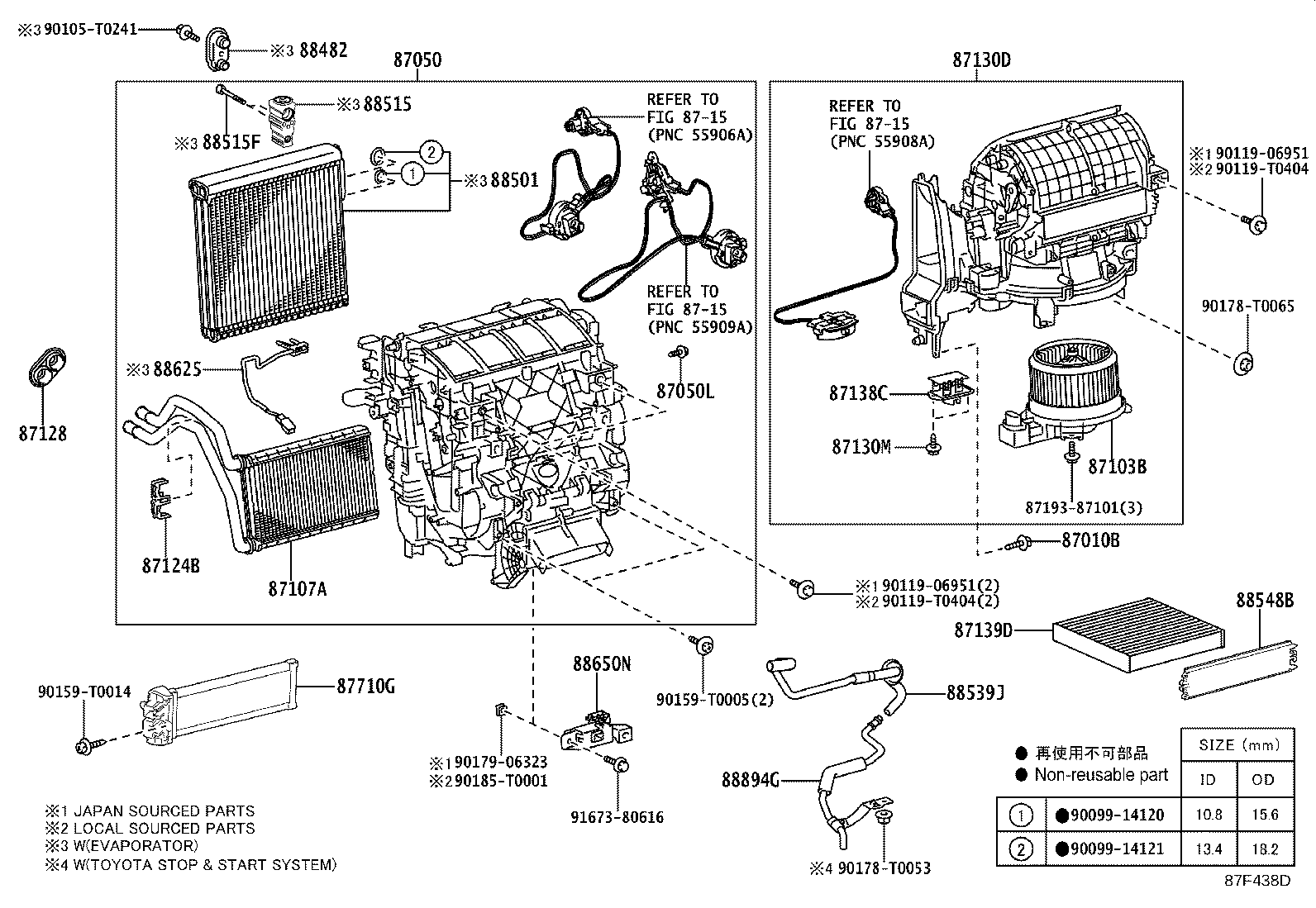

(1506- )LHD
MANUAL HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010B - SCREW(FOR AIR CONDITIONER UNIT) | ||||
| 88718-0A020 |
GUN12#,135..THDCB |
2 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0KD20 |
GUN12#,135..THDCB |
1 | ||
| 87050-0KD90 |
GUN12#..THDCB..H;GUN125,135..THDCB..M..DCRE FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87050-0KD90 |
GUN12#,135..THDCB..M..HDCR FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87050L - SCREW(FOR AIR CONDITIONER RADIATOR) | ||||
| 88718-0A020 |
GUN12#,135..THDCB |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0K391 |
GUN12#,135..THDCB |
1 | ||
| 87103-0K390 |
GUN12#,135..THDCB |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-0K110 |
GUN12#,135..THDCB |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-06140 |
GUN12#,135..THDCB |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0K180 |
GUN12#,135..THDCB |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0K630 |
GUN12#..THDCB..H;GUN125,135..THDCB..M..DCRE FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87130-0K580 |
GUN12#,135..THDCB |
1 | ||
| 87130-0K631 |
GUN12#,135..THDCB..(H,M) FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87130-0K581 |
GUN12#,135..THDCB |
1 | ||
| 87130-0K630 |
GUN12#,135..THDCB..M..HDCR FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87130M - SCREW(FOR BLOWER) | ||||
| 88718-0A020 |
GUN12#,135..THDCB |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-0K350 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-58010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB DEODORANT FILTER |
1 | ||
| 87139-0K070 |
GUN12#,135..THDCB POLLEN FILTER |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-0K100 |
GUN12#,135..THDCB |
1 | ||
| 88482 - CAP, COOLER | ||||
| 88482-0K010 |
GUN12#,135..THDCB |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0K390 |
GUN12#,135..THDCB |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K580 |
GUN125..THDCB;GUN125..SADCB..HDCR;GUN135..THDCB..DCRE;GUN126,135..(SADCB,THDCB)..HDCR |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
GUN12#,135..THDCB |
2 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-0K380 |
GUN12#,135..THDCB |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0K080 |
GUN12#,135..THDCB |
1 | ||
| 88899-06330 |
GUN12#,135..THDCB |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0K010 |
GUN12#,135..SADCB,THDCB |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0K460 |
GUN12#..THDCB..H FRONT AIR CONDITIONER-AUTO |
1 | ||
| 88650-0K420 |
GUN12#..M,S,X;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88650-0K520 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 88894G - CONNECTOR, DRAIN HOSE | ||||
| 88894-0K010 |
GUN12#,135..THDCB |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-T0241 | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90159-T0005 | ||||
| 90159-T0014 | ||||
| 90178-T0053 | ||||
| 90178-T0065 | ||||
| 90179-06323 | ||||
| 90185-T0001 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8715 | ||||
