GUN125L-DTTMHW (2015)

Toyota Hilux

Production Jun 2015 - May 2020
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )

Click highlighted areas on diagram

W/O(SMART ENTRY)

diagram 89741 89741 90178T0018 90178T0018
Part # Description Qty Price
89741 - RECEIVER, DOOR CONTROL
89741-0K100

GUN125..LHD..(M,S);GUN126,135..(M,S)..CBU

 1
89741 - RECEIVER, DOOR CONTROL
89741-0K100

GUN125..LHD..(M,S);GUN126,135..(M,S)..CBU

 1
Common parts
90178-T0018

(1506- )LHD

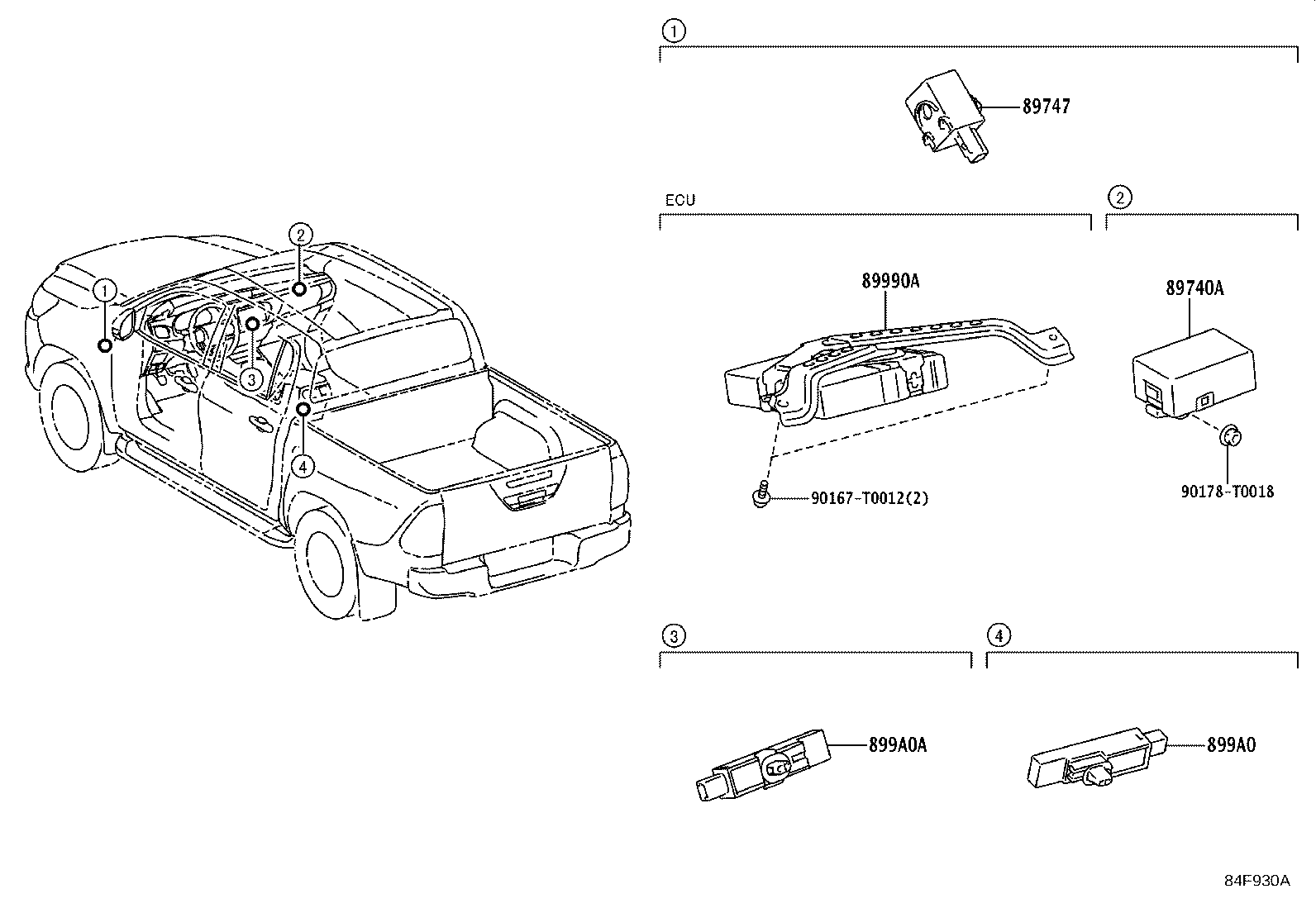

Click highlighted areas on diagram

W(SMART ENTRY)

diagram 89740A 89747 89990A 899A0 899A0A 90167T0012 90178T0018
Part # Description Qty Price
89740A - RECEIVER ASSY, SMART DOOR CONTROL
89740-0K040

GUN12#..LHD..H

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040

GUN12#..H

 1
89990A - COMPUTER ASSY, SMART KEY
89990-0K080

GUN12#..LHD..H

 1
89990-0K081

GUN12#..LHD..H

 1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-0D110

GUN12#..H

 1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-0D170

GUN12#..H

 1
Common parts
90167-T0012
90178-T0018
