GUN125L-DTTMHW (2015)
Toyota Hilux

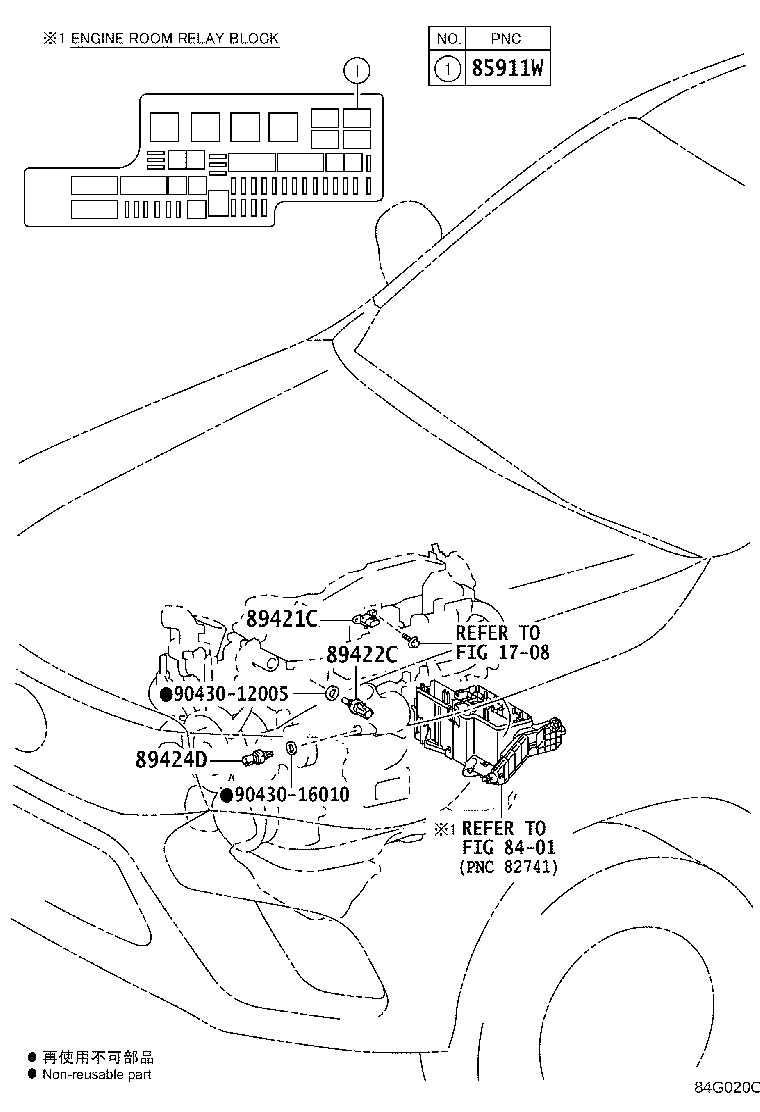

ILLUST NO. 1 OF 2(1506- )HDCR
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85911W - RELAY, ELECTRONIC DRIVER UNIT | ||||
| 90987-T2001 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB (L) |
1 | ||
| 90987-02027 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB (J) |
1 | ||
| 89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO) | ||||
| 89421-71030 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE | ||||
| 89422-33030 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 89424D - SENSOR, INLET AIR TEMPERATURE | ||||
| 89424-60010 |
GUN12#..HDCR;GUN135..SAXTR..S..HDCR;GUN135..(SADCB,SASCB,THDCB)..HDCR |
1 | ||
| Common parts | ||||
| 90430-12005 | ||||
| 90430-16010 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(1506- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89661A - COMPUTER, ENGINE CONTROL | ||||
| 89666-0K860 |
GUN125..LHD..6F..(H,S,X);GUN135..SADCB,SASCB,SAXTR;GUN125..LHD..(SADCB,SAXTR)..6F..M P/N LABEL=896660K860 |
1 | ||
| 89666-0KA40 |
GUN125..LHD..6FC P/N LABEL=896660KA40 |
1 | ||
| 89666-0KQ50 |
GUN125..LHD..6FC P/N LABEL=896660KQ50 |
1 | ||
| 89666-0KQ10 |
GUN125..LHD..6F..(H,S,X);GUN135..SADCB,SASCB,SAXTR;GUN125..LHD..(SADCB,SAXTR)..6F..M P/N LABEL=896660KQ10 |
1 | ||
| 89666-0KZ90 |
GUN125..THDCB..6FC ISRAEL SPEC(EURO 5 REGULATION),P/N LABEL=896660KZ90 |
1 | ||
| 89666-0KA30 |
GUN125..THDCB..6FC ISRAEL SPEC(EURO 5 REGULATION),P/N LABEL=896660KA30 |
1 | ||
| 89666-0KA41 |
GUN125,135..LHD..6FC P/N LABEL=896660KA41 |
1 | ||
| 89666-0K861 |
GUN125..THDCB..6F..M UKRAINE SPEC(EURO 6 REGULATION),P/N LABEL=896660K861 |
1 | ||
| 89666-0K861 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M TURKEY SPEC(EURO 6 REGULATION),P/N LABEL=896660K861 |
1 | ||
| 89666-0KQ11 |
GUN125..THDCB..6F..M UKRAINE SPEC(EURO 6 REGULATION),P/N LABEL=896660KQ11 |
1 | ||
| 89666-0KQ51 |
GUN125,135..LHD..6FC P/N LABEL=896660KQ51 |
1 | ||
| 89666-0K861 |
GUN125..LHD..6F..(H,S,X);GUN135..SADCB,SASCB,SAXTR;GUN125..LHD..(SADCB,SAXTR)..6F..M P/N LABEL=896660K861 |
1 | ||
| 89666-0KQ11 |
GUN125..LHD..6F..(H,S,X);GUN135..SADCB,SASCB,SAXTR;GUN125..LHD..(SADCB,SAXTR)..6F..M P/N LABEL=896660KQ11 |
1 | ||
| 89666-0KP40 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M P/N LABEL=896660KP40 |
1 | ||
| 89666-0K862 |
GUN125..THDCB..6F..M DENSO,UKRAINE SPEC(EURO 6 REGULATION),P/N LABEL=896660K862 |
1 | ||
| 89661-F0010 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M P/N LABEL=89661F0010 |
1 | ||
| 89666-0K862 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M DENSO,TURKEY SPEC(EURO 6 REGULATION),P/N LABEL=896660K862 |
1 | ||
| 89666-0KQ12 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M DENSO,TURKEY SPEC(EURO 6 REGULATION),P/N LABEL=896660KQ12 |
1 | ||
| 89666-0K800 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M P/N LABEL=896660K800 |
1 | ||
| 89666-0KQ12 |
GUN125..THDCB..6F..M DENSO,UKRAINE SPEC(EURO 6 REGULATION),P/N LABEL=896660KQ12 |
1 | ||
| 89666-0KQ11 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M TURKEY SPEC(EURO 6 REGULATION),P/N LABEL=896660KQ11 |
1 | ||
| 89666-0KP40 |
GUN125..THDCB..6F..M RUSSIA & UKRAINE SPEC,P/N LABEL=896660KP40 |
1 | ||
| 89666-0K800 |
GUN125..THDCB..6F..M RUSSIA & UKRAINE SPEC,P/N LABEL=896660K800 |
1 | ||
| 89661-F0010 |
GUN125..THDCB..6F..M RUSSIA & UKRAINE SPEC,P/N LABEL=89661F0010 |
1 | ||
| 89666-0KQ52 |
GUN125,135..6FC DENSO,P/N LABEL=896660KQ52 |
1 | ||
| 89666-0KA42 |
GUN125,135..6FC DENSO,P/N LABEL=896660KA42 |
1 | ||
| 89666-0K862 |
GUN135..SAXTR..S;GUN135..SADCB,SASCB;GUN125..6F..(H,S,X);GUN125..(SADCB,SAXTR)..6F..M DENSO,P/N LABEL=896660K862 |
1 | ||
| 89666-0K862 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M DENSO,P/N LABEL=896660K862 |
1 | ||
| 89666-0KQ12 |
GUN135..SAXTR..S;GUN135..SADCB,SASCB;GUN125..6F..(H,S,X);GUN125..(SADCB,SAXTR)..6F..M DENSO,P/N LABEL=896660KQ12 |
1 | ||
| 89666-0KQ12 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M DENSO,P/N LABEL=896660KQ12 |
1 | ||
| 89661-F0W80 |
GUN125..THDCB..6F..HDCR DENSO,RUSSIA & UKRAINE SPEC,P/N LABEL=89661F0W80 |
1 | ||
| 89661-F0X00 |
GUN125..THDCB..6F..HDCR DENSO,RUSSIA & UKRAINE SPEC,P/N LABEL=89661F0X00 |
1 | ||
| 89666-0K862 |
GUN125..6F..HDCR DENSO |
1 | ||
| 89666-0KA42 |
GUN125..6FC..HDCR DENSO |
1 | ||
| 89661A - COMPUTER, ENGINE CONTROL | ||||
| 89666-0K860 |
GUN125..LHD..6F..(H,S,X);GUN135..SADCB,SASCB,SAXTR;GUN125..LHD..(SADCB,SAXTR)..6F..M P/N LABEL=896660K860 |
1 | ||
| 89666-0KA40 |
GUN125..LHD..6FC P/N LABEL=896660KA40 |
1 | ||
| 89666-0KQ50 |
GUN125..LHD..6FC P/N LABEL=896660KQ50 |
1 | ||
| 89666-0KQ10 |
GUN125..LHD..6F..(H,S,X);GUN135..SADCB,SASCB,SAXTR;GUN125..LHD..(SADCB,SAXTR)..6F..M P/N LABEL=896660KQ10 |
1 | ||
| 89666-0KZ90 |
GUN125..THDCB..6FC ISRAEL SPEC(EURO 5 REGULATION),P/N LABEL=896660KZ90 |
1 | ||
| 89666-0KA30 |
GUN125..THDCB..6FC ISRAEL SPEC(EURO 5 REGULATION),P/N LABEL=896660KA30 |
1 | ||
| 89666-0KA41 |
GUN125,135..LHD..6FC P/N LABEL=896660KA41 |
1 | ||
| 89666-0K861 |
GUN125..THDCB..6F..M UKRAINE SPEC(EURO 6 REGULATION),P/N LABEL=896660K861 |
1 | ||
| 89666-0K861 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M TURKEY SPEC(EURO 6 REGULATION),P/N LABEL=896660K861 |
1 | ||
| 89666-0KQ11 |
GUN125..THDCB..6F..M UKRAINE SPEC(EURO 6 REGULATION),P/N LABEL=896660KQ11 |
1 | ||
| 89666-0KQ51 |
GUN125,135..LHD..6FC P/N LABEL=896660KQ51 |
1 | ||
| 89666-0K861 |
GUN125..LHD..6F..(H,S,X);GUN135..SADCB,SASCB,SAXTR;GUN125..LHD..(SADCB,SAXTR)..6F..M P/N LABEL=896660K861 |
1 | ||
| 89666-0KQ11 |
GUN125..LHD..6F..(H,S,X);GUN135..SADCB,SASCB,SAXTR;GUN125..LHD..(SADCB,SAXTR)..6F..M P/N LABEL=896660KQ11 |
1 | ||
| 89666-0KP40 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M P/N LABEL=896660KP40 |
1 | ||
| 89666-0K862 |
GUN125..THDCB..6F..M DENSO,UKRAINE SPEC(EURO 6 REGULATION),P/N LABEL=896660K862 |
1 | ||
| 89661-F0010 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M P/N LABEL=89661F0010 |
1 | ||
| 89666-0K862 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M DENSO,TURKEY SPEC(EURO 6 REGULATION),P/N LABEL=896660K862 |
1 | ||
| 89666-0KQ12 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M DENSO,TURKEY SPEC(EURO 6 REGULATION),P/N LABEL=896660KQ12 |
1 | ||
| 89666-0K800 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M P/N LABEL=896660K800 |
1 | ||
| 89666-0KQ12 |
GUN125..THDCB..6F..M DENSO,UKRAINE SPEC(EURO 6 REGULATION),P/N LABEL=896660KQ12 |
1 | ||
| 89666-0KQ11 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M TURKEY SPEC(EURO 6 REGULATION),P/N LABEL=896660KQ11 |
1 | ||
| 89666-0KP40 |
GUN125..THDCB..6F..M RUSSIA & UKRAINE SPEC,P/N LABEL=896660KP40 |
1 | ||
| 89666-0K800 |
GUN125..THDCB..6F..M RUSSIA & UKRAINE SPEC,P/N LABEL=896660K800 |
1 | ||
| 89661-F0010 |
GUN125..THDCB..6F..M RUSSIA & UKRAINE SPEC,P/N LABEL=89661F0010 |
1 | ||
| 89666-0KQ52 |
GUN125,135..6FC DENSO,P/N LABEL=896660KQ52 |
1 | ||
| 89666-0KA42 |
GUN125,135..6FC DENSO,P/N LABEL=896660KA42 |
1 | ||
| 89666-0K862 |
GUN135..SAXTR..S;GUN135..SADCB,SASCB;GUN125..6F..(H,S,X);GUN125..(SADCB,SAXTR)..6F..M DENSO,P/N LABEL=896660K862 |
1 | ||
| 89666-0K862 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M DENSO,P/N LABEL=896660K862 |
1 | ||
| 89666-0KQ12 |
GUN135..SAXTR..S;GUN135..SADCB,SASCB;GUN125..6F..(H,S,X);GUN125..(SADCB,SAXTR)..6F..M DENSO,P/N LABEL=896660KQ12 |
1 | ||
| 89666-0KQ12 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M DENSO,P/N LABEL=896660KQ12 |
1 | ||
| 89661-F0W80 |
GUN125..THDCB..6F..HDCR DENSO,RUSSIA & UKRAINE SPEC,P/N LABEL=89661F0W80 |
1 | ||
| 89661-F0X00 |
GUN125..THDCB..6F..HDCR DENSO,RUSSIA & UKRAINE SPEC,P/N LABEL=89661F0X00 |
1 | ||
| 89666-0K862 |
GUN125..6F..HDCR DENSO |
1 | ||
| 89666-0KA42 |
GUN125..6FC..HDCR DENSO |
1 | ||
| 89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1 | ||||
| 89667-0K090 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1 | ||||
| 89667-0K090 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-0K100 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-0K100 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| Common parts | ||||
| 90105-T0066 | ||||
| 90153-T0001 | ||||
| 90178-T0018 | ||||
| 90179-06323 | ||||
| 91673-80616 | ||||
