GUN125L-DTTMHW (2015)
Toyota Hilux

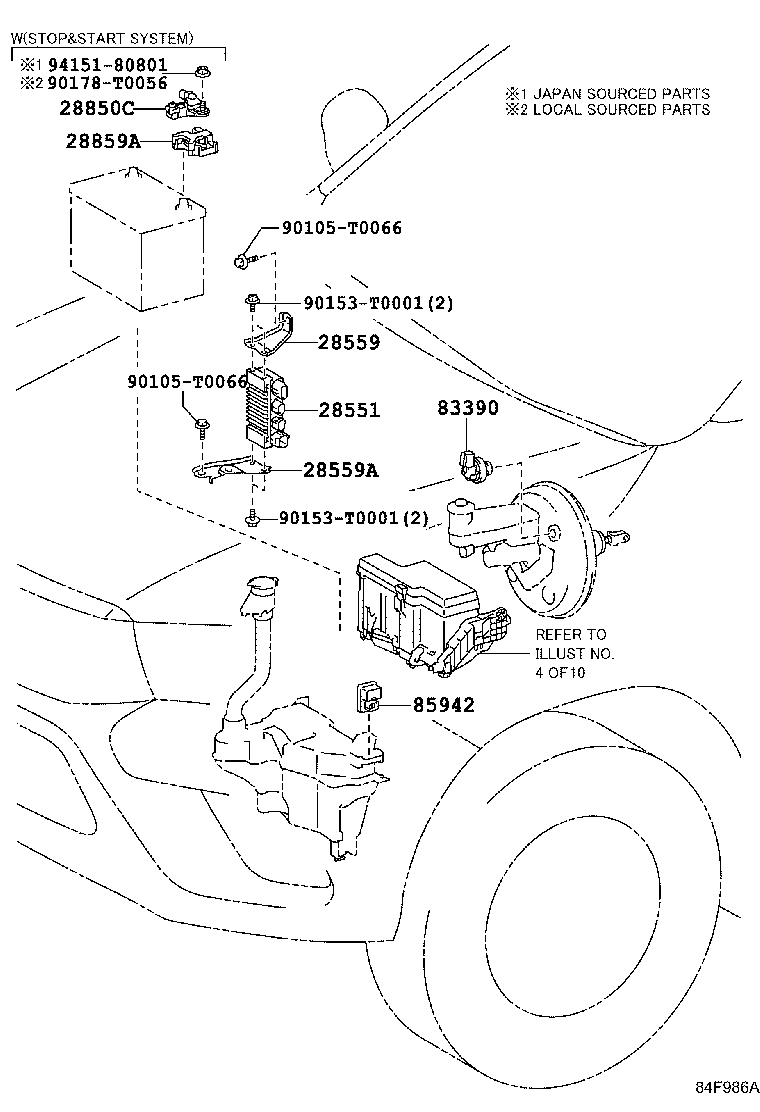

ILLUST NO. 3 OF10(1506- )LHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28551 - CONTROLLER, GLOW PLUG | ||||
| 28551-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB (L) |
1 | ||
| 28551-30010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB (J) |
1 | ||
| 28559 - BRACKET, GLOW PLUG CONTROLLER, NO.1 | ||||
| 28559-0L030 |
1GDFTV,2GDFTV..GUN12#..LHD;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB |
1 | ||
| 28559A - BRACKET, GLOW PLUG CONTROLLER, NO.2 | ||||
| 28559-0L040 |
1GDFTV,2GDFTV..GUN12#..LHD;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-28120 |
GUN125..(H,M)..HDCR;GUN135..6F..M..HDCR TOYOTA STOP & START SYSTEM-WITH |
1 | ||
| 83390-28120 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-53020 |
GUN12#..THDCB..(H,M);GUN135..THDCB..M..DCRE "BLACK RALLY EDITION"*(B) |
1 | ||
| 85942-53020 |
GUN12#,135..H,M |
1 | ||
| 85942-53020 |
GUN126..THDCB..H;GUN125..6FC..H..HDCR;GUN125..RHD..6FC..H..DCRE PREMIUM FULL PACKAGE(HOOD MOLD = BLACK) |
1 | ||
| Common parts | ||||
| 90105-T0066 | ||||
| 90153-T0001 | ||||
| 90178-T0056 | ||||
| 94151-80801 | ||||
ILLUST NO.10 OF10(1506- )
DOOR,ROOF,FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-0K180 |
GUN12#;GUN135..SAXTR..S;GUN135..SADCB,SASCB,THDCB MARK 0K180 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0K060 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0K060 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0K060 |
GUN12#,135..SADCB,THDCB |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0K060 |
GUN12#,135..SADCB,THDCB |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0K080 |
GUN12#..H |
1 | ||
| 84810-0K070 |
GUN12#..M,S;GUN135..(M,S)..CBU |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0K080 |
GUN12#..H |
1 | ||
| 84810-0K070 |
GUN12#..M,S;GUN135..(M,S)..CBU |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0K070 |
GUN12#,135..(SADCB,THDCB)..(M,S) |
2 | ||
| 84810-0K080 |
GUN12#..H |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0K070 |
GUN12#,135..(SADCB,THDCB)..(M,S) |
2 | ||
| 84810-0K080 |
GUN12#..H |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0K270 |
GUN12#,135..LHD..(SADCB,THDCB)..(M,S) |
1 | ||
| 84040-0K020 |
GUN12#..LHD..H |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0K270 |
GUN12#,135..LHD..(SADCB,THDCB)..(M,S) |
1 | ||
| 84040-0K020 |
GUN12#..LHD..H |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-0K040 |
GUN12#,135..LHD..(H,M) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-0K040 |
GUN12#,135..LHD..(H,M) |
1 | ||
| 86210A - INVERTER ASSY, VOLTAGE | ||||
| 86210-71010 |
GUN12#,135..(SADCB,THDCB)..(H,M) |
1 | ||
| 86247A - BRACKET, VOLTAGE INVERTER | ||||
| 86247-0K010 |
GUN12#,135..(SADCB,THDCB)..(H,M) |
1 | ||
| G9221A - COVER, INVERTER, UPPER | ||||
| G9221-0K010 |
GUN12#,135..(SADCB,THDCB)..(H,M) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-T0130 | ||||
| 90164-T0005 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||
| 90178-T0018 | ||||

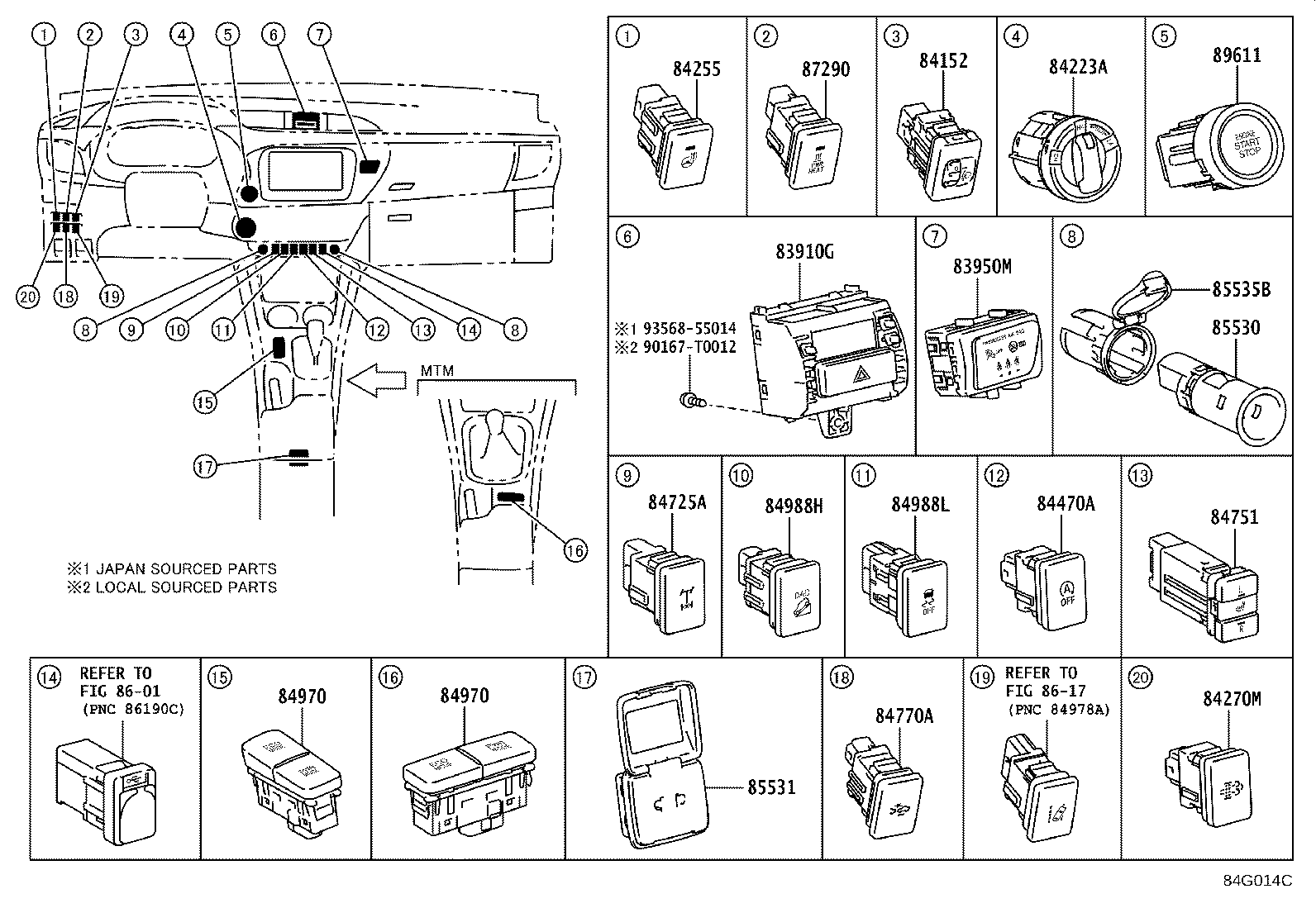

ILLUST NO. 7 OF10(1506- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910G - CLOCK ASSY | ||||
| 83910-0K040 |
GUN12#,135..THDCB |
1 | ||
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-0K030 |
GUN12#,135..LHD..(SADCB,THDCB) |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-0K060 |
GUN12#..M,S,X;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 84223A - SWITCH, TRANSFER POSITION | ||||
| 84223-0K010 |
GUN12# |
1 | ||
| 84255 - SWITCH, STEERING HEATER | ||||
| 84255-0K010 |
GUN126..THDCB;GUN125..THDCB..(H,M)..DCRE;GUN125..THDCB..6F..M..HDCR STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 84255-0K010 |
GUN125..THDCB..6FC..(H,M)..HDCR STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 84725A - SWITCH, DIFFERENTIAL LOCK | ||||
| 84725-0K030 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 84725-0K060 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-71010 |
GUN125..LHD;GUN125..RHD..(H,M);GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 84770A - SWITCH ASSY, PRE-COLLISION SYSTEM CANCEL | ||||
| 84770-0K020 |
GUN125..THDCB..6F..HDCR PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84770-0K020 |
GUN125..THDCB..6FC..(H,M)..HDCR |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-0K020 |
GUN12#,135..6FC |
1 | ||
| 84970-0K070 |
GUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-0K020 |
GUN12#,135..6FC |
1 | ||
| 84970-0K070 |
GUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F |
1 | ||
| 84988H - SWITCH, DOWNHILL ASSIST CONTROL | ||||
| 84988-0K030 |
GUN12#..THDCB..(H,M) VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC) |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-0K010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0K040 |
GUN12#,135..H,M |
2 | ||
| 85530-0K040 |
GUN125..THDCB..6FC..(H,M)..HDCR STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 85530-0K040 |
GUN126..THDCB;GUN125..THDCB..(H,M)..DCRE;GUN125..THDCB..6F..M..HDCR STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 85531 - SOCKET, POWER OUTLET | ||||
| 85530-71010C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-0K090C0 |
GUN125..THDCB..6FC..(H,M);GUN125..THDCB..6F..M..DCRE STEERING WHEEL-LEATHER & WITH(STEERING HEATER),BLACK,TRIM2# |
1 | ||
| 85535-0K090C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
2 | ||
| 85535-0K090C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR STEERING WHEEL-LEATHER & WITH(STEERING HEATER),BLACK,TRIM2#,3# |
1 | ||
| 87290 - SWITCH ASSY, HEATER | ||||
| 87290-71010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-0K010 |
GUN12#..H |
1 | ||
| Common parts | ||||
| 90167-T0012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8601 | ||||
| 8617 | ||||
ILLUST NO. 2 OF10(1506- )GUN12#
TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33576D - BRACKET, BACK-UP LAMP SWITCH, NO.1 | ||||
| 33576-0K010 |
GUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F TYPE A:REFER 33-01 |
1 | ||
| 33576-0K040 |
GUN125..6F;GUN135..SAXTR..S..HDCR;GUN135..(SADCB,SASCB,THDCB)..6F..HDCR TYPE B:REFER 33-01 |
1 | ||
| 33576E - BRACKET, BACK-UP LAMP SWITCH, NO.2 | ||||
| 33576-0K050 |
GUN125..6F;GUN135..SAXTR..S..HDCR;GUN135..(SADCB,SASCB,THDCB)..6F..HDCR TYPE B:REFER 33-01 |
1 | ||
| 33576-0K020 |
GUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F TYPE A:REFER 33-01 |
1 | ||
| 33576F - BRACKET, BACK-UP LAMP SWITCH, NO.3 | ||||
| 33576-0K060 |
GUN125..6F;GUN135..SAXTR..S..HDCR;GUN135..(SADCB,SASCB,THDCB)..6F..HDCR TYPE B:REFER 33-01 |
1 | ||
| 33576-0K030 |
GUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F TYPE A:REFER 33-01 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-71050 |
GUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-60050 |
GUN12#,135..6FC |
1 | ||
| 84545 - SWITCH, NEUTRAL POSITION | ||||
| 84545-71010 |
GUN125..6F..H ACTIVE SAFETY PACKAGE-WITHOUT&VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC) |
1 | ||
| 84545-71010 |
GUN125..6F..H TOYOTA STOP & START SYSTEM-WITH&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 84545-71010 |
GUN125..6F..(H,M)..HDCR VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC) |
1 | ||
| 84545-71010 |
GUN125..6F..H ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 84545-71010 |
GUN125..6F..H TOYOTA STOP & START SYSTEM-WITH&ACTIVE SAFETY PACKAGE-WITHOUT&VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC) |
1 | ||
| Common parts | ||||
| 90105-T0070 | ||||
| 90119-08C62 | ||||
| 90430-18008 | ||||
| 90430-18032 | ||||

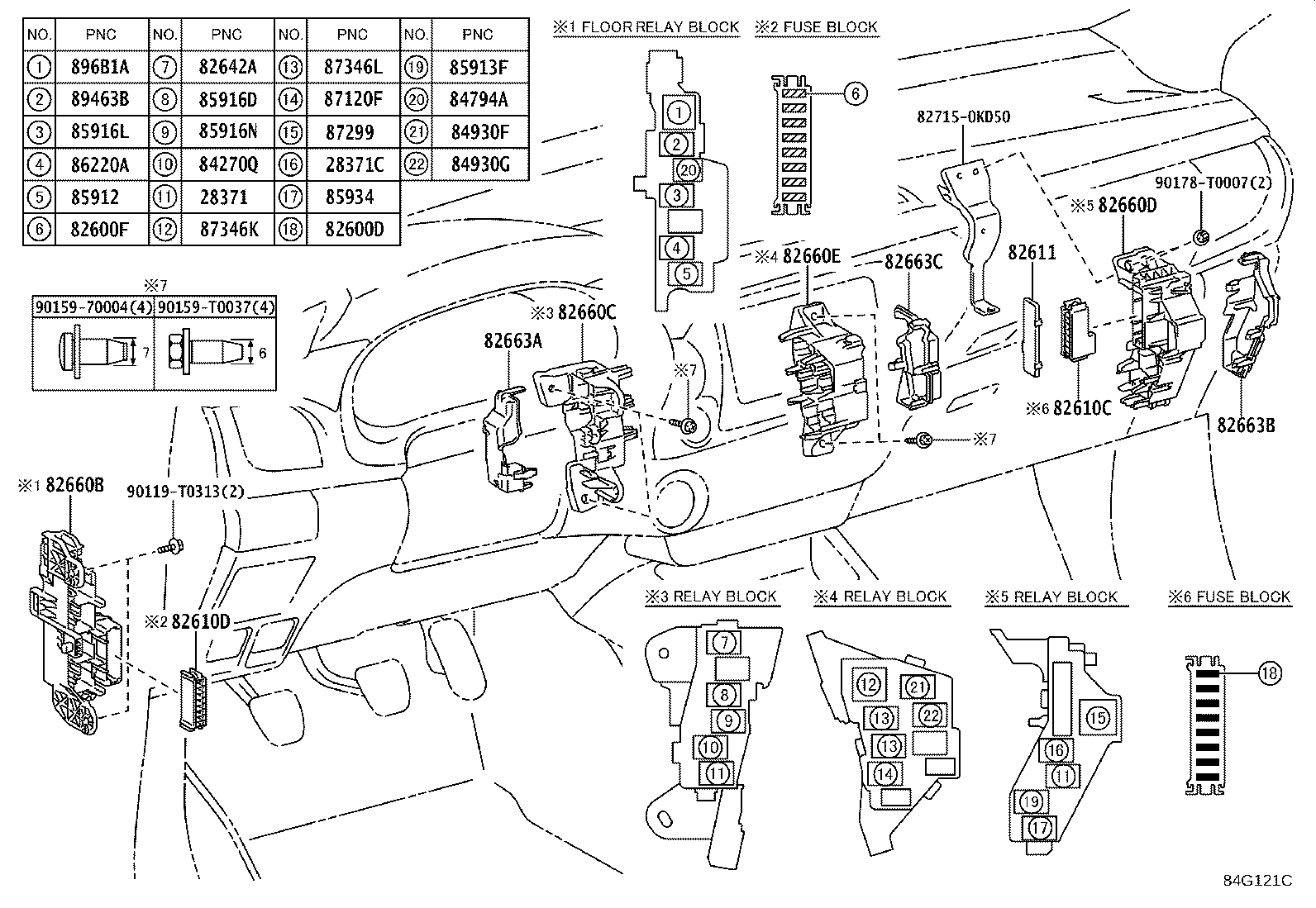

ILLUST NO. 6 OF10(1506- )LHD
COWL 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-T2001 |
1GDFTV,2GDFTV..GUN12#..H (L) |
2 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-T2001 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB (L) |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09023 |
GUN12#,135 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
GUN12#,135 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
GUN12#,135 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
GUN12#,135 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
GUN12#,135 25A,MINI FUSE |
1 | ||
| 90982-09025 |
GUN12#,135 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
GUN12#,135 15A,MINI FUSE,BLUE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
GUN12#,135 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
GUN12#,135 25A,MINI FUSE |
1 | ||
| 90982-09019 |
GUN12#,135 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
GUN12#,135 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
GUN12#,135 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
GUN12#,135 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
GUN12#,135 20A,MINI FUSE,YELLOW |
1 | ||
| 82610C - BLOCK ASSY, FUSE | ||||
| 82610-0K010 |
GUN135..THDCB..M;GUN125..THDCB..6FC..M |
1 | ||
| 82610-0K010 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82610-0K010 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONTAIR CONDITIONER-AUTO |
1 | ||
| 82610-0K010 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 82610-0K010 |
GUN125..THDCB..6FC..M FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82610-0K010 |
GUN125..THDCB..6F..M |
1 | ||
| 82610-0K010 |
GUN125..THDCB..H FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82610-0K010 |
GUN125..THDCB..6FC..(H,M) PRE-COLLISION SYSTEM-WITHOUT&FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82610-0K010 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 82610-0K010 |
GUN125..THDCB..6FC..(H,M) PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONTAIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82610-0K010 |
GUN125..THDCB..H PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONTAIR CONDITIONER-AUTO |
1 | ||
| 82610-0K010 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82610D - BLOCK ASSY, FUSE | ||||
| 82610-0K010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-0K020 |
GUN126;GUN125,135..THDCB |
1 | ||
| 82611-0K040 |
GUN135..THDCB..M;GUN125..THDCB..6FC..M |
1 | ||
| 82611-0K040 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 82611-0K040 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONTAIR CONDITIONER-AUTO |
1 | ||
| 82611-0K040 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82611-0K040 |
GUN125..THDCB..H FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82611-0K040 |
GUN126..SADCB..M;GUN125..THDCB..6F..M;GUN125,135..THDCB..S |
1 | ||
| 82611-0K040 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82611-0K040 |
GUN125..THDCB..6FC..(H,M) PRE-COLLISION SYSTEM-WITHOUT&FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82611-0K040 |
GUN125..THDCB..6FC..M FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82611-0K040 |
GUN125..THDCB..6FC..(H,M) PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONTAIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82611-0K040 |
GUN125..THDCB..H PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONTAIR CONDITIONER-AUTO |
1 | ||
| 82611-0K040 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 82611-0K050 |
GUN125..6F..M..HDCR RUSSIA & UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 82611-0K050 |
GUN126..H;GUN125..(H,M)..HDCR STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 90987-T2001 |
GUN12#;GUN135..SAXTR..S;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0K110 |
GUN126;GUN125,135..THDCB |
1 | ||
| 82660-0K160 |
GUN126;GUN125..THDCB;GUN135..THDCB..M |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-0K060 |
GUN126..H;GUN125..THDCB..H FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82660-0K060 |
GUN125..THDCB..6F..M RUSSIA & UKRAINE SPEC&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82660-0K060 |
GUN125..THDCB..6FC..M FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82660-0K060 |
GUN126..M;GUN125,135..THDCB..(M,S) |
1 | ||
| 82660-0K060 |
GUN125..THDCB..6F..M RUSSIA & UKRAINE SPEC&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82660-0K060 |
GUN125..THDCB..6F..M RUSSIA & UKRAINE SPEC&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 82660-0K060 |
GUN12#,135..THDCB..M FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82660-0K060 |
GUN125..THDCB..H;GUN126..SADCB..H FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
2 | ||
| 82660-0K060 |
GUN126..M;GUN125,135..THDCB..(M,S) |
2 | ||
| 82660-0K060 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 82660-0K060 |
GUN125,135..THDCB..(M,S) |
1 | ||
| 82660-0K060 |
GUN125..THDCB..6F..M PRE-COLLISION SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82660-0K060 |
GUN125..THDCB..H PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONTAIR CONDITIONER-AUTO |
2 | ||
| 82660-0K060 |
GUN125..THDCB..6F..M FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITH(ERA-GLONASS) |
1 | ||
| 82660-0K060 |
GUN125..THDCB..6F..M MAYDAY SYSTEM-WITH(ERA-GLONASS) |
1 | ||
| 82660-0K060 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82660-0K060 |
GUN125..THDCB..6F..M FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITH(ERA-GLONASS(ROLL OVER)) |
1 | ||
| 82660-0K060 |
GUN125..THDCB..6F..M STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITH(ERA-GLONASS) |
1 | ||
| 82660-0K060 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONTAIR CONDITIONER-AUTO |
1 | ||
| 82660-0K060 |
GUN125..THDCB..6F..M MAYDAY SYSTEM-WITH(ERA-GLONASS(ROLL OVER)) |
1 | ||
| 82660-0K060 |
GUN125..THDCB..6F..M STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITH(ERA-GLONASS(ROLL OVER)) |
1 | ||
| 82660-0K060 |
GUN125,135..THDCB..S;GUN125..THDCB..6F..M |
2 | ||
| 82660-0K060 |
GUN125..THDCB..6FC..(H,M) PRE-COLLISION SYSTEM-WITHOUT&FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
2 | ||
| 82660-0K060 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&MAYDAY SYSTEM-WITHOUT |
2 | ||
| 82660-0K060 |
GUN125..THDCB..H FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82660-0K060 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
2 | ||
| 82660-0K060 |
GUN125..THDCB..6FC..(H,M) PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONTAIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82660-0K060 |
GUN125..THDCB..6FC..M FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82660-0K060 |
GUN125..THDCB..6F..M |
1 | ||
| 82660-0K060 |
GUN125..THDCB..H PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONTAIR CONDITIONER-AUTO |
1 | ||
| 82660-0K060 |
GUN125..THDCB..6FC..(H,M) PRE-COLLISION SYSTEM-WITHOUT&FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82660-0K060 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82660-0K060 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-0K080 |
GUN126..H;GUN125..THDCB..H FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82660-0K080 |
GUN126..M;GUN125,135..THDCB..(M,S) |
2 | ||
| 82660-0K080 |
GUN125..THDCB..6F..M RUSSIA & UKRAINE SPEC&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82660-0K080 |
GUN126..M;GUN125,135..THDCB..(M,S) |
1 | ||
| 82660-0K080 |
GUN12#,135..THDCB..M FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82660-0K080 |
GUN125..THDCB..6F..M RUSSIA & UKRAINE SPEC&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 82660-0K080 |
GUN125..THDCB..6F..M RUSSIA & UKRAINE SPEC&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82660-0K080 |
GUN125..THDCB..H;GUN126..SADCB..H FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
2 | ||
| 82660-0K080 |
GUN125..THDCB..6FC..M FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82660-0K080 |
GUN125,135..THDCB..(M,S) |
1 | ||
| 82660-0K080 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82660-0K080 |
GUN125..THDCB..6F..M PRE-COLLISION SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82660-0K080 |
GUN125..THDCB..6F..M FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITH(ERA-GLONASS) |
1 | ||
| 82660-0K080 |
GUN125..THDCB..6F..M MAYDAY SYSTEM-WITH(ERA-GLONASS(ROLL OVER)) |
1 | ||
| 82660-0K080 |
GUN125..THDCB..6F..M MAYDAY SYSTEM-WITH(ERA-GLONASS) |
1 | ||
| 82660-0K080 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 82660-0K080 |
GUN125..THDCB..H PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONTAIR CONDITIONER-AUTO |
2 | ||
| 82660-0K080 |
GUN125..THDCB..6F..M STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITH(ERA-GLONASS) |
1 | ||
| 82660-0K080 |
GUN125..THDCB..6F..M FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITH(ERA-GLONASS(ROLL OVER)) |
1 | ||
| 82660-0K080 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONTAIR CONDITIONER-AUTO |
1 | ||
| 82660-0K080 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&MAYDAY SYSTEM-WITHOUT |
2 | ||
| 82660-0K080 |
GUN125..THDCB..6F..M STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITH(ERA-GLONASS(ROLL OVER)) |
1 | ||
| 82660-0K080 |
GUN125,135..THDCB..S;GUN125..THDCB..6F..M |
2 | ||
| 82660-0K080 |
GUN125..THDCB..6FC..(H,M) PRE-COLLISION SYSTEM-WITHOUT&FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
2 | ||
| 82660-0K080 |
GUN125..THDCB..H FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82660-0K080 |
GUN125..THDCB..6F..M |
1 | ||
| 82660-0K080 |
GUN125..THDCB..6FC..M FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82660-0K080 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82660-0K080 |
GUN125..THDCB..H PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONTAIR CONDITIONER-AUTO |
1 | ||
| 82660-0K080 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 82660-0K080 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
2 | ||
| 82660-0K080 |
GUN125..THDCB..6FC..(H,M) PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONTAIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82660-0K080 |
GUN125..THDCB..6FC..(H,M) PRE-COLLISION SYSTEM-WITHOUT&FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-0K100 |
GUN126..H;GUN125..THDCB..H FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82660-0K100 |
GUN12#,135..THDCB..M FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82660-0K100 |
GUN125..THDCB..6FC..M FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82660-0K100 |
GUN125..THDCB..6F..M RUSSIA & UKRAINE SPEC&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 82660-0K100 |
GUN125..THDCB..H;GUN126..SADCB..H FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
2 | ||
| 82660-0K100 |
GUN125..THDCB..6F..M RUSSIA & UKRAINE SPEC&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82660-0K100 |
GUN126..M;GUN125,135..THDCB..(M,S) |
1 | ||
| 82660-0K100 |
GUN125..THDCB..6F..M RUSSIA & UKRAINE SPEC&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82660-0K100 |
GUN126..M;GUN125,135..THDCB..(M,S) |
2 | ||
| 82660-0K100 |
GUN125,135..THDCB..(M,S) |
1 | ||
| 82660-0K100 |
GUN125..THDCB..H PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONTAIR CONDITIONER-AUTO |
2 | ||
| 82660-0K100 |
GUN125..THDCB..6F..M MAYDAY SYSTEM-WITH(ERA-GLONASS) |
1 | ||
| 82660-0K100 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 82660-0K100 |
GUN125..THDCB..6F..M MAYDAY SYSTEM-WITH(ERA-GLONASS(ROLL OVER)) |
1 | ||
| 82660-0K100 |
GUN125..THDCB..6F..M STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITH(ERA-GLONASS) |
1 | ||
| 82660-0K100 |
GUN125..THDCB..6F..M FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITH(ERA-GLONASS) |
1 | ||
| 82660-0K100 |
GUN125..THDCB..6F..M FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITH(ERA-GLONASS(ROLL OVER)) |
1 | ||
| 82660-0K100 |
GUN125..THDCB..6F..M PRE-COLLISION SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82660-0K100 |
GUN125..THDCB..6FC..(H,M) PRE-COLLISION SYSTEM-WITHOUT&FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
2 | ||
| 82660-0K100 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONTAIR CONDITIONER-AUTO |
1 | ||
| 82660-0K100 |
GUN125..THDCB..6F..M STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITH(ERA-GLONASS(ROLL OVER)) |
1 | ||
| 82660-0K100 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&MAYDAY SYSTEM-WITHOUT |
2 | ||
| 82660-0K100 |
GUN125,135..THDCB..S;GUN125..THDCB..6F..M |
2 | ||
| 82660-0K100 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
2 | ||
| 82660-0K100 |
GUN125..THDCB..6FC..M FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82660-0K100 |
GUN125..THDCB..H FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82660-0K100 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82660-0K100 |
GUN125..THDCB..6FC..(H,M) PRE-COLLISION SYSTEM-WITHOUT&FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82660-0K100 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82660-0K100 |
GUN125..THDCB..6F..M |
1 | ||
| 82660-0K100 |
GUN125..THDCB..H PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONTAIR CONDITIONER-AUTO |
1 | ||
| 82660-0K100 |
GUN125..THDCB..6FC..(H,M) PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONTAIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82660-0K100 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-0K060 |
GUN125..THDCB..6F..M RUSSIA & UKRAINE SPEC&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82663-0K060 |
GUN126..M;GUN125,135..THDCB..(M,S) |
2 | ||
| 82663-0K060 |
GUN12#,135..THDCB..M FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82663-0K060 |
GUN126..H;GUN125..THDCB..H FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82663-0K060 |
GUN126..M;GUN125,135..THDCB..(M,S) |
1 | ||
| 82663-0K060 |
GUN125..THDCB..6FC..M FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82663-0K060 |
GUN125..THDCB..6F..M RUSSIA & UKRAINE SPEC&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82663-0K060 |
GUN125..THDCB..6F..M RUSSIA & UKRAINE SPEC&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 82663-0K060 |
GUN125..THDCB..H;GUN126..SADCB..H FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
2 | ||
| 82663-0K060 |
GUN125,135..THDCB..(M,S) |
1 | ||
| 82663-0K060 |
GUN125..THDCB..H PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONTAIR CONDITIONER-AUTO |
2 | ||
| 82663-0K060 |
GUN125..THDCB..6F..M STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITH(ERA-GLONASS) |
1 | ||
| 82663-0K060 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 82663-0K060 |
GUN125..THDCB..6F..M FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITH(ERA-GLONASS) |
1 | ||
| 82663-0K060 |
GUN125..THDCB..6F..M MAYDAY SYSTEM-WITH(ERA-GLONASS) |
1 | ||
| 82663-0K060 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82663-0K060 |
GUN125..THDCB..6F..M MAYDAY SYSTEM-WITH(ERA-GLONASS(ROLL OVER)) |
1 | ||
| 82663-0K060 |
GUN125..THDCB..6F..M FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITH(ERA-GLONASS(ROLL OVER)) |
1 | ||
| 82663-0K060 |
GUN125..THDCB..6F..M PRE-COLLISION SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82663-0K060 |
GUN125,135..THDCB..S;GUN125..THDCB..6F..M |
2 | ||
| 82663-0K060 |
GUN125..THDCB..6F..M STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITH(ERA-GLONASS(ROLL OVER)) |
1 | ||
| 82663-0K060 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&MAYDAY SYSTEM-WITHOUT |
2 | ||
| 82663-0K060 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONTAIR CONDITIONER-AUTO |
1 | ||
| 82663-0K060 |
GUN125..THDCB..6FC..(H,M) PRE-COLLISION SYSTEM-WITHOUT&FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
2 | ||
| 82663-0K060 |
GUN125..THDCB..H PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONTAIR CONDITIONER-AUTO |
1 | ||
| 82663-0K060 |
GUN125..THDCB..6FC..M FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82663-0K060 |
GUN125..THDCB..6FC..(H,M) PRE-COLLISION SYSTEM-WITHOUT&FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82663-0K060 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82663-0K060 |
GUN125..THDCB..6F..M |
1 | ||
| 82663-0K060 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
2 | ||
| 82663-0K060 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 82663-0K060 |
GUN125..THDCB..6FC..(H,M) PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONTAIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82663-0K060 |
GUN125..THDCB..H FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-0K080 |
GUN12#,135..THDCB..M FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82663-0K080 |
GUN126..H;GUN125..THDCB..H FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82663-0K080 |
GUN126..M;GUN125,135..THDCB..(M,S) |
1 | ||
| 82663-0K080 |
GUN125..THDCB..6FC..M FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82663-0K080 |
GUN126..M;GUN125,135..THDCB..(M,S) |
2 | ||
| 82663-0K080 |
GUN125..THDCB..6F..M RUSSIA & UKRAINE SPEC&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82663-0K080 |
GUN125..THDCB..6F..M RUSSIA & UKRAINE SPEC&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82663-0K080 |
GUN125..THDCB..6F..M RUSSIA & UKRAINE SPEC&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 82663-0K080 |
GUN125..THDCB..H;GUN126..SADCB..H FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
2 | ||
| 82663-0K080 |
GUN125..THDCB..H PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONTAIR CONDITIONER-AUTO |
2 | ||
| 82663-0K080 |
GUN125,135..THDCB..(M,S) |
1 | ||
| 82663-0K080 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 82663-0K080 |
GUN125..THDCB..6F..M MAYDAY SYSTEM-WITH(ERA-GLONASS) |
1 | ||
| 82663-0K080 |
GUN125..THDCB..6F..M STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITH(ERA-GLONASS(ROLL OVER)) |
1 | ||
| 82663-0K080 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82663-0K080 |
GUN125,135..THDCB..S;GUN125..THDCB..6F..M |
2 | ||
| 82663-0K080 |
GUN125..THDCB..6F..M STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITH(ERA-GLONASS) |
1 | ||
| 82663-0K080 |
GUN125..THDCB..6F..M PRE-COLLISION SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82663-0K080 |
GUN125..THDCB..6F..M FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITH(ERA-GLONASS) |
1 | ||
| 82663-0K080 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONTAIR CONDITIONER-AUTO |
1 | ||
| 82663-0K080 |
GUN125..THDCB..6F..M MAYDAY SYSTEM-WITH(ERA-GLONASS(ROLL OVER)) |
1 | ||
| 82663-0K080 |
GUN125..THDCB..6F..M FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITH(ERA-GLONASS(ROLL OVER)) |
1 | ||
| 82663-0K080 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&MAYDAY SYSTEM-WITHOUT |
2 | ||
| 82663-0K080 |
GUN125..THDCB..6FC..(H,M) PRE-COLLISION SYSTEM-WITHOUT&FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
2 | ||
| 82663-0K080 |
GUN125..THDCB..H FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82663-0K080 |
GUN125..THDCB..6FC..M FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82663-0K080 |
GUN125..THDCB..6FC..(H,M) PRE-COLLISION SYSTEM-WITHOUT&FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82663-0K080 |
GUN125..THDCB..6F..M |
1 | ||
| 82663-0K080 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
2 | ||
| 82663-0K080 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82663-0K080 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 82663-0K080 |
GUN125..THDCB..6FC..(H,M) PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONTAIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82663-0K080 |
GUN125..THDCB..H PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONTAIR CONDITIONER-AUTO |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82663-0K100 |
GUN12#,135..THDCB..M FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82663-0K100 |
GUN125..THDCB..6F..M RUSSIA & UKRAINE SPEC&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82663-0K100 |
GUN126..H;GUN125..THDCB..H FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82663-0K100 |
GUN125..THDCB..6FC..M FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82663-0K100 |
GUN125..THDCB..H;GUN126..SADCB..H FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
2 | ||
| 82663-0K100 |
GUN126..M;GUN125,135..THDCB..(M,S) |
2 | ||
| 82663-0K100 |
GUN125..THDCB..6F..M RUSSIA & UKRAINE SPEC&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 82663-0K100 |
GUN126..M;GUN125,135..THDCB..(M,S) |
1 | ||
| 82663-0K100 |
GUN125..THDCB..6F..M RUSSIA & UKRAINE SPEC&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82663-0K100 |
GUN125..THDCB..6F..M PRE-COLLISION SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82663-0K100 |
GUN125,135..THDCB..(M,S) |
1 | ||
| 82663-0K100 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82663-0K100 |
GUN125..THDCB..6F..M STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITH(ERA-GLONASS(ROLL OVER)) |
1 | ||
| 82663-0K100 |
GUN125..THDCB..6F..M STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITH(ERA-GLONASS) |
1 | ||
| 82663-0K100 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 82663-0K100 |
GUN125..THDCB..H PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONTAIR CONDITIONER-AUTO |
2 | ||
| 82663-0K100 |
GUN125..THDCB..6F..M FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITH(ERA-GLONASS(ROLL OVER)) |
1 | ||
| 82663-0K100 |
GUN125..THDCB..6F..M MAYDAY SYSTEM-WITH(ERA-GLONASS) |
1 | ||
| 82663-0K100 |
GUN125..THDCB..6F..M MAYDAY SYSTEM-WITH(ERA-GLONASS(ROLL OVER)) |
1 | ||
| 82663-0K100 |
GUN125,135..THDCB..S;GUN125..THDCB..6F..M |
2 | ||
| 82663-0K100 |
GUN125..THDCB..6FC..(H,M) PRE-COLLISION SYSTEM-WITHOUT&FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
2 | ||
| 82663-0K100 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONTAIR CONDITIONER-AUTO |
1 | ||
| 82663-0K100 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&MAYDAY SYSTEM-WITHOUT |
2 | ||
| 82663-0K100 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
2 | ||
| 82663-0K100 |
GUN125..THDCB..6FC..M FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82663-0K100 |
GUN125..THDCB..H PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONTAIR CONDITIONER-AUTO |
1 | ||
| 82663-0K100 |
GUN125..THDCB..6F..M FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITH(ERA-GLONASS) |
1 | ||
| 82663-0K100 |
GUN125..THDCB..6F..M |
1 | ||
| 82663-0K100 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 82663-0K100 |
GUN125..THDCB..6FC..(H,M) PRE-COLLISION SYSTEM-WITHOUT&FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82663-0K100 |
GUN125..THDCB..6FC..(H,M) PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONTAIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82663-0K100 |
GUN125..THDCB..6FC..M PRE-COLLISION SYSTEM-WITHOUT&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 82663-0K100 |
GUN125..THDCB..H FRONT AIR CONDITIONER-AUTO&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 84270Q - RELAY, LAMP CUT | ||||
| 90987-T2001 |
GUN12#,135 |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-T2001 |
GUN126..THDCB;GUN125..THDCB..(H,M)..DCRE;GUN125..THDCB..6F..M..HDCR STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 90987-T2001 |
GUN125..THDCB..6FC..(H,M)..HDCR STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90080-87009 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 85913F - RELAY, STEERING HEATER | ||||
| 90987-T2001 |
GUN125..THDCB..6FC..(H,M)..HDCR STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 90987-T2001 |
GUN126..THDCB;GUN125..THDCB..(H,M)..DCRE;GUN125..THDCB..6F..M..HDCR STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-T2001 |
GUN12#,135..H,M |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-T2001 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-T2001 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
GUN12#..H;GUN125,135..M..DCRE FRONT AIR CONDITIONER-AUTO |
1 | ||
| 90987-02028 |
GUN12#..M,S,X;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 86220A - RELAY, INVERTER | ||||
| 90987-T2001 |
GUN12#,135..(SADCB,THDCB)..(H,M) |
1 | ||
| 87120F - RELAY, VISCOUS HEATER | ||||
| 90987-T2001 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 87299 - RELAY, HEATER | ||||
| 90987-T2003 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-T2002 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 87346L - RELAY, PTC HEATER | ||||
| 90987-T2001 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
2 | ||

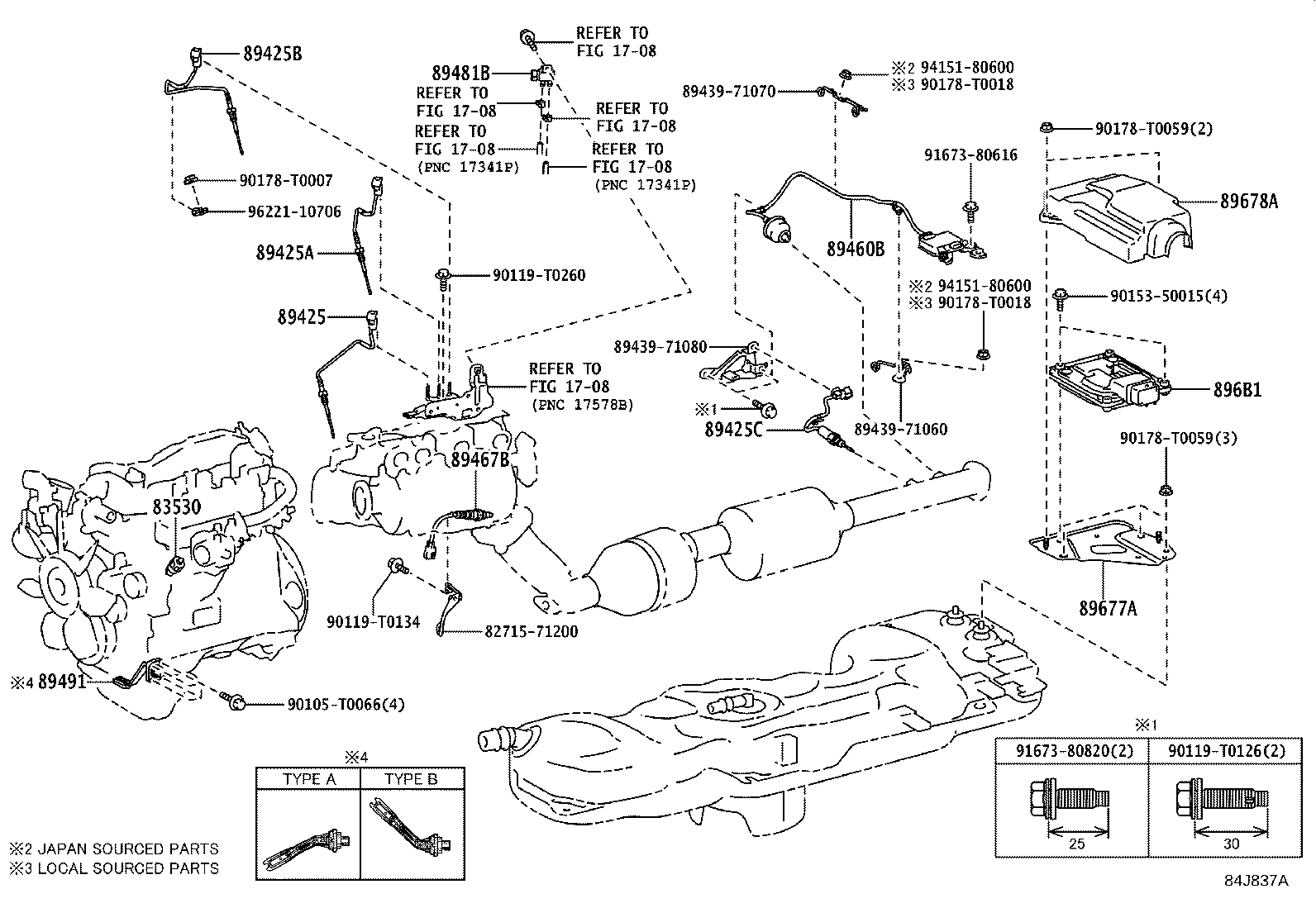

| 89463B - RELAY, NITROGEN OXIDES | ||||
| 90987-T2001 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M EXHAUST EMISSION CONTROL-EURO 6,(L) |
1 | ||
| 90987-02027 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M EXHAUST EMISSION CONTROL-EURO 6,(J) |
1 | ||
| 90987-02027 |
GUN125..LHD..6FC..(H,M);GUN125..LHD..(SADCB,THDCB)..6F..S..CBU ISRAEL SPEC(EURO 5 REGULATION),(J) |
1 | ||
| 90987-02027 |
GUN125..THDCB..6F..M EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J) |
1 | ||
| 90987-T2001 |
GUN125..(H,S,X)..HDCR;GUN135..SAXTR..S..HDCR;GUN125,135..6FC..M..HDCR;GUN135..(SADCB,SASCB)..HDCR;GUN125..(SADCB,SAXTR)..6F..M..HDCR (L) |
1 | ||
| 90987-T2001 |
GUN135..THDCB..6F..HDCR;GUN125..THDCB..6F..M..HDCR (L) |
1 | ||
| 90987-02027 |
GUN125..(H,S,X)..HDCR;GUN135..SAXTR..S..HDCR;GUN125,135..6FC..M..HDCR;GUN135..(SADCB,SASCB)..HDCR;GUN125..(SADCB,SAXTR)..6F..M..HDCR (J) |
1 | ||
| 90987-02027 |
GUN135..THDCB..6F..HDCR;GUN125..THDCB..6F..M..HDCR (J) |
1 | ||
| 90987-02027 |
GUN125..THDCB..6F..M RUSSIA & UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J) |
1 | ||
| 896B1A - RELAY, DCU MAIN | ||||
| 90987-T2002 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M EXHAUST EMISSION CONTROL-EURO 6 |
1 | ||
| 90987-T2002 |
GUN125..H,S,X;GUN125,135..6FC..M;GUN135..SADCB,SASCB;GUN135..SAXTR..S..HDCR;GUN125..THDCB..6F..M..DCRE;GUN125..(SADCB,SAXTR)..6F..M;GUN135..(SAXTR,THDCB)..6F..DCRE |
1 | ||
| 90987-T2002 |
GUN125..THDCB..6F..M..HDCR RUSSIA & UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90987-02030 |
GUN125..6F..HDCR EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J) |
1 | ||
| 90987-T2002 |
GUN125..LHD..6FC..(H,M)..HDCR;GUN125..LHD..(SADCB,THDCB)..6F..S..HDCR..CBU ISRAEL SPEC(EURO 5 REGULATION) |
1 | ||
| 90987-02030 |
GUN125..(H,S)..HDCR;GUN125..6FC..M..HDCR ISRAEL SPEC(EURO 5 REGULATION),(J) |
1 | ||
| 90987-T2002 |
GUN125..THDCB..6F..M..HDCR EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90987-T2002 |
GUN135..THDCB..6F..HDCR;GUN125..THDCB..6F..M..HDCR |
1 | ||
| 90987-02030 |
GUN125..6F..HDCR RUSSIA & UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J) |
1 | ||
| Common parts | ||||
| 82715-0KD50 | ||||
| 90119-T0313 | ||||
| 90159-70004 | ||||
| 90159-T0037 | ||||
| 90178-T0007 | ||||

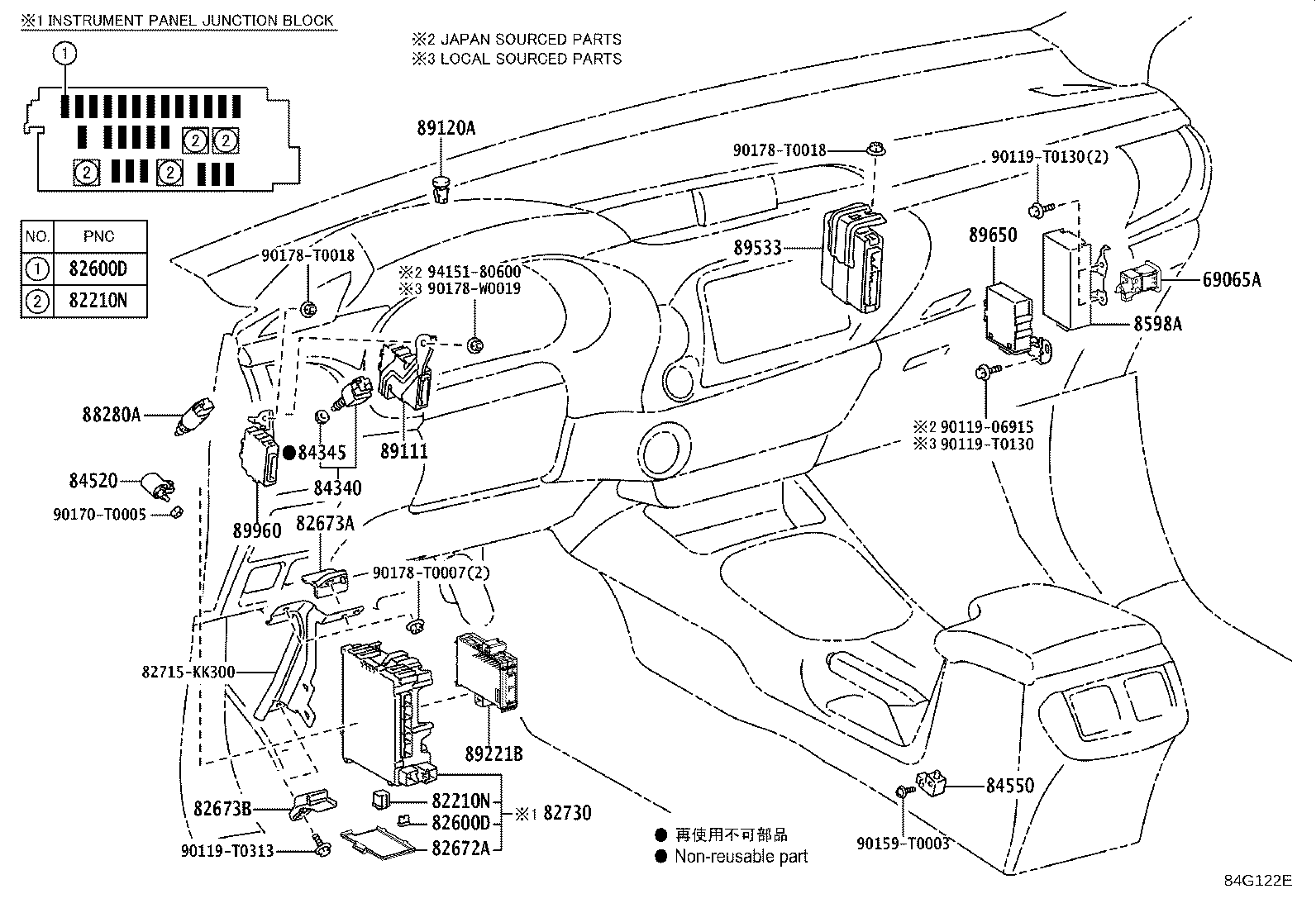

ILLUST NO. 5 OF10(1506- )LHD
COWL 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69065A - CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH | ||||
| 69065-0K010 |
GUN126;GUN125,135..THDCB |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08294 |
GUN12#,135 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
GUN12#,135 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08294 |
GUN12#,135 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
GUN12#,135 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09023 |
GUN12#,135 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
GUN12#,135 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
GUN12#,135 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
GUN12#,135 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
GUN12#,135 25A,MINI FUSE |
1 | ||
| 90982-09025 |
GUN12#,135 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
GUN12#,135 15A,MINI FUSE,BLUE |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09023 |
GUN12#,135 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
GUN12#,135 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
GUN12#,135 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
GUN12#,135 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
GUN12#,135 25A,MINI FUSE |
1 | ||
| 90982-09025 |
GUN12#,135 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
GUN12#,135 15A,MINI FUSE,BLUE |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-0K100 |
GUN12#..HDCR |
2 | ||
| 82672-0K010 |
GUN12#;GUN135..SAXTR..S;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 82672-0K100 |
GUN12#..HDCR |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-0K010 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-0K020 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-0K531 |
GUN12#..(M,S)..HDCR |
1 | ||
| 82730-0K520 |
GUN12#..H..HDCR MARK JG |
1 | ||
| 82730-0K521 |
GUN12#..H..HDCR |
1 | ||
| 82730-0K530 |
GUN135..(SADCB,SAXTR,THDCB)..(M,S)..HDCR;GUN12#..(SADCB,SAXTR,THDCB)..(M,S,X)..HDCR MARK JH |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09040 |
GUN12#,135 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-0K010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
GUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-02030 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 88280A - SWITCH ASSY, CLUTCH | ||||
| 88280-42010 |
GUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89100-71010 |
GUN125..THDCB..6FC..(H,M) ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 89100-71010 |
GUN125..THDCB..6FC..(H,M) |
1 | ||
| 89100-71010 |
GUN125..THDCB..6FC..(H,M) PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 89100-71010 |
GUN135..THDCB..S;GUN125..THDCB..6F PRE-COLLISION SYSTEM-WITH |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 89221B - COMPUTER, BODY | ||||
| 89221-0K010 |
GUN12#,135..LHD |
1 | ||
| 89533 - COMPUTER, 4 WHEEL DRIVE CONTROL | ||||
| 89533-71110 |
GUN125..LHD..(SADCB,THDCB)..(H,M) DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 89533-71091 |
GUN12#..LHD..(H,M) |
1 | ||
| 89533-71090 |
GUN12#..H,M |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-71070 |
GUN12#..THDCB..M;GUN135..THDCB..M..DCRE "BLACK RALLY EDITION"*(B) |
1 | ||
| 89960-71070 |
GUN12#,135..M |
1 | ||
| 89960-71050 |
GUN12#..H |
1 | ||
| Common parts | ||||
| 82715-KK300 | ||||
| 90119-06915 | ||||
| 90119-T0130 | ||||
| 90119-T0313 | ||||
| 90159-T0003 | ||||
| 90170-T0005 | ||||
| 90178-T0007 | ||||
| 90178-T0018 | ||||
| 90178-W0019 | ||||
| 94151-80600 | ||||
ILLUST NO. 8 OF10(1506- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-0K020 |
GUN12#..M,S,X;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-0K610 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-0K610 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-0K330C0 |
GUN126..THDCB;GUN125..THDCB..6F..M STEERING WHEEL-LEATHER & WITH(STEERING HEATER),BLACK/SILVER,TRIM2#,3# |
1 | ||
| 84250-0K310C1 |
GUN12#..THDCB..(H,M) BLACK/SILVER 21SV85,TRIM2#,3# |
1 | ||
| 84250-0K310C1 |
GUN12#..THDCB..(H,M)..HDCR BLACK/SILVER 21SV85,TRIM20,3# |
1 | ||
| 84250-0K310C0 |
GUN12#,135..H,M BLACK,TRIM2# |
1 | ||
| 84250-0K310C1 |
GUN135..M;GUN126..SADCB;GUN125..6F..H;GUN125..SADCB..M BLACK/SILVER 21SV85,TRIM2#,3# |
1 | ||
| 84250-0K330C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR STEERING WHEEL-LEATHER & WITH(STEERING HEATER),BLACK/SILVER,TRIM20,3# |
1 | ||
| 84250-0K330C0 |
GUN125..THDCB..6FC..(H,M)..HDCR STEERING WHEEL-LEATHER & WITH(STEERING HEATER),BLACK/SILVER,TRIM20 |
1 | ||
| 84250-0K330C1 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR STEERING WHEEL-LEATHER & WITH(STEERING HEATER),BLACK/BLACK METALLIC,TRIM21 |
1 | ||
| 84250-0K310C2 |
GUN12#..THDCB..(H,M)..HDCR BLACK/BLACK METALLIC,TRIM21 |
1 | ||
| 84250-0K330C1 |
GUN125..THDCB..6FC..(H,M)..HDCR STEERING WHEEL-LEATHER & WITH(STEERING HEATER),BLACK/BLACK METALLIC,TRIM21 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-0K040 |
GUN125..THDCB..6FC..(H,M)..HDCR STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 84308-0K040 |
GUN126..THDCB;GUN125..THDCB..(H,M)..DCRE;GUN125..THDCB..6F..M..HDCR STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 84308-0K010 |
GUN126;GUN125,135..THDCB |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-0K170 |
GUN126..THDCB;GUN125..THDCB..(H,M)..DCRE;GUN125..THDCB..6F..M..HDCR STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 84307-0K170 |
GUN125..THDCB..6FC..(H,M)..HDCR STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 84307-0K090 |
GUN126;GUN125,135..THDCB |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-02040 |
GUN12#..M,S,X;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-0K280 |
GUN12#,135..THDCB |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-0K280 |
GUN12#,135..THDCB |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-0D010 |
GUN12#,135..6FC..(M,S) |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-0D020 |
GUN125,135..DCRE;GUN12#..THDCB..(H,M)..HDCR;GUN125..THDCB..6F..S..HDCR |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-T0004 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 9 OF10(1506- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84921D - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-02110C0 |
GUN12#,135..THDCB..(H,M);GUN125,135..LHD..SADCB..(H,M)..DCRE SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 84921K - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-02070C0 |
GUN12#,135..THDCB..(H,M);GUN125,135..LHD..SADCB..(H,M)..DCRE SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-06140 |
GUN12#,135..LHD..(SADCB,THDCB)..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| Common parts | ||||
| 93560-14010 | ||||
ILLUST NO. 4 OF10(1506- )
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-30050 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 90987-T2002 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB (L) |
1 | ||
| 90987-02025 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB (J) |
1 | ||
| 82210M - FUSIBLE LINK | ||||
| 90982-08286 |
GUN126;GUN125..M..HDCR 140A,TERM.:MALE,RBR,STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 90982-08286 |
GUN125..6F..M..HDCR 140A,TERM.:MALE,RBR,RUSSIA & UKRAINE SPEC&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 90982-08286 |
GUN12#..THDCB..(H,M) 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08286 |
GUN125..M..HDCR 140A,TERM.:MALE,RBR,"BLACK RALLY EDITION"*(B) |
1 | ||
| 90982-08286 |
GUN12#..H..HDCR 140A,TERM.:MALE,RBR,"BLACK RALLY EDITION"*(B)&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 90982-08286 |
GUN125..6F..M..HDCR 140A,TERM.:MALE,RBR,RUSSIA & UKRAINE SPEC&"BLACK RALLY EDITION"*(B) |
1 | ||
| 82210M - FUSIBLE LINK | ||||
| 90982-08286 |
GUN126;GUN125..M..HDCR 140A,TERM.:MALE,RBR,STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 90982-08286 |
GUN125..6F..M..HDCR 140A,TERM.:MALE,RBR,RUSSIA & UKRAINE SPEC&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 90982-08286 |
GUN12#..THDCB..(H,M) 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08286 |
GUN125..M..HDCR 140A,TERM.:MALE,RBR,"BLACK RALLY EDITION"*(B) |
1 | ||
| 90982-08286 |
GUN12#..H..HDCR 140A,TERM.:MALE,RBR,"BLACK RALLY EDITION"*(B)&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 90982-08286 |
GUN125..6F..M..HDCR 140A,TERM.:MALE,RBR,RUSSIA & UKRAINE SPEC&"BLACK RALLY EDITION"*(B) |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08295 |
GUN12#,135 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08305 |
GUN12#,135 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08303 |
GUN12#,135 50A-50A-50A,FEMALE |
1 | ||
| 90982-08300 |
GUN12#,135 50A-30A-30A,FEMALE |
1 | ||
| 90982-08304 |
GUN12#,135 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08307 |
GUN12#,135 50A,TERM.:FEMALE,RED,MARK=32V |
1 | ||
| 90982-08299 |
GUN12#,135 40A-40A-40A,FEMALE |
1 | ||
| 90982-08301 |
GUN12#,135 50A-30A-40A,FEMALE |
1 | ||
| 90982-08296 |
GUN12#,135 50A,TERM.:FEMALE,RED,MARK=58V |
1 | ||
| 90982-08308 |
GUN12#,135 40A-30A-30A,FEMALE |
1 | ||
| 90982-08302 |
GUN12#,135 50A-30A-50A,FEMALE |
1 | ||
| 90982-08294 |
GUN12#,135 40A,TERM.:FEMALE,GRN |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09020 |
GUN12#,135 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
GUN12#,135 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
GUN12#,135 25A,MINI FUSE |
1 | ||
| 90982-09023 |
GUN12#,135 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
GUN12#,135 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
GUN12#,135 30A,MINI FUSE,GRN |
1 | ||
| 90982-09019 |
GUN12#,135 5A,MINI FUSE,TAN |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-0K030 |
GUN12#..THDCB..(H,M) |
1 | ||
| 82610-0K030 |
GUN125..6F..M..HDCR RUSSIA & UKRAINE SPEC&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 82610-0K030 |
GUN125..M..HDCR "BLACK RALLY EDITION"*(B) |
1 | ||
| 82610-0K030 |
GUN126;GUN125..M..HDCR STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 82610-0K030 |
GUN125..6F..M..HDCR RUSSIA & UKRAINE SPEC&"BLACK RALLY EDITION"*(B) |
1 | ||
| 82610-0K030 |
GUN12#..H..HDCR "BLACK RALLY EDITION"*(B)&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
GUN12#,135..THDCB |
2 | ||
| 82616-58010 |
GUN12#..THDCB..(H,M);GUN125..THDCB..6F..S |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82630-0K020 |
GUN125..6F..M..HDCR RUSSIA & UKRAINE SPEC&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 82630-0K020 |
GUN12#..THDCB..(H,M) |
1 | ||
| 82630-0K020 |
GUN125..M..HDCR "BLACK RALLY EDITION"*(B) |
1 | ||
| 82630-0K020 |
GUN125..6F..M..HDCR RUSSIA & UKRAINE SPEC&"BLACK RALLY EDITION"*(B) |
1 | ||
| 82630-0K020 |
GUN126;GUN125..M..HDCR STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 82630-0K020 |
GUN12#..H..HDCR "BLACK RALLY EDITION"*(B)&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-0K050 |
GUN12#..THDCB..(H,M) |
1 | ||
| 82661-0K050 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK) |
1 | ||
| 82661-0K080 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 82661-0K080 |
GUN125..THDCB..H STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONT FOG LAMP-WITH(LED) |
1 | ||
| 82661-0K050 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&FRONT FOG LAMP-WITH(LED) |
1 | ||
| 82661-0K080 |
GUN125..THDCB..H STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 82661-0K080 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&FRONT FOG LAMP-WITH(LED) |
1 | ||
| 82661-0K080 |
GUN125..H..HDCR "BLACK RALLY EDITION"*(B)&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 82661-0K050 |
GUN125..6F..M..HDCR RUSSIA & UKRAINE SPEC&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 82661-0K080 |
GUN125..THDCB..M..HDCR STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 82661-0K050 |
GUN125..6F..M..HDCR RUSSIA & UKRAINE SPEC&"BLACK RALLY EDITION"*(B) |
1 | ||
| 82661-0K050 |
GUN125..M..HDCR "BLACK RALLY EDITION"*(B) |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-0K480 |
GUN12#,135..THDCB |
1 | ||
| 82662-0K570 |
GUN12#,135..THDCB MARK 82662-0K570 |
1 | ||
| 82662-0K770 |
GUN12#,135..THDCB MARK 82662-0K770 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0K020 |
GUN125..6F..M..HDCR RUSSIA & UKRAINE SPEC&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 82663-0K020 |
GUN125..6F..M..HDCR RUSSIA & UKRAINE SPEC&"BLACK RALLY EDITION"*(B) |
1 | ||
| 82663-0K020 |
GUN125..M..HDCR "BLACK RALLY EDITION"*(B) |
1 | ||
| 82663-0K020 |
GUN12#..THDCB..(H,M) |
1 | ||
| 82663-0K020 |
GUN12#..H..HDCR "BLACK RALLY EDITION"*(B)&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 82663-0K020 |
GUN126;GUN125..M..HDCR STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-0K150 |
GUN126;GUN125..M..HDCR STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 82666-0K150 |
GUN12#..H..HDCR "BLACK RALLY EDITION"*(B)&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 82666-0K150 |
GUN125..M..HDCR "BLACK RALLY EDITION"*(B) |
1 | ||
| 82666-0K150 |
GUN12#..THDCB..(H,M) |
1 | ||
| 82666-0K150 |
GUN125..6F..M..HDCR RUSSIA & UKRAINE SPEC&"BLACK RALLY EDITION"*(B) |
1 | ||
| 82666-0K150 |
GUN125..6F..M..HDCR RUSSIA & UKRAINE SPEC&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-0K020 |
GUN126;GUN125..M..HDCR STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 82741-0K020 |
GUN125..M..HDCR "BLACK RALLY EDITION"*(B) |
1 | ||
| 82741-0K020 |
GUN125..6F..M..HDCR RUSSIA & UKRAINE SPEC&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 82741-0K020 |
GUN12#..THDCB..(H,M) |
1 | ||
| 82741-0K020 |
GUN125..6F..M..HDCR RUSSIA & UKRAINE SPEC&"BLACK RALLY EDITION"*(B) |
1 | ||
| 82741-0K020 |
GUN12#..H..HDCR "BLACK RALLY EDITION"*(B)&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-T2002 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 85919E - RELAY, STOP LAMP | ||||
| 90987-04004 |
GUN12#,135 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-T2003 |
GUN12#..M,S,X;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 90987-T2002 |
GUN125..H;GUN126..THDCB..H |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-T2001 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| Common parts | ||||
| 90119-T0313 | ||||
| Linked diagrams | ||||
| 8405 | ||||
ILLUST NO. 1 OF10(1506- )HDCR
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28010 |
GUN12#..HDCR;GUN135..SAXTR..S..HDCR;GUN135..(SADCB,SASCB,THDCB)..HDCR DENSO |
1 | ||
| 83530-60010 |
GUN12#..HDCR;GUN135..SAXTR..S..HDCR;GUN135..(SADCB,SASCB,THDCB)..HDCR YAZAKI |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-71070 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-71080 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 89425B - SENSOR, EXHAUST GAS TEMPERATURE, NO.3 | ||||
| 89425-71090 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 89425C - SENSOR, EXHAUST GAS TEMPERATURE, NO.4 | ||||
| 89425-71060 |
GUN125..THDCB..6F..M UKRAINE SPEC(EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6 |
1 | ||
| 89425-71060 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M TURKEY SPEC(EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6 |
1 | ||
| 89425-71060 |
GUN135..THDCB..6F..HDCR;GUN125..THDCB..6F..M..HDCR TURKEY SPEC(EURO 5 REGULATION) |
1 | ||
| 89425-71060 |
GUN125..THDCB..6F..M..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 89425-71060 |
GUN125..THDCB..6F..M..HDCR RUSSIA & UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 89425-71060 |
GUN125..LHD..6FC..(H,M)..HDCR;GUN125..LHD..(SADCB,THDCB)..6F..S..HDCR..CBU ISRAEL SPEC(EURO 5 REGULATION) |
1 | ||
| 89425-71060 |
GUN125..LHD..SADCB..6F..M..HDCR;GUN125..LHD..(SADCB,THDCB)..6F..(H,S,X)..HDCR..CBU RUSSIA & UKRAINE SPEC |
1 | ||
| 89460B - SENSOR ASSY, NITROGEN OXIDES | ||||
| 89460-0K010 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M EXHAUST EMISSION CONTROL-EURO 6 |
1 | ||
| 89460-0K010 |
GUN125..(H,S,X)..HDCR;GUN135..SAXTR..S..HDCR;GUN125,135..6FC..M..HDCR;GUN135..(SADCB,SASCB)..HDCR;GUN125..(SADCB,SAXTR)..6F..M..HDCR |
1 | ||
| 89460-0K010 |
GUN125..LHD..6FC..(H,M)..HDCR;GUN125..LHD..(SADCB,THDCB)..6F..S..HDCR..CBU ISRAEL SPEC(EURO 5 REGULATION) |
1 | ||
| 89460-0K010 |
GUN125..THDCB..6F..M..HDCR RUSSIA & UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 89460-0K010 |
GUN125..THDCB..6F..M..HDCR EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 89460-0K010 |
GUN135..THDCB..6F..HDCR;GUN125..THDCB..6F..M..HDCR |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-71120 |
GUN135..(M,S)..HDCR..CBU;GUN135..SAXTR..HDCR..IV3;GUN12#..(SADCB,THDCB)..HDCR |
1 | ||
| 89481B - SENSOR, DIFFERENTIAL PRESSURE | ||||
| 89481-71010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-71010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB TYPE A:REFER ILLUST. |
1 | ||
| 89491-71010 |
GUN125..THDCB..6F RUSSIA & UKRAINE SPEC |
1 | ||
| 89491-26190 |
GUN125..6F..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 89677A - BRACKET, UREA PUMP CONTROL, NO.1 | ||||
| 89677-71010 |
GUN125..LHD..6FC..(H,M)..HDCR;GUN125..LHD..(SADCB,THDCB)..6F..S..HDCR..CBU ISRAEL SPEC(EURO 5 REGULATION) |
1 | ||
| 89677-71010 |
GUN125..THDCB..6F..M..HDCR RUSSIA & UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 89677-71010 |
GUN125..THDCB..6F..M..HDCR EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 89677-71010 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M EXHAUST EMISSION CONTROL-EURO 6 |
1 | ||
| 89677-71010 |
GUN125..H,S,X;GUN125,135..6FC..M;GUN135..SADCB,SASCB;GUN135..SAXTR..S..HDCR;GUN125..THDCB..6F..M..DCRE;GUN125..(SADCB,SAXTR)..6F..M;GUN135..(SAXTR,THDCB)..6F..DCRE |
1 | ||
| 89678A - BRACKET, UREA PUMP CONTROL, NO.2 | ||||
| 89678-0K010 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M EXHAUST EMISSION CONTROL-EURO 6 |
1 | ||
| 89678-0K010 |
GUN125..THDCB..6F..M..HDCR EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 89678-0K010 |
GUN125..THDCB..6F..M..HDCR RUSSIA & UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 89678-0K010 |
GUN125..H,S,X;GUN125,135..6FC..M;GUN135..SADCB,SASCB;GUN135..SAXTR..S..HDCR;GUN125..THDCB..6F..M..DCRE;GUN125..(SADCB,SAXTR)..6F..M;GUN135..(SAXTR,THDCB)..6F..DCRE |
1 | ||
| 89678-0K010 |
GUN125..LHD..6FC..(H,M)..HDCR;GUN125..LHD..(SADCB,THDCB)..6F..S..HDCR..CBU ISRAEL SPEC(EURO 5 REGULATION) |
1 | ||
| 896B1 - COMPUTER, UREA PUMP CONTROL | ||||
| 896B1-71010 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M EXHAUST EMISSION CONTROL-EURO 6 |
1 | ||
| 896B1-71010 |
GUN125..LHD..6FC..(H,M)..HDCR;GUN125..LHD..(SADCB,THDCB)..6F..S..HDCR..CBU ISRAEL SPEC(EURO 5 REGULATION) |
1 | ||
| 896B1-71010 |
GUN135..THDCB..6F..HDCR;GUN125..THDCB..6F..M..HDCR |
1 | ||
| 896B1-71010 |
GUN125..(H,S,X)..HDCR;GUN135..SAXTR..S..HDCR;GUN125,135..6FC..M..HDCR;GUN135..(SADCB,SASCB)..HDCR;GUN125..(SADCB,SAXTR)..6F..M..HDCR |
1 | ||
| 896B1-71010 |
GUN125..THDCB..6F..M..HDCR RUSSIA & UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 896B1-71010 |
GUN125..THDCB..6F..M..HDCR EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS) |
1 | ||
| Common parts | ||||
| 82715-71200 | ||||
| 89439-71060 | ||||
| 89439-71070 | ||||
| 89439-71080 | ||||
| 90105-T0066 | ||||
| 90119-T0126 | ||||
| 90119-T0134 | ||||
| 90119-T0260 | ||||
| 90153-50015 | ||||
| 90178-T0007 | ||||
| 90178-T0018 | ||||
| 90178-T0059 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||
| 94151-80600 | ||||
| 96221-10706 | ||||
| Linked diagrams | ||||
| 1708 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
