GUN125L-DTTMHW (2015)
Toyota Hilux
(1506- )SADCB,SASCB,THDCB

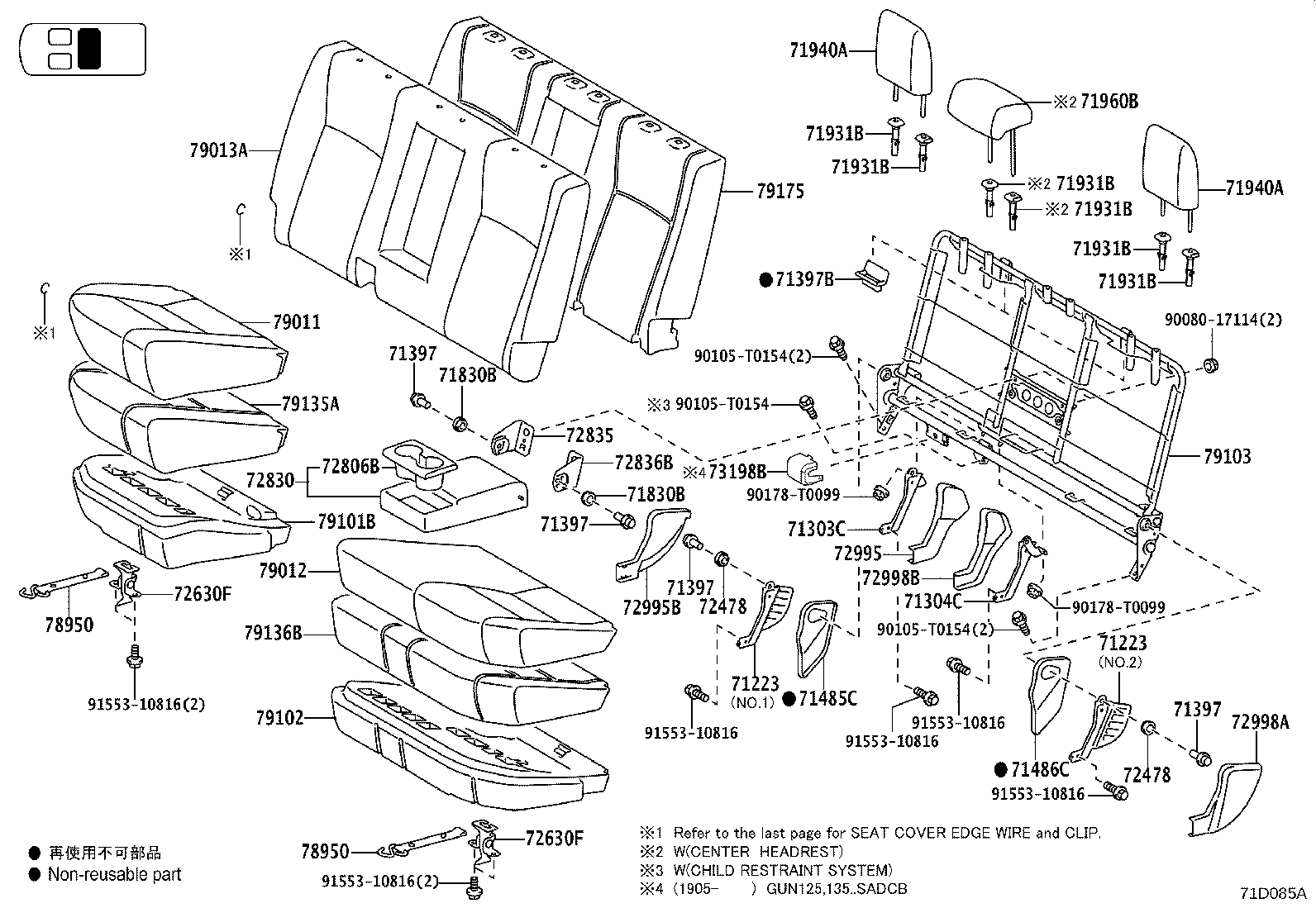

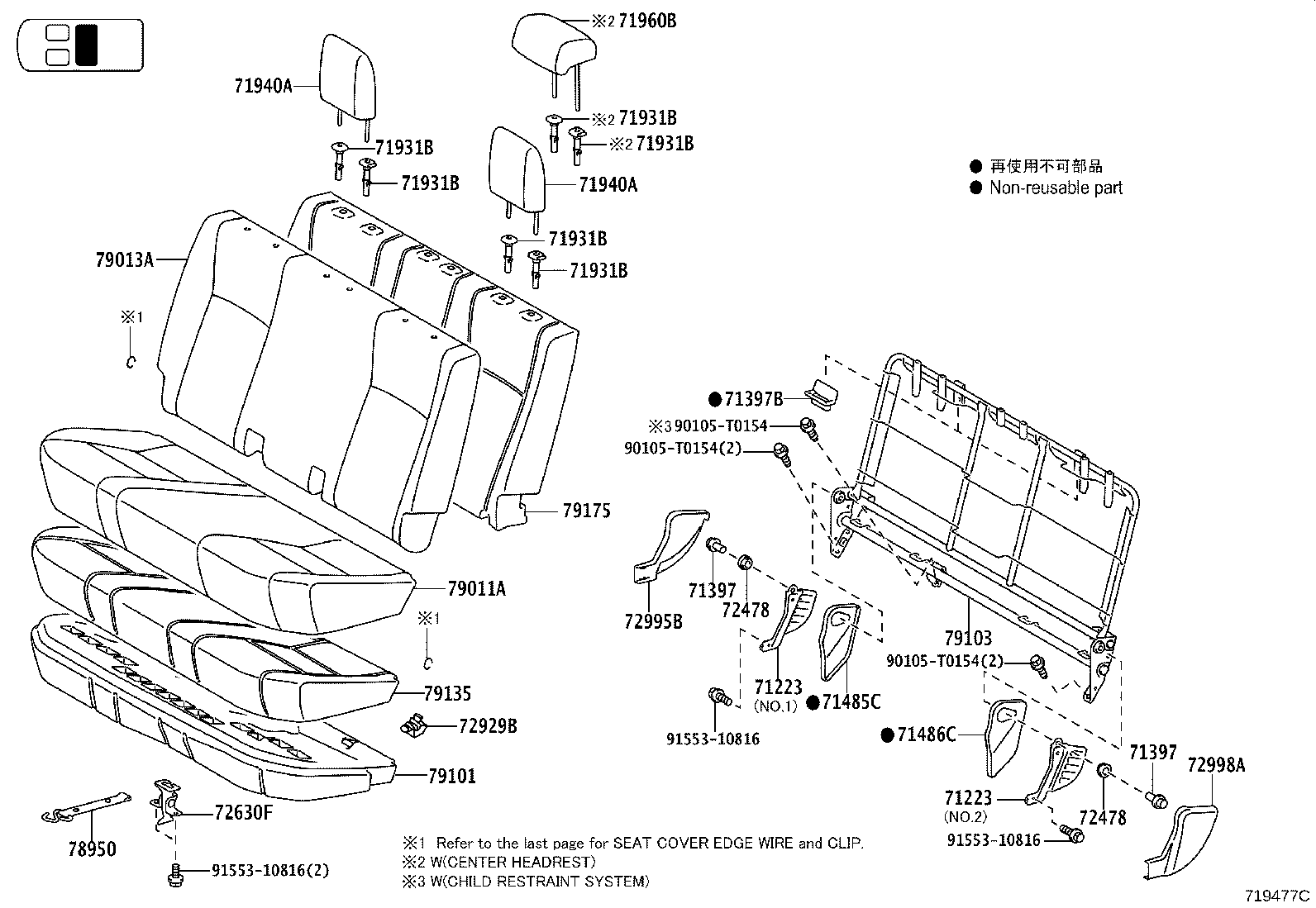

REAR SEAT(BENCH TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71223 - BRACKET, REAR SEAT CUSHION SIDE | ||||
| 71223-0K050 |
GUN12#,135..THDCB NO.1:REFER ILLUST. |
1 | ||
| 71224-0K060 |
GUN12#,135..THDCB NO.2:REFER ILLUST. |
1 | ||
| 71223 - BRACKET, REAR SEAT CUSHION SIDE | ||||
| 71223-0K050 |
GUN12#,135..THDCB NO.1:REFER ILLUST. |
1 | ||
| 71224-0K060 |
GUN12#,135..THDCB NO.2:REFER ILLUST. |
1 | ||
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K090 |
GUN12#,135..(SADCB,THDCB)..(H,M) |
4 | ||
| 71397-0K090 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC) |
2 | ||
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K090 |
GUN12#,135..(SADCB,THDCB)..(H,M) |
4 | ||
| 71397-0K090 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC) |
2 | ||
| 71397B - HOLDER, REAR SEAT BACK, RH | ||||
| 71398-KK010 |
GUN12#,135..SADCB,THDCB |
2 | ||
| 71485C - COVER, REAR SEAT HINGE, RH | ||||
| 71485-0K030C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71485-0K030C0 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71485-0K030C0 |
GUN125..THDCB..(H,M)..HDCR REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71486C - COVER, REAR SEAT HINGE, LH | ||||
| 71486-0K030C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71486-0K030C0 |
GUN125..THDCB..(H,M)..HDCR REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71486-0K030C0 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-02370C0 |
GUN125..THDCB..(H,M) W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..(H,M) W/O(LOCK),SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN12#,135..THDCB..(H,M)..HDCR W/O(LOCK),BLACK,TRIM2#,3# |
3 | ||
| 71930-02370C0 |
GUN12#..THDCB..H..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN12#..THDCB..H..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN126..THDCB;GUN125..THDCB..H..HDCR;GUN125..THDCB..6F..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN12#,135..THDCB..(H,M)..HDCR W(LOCK)&W(BUTTON),BLACK,TRIM2#,3# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..6FC..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..6FC..M W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK)&W(BUTTON),REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..6FC..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..6FC..M W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN126..THDCB;GUN125..THDCB..H..HDCR;GUN125..THDCB..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN126..M;GUN125..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN126..M;GUN125..6F..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..6FC..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..6FC..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-02370C0 |
GUN125..THDCB..(H,M) W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..(H,M) W/O(LOCK),SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN12#,135..THDCB..(H,M)..HDCR W/O(LOCK),BLACK,TRIM2#,3# |
3 | ||
| 71930-02370C0 |
GUN12#..THDCB..H..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN12#..THDCB..H..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN126..THDCB;GUN125..THDCB..H..HDCR;GUN125..THDCB..6F..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN12#,135..THDCB..(H,M)..HDCR W(LOCK)&W(BUTTON),BLACK,TRIM2#,3# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..6FC..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..6FC..M W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK)&W(BUTTON),REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..6FC..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..6FC..M W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN126..THDCB;GUN125..THDCB..H..HDCR;GUN125..THDCB..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN126..M;GUN125..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN126..M;GUN125..6F..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..6FC..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..6FC..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-02370C0 |
GUN125..THDCB..(H,M) W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..(H,M) W/O(LOCK),SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN12#,135..THDCB..(H,M)..HDCR W/O(LOCK),BLACK,TRIM2#,3# |
3 | ||
| 71930-02370C0 |
GUN12#..THDCB..H..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN12#..THDCB..H..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN126..THDCB;GUN125..THDCB..H..HDCR;GUN125..THDCB..6F..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN12#,135..THDCB..(H,M)..HDCR W(LOCK)&W(BUTTON),BLACK,TRIM2#,3# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..6FC..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..6FC..M W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK)&W(BUTTON),REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..6FC..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..6FC..M W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN126..THDCB;GUN125..THDCB..H..HDCR;GUN125..THDCB..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN126..M;GUN125..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN126..M;GUN125..6F..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..6FC..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..6FC..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-02370C0 |
GUN125..THDCB..(H,M) W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..(H,M) W/O(LOCK),SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN12#,135..THDCB..(H,M)..HDCR W/O(LOCK),BLACK,TRIM2#,3# |
3 | ||
| 71930-02370C0 |
GUN12#..THDCB..H..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN12#..THDCB..H..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN126..THDCB;GUN125..THDCB..H..HDCR;GUN125..THDCB..6F..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN12#,135..THDCB..(H,M)..HDCR W(LOCK)&W(BUTTON),BLACK,TRIM2#,3# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..6FC..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..6FC..M W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK)&W(BUTTON),REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..6FC..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..6FC..M W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN126..THDCB;GUN125..THDCB..H..HDCR;GUN125..THDCB..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN126..M;GUN125..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN126..M;GUN125..6F..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..6FC..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..6FC..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-02370C0 |
GUN125..THDCB..(H,M) W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..(H,M) W/O(LOCK),SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN12#,135..THDCB..(H,M)..HDCR W/O(LOCK),BLACK,TRIM2#,3# |
3 | ||
| 71930-02370C0 |
GUN12#..THDCB..H..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN12#..THDCB..H..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN126..THDCB;GUN125..THDCB..H..HDCR;GUN125..THDCB..6F..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN12#,135..THDCB..(H,M)..HDCR W(LOCK)&W(BUTTON),BLACK,TRIM2#,3# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..6FC..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..6FC..M W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK)&W(BUTTON),REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..6FC..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..6FC..M W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN126..THDCB;GUN125..THDCB..H..HDCR;GUN125..THDCB..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN126..M;GUN125..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN126..M;GUN125..6F..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..6FC..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..6FC..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-02370C0 |
GUN125..THDCB..(H,M) W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..(H,M) W/O(LOCK),SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN12#,135..THDCB..(H,M)..HDCR W/O(LOCK),BLACK,TRIM2#,3# |
3 | ||
| 71930-02370C0 |
GUN12#..THDCB..H..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN12#..THDCB..H..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN126..THDCB;GUN125..THDCB..H..HDCR;GUN125..THDCB..6F..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN12#,135..THDCB..(H,M)..HDCR W(LOCK)&W(BUTTON),BLACK,TRIM2#,3# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..6FC..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..6FC..M W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK)&W(BUTTON),REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..6FC..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..6FC..M W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN126..THDCB;GUN125..THDCB..H..HDCR;GUN125..THDCB..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN126..M;GUN125..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN126..M;GUN125..6F..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..6FC..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..6FC..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0KK00C1 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71940-0KK00C1 |
GUN125..THDCB..(H,M) REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71940-0K770C0 |
GUN12#,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71940-0K771C0 |
GUN125..THDCB..6FC..M SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71940-0KK10C2 |
GUN12#,135..THDCB..(H,M) BLACK,TRIM2# |
2 | ||
| 71940-0K771C0 |
GUN125..THDCB..H;GUN126,135..THDCB..(H,M);GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71940-0K771C0 |
GUN125..THDCB..6FC..M;GUN125..THDCB..6F..M..DCRE SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71940-0K771C0 |
GUN12#..THDCB..H;GUN135..THDCB..M..DCRE SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71940-0KK11C4 |
GUN12#,135..THDCB..(H,M) BLACK,TRIM2# |
2 | ||
| 71940-0K771C0 |
GUN125..THDCB..6FC..M;GUN125..THDCB..6F..M..DCRE SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71940-0KK01C1 |
GUN125..THDCB..(H,M) REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71940-0K771C0 |
GUN126..M;GUN125..6F..M..HDCR SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0KK00C1 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71940-0KK00C1 |
GUN125..THDCB..(H,M) REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71940-0K770C0 |
GUN12#,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71940-0K771C0 |
GUN125..THDCB..6FC..M SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71940-0KK10C2 |
GUN12#,135..THDCB..(H,M) BLACK,TRIM2# |
2 | ||
| 71940-0K771C0 |
GUN125..THDCB..H;GUN126,135..THDCB..(H,M);GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71940-0K771C0 |
GUN125..THDCB..6FC..M;GUN125..THDCB..6F..M..DCRE SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71940-0K771C0 |
GUN12#..THDCB..H;GUN135..THDCB..M..DCRE SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71940-0KK11C4 |
GUN12#,135..THDCB..(H,M) BLACK,TRIM2# |
2 | ||
| 71940-0K771C0 |
GUN125..THDCB..6FC..M;GUN125..THDCB..6F..M..DCRE SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71940-0KK01C1 |
GUN125..THDCB..(H,M) REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71940-0K771C0 |
GUN126..M;GUN125..6F..M..HDCR SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-0K330C0 |
GUN12#,135..THDCB..(H,M) BLACK,TRIM2# |
1 | ||
| 71960-0K430C0 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71960-0K781C0 |
GUN125..THDCB..6FC..M SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71960-0K430C0 |
GUN125..THDCB..(H,M) REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71960-0K781C0 |
GUN125..THDCB..6FC..M SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71960-0K781C0 |
GUN125..THDCB..H;GUN125..THDCB..6F..M;GUN126,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71960-0K780C0 |
GUN12#,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71960-0K781C1 |
GUN125..THDCB..6FC..M;GUN125..THDCB..6F..M..DCRE SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71960-0K431C0 |
GUN125..THDCB..(H,M) REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71960-0K781C0 |
GUN12#..THDCB..H SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71960-0K781C1 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71960-0K781C1 |
GUN125..THDCB..6FC..M;GUN125..THDCB..6F..M..DCRE SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71960-0K331C3 |
GUN12#,135..THDCB..(H,M) BLACK,TRIM2# |
1 | ||
| 71960-0K431C2 |
GUN125..THDCB..(H,M) REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71960-0K781C1 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 72478 - BUSH, VERTICAL ADJUSTER | ||||
| 72478-0K010 |
GUN12#,135..SADCB,THDCB |
2 | ||
| 72478 - BUSH, VERTICAL ADJUSTER | ||||
| 72478-0K010 |
GUN12#,135..SADCB,THDCB |
2 | ||
| 72630F - LOCK ASSY, REAR NO.2 SEAT | ||||
| 72650-0K271 |
GUN12#,135..THDCB..(H,M) |
2 | ||
| 72650-0K271 |
GUN125..THDCB..(H,M) REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 72650-0K270 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 72650-0K270 |
GUN12#,135..THDCB..(H,M) |
2 | ||
| 72650-0K271 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 72995B - COVER, NO.1 SEAT CUSHION, RH | ||||
| 72995-0K110C0 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 72995-0K110C0 |
GUN125..THDCB..(H,M)..HDCR REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 72995-0K110C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 72998A - COVER, NO.1 SEAT CUSHION, LH | ||||
| 72998-0K020C0 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 72998-0K020C0 |
GUN125..THDCB..(H,M)..HDCR REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 72998-0K020C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 | ||||
| 78950-0K210C0 |
GUN12#,135..THDCB..(H,M) BLACK,TRIM2#,3# |
2 | ||
| 78950-0K210C0 |
GUN125..THDCB..(H,M) REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 78950-0K210C0 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-0KC90C1 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 79011-0KC90C1 |
GUN125..THDCB..(H,M) REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-0KE00C2 |
GUN12#,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 79013-0KF90C1 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 79013-0KF90C1 |
GUN125..THDCB..(H,M) REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 79013-0KD90C1 |
GUN12#,135..THDCB..(H,M) BLACK,TRIM2# |
1 | ||
| 79013-0KE01C2 |
GUN125..THDCB..6FC..M SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 79013-0KD91C1 |
GUN12#,135..THDCB..(H,M) BLACK,TRIM2# |
1 | ||
| 79013-0KE01C2 |
GUN125..THDCB..H;GUN126,135..THDCB..(H,M);GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 79013-YP010C0 |
GUN12#..THDCB..H;GUN135..THDCB..M..DCRE SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 79013-YP010C0 |
GUN126..M;GUN125..6F..M..HDCR SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 79013-YP010C0 |
GUN125..THDCB..6FC..M;GUN125..THDCB..6F..M..DCRE SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 79013-0KE01C2 |
GUN125..THDCB..6FC..M;GUN125..THDCB..6F..M..DCRE SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 79013-0KF91C1 |
GUN125..THDCB..(H,M) REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 79101 - FRAME SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79101-0K240 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 79101-0K240 |
GUN125..THDCB..(H,M) REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 79103 - FRAME SUB-ASSY, NO.1 SEAT BACK | ||||
| 79010-0K020 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 79010-0K020 |
GUN125..THDCB..(H,M) REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 79010-0K040 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-0K250 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 79135-0K250 |
GUN125..THDCB..(H,M) REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-0K290 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 79175-0K270 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 79175-0K270 |
GUN125..THDCB..(H,M) REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| Common parts | ||||
| 90105-T0154 | ||||
| 91553-10816 | ||||
(1506- )

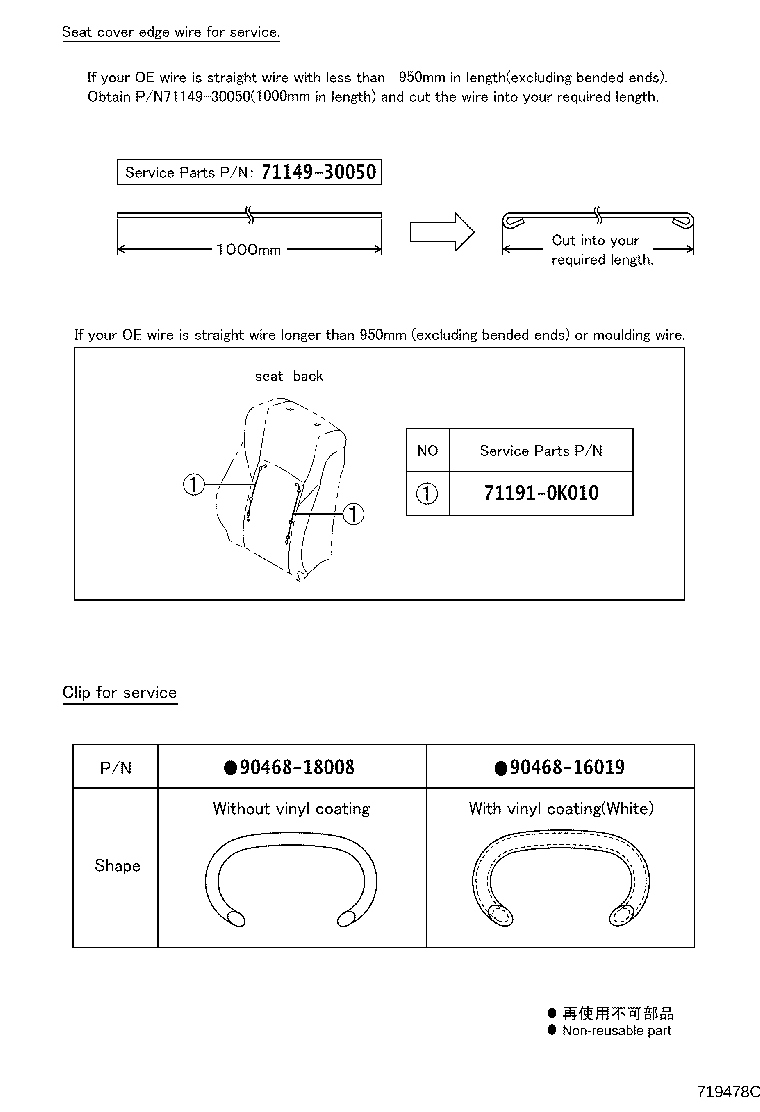

SEAT COVER EDGE WIRE & CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 71191-0K010 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
(1506- )

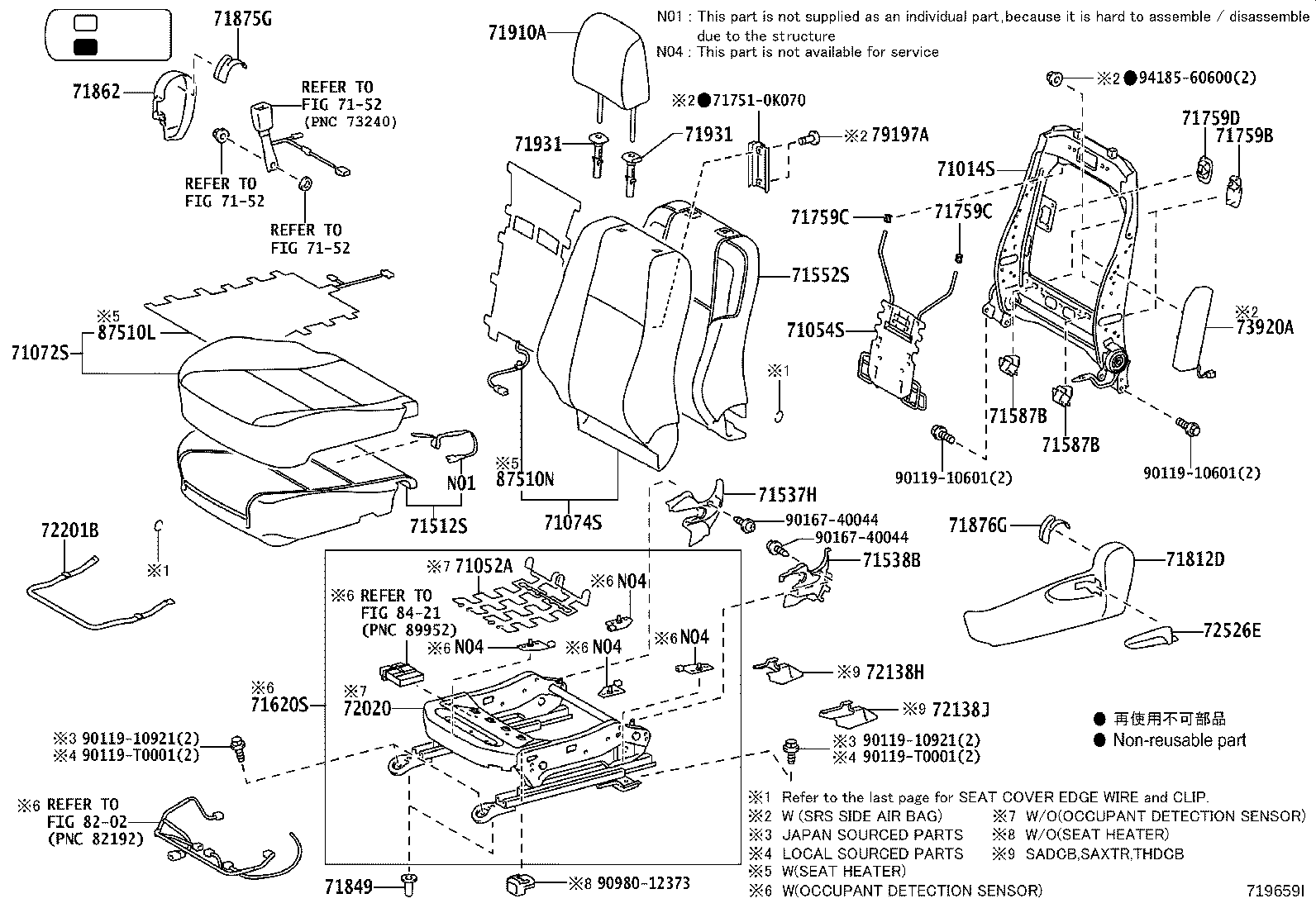

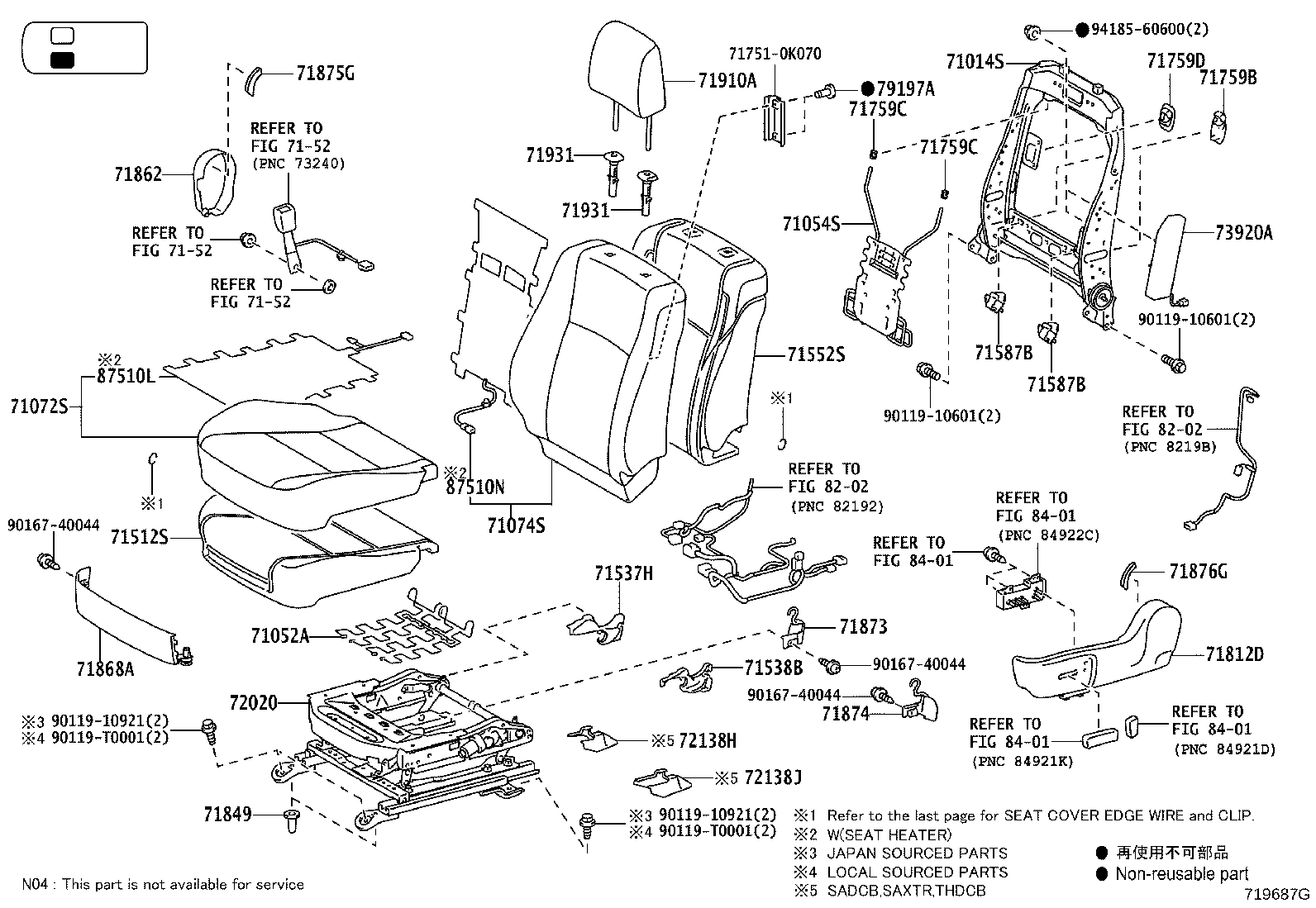

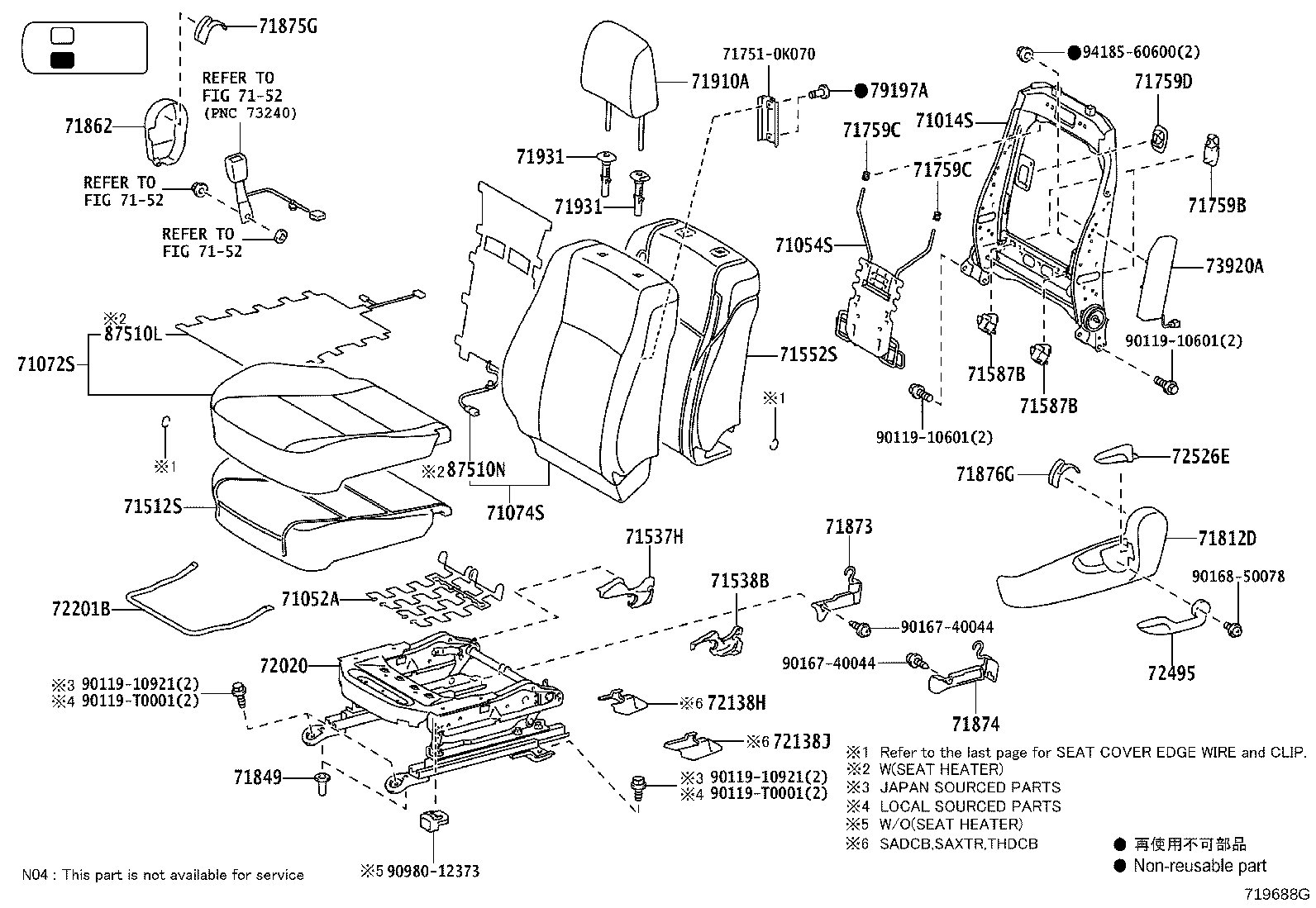

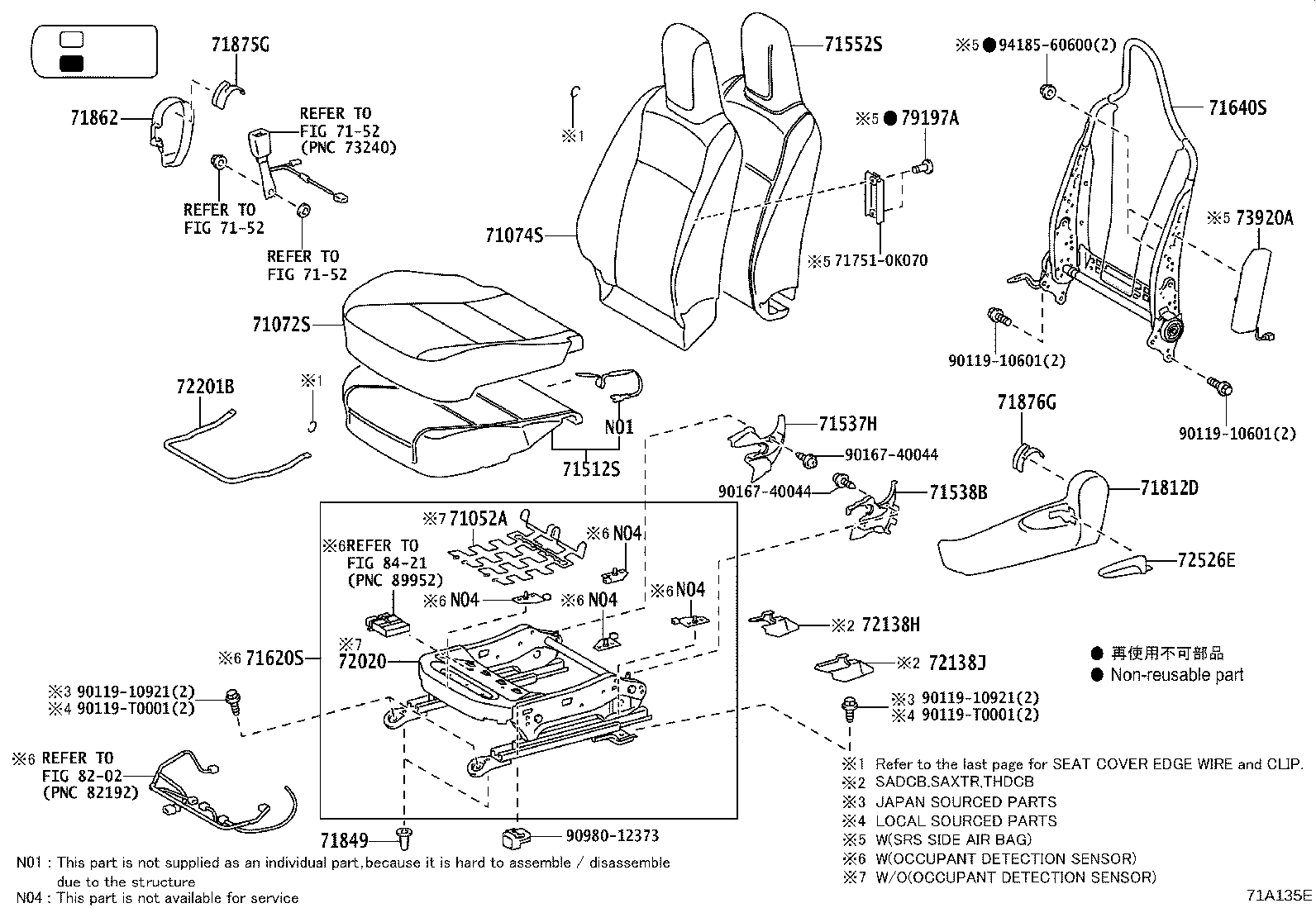

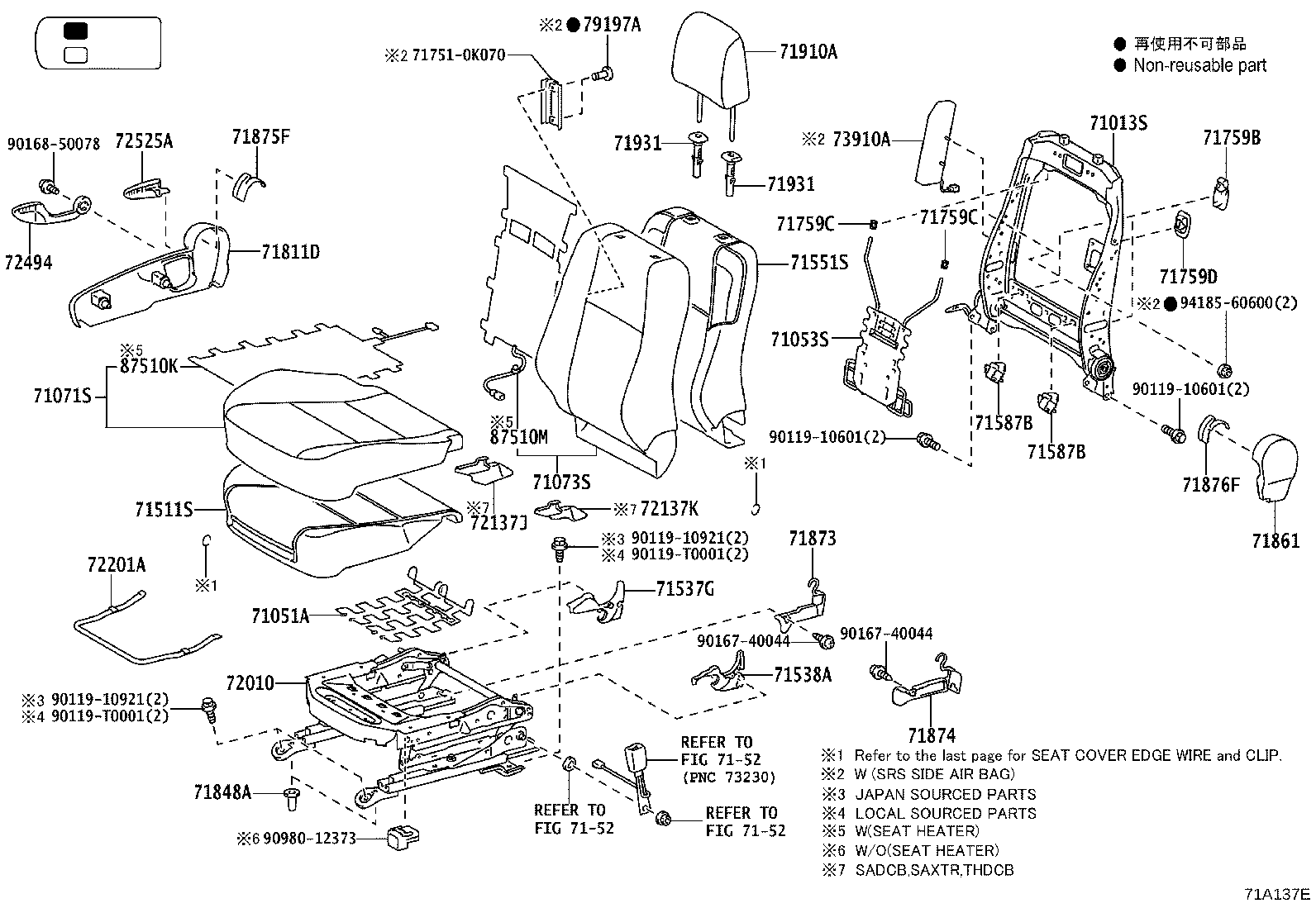

FRONT SEAT(LH MANUAL 4WAY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-0K650 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71014-0K340 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 71014-0K650 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 71014-0K650 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71014-0K650 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71014-0K650 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71014-0K650 |
GUN125..THDCB..H..DCRE;GUN126,135..THDCB..(H,M);GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71014-0K340 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71014-0K650 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 71014-0K360 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-06070 |
GUN12#,135..THDCB |
1 | ||
| 71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-0K030 |
GUN12#,135..THDCB |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0KT30C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71072-YP040C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71072-0KT40C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-0KT80C0 |
GUN125,135..THDCB..(H,M) BLACK,TRIM2# |
1 | ||
| 71072-0KU20C1 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71072-YP060C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-0KU00C0 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-YP040C0 |
GUN125..THDCB..H;GUN135..THDCB..M;GUN125..6F..M..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71072-YP060C0 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-0KU20C1 |
GUN135..THDCB..M;GUN125..THDCB..H..DCRE;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71072-0KU30C1 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0K630C5 |
GUN135..THDCB..M;GUN125..THDCB..6F..M SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71074-0K590C3 |
GUN125,135..THDCB..(H,M) BLACK,TRIM2# |
1 | ||
| 71074-0KG90C1 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-0KE90C3 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-0KF30C4 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-0KG30C1 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71074-YP030C1 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-0KF31C5 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-0K591C6 |
GUN125,135..THDCB..(H,M) BLACK,TRIM2# |
1 | ||
| 71074-0K631C7 |
GUN135..THDCB..M;GUN125..THDCB..H..DCRE;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71074-0KE91C6 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-YP020C1 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71074-YP030C1 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-0K631C7 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71074-0KG91C2 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-YP020C1 |
GUN125..THDCB..H;GUN135..THDCB..M;GUN125..6F..M..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71074-0KG31C3 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-0K080 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71512-0K090 |
GUN125..THDCB..6F..M;GUN126,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71512-0K090 |
GUN125..THDCB..H SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71512-0K090 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71512-0K570 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71512-0K570 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 71512-0K090 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71512-0K081 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71512-0K090 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 71512-0K091 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71512-0K091 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 71512-0K091 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71512-0K091 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-02300C0 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71537-02170C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71537-02170C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71537-02300C0 |
GUN125..THDCB..(H,M)..HDCR SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71537-02300C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71537-02300C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71537-02300C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71537-02300C0 |
GUN125..(H,M)..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71537-02300C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71537-02300C0 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-02230C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71538-02120C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71538-02230C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71538-02230C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71538-02230C0 |
GUN125..THDCB..(H,M)..HDCR SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71538-02230C0 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71538-02230C0 |
GUN125..(H,M)..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71538-02120C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71538-02230C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71538-02230C0 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-0K160 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71552-0K160 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 71552-0K200 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-0K030 |
GUN12#,135..THDCB |
4 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-0K030 |
GUN12#,135..THDCB |
4 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-0K140 |
GUN125..(SADCB,THDCB)..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC) |
4 | ||
| 71759-0K140 |
GUN125..(SADCB,THDCB)..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
4 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-0K060 |
GUN12#,135..THDCB |
4 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-0K060 |
GUN12#,135..THDCB |
4 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-0K070C0 |
GUN12#,135..(SADCB,THDCB)..(H,M)..HDCR BLACK,TRIM2#,3# |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0K120C0 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71812-0K120C0 |
GUN125..THDCB..H..DCRE;GUN126,135..THDCB..(H,M);GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71812-0K120C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71812-0K120C0 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71812-0K100C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71812-0K110C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71812-0K120C0 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71812-0K100C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71812-0K120C0 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71812-0K120C0 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-47010 |
GUN12#,135..THDCB |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0K250C0 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71862-0K250C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71862-0K250C0 |
GUN125..THDCB..(H,M)..HDCR SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71862-0K240C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71862-0K250C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71862-0K250C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71862-0K240C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71862-0K250C0 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71862-0K250C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71862-0K250C0 |
GUN125..(H,M)..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-0K130C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-0K120C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71875-0K130C0 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71875-0K130C0 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71875-0K130C0 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-0K130C0 |
GUN126,135..H,M;GUN125..LHD..6FC..H..DCRE;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71875-0K130C0 |
GUN125,135..LHD..(SADCB,THDCB)..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-0K130C0 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71876-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71876-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71876-0K120C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71876-0K130C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71876-0K130C0 |
GUN125,135..LHD..(SADCB,THDCB)..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71876-0K130C0 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71876-0K130C0 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71876-0K130C0 |
GUN126,135..H,M;GUN125..LHD..6FC..H..DCRE;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0KC00C2 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71910-0KB60C2 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-0KB60C2 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125..THDCB..H..DCRE;GUN126,135..THDCB..(H,M);GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71910-0KB80C0 |
GUN12#,135..THDCB..(H,M) BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K050C0 |
GUN125..THDCB..H W(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN12#..THDCB..H W(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN12#..THDCB..H W/O(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN12#,135..THDCB..(H,M)..HDCR W(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-0K040C0 |
GUN12#,135..THDCB..(H,M)..HDCR W/O(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..H W/O(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..H..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..(H,M)..HDCR W(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..H..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR W/O(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR W(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..(H,M)..HDCR W/O(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K050C0 |
GUN125..THDCB..H W(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN12#..THDCB..H W(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN12#..THDCB..H W/O(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN12#,135..THDCB..(H,M)..HDCR W(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-0K040C0 |
GUN12#,135..THDCB..(H,M)..HDCR W/O(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..H W/O(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..H..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..(H,M)..HDCR W(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..H..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR W/O(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR W(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..(H,M)..HDCR W/O(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-0K080 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 72020-0K080 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72020-0K060 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72020-0K080 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 72020-0K080 |
GUN125..THDCB..H..DCRE;GUN126,135..THDCB..(H,M);GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 72020-0K060 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 72020-0K080 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 72020-0K070 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 72020-0K080 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72020-0K080 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72158-KK010C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72137-KK010C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72211-0D160 |
GUN12#,135..THDCB |
1 | ||
| 72526E - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-0D260C0 |
GUN125..RHD..6FC..H..HDCR;GUN125..LHD..(SADCB,THDCB)..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 72526-06130C0 |
GUN12#,135..LHD..(SADCB,THDCB)..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 72526-0D260C0 |
GUN125..RHD..6FC..H..HDCR;GUN125..LHD..(SADCB,THDCB)..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-0K050 |
GUN12#,135..THDCB |
1 | ||
| 79197A - RIVET | ||||
| 79197-0K010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
4 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-0K110 |
GUN125,135..THDCB SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K110 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K120 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K120 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K120 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87510-0K150 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K140 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K150 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K140 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K150 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K150 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K150 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K150 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| Common parts | ||||
| 71751-0K070 | ||||
| 90119-10601 | ||||
| 90119-10921 | ||||
| 90119-T0001 | ||||
| 90167-40044 | ||||
| 90980-12373 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8421 | ||||
(1506- )
FRONT SEAT(LH POWER 8WAY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-0K650 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71014-0K340 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 71014-0K650 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 71014-0K650 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71014-0K650 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71014-0K650 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71014-0K650 |
GUN125..THDCB..H..DCRE;GUN126,135..THDCB..(H,M);GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71014-0K340 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71014-0K650 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 71014-0K360 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-06070 |
GUN12#,135..THDCB |
1 | ||
| 71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-0K030 |
GUN12#,135..THDCB |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0KT30C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71072-YP040C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71072-0KT40C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-0KT80C0 |
GUN125,135..THDCB..(H,M) BLACK,TRIM2# |
1 | ||
| 71072-0KU20C1 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71072-YP060C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-0KU00C0 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-YP040C0 |
GUN125..THDCB..H;GUN135..THDCB..M;GUN125..6F..M..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71072-YP060C0 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-0KU20C1 |
GUN135..THDCB..M;GUN125..THDCB..H..DCRE;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71072-0KU30C1 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0K630C5 |
GUN135..THDCB..M;GUN125..THDCB..6F..M SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71074-0K590C3 |
GUN125,135..THDCB..(H,M) BLACK,TRIM2# |
1 | ||
| 71074-0KG90C1 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-0KE90C3 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-0KF30C4 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-0KG30C1 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71074-YP030C1 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-0KF31C5 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-0K591C6 |
GUN125,135..THDCB..(H,M) BLACK,TRIM2# |
1 | ||
| 71074-0K631C7 |
GUN135..THDCB..M;GUN125..THDCB..H..DCRE;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71074-0KE91C6 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-YP020C1 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71074-YP030C1 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-0K631C7 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71074-0KG91C2 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-YP020C1 |
GUN125..THDCB..H;GUN135..THDCB..M;GUN125..6F..M..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71074-0KG31C3 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-0K080 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71512-0K090 |
GUN125..THDCB..6F..M;GUN126,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71512-0K090 |
GUN125..THDCB..H SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71512-0K090 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71512-0K570 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71512-0K570 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 71512-0K090 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71512-0K081 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71512-0K090 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 71512-0K091 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71512-0K091 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 71512-0K091 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71512-0K091 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-02300C0 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71537-02170C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71537-02170C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71537-02300C0 |
GUN125..THDCB..(H,M)..HDCR SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71537-02300C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71537-02300C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71537-02300C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71537-02300C0 |
GUN125..(H,M)..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71537-02300C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71537-02300C0 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-02230C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71538-02120C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71538-02230C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71538-02230C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71538-02230C0 |
GUN125..THDCB..(H,M)..HDCR SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71538-02230C0 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71538-02230C0 |
GUN125..(H,M)..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71538-02120C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71538-02230C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71538-02230C0 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-0K160 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71552-0K160 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 71552-0K200 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-0K030 |
GUN12#,135..THDCB |
4 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-0K030 |
GUN12#,135..THDCB |
4 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-0K140 |
GUN125..(SADCB,THDCB)..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC) |
4 | ||
| 71759-0K140 |
GUN125..(SADCB,THDCB)..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
4 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-0K060 |
GUN12#,135..THDCB |
4 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-0K060 |
GUN12#,135..THDCB |
4 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-0K070C0 |
GUN12#,135..(SADCB,THDCB)..(H,M)..HDCR BLACK,TRIM2#,3# |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0K120C0 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71812-0K120C0 |
GUN125..THDCB..H..DCRE;GUN126,135..THDCB..(H,M);GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71812-0K120C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71812-0K120C0 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71812-0K100C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71812-0K110C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71812-0K120C0 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71812-0K100C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71812-0K120C0 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71812-0K120C0 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-47010 |
GUN12#,135..THDCB |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0K250C0 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71862-0K250C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71862-0K250C0 |
GUN125..THDCB..(H,M)..HDCR SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71862-0K240C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71862-0K250C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71862-0K250C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71862-0K240C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71862-0K250C0 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71862-0K250C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71862-0K250C0 |
GUN125..(H,M)..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-0K030C0 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71868-0K030C0 |
GUN125..THDCB..H..DCRE;GUN126,135..THDCB..(H,M);GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71868-0K030C0 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71868-0K030C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71868-0K030C0 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71868-0K030C0 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71868-0K030C0 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-06520 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 71873-06520 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71873-06510 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71873-06520 |
GUN125,135..(SADCB,THDCB)..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71873-06520 |
GUN126,135..H,M;GUN125..6FC..H..DCRE;GUN125..RHD..M..DCRE;GUN125..RHD..(H,M)..HDCR;GUN125..RHD..6F..H..DCRE;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71873-06520 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 71873-06520 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-06480 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71874-06490 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71874-06490 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 71874-06490 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71874-06490 |
GUN125,135..(SADCB,THDCB)..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71874-06490 |
GUN126,135..H,M;GUN125..6FC..H..DCRE;GUN125..RHD..M..DCRE;GUN125..RHD..(H,M)..HDCR;GUN125..RHD..6F..H..DCRE;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71874-06490 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-0K130C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-0K120C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71875-0K130C0 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71875-0K130C0 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71875-0K130C0 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-0K130C0 |
GUN126,135..H,M;GUN125..LHD..6FC..H..DCRE;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71875-0K130C0 |
GUN125,135..LHD..(SADCB,THDCB)..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-0K130C0 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71876-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71876-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71876-0K120C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71876-0K130C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71876-0K130C0 |
GUN125,135..LHD..(SADCB,THDCB)..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71876-0K130C0 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71876-0K130C0 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71876-0K130C0 |
GUN126,135..H,M;GUN125..LHD..6FC..H..DCRE;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0KC00C2 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71910-0KB60C2 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-0KB60C2 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125..THDCB..H..DCRE;GUN126,135..THDCB..(H,M);GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71910-0KB80C0 |
GUN12#,135..THDCB..(H,M) BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K050C0 |
GUN125..THDCB..H W(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN12#..THDCB..H W(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN12#..THDCB..H W/O(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN12#,135..THDCB..(H,M)..HDCR W(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-0K040C0 |
GUN12#,135..THDCB..(H,M)..HDCR W/O(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..H W/O(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..H..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..(H,M)..HDCR W(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..H..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR W/O(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR W(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..(H,M)..HDCR W/O(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K050C0 |
GUN125..THDCB..H W(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN12#..THDCB..H W(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN12#..THDCB..H W/O(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN12#,135..THDCB..(H,M)..HDCR W(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-0K040C0 |
GUN12#,135..THDCB..(H,M)..HDCR W/O(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..H W/O(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..H..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..(H,M)..HDCR W(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..H..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR W/O(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR W(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..(H,M)..HDCR W/O(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-0K080 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 72020-0K080 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72020-0K060 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72020-0K080 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 72020-0K080 |
GUN125..THDCB..H..DCRE;GUN126,135..THDCB..(H,M);GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 72020-0K060 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 72020-0K080 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 72020-0K070 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 72020-0K080 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72020-0K080 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72158-KK010C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72137-KK010C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-0K050 |
GUN12#,135..THDCB |
1 | ||
| 79197A - RIVET | ||||
| 79197-0K010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
4 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-0K110 |
GUN125,135..THDCB SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K110 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K120 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K120 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K120 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87510-0K150 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K140 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K150 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K140 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K150 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K150 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K150 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K150 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| Common parts | ||||
| 71751-0K070 | ||||
| 90119-10601 | ||||
| 90119-10921 | ||||
| 90119-T0001 | ||||
| 90167-40044 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
(1506- )
FRONT SEAT(LH MANUAL 6WAY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-0K650 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71014-0K340 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 71014-0K650 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 71014-0K650 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71014-0K650 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71014-0K650 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71014-0K650 |
GUN125..THDCB..H..DCRE;GUN126,135..THDCB..(H,M);GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71014-0K340 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71014-0K650 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 71014-0K360 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-06070 |
GUN12#,135..THDCB |
1 | ||
| 71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-0K030 |
GUN12#,135..THDCB |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0KT30C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71072-YP040C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71072-0KT40C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-0KT80C0 |
GUN125,135..THDCB..(H,M) BLACK,TRIM2# |
1 | ||
| 71072-0KU20C1 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71072-YP060C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-0KU00C0 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-YP040C0 |
GUN125..THDCB..H;GUN135..THDCB..M;GUN125..6F..M..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71072-YP060C0 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-0KU20C1 |
GUN135..THDCB..M;GUN125..THDCB..H..DCRE;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71072-0KU30C1 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0K630C5 |
GUN135..THDCB..M;GUN125..THDCB..6F..M SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71074-0K590C3 |
GUN125,135..THDCB..(H,M) BLACK,TRIM2# |
1 | ||
| 71074-0KG90C1 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-0KE90C3 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-0KF30C4 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-0KG30C1 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71074-YP030C1 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-0KF31C5 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-0K591C6 |
GUN125,135..THDCB..(H,M) BLACK,TRIM2# |
1 | ||
| 71074-0K631C7 |
GUN135..THDCB..M;GUN125..THDCB..H..DCRE;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71074-0KE91C6 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-YP020C1 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71074-YP030C1 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-0K631C7 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71074-0KG91C2 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-YP020C1 |
GUN125..THDCB..H;GUN135..THDCB..M;GUN125..6F..M..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71074-0KG31C3 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-0K080 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71512-0K090 |
GUN125..THDCB..6F..M;GUN126,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71512-0K090 |
GUN125..THDCB..H SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71512-0K090 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71512-0K570 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71512-0K570 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 71512-0K090 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71512-0K081 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71512-0K090 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 71512-0K091 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71512-0K091 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 71512-0K091 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71512-0K091 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-02300C0 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71537-02170C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71537-02170C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71537-02300C0 |
GUN125..THDCB..(H,M)..HDCR SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71537-02300C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71537-02300C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71537-02300C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71537-02300C0 |
GUN125..(H,M)..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71537-02300C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71537-02300C0 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-02230C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71538-02120C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71538-02230C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71538-02230C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71538-02230C0 |
GUN125..THDCB..(H,M)..HDCR SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71538-02230C0 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71538-02230C0 |
GUN125..(H,M)..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71538-02120C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71538-02230C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71538-02230C0 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-0K160 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71552-0K160 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 71552-0K200 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-0K030 |
GUN12#,135..THDCB |
4 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-0K030 |
GUN12#,135..THDCB |
4 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-0K140 |
GUN125..(SADCB,THDCB)..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC) |
4 | ||
| 71759-0K140 |
GUN125..(SADCB,THDCB)..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
4 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-0K060 |
GUN12#,135..THDCB |
4 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-0K060 |
GUN12#,135..THDCB |
4 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-0K070C0 |
GUN12#,135..(SADCB,THDCB)..(H,M)..HDCR BLACK,TRIM2#,3# |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0K120C0 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71812-0K120C0 |
GUN125..THDCB..H..DCRE;GUN126,135..THDCB..(H,M);GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71812-0K120C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71812-0K120C0 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71812-0K100C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71812-0K110C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71812-0K120C0 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71812-0K100C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71812-0K120C0 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71812-0K120C0 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-47010 |
GUN12#,135..THDCB |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0K250C0 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71862-0K250C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71862-0K250C0 |
GUN125..THDCB..(H,M)..HDCR SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71862-0K240C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71862-0K250C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71862-0K250C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71862-0K240C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71862-0K250C0 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71862-0K250C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71862-0K250C0 |
GUN125..(H,M)..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-06520 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 71873-06520 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71873-06510 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71873-06520 |
GUN125,135..(SADCB,THDCB)..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71873-06520 |
GUN126,135..H,M;GUN125..6FC..H..DCRE;GUN125..RHD..M..DCRE;GUN125..RHD..(H,M)..HDCR;GUN125..RHD..6F..H..DCRE;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71873-06520 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 71873-06520 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-06480 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71874-06490 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71874-06490 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 71874-06490 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71874-06490 |
GUN125,135..(SADCB,THDCB)..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71874-06490 |
GUN126,135..H,M;GUN125..6FC..H..DCRE;GUN125..RHD..M..DCRE;GUN125..RHD..(H,M)..HDCR;GUN125..RHD..6F..H..DCRE;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71874-06490 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-0K130C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-0K120C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71875-0K130C0 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71875-0K130C0 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71875-0K130C0 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-0K130C0 |
GUN126,135..H,M;GUN125..LHD..6FC..H..DCRE;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71875-0K130C0 |
GUN125,135..LHD..(SADCB,THDCB)..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-0K130C0 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71876-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71876-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71876-0K120C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71876-0K130C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71876-0K130C0 |
GUN125,135..LHD..(SADCB,THDCB)..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71876-0K130C0 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71876-0K130C0 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71876-0K130C0 |
GUN126,135..H,M;GUN125..LHD..6FC..H..DCRE;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0KC00C2 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71910-0KB60C2 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-0KB60C2 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125..THDCB..H..DCRE;GUN126,135..THDCB..(H,M);GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71910-0KB80C0 |
GUN12#,135..THDCB..(H,M) BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K050C0 |
GUN125..THDCB..H W(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN12#..THDCB..H W(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN12#..THDCB..H W/O(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN12#,135..THDCB..(H,M)..HDCR W(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-0K040C0 |
GUN12#,135..THDCB..(H,M)..HDCR W/O(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..H W/O(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..H..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..(H,M)..HDCR W(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..H..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR W/O(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR W(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..(H,M)..HDCR W/O(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K050C0 |
GUN125..THDCB..H W(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN12#..THDCB..H W(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN12#..THDCB..H W/O(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN12#,135..THDCB..(H,M)..HDCR W(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-0K040C0 |
GUN12#,135..THDCB..(H,M)..HDCR W/O(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..H W/O(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..H..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..(H,M)..HDCR W(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..H..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR W/O(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR W(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..(H,M)..HDCR W/O(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-0K080 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 72020-0K080 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72020-0K060 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72020-0K080 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 72020-0K080 |
GUN125..THDCB..H..DCRE;GUN126,135..THDCB..(H,M);GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 72020-0K060 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 72020-0K080 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 72020-0K070 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 72020-0K080 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72020-0K080 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72158-KK010C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72137-KK010C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72211-0D160 |
GUN12#,135..THDCB |
1 | ||
| 72495 - HANDLE, VERTICAL ADJUSTING, LH | ||||
| 72495-02060C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 72526E - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-0D260C0 |
GUN125..RHD..6FC..H..HDCR;GUN125..LHD..(SADCB,THDCB)..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 72526-06130C0 |
GUN12#,135..LHD..(SADCB,THDCB)..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 72526-0D260C0 |
GUN125..RHD..6FC..H..HDCR;GUN125..LHD..(SADCB,THDCB)..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-0K050 |
GUN12#,135..THDCB |
1 | ||
| 79197A - RIVET | ||||
| 79197-0K010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
4 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-0K110 |
GUN125,135..THDCB SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K110 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K120 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K120 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K120 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87510-0K150 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K140 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K150 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K140 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K150 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K150 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K150 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K150 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| Common parts | ||||
| 71751-0K070 | ||||
| 90119-10601 | ||||
| 90119-10921 | ||||
| 90119-T0001 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90980-12373 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(1506- )
FRONT(RH MANUAL 4WAY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-0K400 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 71013-0K400 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71013-0K420 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-06070 |
GUN12#,135..THDCB |
1 | ||
| 71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-0K030 |
GUN12#,135..THDCB |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-YP050C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71071-0KW50C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-0KW40C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71071-0KX00C0 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-0KX30C1 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-YP060C0 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-0KX10C1 |
GUN135..THDCB..M;GUN125..THDCB..H..DCRE;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71071-0KW80C0 |
GUN125,135..THDCB..(H,M) BLACK,TRIM2# |
1 | ||
| 71071-0KX10C1 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71071-YP060C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-YP050C0 |
GUN125..THDCB..H;GUN135..THDCB..M;GUN125..6F..M..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0KK80C2 |
GUN125,135..THDCB..(H,M) BLACK,TRIM2# |
1 | ||
| 71073-0KT70C3 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-0KV70C1 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71073-0KU50C3 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-0KL20C4 |
GUN135..THDCB..M;GUN125..THDCB..6F..M SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71073-0KV90C1 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-0KL21C6 |
GUN135..THDCB..M;GUN125..THDCB..H..DCRE;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71073-0KK81C5 |
GUN125,135..THDCB..(H,M) BLACK,TRIM2# |
1 | ||
| 71073-0KU51C4 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-YP020C1 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71073-0KV71C3 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71073-0KT71C6 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-YP030C1 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-0KL21C6 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71073-YP020C1 |
GUN125..THDCB..H;GUN135..THDCB..M;GUN125..6F..M..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71073-YP030C1 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-0KV91C2 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-0K230 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 71501-0K030 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71501-0K230 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71501-0K031 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-02170C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71537-02170C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71537-02170C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-02120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71538-02120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71538-02120C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0K230 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71551-0K230 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 71551-0K270 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-0K030 |
GUN12#,135..THDCB |
4 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-0K030 |
GUN12#,135..THDCB |
4 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-0K140 |
GUN125..(SADCB,THDCB)..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC) |
4 | ||
| 71759-0K140 |
GUN125..(SADCB,THDCB)..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
4 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-0K060 |
GUN12#,135..THDCB |
4 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-0K060 |
GUN12#,135..THDCB |
4 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-0K070C0 |
GUN12#,135..(SADCB,THDCB)..(H,M)..HDCR BLACK,TRIM2#,3# |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71811-0K120C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71811-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-47010 |
GUN12#,135..THDCB |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0K210C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71861-0K210C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71861-0K210C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71875-0K120C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-0K120C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71876-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71876-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0KC00C2 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71910-0KB60C2 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-0KB60C2 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125..THDCB..H..DCRE;GUN126,135..THDCB..(H,M);GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71910-0KB80C0 |
GUN12#,135..THDCB..(H,M) BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K050C0 |
GUN125..THDCB..H W(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN12#..THDCB..H W(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN12#..THDCB..H W/O(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN12#,135..THDCB..(H,M)..HDCR W(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-0K040C0 |
GUN12#,135..THDCB..(H,M)..HDCR W/O(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..H W/O(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..H..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..(H,M)..HDCR W(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..H..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR W/O(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR W(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..(H,M)..HDCR W/O(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K050C0 |
GUN125..THDCB..H W(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN12#..THDCB..H W(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN12#..THDCB..H W/O(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN12#,135..THDCB..(H,M)..HDCR W(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-0K040C0 |
GUN12#,135..THDCB..(H,M)..HDCR W/O(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..H W/O(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..H..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..(H,M)..HDCR W(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..H..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR W/O(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR W(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..(H,M)..HDCR W/O(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-0K080 |
GUN12#,135..THDCB |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-KK010C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 72137K - COVER, FRONT SEAT TRACK, RH REAR INNER | ||||
| 72157-KK010C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72211-0D160 |
GUN12#,135..THDCB |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-0D270C0 |
GUN125..RHD..(H,M);GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 72525-0D270C0 |
GUN12#,135..LHD..(SADCB,THDCB)..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 72525-0D270C0 |
GUN125..RHD..(H,M);GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-0K050 |
GUN12#,135..THDCB |
1 | ||
| 79197A - RIVET | ||||
| 79197-0K010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
4 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-0K110 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K110 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K110 |
GUN125,135..THDCB SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K110 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K110 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87510-0K140 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K150 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K150 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K150 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K150 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K150 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K140 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K150 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| Common parts | ||||
| 71751-0K070 | ||||
| 90119-10601 | ||||
| 90119-10921 | ||||
| 90119-T0001 | ||||
| 90167-40044 | ||||
| 90980-12373 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8421 | ||||
(1506- )
FRONT(LH MANUAL 4WAY HIGH BACK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-06070 |
GUN12#,135..THDCB |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0KT30C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71072-YP040C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71072-0KT40C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-0KT80C0 |
GUN125,135..THDCB..(H,M) BLACK,TRIM2# |
1 | ||
| 71072-0KU20C1 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71072-YP060C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-0KU00C0 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-YP040C0 |
GUN125..THDCB..H;GUN135..THDCB..M;GUN125..6F..M..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71072-YP060C0 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-0KU20C1 |
GUN135..THDCB..M;GUN125..THDCB..H..DCRE;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71072-0KU30C1 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0K630C5 |
GUN135..THDCB..M;GUN125..THDCB..6F..M SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71074-0K590C3 |
GUN125,135..THDCB..(H,M) BLACK,TRIM2# |
1 | ||
| 71074-0KG90C1 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-0KE90C3 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-0KF30C4 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-0KG30C1 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71074-YP030C1 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-0KF31C5 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-0K591C6 |
GUN125,135..THDCB..(H,M) BLACK,TRIM2# |
1 | ||
| 71074-0K631C7 |
GUN135..THDCB..M;GUN125..THDCB..H..DCRE;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71074-0KE91C6 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-YP020C1 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71074-YP030C1 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-0K631C7 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71074-0KG91C2 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-YP020C1 |
GUN125..THDCB..H;GUN135..THDCB..M;GUN125..6F..M..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71074-0KG31C3 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-0K080 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71512-0K090 |
GUN125..THDCB..6F..M;GUN126,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71512-0K090 |
GUN125..THDCB..H SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71512-0K090 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71512-0K570 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71512-0K570 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 71512-0K090 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71512-0K081 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71512-0K090 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 71512-0K091 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71512-0K091 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 71512-0K091 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71512-0K091 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-02300C0 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71537-02170C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71537-02170C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71537-02300C0 |
GUN125..THDCB..(H,M)..HDCR SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71537-02300C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71537-02300C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71537-02300C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71537-02300C0 |
GUN125..(H,M)..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71537-02300C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71537-02300C0 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-02230C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71538-02120C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71538-02230C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71538-02230C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71538-02230C0 |
GUN125..THDCB..(H,M)..HDCR SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71538-02230C0 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71538-02230C0 |
GUN125..(H,M)..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71538-02120C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71538-02230C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71538-02230C0 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-0K160 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71552-0K160 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 71552-0K200 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0K120C0 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71812-0K120C0 |
GUN125..THDCB..H..DCRE;GUN126,135..THDCB..(H,M);GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71812-0K120C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71812-0K120C0 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71812-0K100C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71812-0K110C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71812-0K120C0 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71812-0K100C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71812-0K120C0 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71812-0K120C0 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-47010 |
GUN12#,135..THDCB |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0K250C0 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71862-0K250C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71862-0K250C0 |
GUN125..THDCB..(H,M)..HDCR SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71862-0K240C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71862-0K250C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71862-0K250C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71862-0K240C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71862-0K250C0 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71862-0K250C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71862-0K250C0 |
GUN125..(H,M)..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-0K130C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-0K120C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71875-0K130C0 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71875-0K130C0 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71875-0K130C0 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-0K130C0 |
GUN126,135..H,M;GUN125..LHD..6FC..H..DCRE;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71875-0K130C0 |
GUN125,135..LHD..(SADCB,THDCB)..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-0K130C0 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71876-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71876-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71876-0K120C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71876-0K130C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71876-0K130C0 |
GUN125,135..LHD..(SADCB,THDCB)..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71876-0K130C0 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71876-0K130C0 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71876-0K130C0 |
GUN126,135..H,M;GUN125..LHD..6FC..H..DCRE;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-0K080 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 72020-0K080 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72020-0K060 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72020-0K080 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 72020-0K080 |
GUN125..THDCB..H..DCRE;GUN126,135..THDCB..(H,M);GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 72020-0K060 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 72020-0K080 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 72020-0K070 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 72020-0K080 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72020-0K080 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72158-KK010C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72137-KK010C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72211-0D160 |
GUN12#,135..THDCB |
1 | ||
| 72526E - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-0D260C0 |
GUN125..RHD..6FC..H..HDCR;GUN125..LHD..(SADCB,THDCB)..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 72526-06130C0 |
GUN12#,135..LHD..(SADCB,THDCB)..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 72526-0D260C0 |
GUN125..RHD..6FC..H..HDCR;GUN125..LHD..(SADCB,THDCB)..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-0K050 |
GUN12#,135..THDCB |
1 | ||
| 79197A - RIVET | ||||
| 79197-0K010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
4 | ||
| Common parts | ||||
| 71751-0K070 | ||||
| 90119-10601 | ||||
| 90119-10921 | ||||
| 90119-T0001 | ||||
| 90167-40044 | ||||
| 90980-12373 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8421 | ||||
(1506- )
FRONT(RH MANUAL 4WAY HIGH BACK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-06070 |
GUN12#,135..THDCB |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-YP050C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71071-0KW50C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-0KW40C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71071-0KX00C0 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-0KX30C1 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-YP060C0 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-0KX10C1 |
GUN135..THDCB..M;GUN125..THDCB..H..DCRE;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71071-0KW80C0 |
GUN125,135..THDCB..(H,M) BLACK,TRIM2# |
1 | ||
| 71071-0KX10C1 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71071-YP060C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-YP050C0 |
GUN125..THDCB..H;GUN135..THDCB..M;GUN125..6F..M..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0KK80C2 |
GUN125,135..THDCB..(H,M) BLACK,TRIM2# |
1 | ||
| 71073-0KT70C3 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-0KV70C1 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71073-0KU50C3 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-0KL20C4 |
GUN135..THDCB..M;GUN125..THDCB..6F..M SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71073-0KV90C1 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-0KL21C6 |
GUN135..THDCB..M;GUN125..THDCB..H..DCRE;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71073-0KK81C5 |
GUN125,135..THDCB..(H,M) BLACK,TRIM2# |
1 | ||
| 71073-0KU51C4 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-YP020C1 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71073-0KV71C3 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71073-0KT71C6 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-YP030C1 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-0KL21C6 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71073-YP020C1 |
GUN125..THDCB..H;GUN135..THDCB..M;GUN125..6F..M..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71073-YP030C1 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-0KV91C2 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-0K230 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 71501-0K030 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71501-0K230 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71501-0K031 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-02170C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71537-02170C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71537-02170C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-02120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71538-02120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71538-02120C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0K230 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71551-0K230 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 71551-0K270 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71811-0K120C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71811-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-47010 |
GUN12#,135..THDCB |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0K210C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71861-0K210C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71861-0K210C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71875-0K120C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-0K120C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71876-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71876-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-0K080 |
GUN12#,135..THDCB |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-KK010C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 72137K - COVER, FRONT SEAT TRACK, RH REAR INNER | ||||
| 72157-KK010C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72211-0D160 |
GUN12#,135..THDCB |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-0D270C0 |
GUN125..RHD..(H,M);GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 72525-0D270C0 |
GUN12#,135..LHD..(SADCB,THDCB)..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 72525-0D270C0 |
GUN125..RHD..(H,M);GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-0K050 |
GUN12#,135..THDCB |
1 | ||
| 79197A - RIVET | ||||
| 79197-0K010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
4 | ||
| Common parts | ||||
| 71751-0K070 | ||||
| 90119-10601 | ||||
| 90119-10921 | ||||
| 90119-T0001 | ||||
| 90167-40044 | ||||
| 90980-12373 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8421 | ||||
(1506- )
FRONT(RH MANUAL 6WAY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-0K400 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 71013-0K400 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71013-0K420 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-06070 |
GUN12#,135..THDCB |
1 | ||
| 71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-0K030 |
GUN12#,135..THDCB |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-YP050C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71071-0KW50C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-0KW40C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71071-0KX00C0 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-0KX30C1 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-YP060C0 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-0KX10C1 |
GUN135..THDCB..M;GUN125..THDCB..H..DCRE;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71071-0KW80C0 |
GUN125,135..THDCB..(H,M) BLACK,TRIM2# |
1 | ||
| 71071-0KX10C1 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71071-YP060C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-YP050C0 |
GUN125..THDCB..H;GUN135..THDCB..M;GUN125..6F..M..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0KK80C2 |
GUN125,135..THDCB..(H,M) BLACK,TRIM2# |
1 | ||
| 71073-0KT70C3 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-0KV70C1 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71073-0KU50C3 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-0KL20C4 |
GUN135..THDCB..M;GUN125..THDCB..6F..M SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71073-0KV90C1 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-0KL21C6 |
GUN135..THDCB..M;GUN125..THDCB..H..DCRE;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71073-0KK81C5 |
GUN125,135..THDCB..(H,M) BLACK,TRIM2# |
1 | ||
| 71073-0KU51C4 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-YP020C1 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71073-0KV71C3 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71073-0KT71C6 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-YP030C1 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-0KL21C6 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71073-YP020C1 |
GUN125..THDCB..H;GUN135..THDCB..M;GUN125..6F..M..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71073-YP030C1 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-0KV91C2 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-0K230 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 71501-0K030 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71501-0K230 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71501-0K031 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-02170C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71537-02170C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71537-02170C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-02120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71538-02120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71538-02120C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0K230 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71551-0K230 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 71551-0K270 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-0K030 |
GUN12#,135..THDCB |
4 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-0K030 |
GUN12#,135..THDCB |
4 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-0K140 |
GUN125..(SADCB,THDCB)..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC) |
4 | ||
| 71759-0K140 |
GUN125..(SADCB,THDCB)..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
4 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-0K060 |
GUN12#,135..THDCB |
4 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-0K060 |
GUN12#,135..THDCB |
4 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-0K070C0 |
GUN12#,135..(SADCB,THDCB)..(H,M)..HDCR BLACK,TRIM2#,3# |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71811-0K120C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71811-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-47010 |
GUN12#,135..THDCB |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0K210C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71861-0K210C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71861-0K210C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-06520 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 71873-06520 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71873-06510 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71873-06520 |
GUN125,135..(SADCB,THDCB)..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71873-06520 |
GUN126,135..H,M;GUN125..6FC..H..DCRE;GUN125..RHD..M..DCRE;GUN125..RHD..(H,M)..HDCR;GUN125..RHD..6F..H..DCRE;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71873-06520 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 71873-06520 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-06480 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71874-06490 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71874-06490 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 71874-06490 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71874-06490 |
GUN125,135..(SADCB,THDCB)..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71874-06490 |
GUN126,135..H,M;GUN125..6FC..H..DCRE;GUN125..RHD..M..DCRE;GUN125..RHD..(H,M)..HDCR;GUN125..RHD..6F..H..DCRE;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71874-06490 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71875-0K120C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-0K120C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71876-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71876-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0KC00C2 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71910-0KB60C2 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-0KB60C2 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125..THDCB..H..DCRE;GUN126,135..THDCB..(H,M);GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71910-0KB80C0 |
GUN12#,135..THDCB..(H,M) BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K050C0 |
GUN125..THDCB..H W(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN12#..THDCB..H W(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN12#..THDCB..H W/O(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN12#,135..THDCB..(H,M)..HDCR W(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-0K040C0 |
GUN12#,135..THDCB..(H,M)..HDCR W/O(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..H W/O(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..H..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..(H,M)..HDCR W(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..H..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR W/O(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR W(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..(H,M)..HDCR W/O(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K050C0 |
GUN125..THDCB..H W(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN12#..THDCB..H W(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN12#..THDCB..H W/O(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN12#,135..THDCB..(H,M)..HDCR W(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-0K040C0 |
GUN12#,135..THDCB..(H,M)..HDCR W/O(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..H W/O(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..H..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..(H,M)..HDCR W(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..H..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR W/O(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR W(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..(H,M)..HDCR W/O(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-0K080 |
GUN12#,135..THDCB |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-KK010C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 72137K - COVER, FRONT SEAT TRACK, RH REAR INNER | ||||
| 72157-KK010C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72211-0D160 |
GUN12#,135..THDCB |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-0D270C0 |
GUN125..RHD..(H,M);GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 72525-0D270C0 |
GUN12#,135..LHD..(SADCB,THDCB)..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 72525-0D270C0 |
GUN125..RHD..(H,M);GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-0K050 |
GUN12#,135..THDCB |
1 | ||
| 79197A - RIVET | ||||
| 79197-0K010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
4 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-0K110 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K110 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K110 |
GUN125,135..THDCB SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K110 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K110 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87510-0K140 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K150 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K150 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K150 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K150 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K150 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K140 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K150 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| Common parts | ||||
| 71751-0K070 | ||||
| 90119-10601 | ||||
| 90119-10921 | ||||
| 90119-T0001 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90980-12373 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(1506- )
FRONT(RH POWER 8WAY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-0K400 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 71013-0K400 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71013-0K420 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-06070 |
GUN12#,135..THDCB |
1 | ||
| 71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-0K030 |
GUN12#,135..THDCB |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-YP050C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71071-0KW50C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-0KW40C0 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71071-0KX00C0 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-0KX30C1 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-YP060C0 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-0KX10C1 |
GUN135..THDCB..M;GUN125..THDCB..H..DCRE;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71071-0KW80C0 |
GUN125,135..THDCB..(H,M) BLACK,TRIM2# |
1 | ||
| 71071-0KX10C1 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71071-YP060C0 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-YP050C0 |
GUN125..THDCB..H;GUN135..THDCB..M;GUN125..6F..M..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0KK80C2 |
GUN125,135..THDCB..(H,M) BLACK,TRIM2# |
1 | ||
| 71073-0KT70C3 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-0KV70C1 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71073-0KU50C3 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-0KL20C4 |
GUN135..THDCB..M;GUN125..THDCB..6F..M SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71073-0KV90C1 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-0KL21C6 |
GUN135..THDCB..M;GUN125..THDCB..H..DCRE;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71073-0KK81C5 |
GUN125,135..THDCB..(H,M) BLACK,TRIM2# |
1 | ||
| 71073-0KU51C4 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-YP020C1 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71073-0KV71C3 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71073-0KT71C6 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-YP030C1 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-0KL21C6 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71073-YP020C1 |
GUN125..THDCB..H;GUN135..THDCB..M;GUN125..6F..M..HDCR "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71073-YP030C1 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-0KV91C2 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-0K230 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 71501-0K030 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71501-0K230 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71501-0K031 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-02170C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71537-02170C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71537-02170C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-02120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71538-02120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71538-02120C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0K230 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71551-0K230 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 71551-0K270 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-0K030 |
GUN12#,135..THDCB |
4 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-0K030 |
GUN12#,135..THDCB |
4 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-0K140 |
GUN125..(SADCB,THDCB)..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC) |
4 | ||
| 71759-0K140 |
GUN125..(SADCB,THDCB)..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
4 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-0K060 |
GUN12#,135..THDCB |
4 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-0K060 |
GUN12#,135..THDCB |
4 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-0K070C0 |
GUN12#,135..(SADCB,THDCB)..(H,M)..HDCR BLACK,TRIM2#,3# |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71811-0K120C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71811-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-47010 |
GUN12#,135..THDCB |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0K210C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71861-0K210C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71861-0K210C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-06520 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 71873-06520 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71873-06510 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71873-06520 |
GUN125,135..(SADCB,THDCB)..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71873-06520 |
GUN126,135..H,M;GUN125..6FC..H..DCRE;GUN125..RHD..M..DCRE;GUN125..RHD..(H,M)..HDCR;GUN125..RHD..6F..H..DCRE;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71873-06520 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 71873-06520 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-06480 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71874-06490 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71874-06490 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 71874-06490 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71874-06490 |
GUN125,135..(SADCB,THDCB)..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71874-06490 |
GUN126,135..H,M;GUN125..6FC..H..DCRE;GUN125..RHD..M..DCRE;GUN125..RHD..(H,M)..HDCR;GUN125..RHD..6F..H..DCRE;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71874-06490 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM) |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71875-0K120C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-0K120C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71876-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71876-0K120C0 |
GUN125..THDCB..(H,M)..HDCR FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0KC00C2 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71910-0KB60C2 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-0KB60C2 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125..THDCB..H..DCRE;GUN126,135..THDCB..(H,M);GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125..THDCB..H..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71910-0KB80C0 |
GUN12#,135..THDCB..(H,M) BLACK,TRIM2# |
2 | ||
| 71910-0KC00C2 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K050C0 |
GUN125..THDCB..H W(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN12#..THDCB..H W(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN12#..THDCB..H W/O(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN12#,135..THDCB..(H,M)..HDCR W(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-0K040C0 |
GUN12#,135..THDCB..(H,M)..HDCR W/O(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..H W/O(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..H..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..(H,M)..HDCR W(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..H..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR W/O(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR W(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..(H,M)..HDCR W/O(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K050C0 |
GUN125..THDCB..H W(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN12#..THDCB..H W(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN12#..THDCB..H W/O(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN12#,135..THDCB..(H,M)..HDCR W(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-0K040C0 |
GUN12#,135..THDCB..(H,M)..HDCR W/O(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..H W/O(LOCK),PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..H..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..(H,M)..HDCR W(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..H..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR W/O(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
GUN126;GUN125..H..HDCR;GUN125..6F..M..HDCR W(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN125..(H,M)..HDCR W/O(LOCK),"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-0K080 |
GUN12#,135..THDCB |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-KK010C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 72137K - COVER, FRONT SEAT TRACK, RH REAR INNER | ||||
| 72157-KK010C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-0K050 |
GUN12#,135..THDCB |
1 | ||
| 79197A - RIVET | ||||
| 79197-0K010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
4 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-0K110 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K110 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K110 |
GUN125,135..THDCB SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K110 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K110 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87510-0K140 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K150 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K150 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K150 |
GUN125,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K150 |
GUN125..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K150 |
GUN125,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K140 |
GUN125..THDCB..(H,M) FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K150 |
GUN125,135..THDCB..(H,M) SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| Common parts | ||||
| 71751-0K070 | ||||
| 90119-10601 | ||||
| 90119-10921 | ||||
| 90119-T0001 | ||||
| 90167-40044 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
(1506- )SADCB,SASCB,THDCB
REAR SEAT(SEPARATE TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71223 - BRACKET, REAR SEAT CUSHION SIDE | ||||
| 71223-0K050 |
GUN12#,135..THDCB NO.1:REFER ILLUST. |
1 | ||
| 71224-0K060 |
GUN12#,135..THDCB NO.2:REFER ILLUST. |
1 | ||
| 71223 - BRACKET, REAR SEAT CUSHION SIDE | ||||
| 71223-0K050 |
GUN12#,135..THDCB NO.1:REFER ILLUST. |
1 | ||
| 71224-0K060 |
GUN12#,135..THDCB NO.2:REFER ILLUST. |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71304-0K090 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71303-0K090 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K090 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC) |
2 | ||
| 71397-0K090 |
GUN12#,135..(SADCB,THDCB)..(H,M) |
4 | ||
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K090 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC) |
2 | ||
| 71397-0K090 |
GUN12#,135..(SADCB,THDCB)..(H,M) |
4 | ||
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K090 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC) |
2 | ||
| 71397-0K090 |
GUN12#,135..(SADCB,THDCB)..(H,M) |
4 | ||
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K090 |
GUN12#,135..(SADCB,THDCB)..(H,M) |
4 | ||
| 71397-0K090 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC) |
2 | ||
| 71397B - HOLDER, REAR SEAT BACK, RH | ||||
| 71398-KK010 |
GUN12#,135..SADCB,THDCB |
2 | ||
| 71485C - COVER, REAR SEAT HINGE, RH | ||||
| 71485-0K030C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71485-0K030C0 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71485-0K030C0 |
GUN125..THDCB..(H,M)..HDCR REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71486C - COVER, REAR SEAT HINGE, LH | ||||
| 71486-0K030C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 71486-0K030C0 |
GUN125..THDCB..(H,M)..HDCR REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71486-0K030C0 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71830B - BUSH(FOR REAR SEAT ARMREST) | ||||
| 90386-12029 |
GUN12#,135..(SADCB,THDCB)..(H,M) |
2 | ||
| 71830B - BUSH(FOR REAR SEAT ARMREST) | ||||
| 90386-12029 |
GUN12#,135..(SADCB,THDCB)..(H,M) |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-02370C0 |
GUN125..THDCB..(H,M) W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..(H,M) W/O(LOCK),SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN12#,135..THDCB..(H,M)..HDCR W/O(LOCK),BLACK,TRIM2#,3# |
3 | ||
| 71930-02370C0 |
GUN12#..THDCB..H..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN12#..THDCB..H..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN126..THDCB;GUN125..THDCB..H..HDCR;GUN125..THDCB..6F..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN12#,135..THDCB..(H,M)..HDCR W(LOCK)&W(BUTTON),BLACK,TRIM2#,3# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..6FC..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..6FC..M W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK)&W(BUTTON),REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..6FC..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..6FC..M W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN126..THDCB;GUN125..THDCB..H..HDCR;GUN125..THDCB..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN126..M;GUN125..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN126..M;GUN125..6F..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..6FC..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..6FC..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-02370C0 |
GUN125..THDCB..(H,M) W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..(H,M) W/O(LOCK),SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN12#,135..THDCB..(H,M)..HDCR W/O(LOCK),BLACK,TRIM2#,3# |
3 | ||
| 71930-02370C0 |
GUN12#..THDCB..H..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN12#..THDCB..H..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN126..THDCB;GUN125..THDCB..H..HDCR;GUN125..THDCB..6F..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN12#,135..THDCB..(H,M)..HDCR W(LOCK)&W(BUTTON),BLACK,TRIM2#,3# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..6FC..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..6FC..M W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK)&W(BUTTON),REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..6FC..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..6FC..M W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN126..THDCB;GUN125..THDCB..H..HDCR;GUN125..THDCB..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN126..M;GUN125..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN126..M;GUN125..6F..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..6FC..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..6FC..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-02370C0 |
GUN125..THDCB..(H,M) W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..(H,M) W/O(LOCK),SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN12#,135..THDCB..(H,M)..HDCR W/O(LOCK),BLACK,TRIM2#,3# |
3 | ||
| 71930-02370C0 |
GUN12#..THDCB..H..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN12#..THDCB..H..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN126..THDCB;GUN125..THDCB..H..HDCR;GUN125..THDCB..6F..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN12#,135..THDCB..(H,M)..HDCR W(LOCK)&W(BUTTON),BLACK,TRIM2#,3# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..6FC..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..6FC..M W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK)&W(BUTTON),REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..6FC..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..6FC..M W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN126..THDCB;GUN125..THDCB..H..HDCR;GUN125..THDCB..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN126..M;GUN125..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN126..M;GUN125..6F..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..6FC..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..6FC..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-02370C0 |
GUN125..THDCB..(H,M) W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..(H,M) W/O(LOCK),SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN12#,135..THDCB..(H,M)..HDCR W/O(LOCK),BLACK,TRIM2#,3# |
3 | ||
| 71930-02370C0 |
GUN12#..THDCB..H..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN12#..THDCB..H..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN126..THDCB;GUN125..THDCB..H..HDCR;GUN125..THDCB..6F..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN12#,135..THDCB..(H,M)..HDCR W(LOCK)&W(BUTTON),BLACK,TRIM2#,3# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..6FC..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..6FC..M W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK)&W(BUTTON),REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..6FC..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..6FC..M W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN126..THDCB;GUN125..THDCB..H..HDCR;GUN125..THDCB..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN126..M;GUN125..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN126..M;GUN125..6F..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..6FC..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..6FC..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71931-02130C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..(H,M) W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..(H,M) W/O(LOCK),SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN12#,135..THDCB..(H,M)..HDCR W/O(LOCK),BLACK,TRIM2#,3# |
3 | ||
| 71930-02370C0 |
GUN12#..THDCB..H..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN12#..THDCB..H..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN126..THDCB;GUN125..THDCB..H..HDCR;GUN125..THDCB..6F..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN12#,135..THDCB..(H,M)..HDCR W(LOCK)&W(BUTTON),BLACK,TRIM2#,3# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..6FC..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..6FC..M W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK)&W(BUTTON),REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..6FC..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..6FC..M W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN126..THDCB;GUN125..THDCB..H..HDCR;GUN125..THDCB..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN126..M;GUN125..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN126..M;GUN125..6F..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..6FC..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..6FC..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-02370C0 |
GUN125..THDCB..(H,M) W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..(H,M) W/O(LOCK),SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN12#,135..THDCB..(H,M)..HDCR W/O(LOCK),BLACK,TRIM2#,3# |
3 | ||
| 71930-02370C0 |
GUN12#..THDCB..H..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN12#..THDCB..H..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN126..THDCB;GUN125..THDCB..H..HDCR;GUN125..THDCB..6F..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN12#,135..THDCB..(H,M)..HDCR W(LOCK)&W(BUTTON),BLACK,TRIM2#,3# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..6FC..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..6FC..M W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..(H,M)..HDCR W(LOCK)&W(BUTTON),REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..6FC..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..THDCB..6FC..M W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN126..THDCB;GUN125..THDCB..H..HDCR;GUN125..THDCB..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN126..M;GUN125..6F..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..(H,M)..HDCR W/O(LOCK),REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN126..M;GUN125..6F..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
GUN125..6FC..M..HDCR W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71931-02130C0 |
GUN125..THDCB..6FC..M..HDCR W/O(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0KK00C1 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71940-0KK00C1 |
GUN125..THDCB..(H,M) REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71940-0K770C0 |
GUN12#,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71940-0K771C0 |
GUN125..THDCB..6FC..M SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71940-0KK10C2 |
GUN12#,135..THDCB..(H,M) BLACK,TRIM2# |
2 | ||
| 71940-0K771C0 |
GUN125..THDCB..H;GUN126,135..THDCB..(H,M);GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71940-0K771C0 |
GUN125..THDCB..6FC..M;GUN125..THDCB..6F..M..DCRE SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71940-0K771C0 |
GUN12#..THDCB..H;GUN135..THDCB..M..DCRE SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71940-0KK11C4 |
GUN12#,135..THDCB..(H,M) BLACK,TRIM2# |
2 | ||
| 71940-0K771C0 |
GUN125..THDCB..6FC..M;GUN125..THDCB..6F..M..DCRE SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71940-0KK01C1 |
GUN125..THDCB..(H,M) REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71940-0K771C0 |
GUN126..M;GUN125..6F..M..HDCR SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0KK00C1 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71940-0KK00C1 |
GUN125..THDCB..(H,M) REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71940-0K770C0 |
GUN12#,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71940-0K771C0 |
GUN125..THDCB..6FC..M SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71940-0KK10C2 |
GUN12#,135..THDCB..(H,M) BLACK,TRIM2# |
2 | ||
| 71940-0K771C0 |
GUN125..THDCB..H;GUN126,135..THDCB..(H,M);GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71940-0K771C0 |
GUN125..THDCB..6FC..M;GUN125..THDCB..6F..M..DCRE SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71940-0K771C0 |
GUN12#..THDCB..H;GUN135..THDCB..M..DCRE SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71940-0KK11C4 |
GUN12#,135..THDCB..(H,M) BLACK,TRIM2# |
2 | ||
| 71940-0K771C0 |
GUN125..THDCB..6FC..M;GUN125..THDCB..6F..M..DCRE SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71940-0KK01C1 |
GUN125..THDCB..(H,M) REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
2 | ||
| 71940-0K771C0 |
GUN126..M;GUN125..6F..M..HDCR SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-0K330C0 |
GUN12#,135..THDCB..(H,M) BLACK,TRIM2# |
1 | ||
| 71960-0K430C0 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71960-0K781C0 |
GUN125..THDCB..6FC..M SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71960-0K430C0 |
GUN125..THDCB..(H,M) REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71960-0K781C0 |
GUN125..THDCB..6FC..M SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71960-0K781C0 |
GUN125..THDCB..H;GUN125..THDCB..6F..M;GUN126,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71960-0K780C0 |
GUN12#,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71960-0K781C1 |
GUN125..THDCB..6FC..M;GUN125..THDCB..6F..M..DCRE SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71960-0K431C0 |
GUN125..THDCB..(H,M) REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71960-0K781C0 |
GUN12#..THDCB..H SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71960-0K781C1 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 71960-0K781C1 |
GUN125..THDCB..6FC..M;GUN125..THDCB..6F..M..DCRE SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71960-0K331C3 |
GUN12#,135..THDCB..(H,M) BLACK,TRIM2# |
1 | ||
| 71960-0K431C2 |
GUN125..THDCB..(H,M) REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 71960-0K781C1 |
GUN125..THDCB..H;GUN125..6F..M..HDCR;GUN126,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 72478 - BUSH, VERTICAL ADJUSTER | ||||
| 72478-0K010 |
GUN12#,135..SADCB,THDCB |
2 | ||
| 72478 - BUSH, VERTICAL ADJUSTER | ||||
| 72478-0K010 |
GUN12#,135..SADCB,THDCB |
2 | ||
| 72630F - LOCK ASSY, REAR NO.2 SEAT | ||||
| 72650-0K271 |
GUN12#,135..THDCB..(H,M) |
2 | ||
| 72650-0K270 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 72650-0K270 |
GUN12#,135..THDCB..(H,M) |
2 | ||
| 72650-0K271 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 72650-0K271 |
GUN125..THDCB..(H,M) REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 72630F - LOCK ASSY, REAR NO.2 SEAT | ||||
| 72650-0K271 |
GUN12#,135..THDCB..(H,M) |
2 | ||
| 72650-0K270 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 72650-0K270 |
GUN12#,135..THDCB..(H,M) |
2 | ||
| 72650-0K271 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 72650-0K271 |
GUN125..THDCB..(H,M) REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 72806B - HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP | ||||
| 72806-0K010C0 |
GUN125..THDCB..6FC..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 72806-0K010C0 |
GUN12#..THDCB..H..HDCR SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 72806-0K010C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 72806-0K010C0 |
GUN126..M;GUN125..6F..M..HDCR SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 72806-0K010C0 |
GUN126..THDCB;GUN125..THDCB..H..HDCR;GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 72806-0K010C0 |
GUN125..6FC..M..HDCR SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 72806-0K010C0 |
GUN125..THDCB..6FC..M SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-0K520C2 |
GUN125..THDCB..H;GUN126,135..THDCB..(H,M);GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 72830-0K510C0 |
GUN12#,135..THDCB..(H,M) BLACK,TRIM2# |
1 | ||
| 72830-0K520C1 |
GUN12#,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 72830-0K520C2 |
GUN125..THDCB..6FC..M;GUN125..THDCB..6F..M..DCRE SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 72830-0K510D0 |
GUN12#,135..THDCB..(H,M)..HDCR MAROON,TRIM3# |
1 | ||
| 72830-0K520C2 |
GUN126..M;GUN125..6F..M..HDCR SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 72830-0K520C2 |
GUN125..THDCB..6FC..M SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 72830-0K520C2 |
GUN12#..THDCB..H;GUN135..THDCB..M..DCRE SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 72830-0K520C2 |
GUN125..THDCB..6FC..M;GUN125..THDCB..6F..M..DCRE SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 72835 - ARM, RR SEAT ARMREST, RH | ||||
| 72835-0K030 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 72836B - ARM, REAR SEAT ARMREST, LH | ||||
| 72836-0K030 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 72995 - COVER, REAR SEAT CUSHION, RH | ||||
| 72995-0K130C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 72995B - COVER, NO.1 SEAT CUSHION, RH | ||||
| 72995-0K110C0 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 72995-0K110C0 |
GUN125..THDCB..(H,M)..HDCR REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 72995-0K110C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 72998A - COVER, NO.1 SEAT CUSHION, LH | ||||
| 72998-0K020C0 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 72998-0K020C0 |
GUN125..THDCB..(H,M)..HDCR REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 72998-0K020C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 72998B - COVER, REAR SEAT CUSHION, LH | ||||
| 72998-0K040C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 | ||||
| 78950-0K210C0 |
GUN12#,135..THDCB..(H,M) BLACK,TRIM2#,3# |
2 | ||
| 78950-0K210C0 |
GUN125..THDCB..(H,M) REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 78950-0K210C0 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 | ||||
| 78950-0K210C0 |
GUN12#,135..THDCB..(H,M) BLACK,TRIM2#,3# |
2 | ||
| 78950-0K210C0 |
GUN125..THDCB..(H,M) REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 78950-0K210C0 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-0KD10C2 |
GUN125..THDCB..6FC..M SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 79011-0KD00C1 |
GUN12#,135..THDCB..(H,M) BLACK,TRIM2# |
1 | ||
| 79011-0KD00D1 |
GUN12#,135..THDCB..(H,M)..HDCR MAROON,TRIM3# |
1 | ||
| 79011-YP010C0 |
GUN12#..THDCB..H;GUN135..THDCB..M..DCRE SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 79011-YP010C0 |
GUN125..THDCB..6FC..M;GUN125..THDCB..6F..M..DCRE SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 79011-0KD10C2 |
GUN125..THDCB..6FC..M;GUN125..THDCB..6F..M..DCRE SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 79011-YP010C0 |
GUN126..M;GUN125..6F..M..HDCR SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 79011-0KD10C2 |
GUN125..THDCB..H;GUN126,135..THDCB..(H,M);GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79012-0KB10D1 |
GUN12#,135..THDCB..(H,M)..HDCR MAROON,TRIM3# |
1 | ||
| 79012-0KB20C2 |
GUN125..THDCB..6FC..M SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 79012-0KB10C1 |
GUN12#,135..THDCB..(H,M) BLACK,TRIM2# |
1 | ||
| 79012-YP010C0 |
GUN126..M;GUN125..6F..M..HDCR SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 79012-YP010C0 |
GUN125..THDCB..6FC..M;GUN125..THDCB..6F..M..DCRE SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 79012-YP010C0 |
GUN12#..THDCB..H;GUN135..THDCB..M..DCRE SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 79012-0KB20C2 |
GUN125..THDCB..H;GUN126,135..THDCB..(H,M);GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 79012-0KB20C2 |
GUN125..THDCB..6FC..M;GUN125..THDCB..6F..M..DCRE SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-0KE00C2 |
GUN12#,135..THDCB..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 79013-0KF90C1 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 79013-0KF90C1 |
GUN125..THDCB..(H,M) REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 79013-0KD90C1 |
GUN12#,135..THDCB..(H,M) BLACK,TRIM2# |
1 | ||
| 79013-0KE01C2 |
GUN125..THDCB..6FC..M SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 79013-0KD91C1 |
GUN12#,135..THDCB..(H,M) BLACK,TRIM2# |
1 | ||
| 79013-0KE01C2 |
GUN125..THDCB..H;GUN126,135..THDCB..(H,M);GUN125..THDCB..6F..M..HDCR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 79013-YP010C0 |
GUN12#..THDCB..H;GUN135..THDCB..M..DCRE SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 79013-YP010C0 |
GUN126..M;GUN125..6F..M..HDCR SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 79013-YP010C0 |
GUN125..THDCB..6FC..M;GUN125..THDCB..6F..M..DCRE SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 79013-0KE01C2 |
GUN125..THDCB..6FC..M;GUN125..THDCB..6F..M..DCRE SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 79013-0KF91C1 |
GUN125..THDCB..(H,M) REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2# |
1 | ||
| 79101B - FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79101-0K260 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 79102 - FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79102-0K250 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 79103 - FRAME SUB-ASSY, NO.1 SEAT BACK | ||||
| 79010-0K020 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 79010-0K020 |
GUN125..THDCB..(H,M) REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 79010-0K040 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 79135A - PAD, NO.1 SEAT CUSHION, RH | ||||
| 71611-0K010 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 79136B - PAD, NO.1 SEAT CUSHION, LH | ||||
| 71612-0K020 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-0K290 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 79175-0K270 |
GUN125..THDCB..(H,M) SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| 79175-0K270 |
GUN125..THDCB..(H,M) REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC) |
1 | ||
| Common parts | ||||
| 90080-17114 | ||||
| 90105-T0154 | ||||
| 90178-T0099 | ||||
| 91553-10816 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
