GUN125L-DTTMHW (2015)
Toyota Hilux
ILLUST NO. 1 OF 2(1506- )SADCB,THDCB
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-KK010 |
GUN12#,135..SADCB,THDCB |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09131 |
GUN135..SAXTR..DCRE..IV3;GUN12#..SADCB,SAXTR,THDCB;GUN135..(SADCB,SAXTR,THDCB)..(M,S) |
2 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-KK010 |
GUN12#,135..SADCB,THDCB |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-KK010 |
GUN12#,135..SADCB,THDCB |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-KK010 |
GUN12#,135..SADCB,THDCB |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-0K100 |
GUN12#,135..SADCB,THDCB |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-0K100 |
GUN12#,135..SADCB,THDCB |
1 | ||
| 67812 - PAD, REAR DOOR SILENCER | ||||
| 69759-0K030 |
GUN12#,135..THDCB |
4 | ||
| 67837C - SEAL, REAR DOOR DUST PROOF | ||||
| 67837-0K090 |
GUN12#,135..THDCB |
6 | ||
| 67837-0K091 |
GUN12#,135..THDCB |
6 | ||
| 67837-0K092 |
GUN12#,135..THDCB PLANT TMT |
6 | ||
| 67837-0K092 |
GUN12#,135..THDCB |
6 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-0K130 |
GUN12#,135..SADCB,THDCB |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-0K010 |
GUN12#,135..SADCB,THDCB |
1 | ||
| 67857B - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-0K030 |
GUN12#,135..THDCB |
1 | ||
| 67858B - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 67858-0K030 |
GUN12#,135..THDCB |
1 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67867-12150 |
GUN12#,135..SADCB,THDCB |
46 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-52020 |
GUN12#,135..SADCB,THDCB |
5 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-52010 |
GUN12#,135..SADCB,THDCB |
5 | ||
| 67869L - CLIP, REAR DOOR WEATHERSTRIP | ||||
| 90467-06084 |
GUN12#,135..SADCB,THDCB |
4 | ||
| 67869L - CLIP, REAR DOOR WEATHERSTRIP | ||||
| 90467-06084 |
GUN12#,135..SADCB,THDCB |
4 | ||
| 67869M - CLIP, DOOR WEATHERSTRIP | ||||
| 67867-12150 |
GUN12#,135 |
8 | ||
| 67867-50050 |
GUN12#,135..THDCB |
8 | ||
| 67867-0K020 |
GUN12#,135..THDCB |
8 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-0K080 |
GUN12#,135..THDCB |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-0K080 |
GUN12#,135..THDCB |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-0K240 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-0K240 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-0K241 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 68123-0K240 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 68124C - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-0K241 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 68124-0K240 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-0K080 |
GUN12#,135..THDCB |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-0K080 |
GUN12#,135..THDCB |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-0K110 |
GUN12#,135..SADCB,THDCB |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-0K110 |
GUN12#,135..SADCB,THDCB |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-0K091 |
GUN125,135..THDCB..DCRE;GUN12#..THDCB..(H,M)..HDCR;GUN125..THDCB..6F..S..HDCR |
1 | ||
| 68630-0K090 |
GUN12#,135..THDCB |
1 | ||
| 68630-0K110 |
GUN12#..THDCB..(H,M);GUN125..THDCB..6F..S |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68630-0K110 |
GUN12#..THDCB..(H,M);GUN125..THDCB..6F..S |
1 | ||
| 68630-0K090 |
GUN12#,135..THDCB |
1 | ||
| 68630-0K091 |
GUN125,135..THDCB..DCRE;GUN12#..THDCB..(H,M)..HDCR;GUN125..THDCB..6F..S..HDCR |
1 | ||
| 75923C - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-0K030 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 75923-0K030 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 75924C - TAPE, BLACK OUT, NO.2 LH | ||||
| 75924-0K030 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 75924-0K030 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90109-T0011 | ||||
| 90119-T0141 | ||||
| 90151-T0003 | ||||
| 90950-01841 | ||||
| 90950-06115 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 6757 | ||||

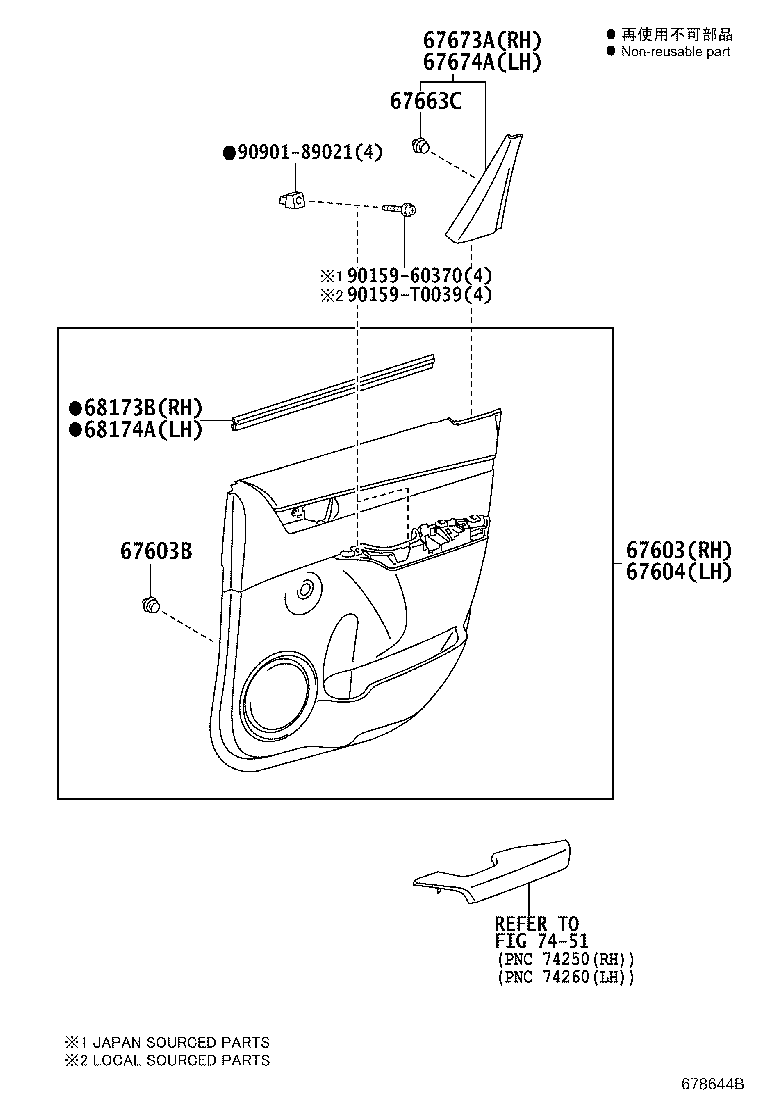

ILLUST NO. 2 OF 2(1506- )SADCB,THDCB
DOOR TRIM,W(POWER WINDOW)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-YP020C0 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK),BLACK,TRIM2# |
1 | ||
| 67630-YP021C0 |
GUN12#,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B),BLACK,TRIM2# |
1 | ||
| 67630-0K770C0 |
GUN12#,135..THDCB..(H,M) BLACK,TRIM2#,3# |
1 | ||
| 67630-0K771C0 |
GUN12#..THDCB..(H,M);GUN135..THDCB..M..DCRE BLACK,TRIM2# |
1 | ||
| 67630-YP021C0 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK),BLACK,TRIM2# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-T0019 |
GUN12#,135..THDCB |
14 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-YP020C0 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK),BLACK,TRIM2# |
1 | ||
| 67640-0K770C0 |
GUN12#,135..THDCB..(H,M) BLACK,TRIM2#,3# |
1 | ||
| 67640-0K771C0 |
GUN12#..THDCB..(H,M);GUN135..THDCB..M..DCRE BLACK,TRIM2# |
1 | ||
| 67640-YP021C0 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK),BLACK,TRIM2# |
1 | ||
| 67640-YP021C0 |
GUN12#,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B),BLACK,TRIM2# |
1 | ||
| 67663C - CLIP(FOR DOOR FRAME GARNISH) | ||||
| 90467-T0019 |
GUN12#,135..THDCB |
6 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-0K040 |
GUN12#,135..THDCB |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-0K040 |
GUN12#,135..THDCB |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-0K080 |
GUN12#,135..THDCB |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-0K080 |
GUN12#,135..THDCB |
1 | ||
| Common parts | ||||
| 90159-60370 | ||||
| 90159-T0039 | ||||
| 90901-89021 | ||||
| Linked diagrams | ||||
| 7451 | ||||
ILLUST NO. 2 OF 2(1604- )SADCB,THDCB
DOOR TRIM,W/O(POWER WINDOW)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-YP020C0 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK),BLACK,TRIM2# |
1 | ||
| 67630-YP021C0 |
GUN12#,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B),BLACK,TRIM2# |
1 | ||
| 67630-0K770C0 |
GUN12#,135..THDCB..(H,M) BLACK,TRIM2#,3# |
1 | ||
| 67630-0K771C0 |
GUN12#..THDCB..(H,M);GUN135..THDCB..M..DCRE BLACK,TRIM2# |
1 | ||
| 67630-YP021C0 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK),BLACK,TRIM2# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-T0019 |
GUN12#,135..THDCB |
14 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-YP020C0 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK),BLACK,TRIM2# |
1 | ||
| 67640-0K770C0 |
GUN12#,135..THDCB..(H,M) BLACK,TRIM2#,3# |
1 | ||
| 67640-0K771C0 |
GUN12#..THDCB..(H,M);GUN135..THDCB..M..DCRE BLACK,TRIM2# |
1 | ||
| 67640-YP021C0 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK),BLACK,TRIM2# |
1 | ||
| 67640-YP021C0 |
GUN12#,135..THDCB..(H,M) "BLACK RALLY EDITION"*(B),BLACK,TRIM2# |
1 | ||
| 67663C - CLIP(FOR DOOR FRAME GARNISH) | ||||
| 90467-T0019 |
GUN12#,135..THDCB |
6 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-0K040 |
GUN12#,135..THDCB |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-0K040 |
GUN12#,135..THDCB |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-0K080 |
GUN12#,135..THDCB |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-0K080 |
GUN12#,135..THDCB |
1 | ||
| Common parts | ||||
| 90159-60370 | ||||
| 90159-T0039 | ||||
| 90901-89021 | ||||
| Linked diagrams | ||||
| 7451 | ||||
