GUN125L-DTTMHW (2015)
Toyota Hilux
(1506- )THDCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383 - SEAL, HOOD TO COWL TOP | ||||
| 53383-0K120 |
GUN12#,135..THDCB |
1 | ||
| 53383 - SEAL, HOOD TO COWL TOP | ||||
| 53383-0K120 |
GUN12#,135..THDCB |
1 | ||
| 53866J - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-0K050 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 53867H - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-0K050 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-KK060 |
GUN125..THDCB..(H,M)..HDCR STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 55700-KK020 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 55700-KK060 |
GUN125..THDCB..6F..M RUSSIA & UKRAINE SPEC&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH | ||||
| 55705-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-0K350 |
GUN125..THDCB..6F..M RUSSIA & UKRAINE SPEC&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 55708-0K350 |
GUN125..THDCB..(H,M)..HDCR STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 55708-0K180 |
GUN12#,135..THDCB |
1 | ||
| 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-0K350 |
GUN125..THDCB..6F..M RUSSIA & UKRAINE SPEC&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 55708-0K350 |
GUN125..THDCB..(H,M)..HDCR STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 55708-0K180 |
GUN12#,135..THDCB |
1 | ||
| 55783A - PAD, COWL TOP SILENCER | ||||
| 55785-0K040 |
GUN125..THDCB;GUN135..THDCB..DCRE;GUN125..(SADCB,SAXTR)..(H,M,S)..HDCR;GUN126,135..(SADCB,SAXTR,THDCB)..(H,M,S)..HDCR..CBU |
1 | ||
| 55783C - BRACKET, COWL TOP VENTILATOR LOUVER, RH | ||||
| 55783-0K100 |
GUN12#,135..THDCB |
1 | ||
| 55784D - BRACKET, COWL TOP VENTILATOR LOUVER, LH | ||||
| 55784-0K030 |
GUN12#,135..THDCB |
1 | ||
| 55798A - SUPPORT, COWL WATER EXTRACT SEAL | ||||
| 55798-0K010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 55799C - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-07215 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
2 | ||
| 55799C - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-07215 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
2 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-0K740 |
GUN125..THDCB..6F..M RUSSIA & UKRAINE SPEC&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&AUDIO-*DA & CD & *BT & RDS & DAB |
1 | ||
| 56101-0K630 |
GUN12#,135..THDCB..(H,M) AUDIO-*DA & CD & *BT & RDS & DAB |
1 | ||
| 56101-0K631 |
GUN135..THDCB..M;GUN125..THDCB..6FC..(H,M) AUDIO-*DA & CD & *BT & RDS & DAB |
1 | ||
| 56101-0K730 |
GUN125..THDCB..6F..M RUSSIA & UKRAINE SPEC&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 56101-0K341 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 56101-0K631 |
GUN126..THDCB;GUN125..THDCB..6F..M AUDIO-*DA & CD & *BT & RDS & DAB |
1 | ||
| 56101-0K631 |
GUN135..THDCB..M;GUN125..THDCB..6FC..(H,M) PRE-COLLISION SYSTEM-WITHOUT&AUDIO-*DA & CD & *BT & RDS & DAB |
1 | ||
| 56101-0K340 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 56101-0K740 |
GUN125..THDCB..6FC..(H,M) PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&AUDIO-*DA & CD & *BT & RDS & DAB |
1 | ||
| 56101-0K730 |
GUN125..THDCB..6FC..(H,M) PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 56101-0K342 |
GUN135..THDCB..M;GUN125..THDCB..6FC..(H,M) PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 56101-0K740 |
GUN125..THDCB..6F..M STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&AUDIO-*DA & CD & *BT & RDS & DAB |
1 | ||
| 56101-0K342 |
GUN135..THDCB..M;GUN125..THDCB..6FC..(H,M) |
1 | ||
| 56101-0KA40 |
GUN135..THDCB..M;GUN125..THDCB..6FC..(H,M) |
1 | ||
| 56101-0K632 |
GUN135..THDCB..M;GUN125..THDCB..6FC..(H,M) PRE-COLLISION SYSTEM-WITHOUT&AUDIO-*DA & CD & *BT & RDS & DAB |
1 | ||
| 56101-0KA50 |
GUN125..THDCB..6F..M PRE-COLLISION SYSTEM-WITH&AUDIO-*DA & CD & *BT & RDS & DAB |
1 | ||
| 56101-0K741 |
GUN125..THDCB..6FC..(H,M) PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&AUDIO-*DA & CD & *BT & RDS & DAB |
1 | ||
| 56101-0KA50 |
GUN135..THDCB..M;GUN125..THDCB..6FC..(H,M) AUDIO-*DA & CD & *BT & RDS & DAB |
1 | ||
| 56101-0KB10 |
GUN125..THDCB..6FC..(H,M) STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&AUDIO-*DA & CD & *BT & RDS & DAB |
1 | ||
| 56101-0KB00 |
GUN125..THDCB..6F..M PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 56101-0KB00 |
GUN125..THDCB..6FC..(H,M) STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 56101-0KB10 |
GUN125..THDCB..6F..M PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&AUDIO-*DA & CD & *BT & RDS & DAB |
1 | ||
| 56101-0KA40 |
GUN125..THDCB..6F..M PRE-COLLISION SYSTEM-WITH |
1 | ||
| 56101-0K730 |
GUN125..THDCB..6F..M..HDCR STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 56101-0K632 |
GUN126;GUN125..THDCB..6F..M..HDCR AUDIO-*DA & CD & *BT & RDS & DAB |
1 | ||
| 56101-0K741 |
GUN126;GUN125..THDCB..6F..M..HDCR STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&AUDIO-*DA & CD & *BT & RDS & DAB |
1 | ||
| 56101-0K342 |
GUN126..THDCB;GUN125..THDCB..6F..M..HDCR |
1 | ||
| 56101-0K741 |
GUN125..6FC..HDCR STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&AUDIO-*DA & CD & *BT & RDS & DAB |
1 | ||
| 56101-0K342 |
GUN125..6FC..HDCR |
1 | ||
| 56101-0K730 |
GUN125..6FC..HDCR STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 56101-0K632 |
GUN125..6FC..HDCR AUDIO-*DA & CD & *BT & RDS & DAB |
1 | ||
| 56115C - STOPPER, WINDSHIELD GLASS | ||||
| 56115-30100 |
GUN126;GUN135..THDCB..M;GUN135..SADCB,SASCB;GUN125..THDCB..DCRE;GUN135..SAXTR..S..HDCR;GUN125..SADCB,SASCB,SAXTR;GUN125..THDCB..(H,M)..HDCR;GUN135..(SAXTR,THDCB)..(S,X)..DCRE |
1 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
GUN126;GUN135..THDCB..M;GUN135..SADCB,SASCB;GUN125..THDCB..DCRE;GUN135..SAXTR..S..HDCR;GUN125..SADCB,SASCB,SAXTR;GUN125..THDCB..(H,M)..HDCR;GUN135..(SAXTR,THDCB)..(S,X)..DCRE |
1 | ||
| 56117A - DAM, WINDOW GLASS ADHESIVE | ||||
| 56117-KK060 |
GUN125..THDCB..6F..M L=2620,RUSSIA & UKRAINE SPEC&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&AUDIO-*DA & CD & *BT & RDS & DAB |
1 | ||
| 56117-KK060 |
GUN125..THDCB..6F..M L=2620,PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&AUDIO-*DA & CD & *BT & RDS & DAB |
1 | ||
| 56117-KK060 |
GUN125,135..THDCB..S;GUN125..THDCB..6F..M L=2620,PRE-COLLISION SYSTEM-WITH |
1 | ||
| 56117-KK060 |
GUN125..THDCB..6FC..(H,M) L=2620,PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&AUDIO-*DA & CD & *BT & RDS & DAB |
1 | ||
| 56117-KK060 |
GUN125..THDCB..6FC..(H,M) L=2620,PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 56117-KK060 |
GUN135..THDCB..M;GUN125..THDCB..6FC..(H,M) L=2620,PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 56117-KK060 |
GUN135..THDCB..M;GUN125..THDCB..6FC..(H,M) L=2620,PRE-COLLISION SYSTEM-WITHOUT&AUDIO-*DA & CD & *BT & RDS & DAB |
1 | ||
| 56117-KK060 |
GUN125..THDCB..6F..M L=2620,PRE-COLLISION SYSTEM-WITH&AUDIO-*DA & CD & *BT & RDS & DAB |
1 | ||
| 56117-KK060 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB L=2620 |
1 | ||
| 56117-KK060 |
GUN125..THDCB..6F..M L=2620,RUSSIA & UKRAINE SPEC&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 56117-KK060 |
GUN12#,135..H,M L=2620,AUDIO-*DA & CD & *BT & RDS & DAB |
1 | ||
| 56117-KK060 |
GUN125..THDCB..(H,M)..HDCR L=2620,STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 56117-KK060 |
GUN125..THDCB..6F..M L=2620,PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 56117-KK060 |
GUN125..THDCB..(H,M)..HDCR L=2620,STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&AUDIO-*DA & CD & *BT & RDS & DAB |
1 | ||
| 56118A - DAM, WINDOW GLASS ADHESIVE, NO.2 | ||||
| 56117-KK030 |
GUN135..THDCB..M;GUN125..THDCB..6FC..(H,M) L=1248,PRE-COLLISION SYSTEM-WITHOUT&AUDIO-*DA & CD & *BT & RDS & DAB |
1 | ||
| 56117-KK030 |
GUN125..THDCB..6F..M L=1248,PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 56117-KK030 |
GUN125..THDCB..6F..M L=1248,PRE-COLLISION SYSTEM-WITH&AUDIO-*DA & CD & *BT & RDS & DAB |
1 | ||
| 56117-KK030 |
GUN125..THDCB..6F..M L=1248,RUSSIA & UKRAINE SPEC&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&AUDIO-*DA & CD & *BT & RDS & DAB |
1 | ||
| 56117-KK030 |
GUN125..THDCB..6F..M L=1248,PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&AUDIO-*DA & CD & *BT & RDS & DAB |
1 | ||
| 56117-KK030 |
GUN125,135..THDCB..S;GUN125..THDCB..6F..M L=1248,PRE-COLLISION SYSTEM-WITH |
1 | ||
| 56117-KK030 |
GUN125..THDCB..6F..M L=1248,RUSSIA & UKRAINE SPEC&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 56117-KK030 |
GUN125..THDCB..6FC..(H,M) L=1248,PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 56117-KK030 |
GUN125..THDCB..6FC..(H,M) L=1248,PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&AUDIO-*DA & CD & *BT & RDS & DAB |
1 | ||
| 56117-KK030 |
GUN135..THDCB..M;GUN125..THDCB..6FC..(H,M) L=1248,PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 56117-KK030 |
GUN125..THDCB..(H,M)..HDCR L=1248,STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 56117-KK030 |
GUN12#,135..H,M L=1248,AUDIO-*DA & CD & *BT & RDS & DAB |
1 | ||
| 56117-KK030 |
GUN125..THDCB..(H,M)..HDCR L=1248,STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&AUDIO-*DA & CD & *BT & RDS & DAB |
1 | ||
| 56117-KK030 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB L=1248 |
1 | ||
| Common parts | ||||
| 67867-0C010 | ||||
| 90467-10216 | ||||

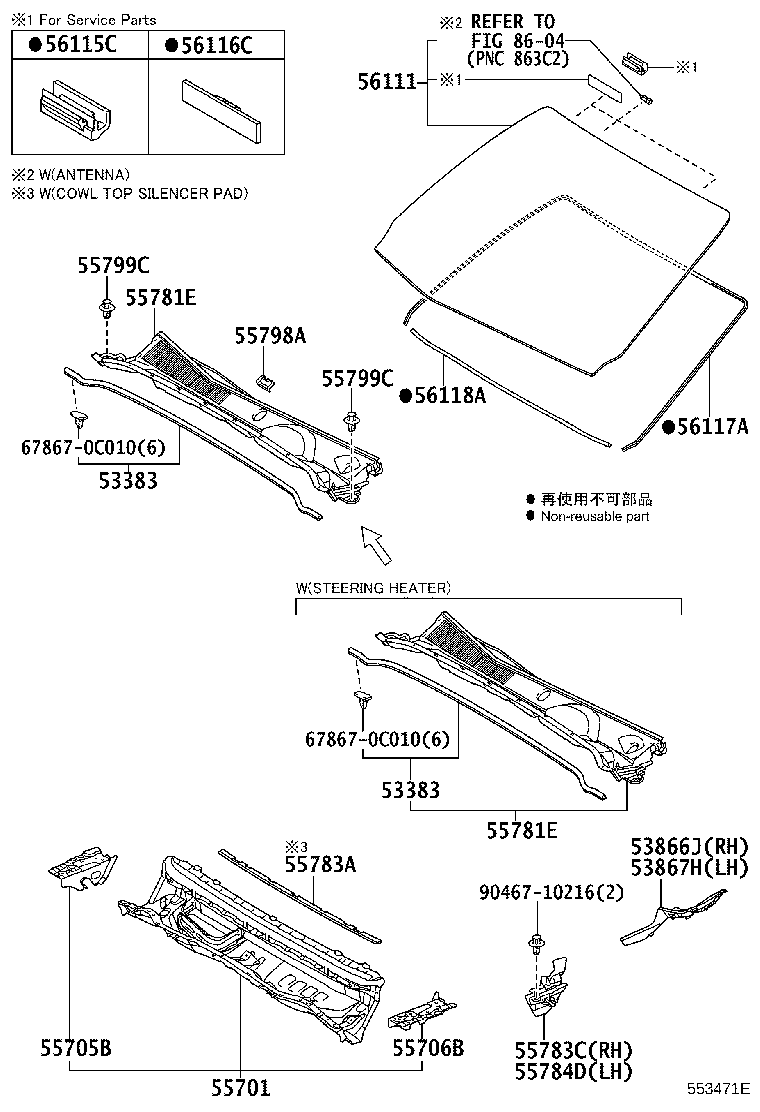

| Linked diagrams | ||||
| 8604 | ||||
