GUN125L-DTTMHW (2015)
Toyota Hilux

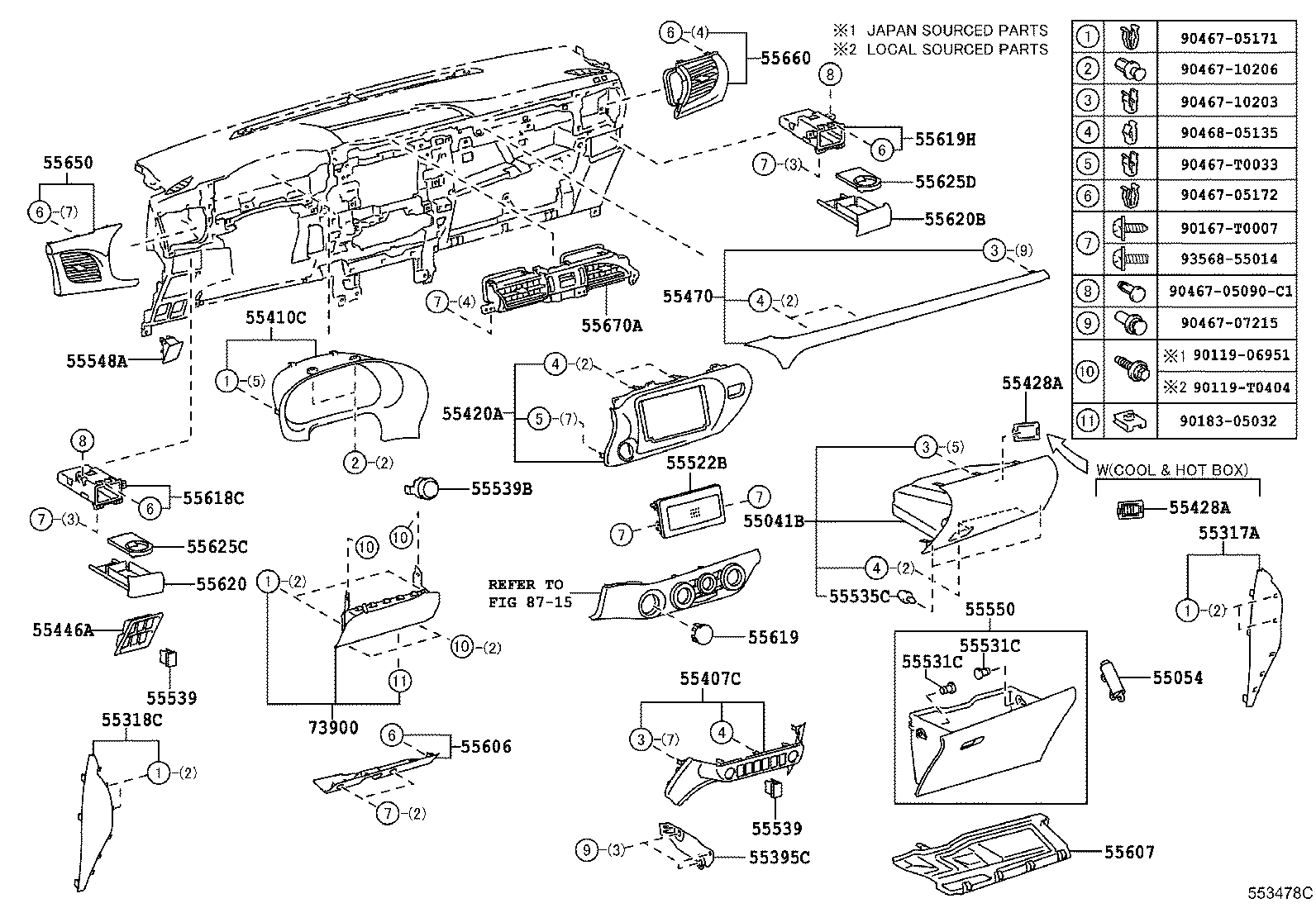

ILLUST NO. 2 OF 2(1506- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55041B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1 | ||||
| 55041-YP040C0 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&FRONT AIR CONDITIONER-AUTO,BLACK,TRIM2# |
1 | ||
| 55041-KK030D0 |
GUN12#,135..LHD..(SADCB,THDCB)..(H,M)..HDCR RED,TRIM3# |
1 | ||
| 55041-KK030C0 |
GUN135..THDCB..M;GUN135..SAXTR..S;GUN125..LHD..SADCB..DCRE;GUN125..LHD..SADCB..(S,X)..HDCR;GUN12#..LHD..(SASCB,SAXTR,THDCB);GUN135..(SADCB,SAXTR)..(M,X)..DCRE;GUN135..(SADCB,SASCB,THDCB)..(S,X) BLACK,TRIM2# |
1 | ||
| 55041-YP030C0 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK),BLACK,TRIM2# |
1 | ||
| 55041-KK170D0 |
GUN12#..THDCB..M..HDCR;GUN135..THDCB..6F..M..HDCR FRONT AIR CONDITIONER-AUTO,RED,TRIM3# |
1 | ||
| 55041-KK170C0 |
GUN12#..THDCB..H;GUN135..6FC..HDCR;GUN125,135..LHD..M..DCRE;GUN125..LHD..SADCB..H..DCRE FRONT AIR CONDITIONER-AUTO,BLACK,TRIM2# |
1 | ||
| 55041-KK170C0 |
GUN135..S..CBU;GUN135..THDCB..M;GUN135..SADCB..M..DCRE;GUN125..LHD..SADCB..S..HDCR;GUN125..LHD..SADCB..(M,S)..DCRE;GUN12#..LHD..(SASCB,SAXTR,THDCB)..(M,S) FRONT AIR CONDITIONER-MANUAL,BLACK,TRIM2# |
1 | ||
| 55041-KK170D0 |
GUN135..6FC..HDCR;GUN12#..LHD..H..HDCR FRONT AIR CONDITIONER-AUTO,RED,TRIM3# |
1 | ||
| 55041-KK170D0 |
GUN12#,135..LHD..(SADCB,THDCB)..M..HDCR FRONT AIR CONDITIONER-MANUAL,RED,TRIM3# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-0K030 |
GUN12#,135..H,M |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-KK070C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-KK020C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 55395C - COVER, INSTRUMENT PANEL BRACKET, INNER NO.1 LH | ||||
| 55395-KK010 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 55407C - COVER SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55407-KK061C0 |
GUN125..THDCB..6FC..(H,M) STEERING WHEEL-LEATHER & WITH(STEERING HEATER),BLACK,TRIM2# |
1 | ||
| 55407-KK070C0 |
GUN12#,135..(SAXTR,THDCB)..(H,M) BLACK,TRIM2# |
1 | ||
| 55407-KK061C0 |
GUN126..THDCB;GUN125..THDCB..6F..M STEERING WHEEL-LEATHER & WITH(STEERING HEATER),BLACK,TRIM2#,3# |
1 | ||
| 55407-KK062C0 |
GUN12#..THDCB..(H,M) STEERING WHEEL-LEATHER & WITH(STEERING HEATER),BLACK,TRIM2# |
1 | ||
| 55407-KK071C0 |
GUN12#,135..LHD..(SADCB,THDCB)..(H,M) BLACK,TRIM2#,3# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-KK020C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-KK150 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 55420-KK140 |
GUN12#,135..LHD..(H,M) AUDIO-*DA & CD & *BT & RDS & DAB |
1 | ||
| 55428A - COVER, GLOVE COMPARTMENT DOOR SIDE | ||||
| 55503-KK010 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55503-KK010 |
GUN12#..H;GUN135..6FC..HDCR;GUN125,135..M..DCRE FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55503-KK010 |
GUN12#..M,S;GUN135..(M,S)..CBU FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 55549-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 55428A - COVER, GLOVE COMPARTMENT DOOR SIDE | ||||
| 55503-KK010 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55503-KK010 |
GUN12#..H;GUN135..6FC..HDCR;GUN125,135..M..DCRE FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55503-KK010 |
GUN12#..M,S;GUN135..(M,S)..CBU FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 55549-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-KK040C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-YP030 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK) |
1 | ||
| 55470-KK060 |
GUN12#,135..LHD..M |
1 | ||
| 55470-KK040 |
GUN12#..LHD..H |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-0K010 |
GUN12#..THDCB..(H,M);GUN135..THDCB..M..DCRE AUDIO-*DA & CD & *BT & RDS & DAB |
1 | ||
| 55522-0K010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 55531C - PIN, GLOVE DOOR STOPPER | ||||
| 55531-KK030 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
2 | ||
| 55531C - PIN, GLOVE DOOR STOPPER | ||||
| 55531-KK030 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
2 | ||
| 55535C - CUSHION, GLOVE COMPARTMENT DOOR | ||||
| 55557-60050 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
2 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-KK030C0 |
GUN125..LHD..6F..H..HDCR;GUN125..THDCB..6F..M..HDCR;GUN125..LHD..6FC..(H,M)..HDCR;GUN126,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-KK030C0 |
GUN125..LHD..6F..H..HDCR;GUN125..THDCB..6F..M..HDCR;GUN125..LHD..6FC..(H,M)..HDCR;GUN126,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-KK010 |
GUN12#..M,S,X;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-KK070C0 |
GUN125,135..THDCB..DCRE;GUN12#..THDCB..(H,M)..HDCR;GUN125..THDCB..6F..S..HDCR BLACK,TRIM2# |
1 | ||
| 55550-KK090C0 |
GUN12#,135..THDCB BLACK,TRIM2# |
1 | ||
| 55550-KK070D0 |
GUN12#,135..LHD..(SADCB,THDCB)..(H,M)..HDCR RED,TRIM3# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-KK020C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-KK040 |
GUN12#,135..THDCB |
1 | ||
| 55607-KK060 |
GUN12#,135..THDCB |
1 | ||
| 55607-KK020 |
GUN135..(SADCB,SAXTR,THDCB)..(M,S)..CBU;GUN12#..LHD..(SADCB,SAXTR,THDCB)..(H,M,S) |
1 | ||
| 55618C - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55618-KK040 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 55619H - HOLDER, INSTRUMENT PANEL CUP, NO.2 | ||||
| 55618-KK060 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-KK020C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 55620B - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-KK040C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 55625C - TRAY, INSTRUMENT PANEL CUP HOLDER | ||||
| 55625-KK030 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 55625D - TRAY, INSTRUMENT PANEL CUP HOLDER | ||||
| 55625-KK050 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-KK140 |
GUN12#,135..LHD..M |
1 | ||
| 55650-YP040 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK) |
1 | ||
| 55650-KK080 |
GUN12#..LHD..H |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-KK080 |
GUN12#,135..LHD..(H,M) |
1 | ||
| 55660-YP020 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK) |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-KK100 |
GUN12#,135..LHD..(H,M) |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-0K020C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90167-T0007 | ||||
| 90183-05032 | ||||
| 90467-05090C1 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-07215 | ||||
| 90467-10203 | ||||
| 90467-10206 | ||||
| 90467-T0033 | ||||
| 90468-05135 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8715 | ||||

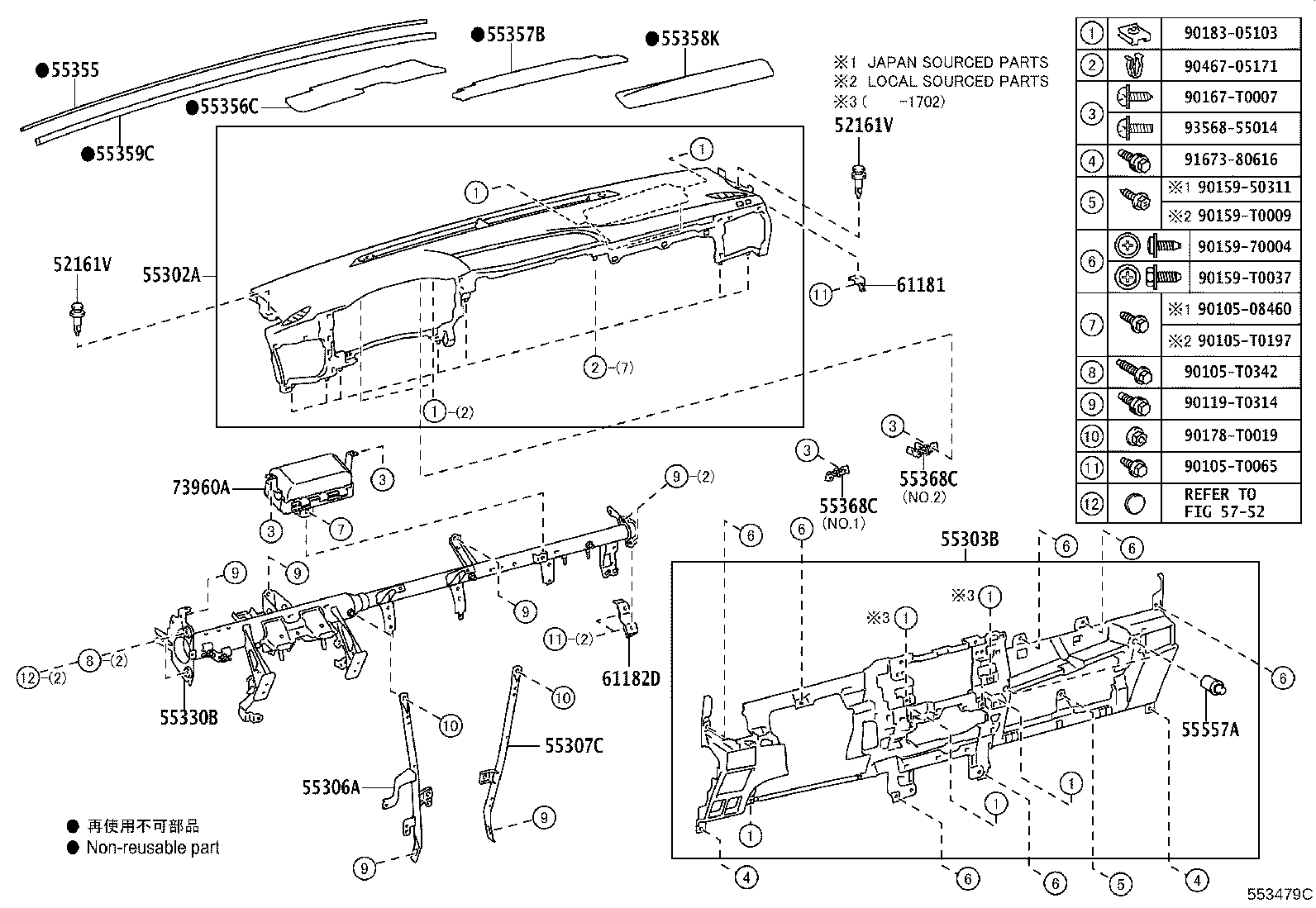

ILLUST NO. 1 OF 2(1506- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161V - PIECE, INSTRUMENT PANEL | ||||
| 52161-0K040 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB (L) |
2 | ||
| 52161-16010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB (J) |
2 | ||
| 52161V - PIECE, INSTRUMENT PANEL | ||||
| 52161-0K040 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB (L) |
2 | ||
| 52161-16010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB (J) |
2 | ||
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-KK180C0 |
GUN12#,135..THDCB BLACK,TRIM2# |
1 | ||
| 55302-KK110C0 |
GUN12#,135..THDCB..(H,M) BLACK,TRIM2#,3# |
1 | ||
| 55302-KK111C0 |
GUN12#,135..THDCB BLACK,TRIM2# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-KK040C0 |
GUN12#,135..THDCB..(H,M)..HDCR BLACK,TRIM2#,3# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-KK050 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-KK040 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-KK070 |
GUN12#,135..LHD..6FC |
1 | ||
| 55330-KK070 |
GUN125..LHD..6F..HDCR;GUN135..SAXTR..S..HDCR;GUN135..(SADCB,SASCB,THDCB)..6F..HDCR |
1 | ||
| 55330-KK180 |
GUN12#,135..LHD..6FC..HDCR |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-KK030 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-KK010 |
GUN12#..(SADCB,SAXTR,THDCB)..(H,M,S);GUN135..(SADCB,SAXTR,THDCB)..(M,S)..CBU |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-KK030 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-KK030 |
GUN12#..(SADCB,SAXTR,THDCB)..(H,M,S);GUN135..(SADCB,SAXTR,THDCB)..(M,S)..CBU |
1 | ||
| 55359C - COSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-KK040 |
GUN135..(SADCB,SAXTR,THDCB)..(M,S)..CBU;GUN12#..LHD..(SADCB,SAXTR,THDCB)..(H,M,S) |
1 | ||
| 55368C - BRACKET, METER MOUNTING | ||||
| 55368-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB NO.1:REFER ILLUST. |
1 | ||
| 55368-KK030 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB NO.2:REFER ILLUST. |
1 | ||
| 55368C - BRACKET, METER MOUNTING | ||||
| 55368-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB NO.1:REFER ILLUST. |
1 | ||
| 55368-KK030 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB NO.2:REFER ILLUST. |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-0K020 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
2 | ||
| 61181 - BRACKET, INSTRUMENT PANEL SIDE | ||||
| 61181-KK030 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 61182D - BRACKET, INSTRUMENT PANEL SIDE | ||||
| 61125-KK010 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-0K070 |
GUN12#,135..THDCB |
1 | ||
| Common parts | ||||
| 90105-08460 | ||||
| 90105-T0065 | ||||
| 90105-T0197 | ||||
| 90105-T0342 | ||||
| 90119-T0314 | ||||
| 90159-50311 | ||||
| 90159-70004 | ||||
| 90159-T0009 | ||||
| 90159-T0037 | ||||
| 90167-T0007 | ||||
| 90178-T0019 | ||||
| 90183-05103 | ||||
| 90467-05171 | ||||
| 91673-80616 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 5752 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
