GUN125L-DTTMHW (2015)

Toyota Hilux

Production Jun 2015 - May 2020
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )LHD

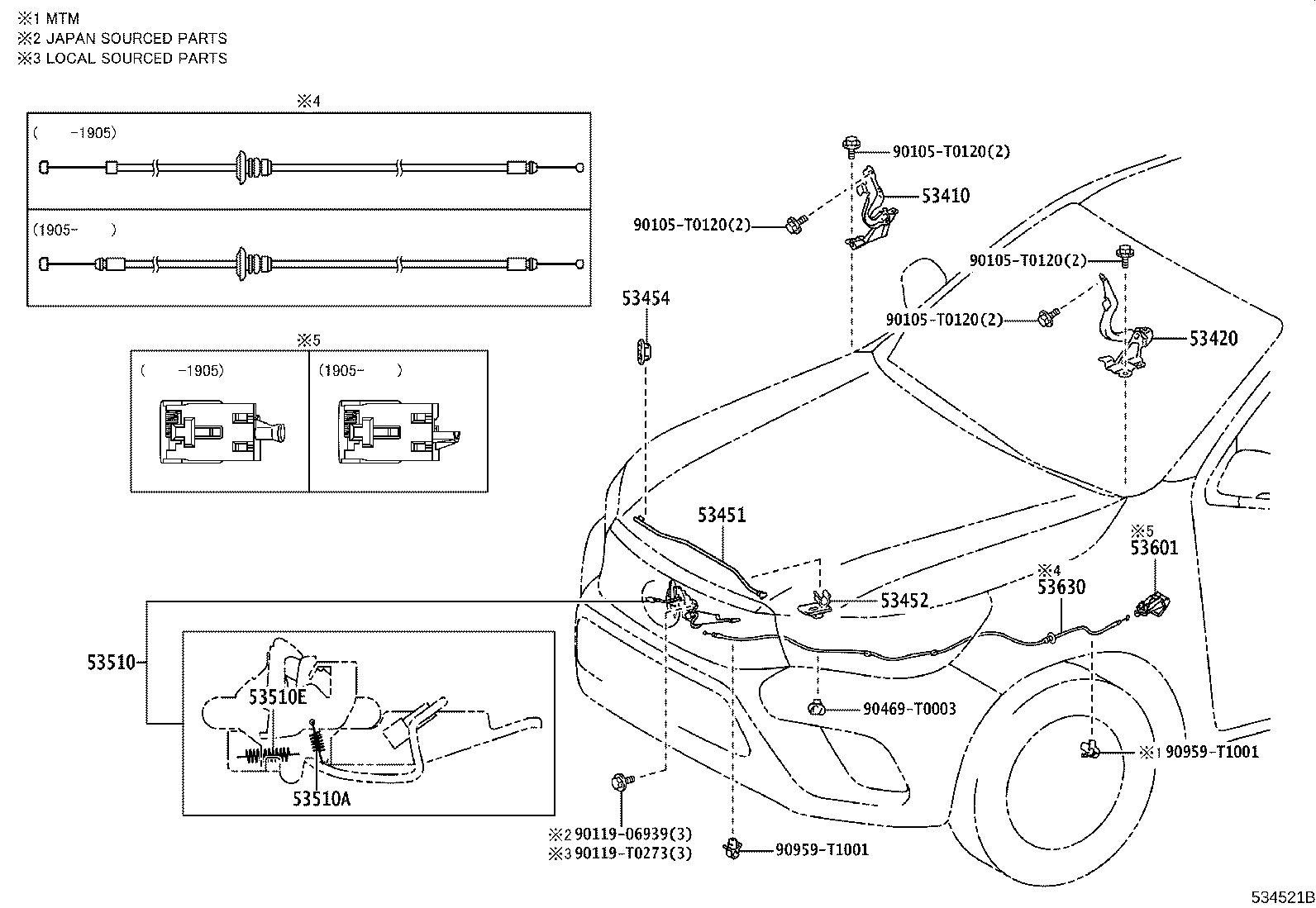

Click highlighted areas on diagram

diagram 53410 53420 53451 53452 53454 53510 53510A 53510E 53601 53630 90105T0120 90105T0120 90105T0120 90105T0120 9011906939 90119T0273 90469T0003 90959T1001 90959T1001
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-0K370

GUN12#,135..THDCB

 1
53420 - HINGE ASSY, HOOD, LH
53420-0K370

GUN12#,135..THDCB

 1
53451 - ROD, HOOD SUPPORT
53440-0K010

GUN12#,135..THDCB

 1
53452 - HOLDER, HOOD STAY
53452-0K020

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 1
53454 - CLIP, HOOD SUPPORT ROD
53454-52020

GUN12#,135

 1
53454-0D010

GUN12#,135..THDCB

 1
53510 - LOCK ASSY, HOOD
53510-0K380

GUN12#,135..THDCB

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-T0004

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

WD=1.2,CW=8.5

 1
53510E - SPRING, TENSION(FOR HOOD LOCK)
90506-T0005

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

WD=0.9,CW=21

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-0K080C0

GUN12#,135..THDCB..(H,M)

BLACK,TRIM2#,3#

 1
53601-0D040C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-0K190

GUN12#..LHD;GUN135..SAXTR..S;GUN135..SADCB,SASCB,THDCB

 1
Common parts
90105-T0120
90119-06939
90119-T0273
90469-T0003
90959-T1001
