GUN125L-DTTMHW (2015)
Toyota Hilux

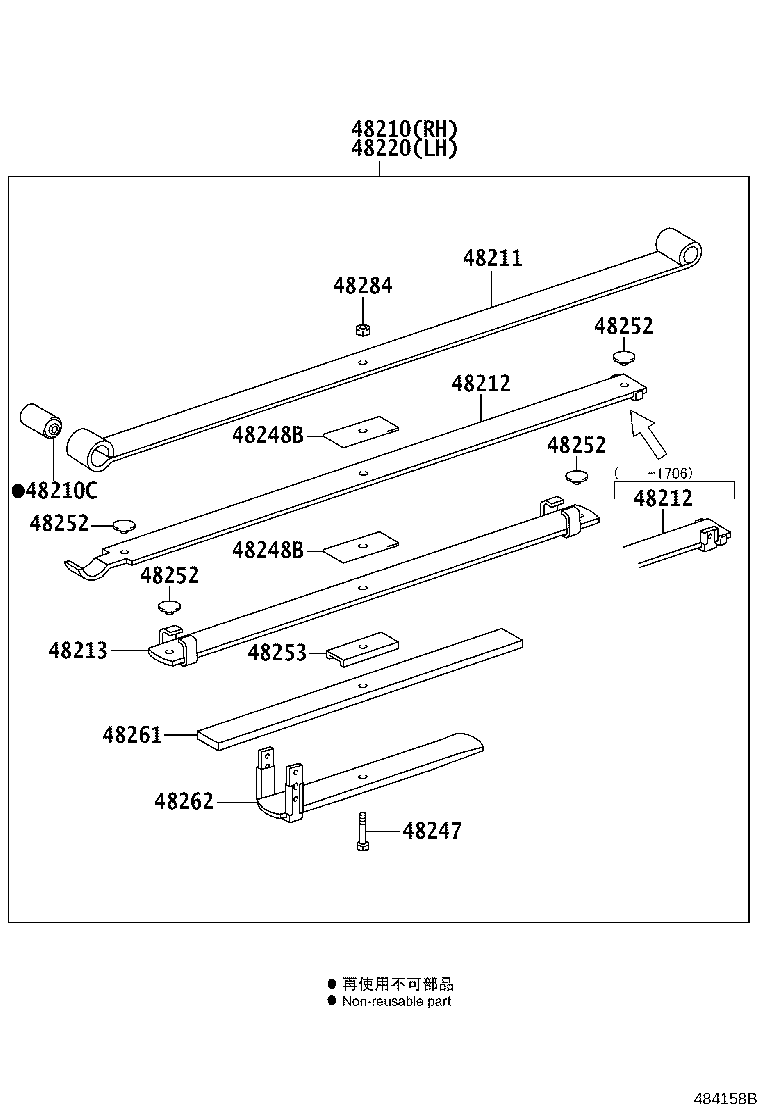

ILLUST NO. 2 OF 2(1506- )THDCB
5-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-0K530 |
GUN12#,135..THDCB..(M,S) 5-LEAF |
1 | ||
| 48210-0K530 |
GUN12#..THDCB..H 5-LEAF |
1 | ||
| 48210-0KB30 |
GUN12#,135..THDCB..(M,S) 5-LEAF |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-T0005 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-0K530 |
GUN12#,135..THDCB..(M,S) |
2 | ||
| 48201-0KB30 |
GUN12#,135..THDCB..(M,S) |
2 | ||
| 48201-0K530 |
GUN12#..THDCB..H |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-0K530 |
GUN12#..THDCB..H |
2 | ||
| 48212-0K530 |
GUN12#,135..THDCB..(M,S) |
2 | ||
| 48212-0KB30 |
GUN12#,135..THDCB..(M,S) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-0K530 |
GUN12#,135..THDCB..(M,S) |
2 | ||
| 48212-0KB30 |
GUN12#,135..THDCB..(M,S) |
2 | ||
| 48212-0K530 |
GUN12#..THDCB..H |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48204-0KB30 |
GUN12#,135..THDCB..(M,S) |
2 | ||
| 48204-0K530 |
GUN12#..THDCB..H |
2 | ||
| 48204-0K530 |
GUN12#,135..THDCB..(M,S) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-0K530 |
GUN12#,135..THDCB..(M,S) 5-LEAF |
1 | ||
| 48210-0K530 |
GUN12#..THDCB..H 5-LEAF |
1 | ||
| 48210-0KB30 |
GUN12#,135..THDCB..(M,S) 5-LEAF |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-0K540 |
GUN12#,135..THDCB |
2 | ||
| 48248B - SPACER, REAR SPRING, NO.3 | ||||
| 48248-0K020 |
GUN12#,135..THDCB |
4 | ||
| 48248B - SPACER, REAR SPRING, NO.3 | ||||
| 48248-0K020 |
GUN12#,135..THDCB |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-0K010 |
GUN12#,135..THDCB |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-0K010 |
GUN12#,135..THDCB |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-0K010 |
GUN12#,135..THDCB |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-0K010 |
GUN12#,135..THDCB |
8 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-0K010 |
GUN12#,135..THDCB |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-0K530 |
GUN12#,135..THDCB..(M,S) |
2 | ||
| 48261-0KB30 |
GUN12#,135..THDCB..(M,S) |
2 | ||
| 48261-0K530 |
GUN12#..THDCB..H |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48026-0K530 |
GUN12#..THDCB..H |
2 | ||
| 48026-0K530 |
GUN12#,135..THDCB..(M,S) |
2 | ||
| 48026-0KB30 |
GUN12#,135..THDCB..(M,S) |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0K310 |
GUN12#,135..THDCB |
2 | ||
ILLUST NO. 1 OF 2(1506- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483A - SHACKLE KIT, REAR SPRING, RH | ||||
| 04483-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 04483B - SHACKLE KIT, REAR SPRING, LH | ||||
| 04483-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-T0006 |
GUN12#,135..THDCB L=180 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-T0006 |
GUN12#,135..THDCB L=180 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48046-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-T0014 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-T0014 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-T0017 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-T0017 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
4 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-0K040 |
GUN12# |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-8Z006 |
GUN12#..THDCB MARK 48531-0K640 |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-T3001 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-T3001 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-T3002 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-T3002 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
4 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-T0019 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
8 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-T0019 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
8 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-T0019 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
8 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-T0019 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
8 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48541-09290 |
GUN12#..THDCB MARK 48541-0K170 |
1 | ||
| Common parts | ||||
| 90105-T0128 | ||||
| 90105-T0146 | ||||
| 90178-T0027 | ||||
| 90178-T0061 | ||||
| 90178-T0140 | ||||
| 90179-14069 | ||||
| 90201-T0006 | ||||
| 90201-T0012 | ||||
| 90201-T0014 | ||||
