GUN125L-DTTMHW (2015)
Toyota Hilux

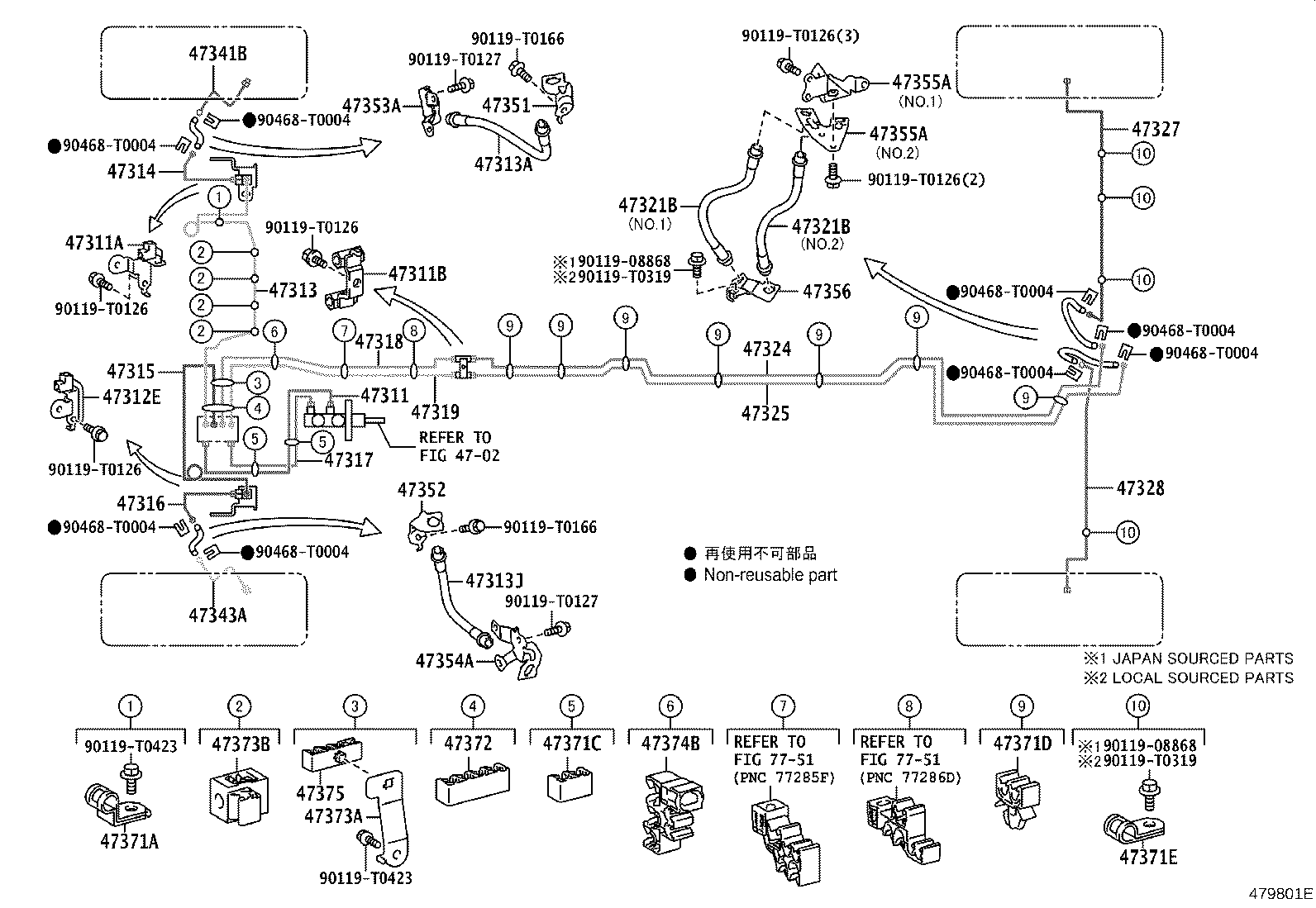

ILLUST NO. 1 OF 2(1506- )LHD
BRAKE TUBE, W(EURO 6 REGULATION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-KK050 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10307 |
GUN12#;GUN135..SAXTR..S;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10301 |
GUN125..THDCB..(H,S);GUN125..THDCB..6FC..M ISRAEL SPEC(EURO 5 REGULATION) |
1 | ||
| 90412-10302 |
GUN125..THDCB..6F..M UKRAINE SPEC(EURO 6 REGULATION) |
1 | ||
| 90412-10301 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M |
1 | ||
| 90412-10302 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M TURKEY SPEC(EURO 6 REGULATION) |
1 | ||
| 90412-T0007 |
GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,(L) |
1 | ||
| 90412-10302 |
GUN125..H,S,X;GUN135..SAXTR..S;GUN125,135..6FC..M;GUN135..SADCB,SASCB;GUN125..(SADCB,SAXTR)..6F..M |
1 | ||
| 90412-10302 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M |
1 | ||
| 90412-10301 |
GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,(J) |
1 | ||
| 90412-10301 |
GUN125..THDCB..6F..M RUSSIA & UKRAINE SPEC |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10308 |
GUN12#;GUN135..SAXTR..S;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-KK060 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-T2098 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN135..SAXTR..HDCR..IV3;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-T2098 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN135..SAXTR..HDCR..IV3;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-KK020 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-KK060 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-KK020 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47321-KK040 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47322-KK040 |
GUN125..THDCB..(H,S);GUN125..THDCB..6FC..M ISRAEL SPEC(EURO 5 REGULATION) |
1 | ||
| 47322-KK060 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M TURKEY SPEC(EURO 6 REGULATION) |
1 | ||
| 47322-KK060 |
GUN125..THDCB..6F..M UKRAINE SPEC(EURO 6 REGULATION) |
1 | ||
| 47322-KK040 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M |
1 | ||
| 47322-KK040 |
GUN125..THDCB..6F..M..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 47322-KK060 |
GUN135..SADCB,SASCB;GUN125..LHD..(H,S,X);GUN135..SAXTR..S..HDCR;GUN125,135..LHD..6FC..M;GUN125..LHD..6F..M..DCRE;GUN135..(SAXTR,THDCB)..6F..DCRE;GUN125..LHD..(SADCB,SAXTR)..6F..M..HDCR |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47323-KK080 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M |
1 | ||
| 47323-KK080 |
GUN125..THDCB..(H,S);GUN125..THDCB..6FC..M ISRAEL SPEC(EURO 5 REGULATION) |
1 | ||
| 47323-KK080 |
GUN125..THDCB..6F..M..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 47323-KK100 |
GUN135..SADCB,SASCB;GUN125..LHD..(H,S,X);GUN135..SAXTR..S..HDCR;GUN125,135..LHD..6FC..M;GUN125..LHD..6F..M..DCRE;GUN135..(SAXTR,THDCB)..6F..DCRE;GUN125..LHD..(SADCB,SAXTR)..6F..M..HDCR |
1 | ||
| 47323-KK100 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M TURKEY SPEC(EURO 6 REGULATION) |
1 | ||
| 47323-KK100 |
GUN125..THDCB..6F..M UKRAINE SPEC(EURO 6 REGULATION) |
1 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-T2111 |
GUN135..SAXTR..IV3;GUN12#..SADCB,THDCB;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE NO.2:REFER ILLUST. |
1 | ||
| 90947-T2107 |
GUN135..SAXTR..IV3;GUN12#..SADCB,THDCB;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE NO.1:REFER ILLUST. |
1 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-T2111 |
GUN135..SAXTR..IV3;GUN12#..SADCB,THDCB;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE NO.2:REFER ILLUST. |
1 | ||
| 90947-T2107 |
GUN135..SAXTR..IV3;GUN12#..SADCB,THDCB;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE NO.1:REFER ILLUST. |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-KK060 |
GUN125..THDCB..(H,S);GUN125..THDCB..6FC..M ISRAEL SPEC(EURO 5 REGULATION) |
1 | ||
| 47324-KK060 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M |
1 | ||
| 47324-KK060 |
GUN125..THDCB..6F..M..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 47324-KK020 |
GUN125..H,S,X;GUN125,135..6FC..M;GUN135..SADCB,SASCB;GUN135..SAXTR..S..HDCR;GUN125..THDCB..6F..M..DCRE;GUN125..(SADCB,SAXTR)..6F..M;GUN135..(SAXTR,THDCB)..6F..DCRE |
1 | ||
| 47324-KK020 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M TURKEY SPEC(EURO 6 REGULATION) |
1 | ||
| 47324-KK020 |
GUN125..THDCB..6F..M UKRAINE SPEC(EURO 6 REGULATION) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-KK040 |
GUN125..THDCB..6F..M UKRAINE SPEC(EURO 6 REGULATION) |
1 | ||
| 47325-KK090 |
GUN125..THDCB..(H,S);GUN125..THDCB..6FC..M ISRAEL SPEC(EURO 5 REGULATION) |
1 | ||
| 47325-KK040 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M TURKEY SPEC(EURO 6 REGULATION) |
1 | ||
| 47325-KK090 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M |
1 | ||
| 47325-KK090 |
GUN125..THDCB..6F..M..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 47325-KK040 |
GUN125..H,S,X;GUN125,135..6FC..M;GUN135..SADCB,SASCB;GUN135..SAXTR..S..HDCR;GUN125..THDCB..6F..M..DCRE;GUN125..(SADCB,SAXTR)..6F..M;GUN135..(SAXTR,THDCB)..6F..DCRE |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-KK120 |
GUN12#,135..THDCB |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-KK090 |
GUN12#,135..THDCB |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-0K080 |
GUN12#,135..THDCB |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-0K080 |
GUN12#,135..THDCB |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-KK010 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN135..SAXTR..HDCR..IV3;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-KK010 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN135..SAXTR..HDCR..IV3;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 47353A - BRACKET, FLEXIBLE HOSE, FRONT RH NO.2 | ||||
| 47353-KK010 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN135..SAXTR..HDCR..IV3;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 47354A - BRACKET, FLEXIBLE HOSE, FRONT LH NO.2 | ||||
| 47354-KK010 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN135..SAXTR..HDCR..IV3;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-KK010 |
GUN135..SAXTR..IV3;GUN12#..SADCB,THDCB;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE NO.2:REFER ILLUST. |
1 | ||
| 47355-KK020 |
GUN135..SAXTR..IV3;GUN12#..SADCB,THDCB;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE NO.1:REFER ILLUST. |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-KK010 |
GUN135..SAXTR..IV3;GUN12#..SADCB,THDCB;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE NO.2:REFER ILLUST. |
1 | ||
| 47355-KK020 |
GUN135..SAXTR..IV3;GUN12#..SADCB,THDCB;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE NO.1:REFER ILLUST. |
1 | ||
| 47356 - BRACKET, FLEXIBLE HOSE, NO.6 | ||||
| 47356-KK010 |
GUN135..SAXTR..IV3;GUN12#..SADCB,THDCB;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90461-T0007 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-T1033 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
2 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90949-T1006 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M |
7 | ||
| 90949-T1006 |
GUN125..THDCB..(H,S);GUN125..THDCB..6FC..M ISRAEL SPEC(EURO 5 REGULATION) |
7 | ||
| 90949-T1006 |
GUN125..H,S,X;GUN125,135..6FC..M;GUN135..SADCB,SASCB;GUN135..SAXTR..S..HDCR;GUN125..THDCB..6F..M..DCRE;GUN125..(SADCB,SAXTR)..6F..M;GUN135..(SAXTR,THDCB)..6F..DCRE |
5 | ||
| 90949-T1006 |
GUN125..THDCB..6F..M UKRAINE SPEC(EURO 6 REGULATION) |
5 | ||
| 90949-T1006 |
GUN125..THDCB..6F..M..HDCR RUSSIA & UKRAINE SPEC |
7 | ||
| 90949-T1006 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M TURKEY SPEC(EURO 6 REGULATION) |
5 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90461-T0001 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
4 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-T1028 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 47373A - BRACKET, TUBE CLAMP | ||||
| 90949-T2003 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-T1030 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
4 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-T1032 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-T1031 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90119-T0126 | ||||
| 90119-T0127 | ||||
| 90119-T0166 | ||||
| 90119-T0319 | ||||
| 90119-T0423 | ||||
| 90468-T0004 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7751 | ||||

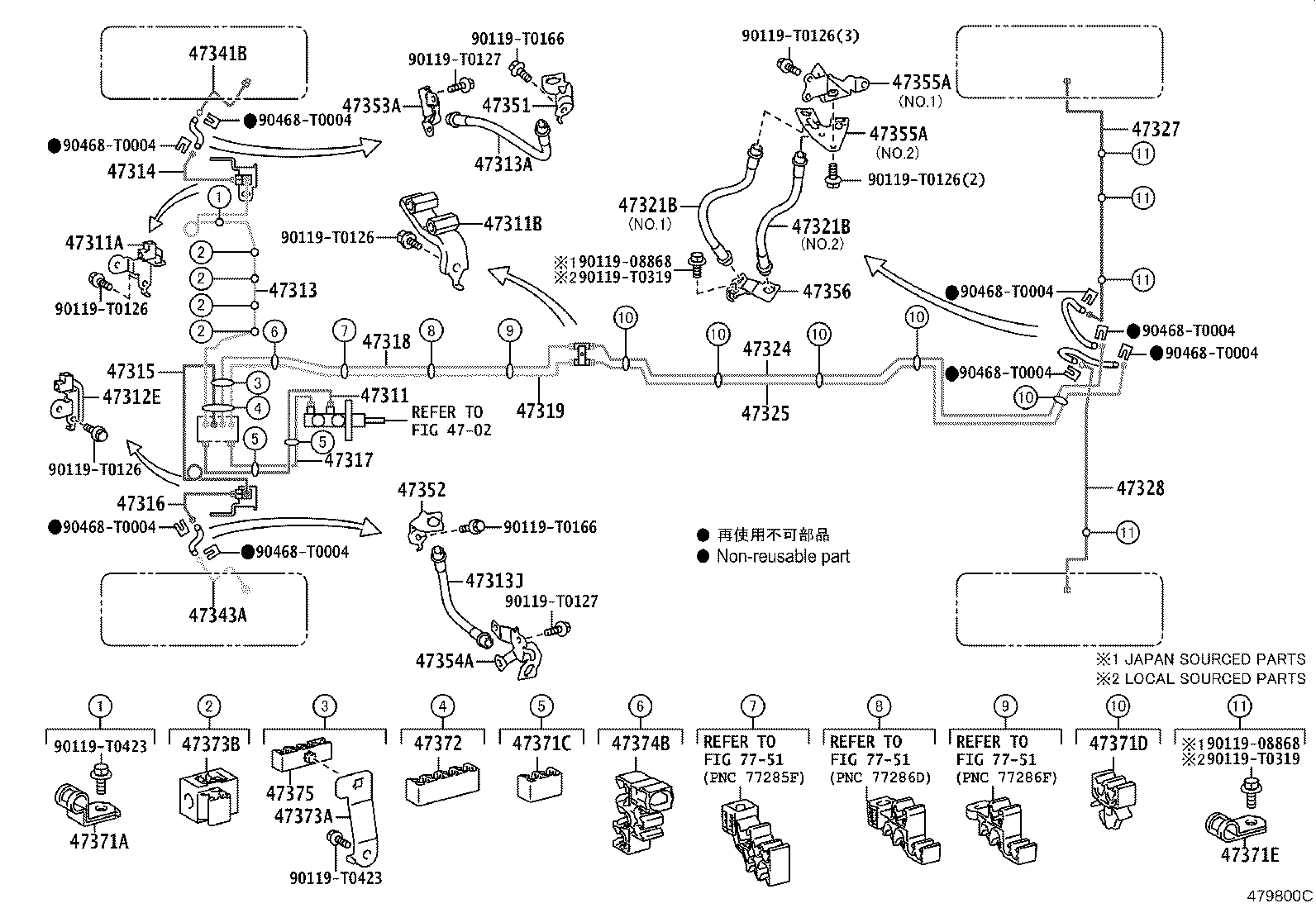

ILLUST NO. 1 OF 2(1506- )LHD
BRAKE TUBE, W/O(EURO 6 REGULATION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-KK050 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10307 |
GUN12#;GUN135..SAXTR..S;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10301 |
GUN125..THDCB..(H,S);GUN125..THDCB..6FC..M ISRAEL SPEC(EURO 5 REGULATION) |
1 | ||
| 90412-10302 |
GUN125..THDCB..6F..M UKRAINE SPEC(EURO 6 REGULATION) |
1 | ||
| 90412-10301 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M |
1 | ||
| 90412-10302 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M TURKEY SPEC(EURO 6 REGULATION) |
1 | ||
| 90412-T0007 |
GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,(L) |
1 | ||
| 90412-10302 |
GUN125..H,S,X;GUN135..SAXTR..S;GUN125,135..6FC..M;GUN135..SADCB,SASCB;GUN125..(SADCB,SAXTR)..6F..M |
1 | ||
| 90412-10302 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M |
1 | ||
| 90412-10301 |
GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,(J) |
1 | ||
| 90412-10301 |
GUN125..THDCB..6F..M RUSSIA & UKRAINE SPEC |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10308 |
GUN12#;GUN135..SAXTR..S;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-KK060 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-T2098 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN135..SAXTR..HDCR..IV3;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-T2098 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN135..SAXTR..HDCR..IV3;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-KK020 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-KK060 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-KK020 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47321-KK040 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47322-KK040 |
GUN125..THDCB..(H,S);GUN125..THDCB..6FC..M ISRAEL SPEC(EURO 5 REGULATION) |
1 | ||
| 47322-KK060 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M TURKEY SPEC(EURO 6 REGULATION) |
1 | ||
| 47322-KK060 |
GUN125..THDCB..6F..M UKRAINE SPEC(EURO 6 REGULATION) |
1 | ||
| 47322-KK040 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M |
1 | ||
| 47322-KK040 |
GUN125..THDCB..6F..M..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 47322-KK060 |
GUN135..SADCB,SASCB;GUN125..LHD..(H,S,X);GUN135..SAXTR..S..HDCR;GUN125,135..LHD..6FC..M;GUN125..LHD..6F..M..DCRE;GUN135..(SAXTR,THDCB)..6F..DCRE;GUN125..LHD..(SADCB,SAXTR)..6F..M..HDCR |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47323-KK080 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M |
1 | ||
| 47323-KK080 |
GUN125..THDCB..(H,S);GUN125..THDCB..6FC..M ISRAEL SPEC(EURO 5 REGULATION) |
1 | ||
| 47323-KK080 |
GUN125..THDCB..6F..M..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 47323-KK100 |
GUN135..SADCB,SASCB;GUN125..LHD..(H,S,X);GUN135..SAXTR..S..HDCR;GUN125,135..LHD..6FC..M;GUN125..LHD..6F..M..DCRE;GUN135..(SAXTR,THDCB)..6F..DCRE;GUN125..LHD..(SADCB,SAXTR)..6F..M..HDCR |
1 | ||
| 47323-KK100 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M TURKEY SPEC(EURO 6 REGULATION) |
1 | ||
| 47323-KK100 |
GUN125..THDCB..6F..M UKRAINE SPEC(EURO 6 REGULATION) |
1 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-T2111 |
GUN135..SAXTR..IV3;GUN12#..SADCB,THDCB;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE NO.2:REFER ILLUST. |
1 | ||
| 90947-T2107 |
GUN135..SAXTR..IV3;GUN12#..SADCB,THDCB;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE NO.1:REFER ILLUST. |
1 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-T2111 |
GUN135..SAXTR..IV3;GUN12#..SADCB,THDCB;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE NO.2:REFER ILLUST. |
1 | ||
| 90947-T2107 |
GUN135..SAXTR..IV3;GUN12#..SADCB,THDCB;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE NO.1:REFER ILLUST. |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-KK060 |
GUN125..THDCB..(H,S);GUN125..THDCB..6FC..M ISRAEL SPEC(EURO 5 REGULATION) |
1 | ||
| 47324-KK060 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M |
1 | ||
| 47324-KK060 |
GUN125..THDCB..6F..M..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 47324-KK020 |
GUN125..H,S,X;GUN125,135..6FC..M;GUN135..SADCB,SASCB;GUN135..SAXTR..S..HDCR;GUN125..THDCB..6F..M..DCRE;GUN125..(SADCB,SAXTR)..6F..M;GUN135..(SAXTR,THDCB)..6F..DCRE |
1 | ||
| 47324-KK020 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M TURKEY SPEC(EURO 6 REGULATION) |
1 | ||
| 47324-KK020 |
GUN125..THDCB..6F..M UKRAINE SPEC(EURO 6 REGULATION) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-KK040 |
GUN125..THDCB..6F..M UKRAINE SPEC(EURO 6 REGULATION) |
1 | ||
| 47325-KK090 |
GUN125..THDCB..(H,S);GUN125..THDCB..6FC..M ISRAEL SPEC(EURO 5 REGULATION) |
1 | ||
| 47325-KK040 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M TURKEY SPEC(EURO 6 REGULATION) |
1 | ||
| 47325-KK090 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M |
1 | ||
| 47325-KK090 |
GUN125..THDCB..6F..M..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 47325-KK040 |
GUN125..H,S,X;GUN125,135..6FC..M;GUN135..SADCB,SASCB;GUN135..SAXTR..S..HDCR;GUN125..THDCB..6F..M..DCRE;GUN125..(SADCB,SAXTR)..6F..M;GUN135..(SAXTR,THDCB)..6F..DCRE |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-KK120 |
GUN12#,135..THDCB |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-KK090 |
GUN12#,135..THDCB |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-0K080 |
GUN12#,135..THDCB |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-0K080 |
GUN12#,135..THDCB |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-KK010 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN135..SAXTR..HDCR..IV3;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-KK010 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN135..SAXTR..HDCR..IV3;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 47353A - BRACKET, FLEXIBLE HOSE, FRONT RH NO.2 | ||||
| 47353-KK010 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN135..SAXTR..HDCR..IV3;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 47354A - BRACKET, FLEXIBLE HOSE, FRONT LH NO.2 | ||||
| 47354-KK010 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN135..SAXTR..HDCR..IV3;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-KK010 |
GUN135..SAXTR..IV3;GUN12#..SADCB,THDCB;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE NO.2:REFER ILLUST. |
1 | ||
| 47355-KK020 |
GUN135..SAXTR..IV3;GUN12#..SADCB,THDCB;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE NO.1:REFER ILLUST. |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-KK010 |
GUN135..SAXTR..IV3;GUN12#..SADCB,THDCB;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE NO.2:REFER ILLUST. |
1 | ||
| 47355-KK020 |
GUN135..SAXTR..IV3;GUN12#..SADCB,THDCB;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE NO.1:REFER ILLUST. |
1 | ||
| 47356 - BRACKET, FLEXIBLE HOSE, NO.6 | ||||
| 47356-KK010 |
GUN135..SAXTR..IV3;GUN12#..SADCB,THDCB;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90461-T0007 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-T1033 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
2 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90949-T1006 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M |
7 | ||
| 90949-T1006 |
GUN125..THDCB..(H,S);GUN125..THDCB..6FC..M ISRAEL SPEC(EURO 5 REGULATION) |
7 | ||
| 90949-T1006 |
GUN125..H,S,X;GUN125,135..6FC..M;GUN135..SADCB,SASCB;GUN135..SAXTR..S..HDCR;GUN125..THDCB..6F..M..DCRE;GUN125..(SADCB,SAXTR)..6F..M;GUN135..(SAXTR,THDCB)..6F..DCRE |
5 | ||
| 90949-T1006 |
GUN125..THDCB..6F..M UKRAINE SPEC(EURO 6 REGULATION) |
5 | ||
| 90949-T1006 |
GUN125..THDCB..6F..M..HDCR RUSSIA & UKRAINE SPEC |
7 | ||
| 90949-T1006 |
GUN135..THDCB..6F;GUN125..THDCB..6F..M TURKEY SPEC(EURO 6 REGULATION) |
5 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90461-T0001 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
4 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-T1028 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 47373A - BRACKET, TUBE CLAMP | ||||
| 90949-T2003 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-T1030 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
4 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-T1032 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-T1031 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90119-T0126 | ||||
| 90119-T0127 | ||||
| 90119-T0166 | ||||
| 90119-T0319 | ||||
| 90119-T0423 | ||||
| 90468-T0004 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7751 | ||||

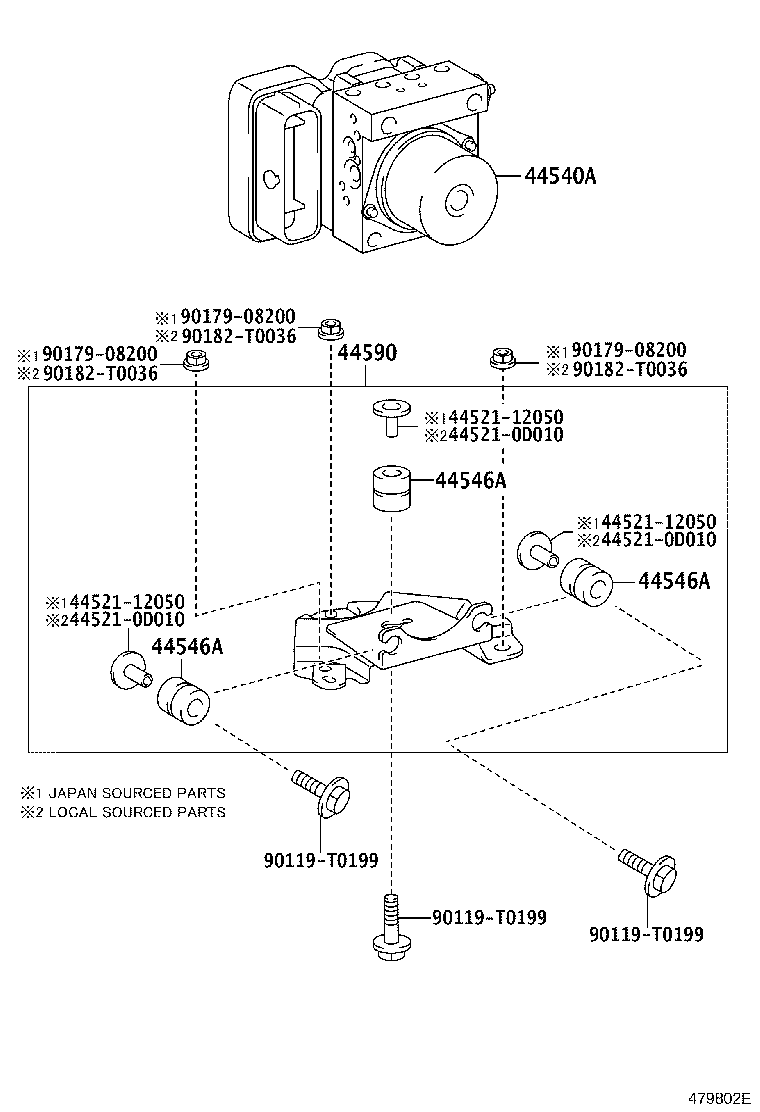

ILLUST NO. 2 OF 2(1506- )LHD
BRAKE ACTUATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44540A - ACTUATOR ASSY, VSC | ||||
| 44050-71480 |
GUN126;GUN125..THDCB..(H,M) VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC) |
1 | ||
| 44050-71440 |
GUN125..THDCB..(H,S);GUN125..THDCB..6FC..M |
1 | ||
| 44050-71440 |
GUN125..THDCB..6F..M |
1 | ||
| 44050-71290 |
GUN125..THDCB..6FC..(H,M) VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC) |
1 | ||
| 44050-71270 |
GUN125..THDCB..6F..M UKRAINE SPEC(EURO 6 REGULATION) |
1 | ||
| 44050-71270 |
GUN125..THDCB..6FC..(H,M) |
1 | ||
| 44050-71290 |
GUN125..THDCB..6F..M UKRAINE SPEC(EURO 6 REGULATION)&VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC) |
1 | ||
| 44050-71481 |
GUN125..THDCB..6F..M VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC) |
1 | ||
| 44050-71290 |
GUN125..THDCB..6F..M TURKEY SPEC(EURO 6 REGULATION)&VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC) |
1 | ||
| 44050-71270 |
GUN125..THDCB..6F..M TURKEY SPEC(EURO 6 REGULATION) |
1 | ||
| 44050-71280 |
GUN125..THDCB..S;GUN125..THDCB..6F..M PRE-COLLISION SYSTEM-WITH |
1 | ||
| 44050-71290 |
GUN125..THDCB..6FC..(H,M) PRE-COLLISION SYSTEM-WITHOUT&VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC) |
1 | ||
| 44050-71440 |
GUN125..THDCB..6F..M RUSSIA & UKRAINE SPEC |
1 | ||
| 44050-71270 |
GUN125..THDCB..6FC..(H,M) PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 44050-71290 |
GUN125..THDCB..6F..M VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC) |
1 | ||
| 44050-71481 |
GUN125..THDCB..6F..M RUSSIA & UKRAINE SPEC&VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC) |
1 | ||
| 44050-71500 |
GUN125..THDCB..6F..M UKRAINE SPEC(EURO 6 REGULATION)&PRE-COLLISION SYSTEM-WITH&VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC) |
1 | ||
| 44050-71590 |
GUN125..THDCB..6FC..(H,M) VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC) |
1 | ||
| 44050-71440 |
GUN125..THDCB..6F UKRAINE SPEC(EURO 6 REGULATION) |
1 | ||
| 44050-71440 |
GUN125..THDCB..6FC..(H,M) UKRAINE SPEC(EURO 6 REGULATION)&PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 44050-71280 |
GUN125..THDCB..6FC..(H,M) |
1 | ||
| 44050-71460 |
GUN125..THDCB..6F UKRAINE SPEC(EURO 6 REGULATION)&PRE-COLLISION SYSTEM-WITH |
1 | ||
| 44050-71481 |
GUN125..THDCB..6F..M UKRAINE SPEC(EURO 6 REGULATION)&VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC) |
1 | ||
| 44050-71460 |
GUN125..THDCB..6FC..(H,M) UKRAINE SPEC(EURO 6 REGULATION) |
1 | ||
| 44050-71270 |
GUN125..THDCB..6F..M |
1 | ||
| 44050-71590 |
GUN125..THDCB..6F..M PRE-COLLISION SYSTEM-WITH&VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC) |
1 | ||
| 44050-71481 |
GUN125..THDCB..6FC..(H,M) UKRAINE SPEC(EURO 6 REGULATION)&PRE-COLLISION SYSTEM-WITHOUT&VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC) |
1 | ||
| 44050-71440 |
GUN125..HDCR |
1 | ||
| 44050-71481 |
GUN125..(H,M)..HDCR VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC) |
1 | ||
| 44050-71500 |
GUN125..THDCB..6FC..(H,M) UKRAINE SPEC(EURO 6 REGULATION)&VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC) |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12120 |
GUN12#,135 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12120 |
GUN12#,135 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12120 |
GUN12#,135 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-0K200 |
GUN12#,135..THDCB |
1 | ||
| Common parts | ||||
| 44521-0D010 | ||||
| 44521-12050 | ||||
| 90119-T0199 | ||||
| 90179-08200 | ||||
| 90182-T0036 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
