GUN125L-DTTMHW (2015)
Toyota Hilux
Production
Jun 2015
-
May 2020
Engine
2GDFTV
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1506- )THDCB

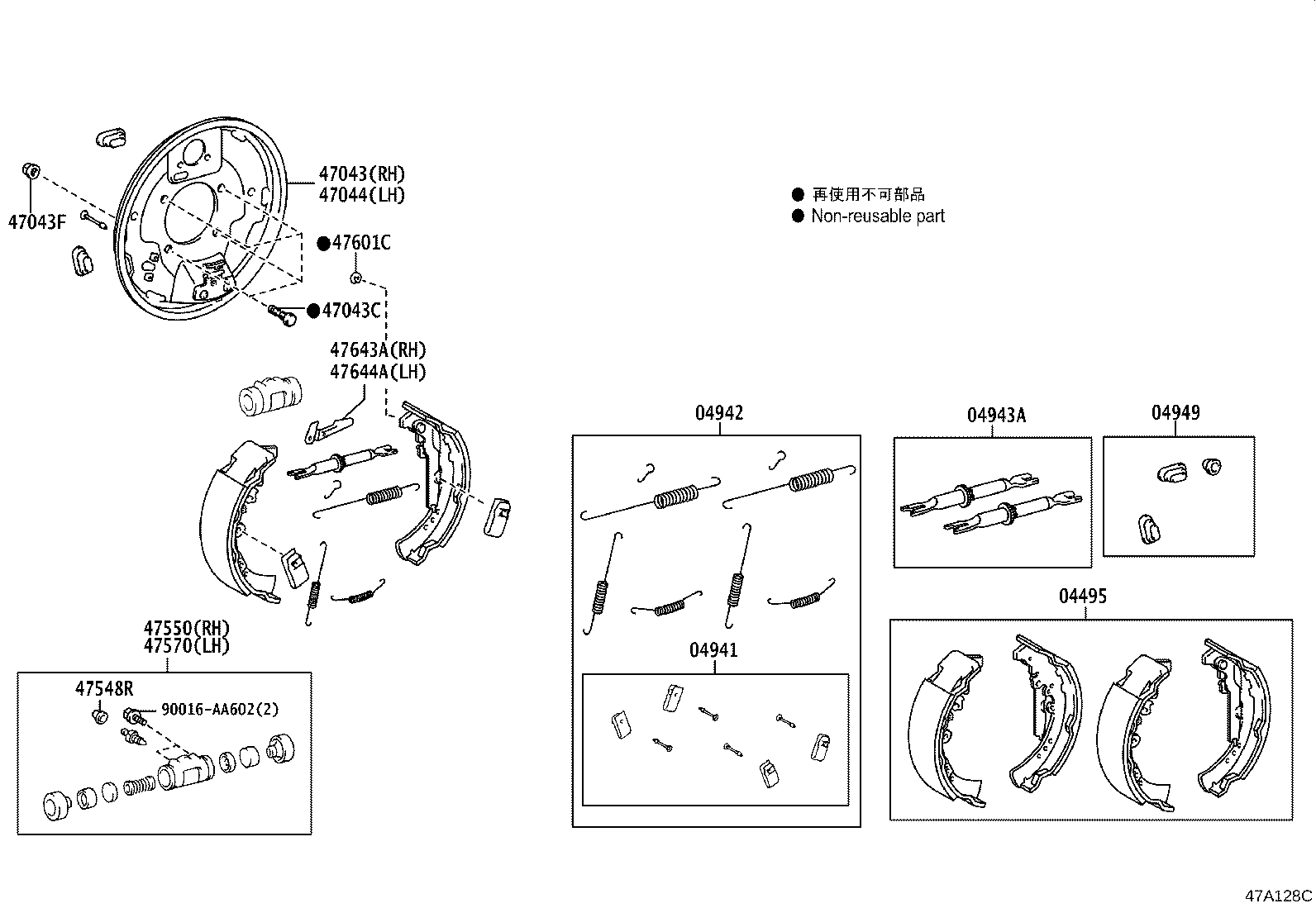

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-0K120 |
GUN12#,135..THDCB MARK NSA LN508 |
1 | ||
| 04941 - SPRING KIT, REAR BRAKE SHOE HOLD DOWN | ||||
| 04941-0K030 |
GUN12#,135..THDCB |
1 | ||
| 04942 - SPRING KIT, REAR BRAKE | ||||
| 04942-0K130 |
GUN12#,135..THDCB |
1 | ||
| 04943A - STRUT KIT, REAR BRAKE | ||||
| 04943-0K030 |
GUN12#,135..THDCB |
1 | ||
| 04949 - PLUG KIT, REAR BRAKE | ||||
| 04949-0K130 |
GUN12#,135..THDCB |
2 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-0K130 |
GUN12#,135..THDCB |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-T0011 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB *10-1.25PX54.5-30 |
8 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90178-T0077 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
8 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-0K130 |
GUN12#,135..THDCB |
1 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-0K030 |
GUN12#,135..THDCB |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-09070 |
GUN12#,135..THDCB |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-09070 |
GUN12#,135..THDCB |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90016-AD501 |
GUN12#,135..THDCB |
2 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-0K050 |
GUN12#,135..THDCB |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-0K050 |
GUN12#,135..THDCB |
1 | ||
| Common parts | ||||
| 90016-AA602 | ||||
