GUN125L-DTTMHW (2015)
Toyota Hilux
(1506- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

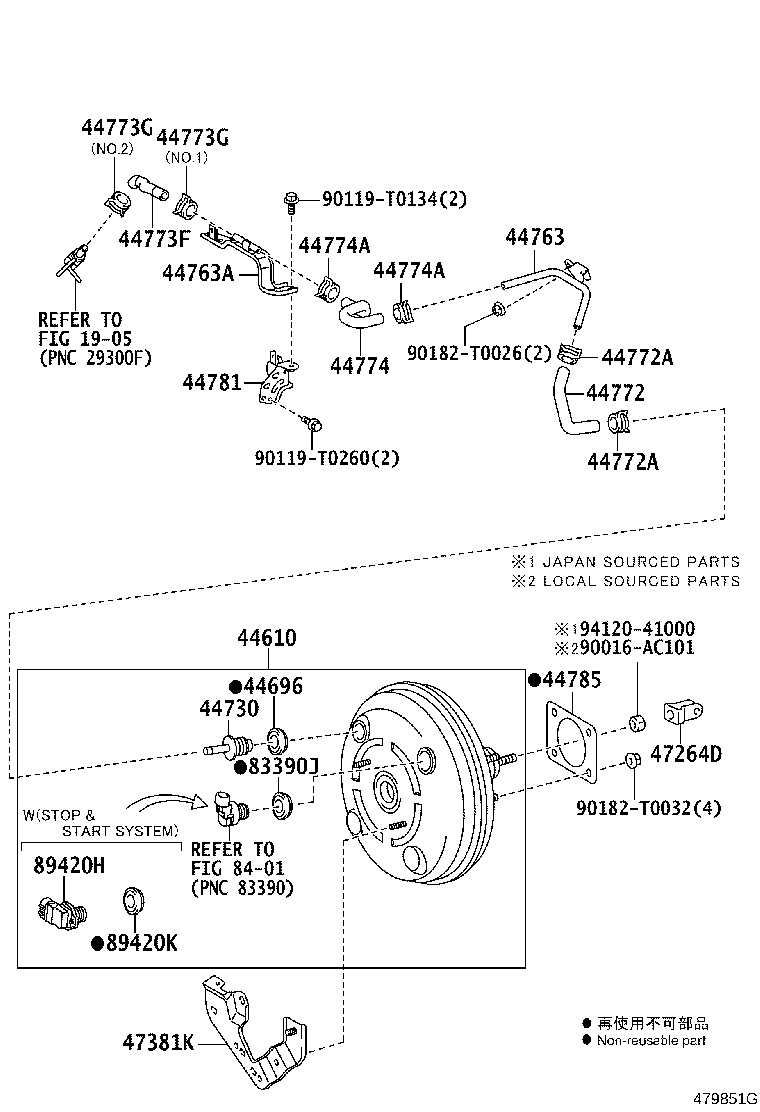

| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-0K600 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..LHD..(SADCB,THDCB);GUN125..LHD..(SASCB,SAXTR)..DCRE |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90080-48050 |
GUN125..RHD;GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..LHD..(SADCB,THDCB);GUN125..LHD..(SASCB,SAXTR)..DCRE |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60070 |
GUN125..RHD;GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..LHD..(SADCB,THDCB);GUN125..LHD..(SASCB,SAXTR)..DCRE |
1 | ||
| 44763 - TUBE, BOOSTER VACUUM | ||||
| 44763-KK050 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-KK080 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-KK070 |
GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90466-T0019 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
2 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90466-T0019 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
2 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-KK030 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16014 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB NO.2 |
1 | ||
| 90466-T0019 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB NO.1 |
1 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16014 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB NO.2 |
1 | ||
| 90466-T0019 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB NO.1 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-KK040 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90466-T0019 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
2 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90466-T0019 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
2 | ||
| 44781 - BRACKET, HOSE | ||||
| 44781-KK020 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-17010 |
GUN125..RHD;GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..LHD..(SADCB,THDCB);GUN125..LHD..(SASCB,SAXTR)..DCRE |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-04010 |
GUN125..RHD;GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..LHD..(SADCB,THDCB);GUN125..LHD..(SASCB,SAXTR)..DCRE |
1 | ||
| 47381K - BRACKET, BRAKE BOOSTER TUBE CLAMP | ||||
| 47381-0K070 |
GUN125..RHD;GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..LHD..(SADCB,THDCB);GUN125..LHD..(SASCB,SAXTR)..DCRE |
1 | ||
| 83390J - GROMMET, VACUUM WARNING SWITCH | ||||
| 90080-48050 |
GUN125..RHD;GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..LHD..(SADCB,THDCB);GUN125..LHD..(SASCB,SAXTR)..DCRE |
1 | ||
| Common parts | ||||
| 90016-AC101 | ||||
| 90119-T0134 | ||||
| 90119-T0260 | ||||
| 90182-T0026 | ||||
| 90182-T0032 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 1905 | ||||
| 8401 | ||||
