GUN125L-DTTMHW (2015)

Toyota Hilux

Production Jun 2015 - May 2020
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )LHD

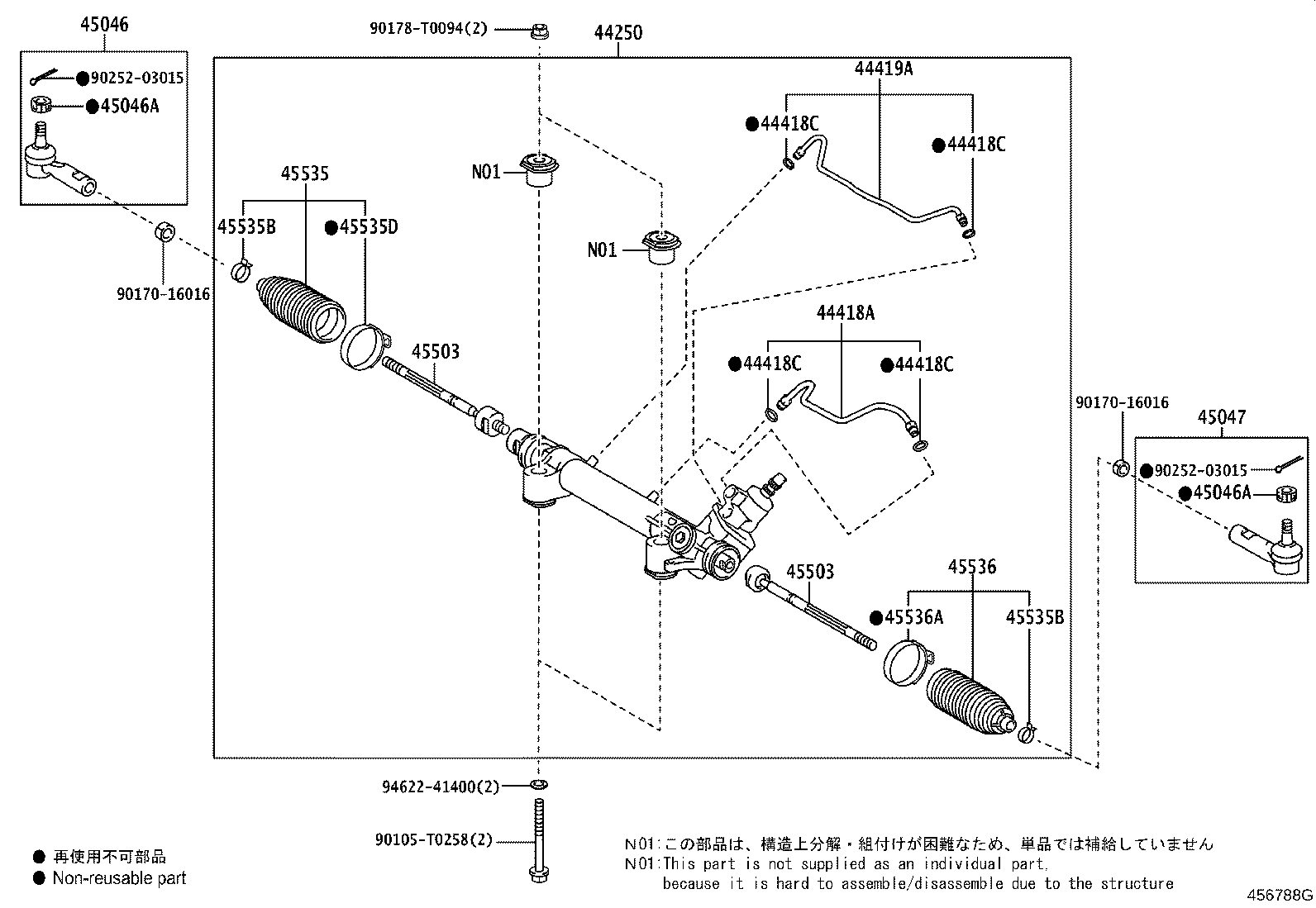

Click highlighted areas on diagram

diagram 44250 44418A 44418C 44418C 44418C 44418C 44419A 45046 45046A 45046A 45047 45503 45503 45535 45535B 45535B 45535D 45536 45536A 90105T0258 9017016016 9017016016 90178T0094 9025203015 9025203015 9462241400
Part # Description Qty Price
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44250-0K730

GUN12#,135..THDCB

 1
44250-0K731

GUN12#,135..THDCB

 1
44418A - TUBE, STEERING RIGHT TURN PRESSURE
44418-0K270

GUN12#,135..THDCB

 1
44418C - RING, O(FOR STEERING TURN PRESSURE TUBE)
90301-T0032

GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..LHD..(SADCB,THDCB);GUN125..LHD..(SASCB,SAXTR)..DCRE

 4
44418C - RING, O(FOR STEERING TURN PRESSURE TUBE)
90301-T0032

GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..LHD..(SADCB,THDCB);GUN125..LHD..(SASCB,SAXTR)..DCRE

 4
44418C - RING, O(FOR STEERING TURN PRESSURE TUBE)
90301-T0032

GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..LHD..(SADCB,THDCB);GUN125..LHD..(SASCB,SAXTR)..DCRE

 4
44418C - RING, O(FOR STEERING TURN PRESSURE TUBE)
90301-T0032

GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..LHD..(SADCB,THDCB);GUN125..LHD..(SASCB,SAXTR)..DCRE

 4
44419A - TUBE, STEERING LEFT TURN PRESSURE
44419-0K270

GUN12#,135..THDCB

 1
45046 - END SUB-ASSY, TIE ROD, RH
45046-09800

GUN125..RHD;GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..LHD..(SADCB,THDCB);GUN125..LHD..(SASCB,SAXTR)..DCRE

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-T0002

GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-T0002

GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE

 2
45047 - END SUB-ASSY, TIE ROD, LH
45046-09800

GUN125..RHD;GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..LHD..(SADCB,THDCB);GUN125..LHD..(SASCB,SAXTR)..DCRE

 1
45503 - END SUB-ASSY, STEERING RACK
45503-0K130

GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..LHD..(SADCB,THDCB);GUN125..LHD..(SASCB,SAXTR)..DCRE

 2
45503 - END SUB-ASSY, STEERING RACK
45503-0K130

GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..LHD..(SADCB,THDCB);GUN125..LHD..(SASCB,SAXTR)..DCRE

 2
45535 - BOOT, STEERING RACK, NO.1
45535-09390

GUN12#,135..THDCB

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90466-T0004

GUN12#,135..THDCB

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90466-T0004

GUN12#,135..THDCB

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
45538-0K030

GUN12#,135..THDCB

 1
45536 - BOOT, STEERING RACK, NO.2
45535-09390

GUN12#,135..THDCB

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
45538-0K030

GUN12#,135..THDCB

 1
Common parts
90105-T0258
90170-16016
90178-T0094
90252-03015
94622-41400
