GUN125L-DTTMHW (2015)
Toyota Hilux
(1506- )HDCR

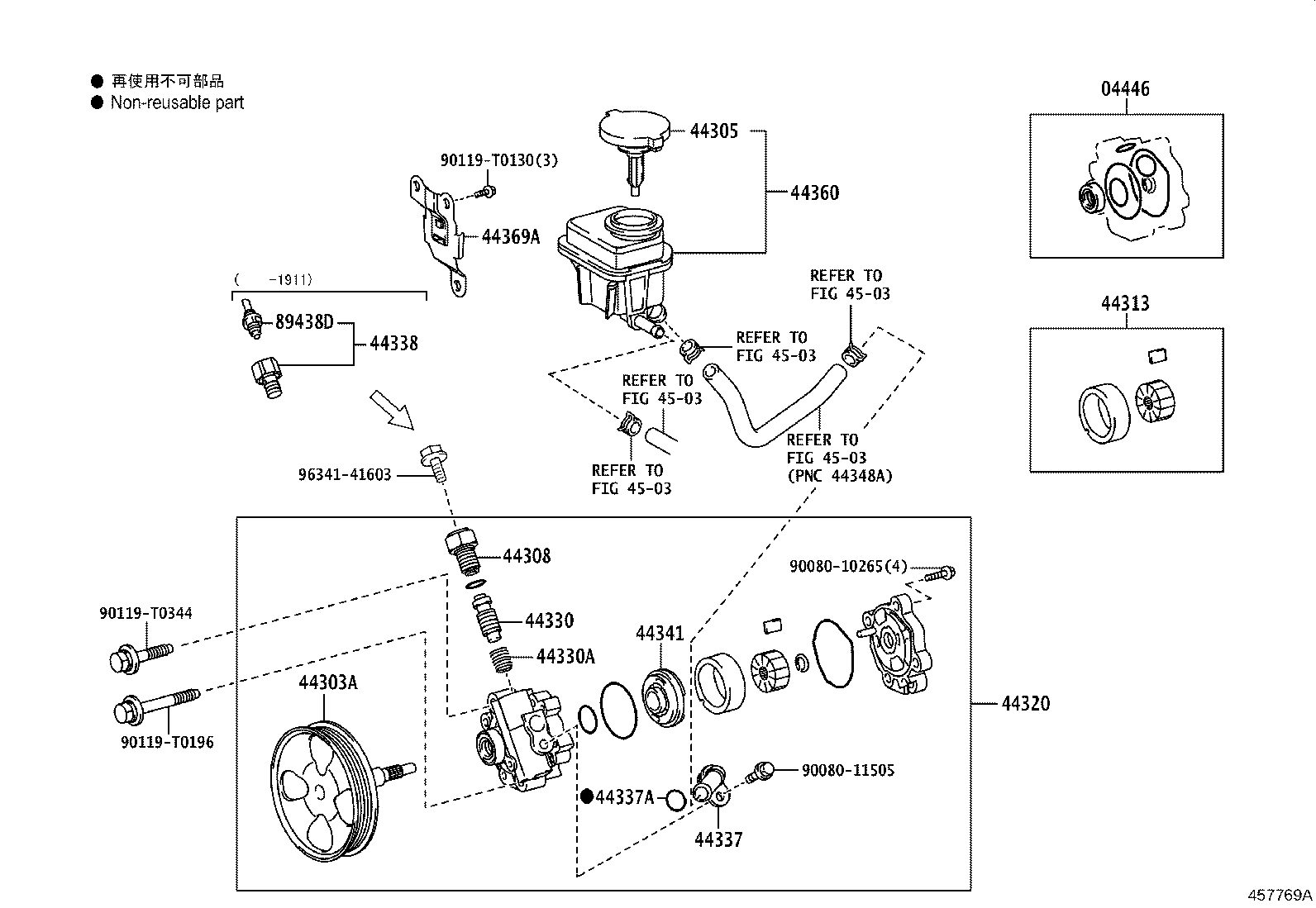

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-06110 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 44303A - SHAFT SUB-ASSY, W/PULLEY | ||||
| 44303-06040 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-0K030 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-0K050 |
GUN135..(M,S)..HDCR..CBU;GUN12#..(SADCB,THDCB)..HDCR |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-09010 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44310-0K130 |
GUN135..(M,S)..HDCR..CBU;GUN12#..(SADCB,THDCB)..HDCR |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-0K260 |
GUN12#,135..HDCR MARK B |
1 | ||
| 44330-0K300 |
GUN12#,135..HDCR MARK F |
1 | ||
| 44330-0K280 |
GUN12#,135..HDCR MARK D |
1 | ||
| 44330-0K290 |
GUN12#,135..HDCR MARK E |
1 | ||
| 44330-0K270 |
GUN12#,135..HDCR MARK C |
1 | ||
| 44330-0K250 |
GUN12#,135..HDCR MARK A |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-T0001 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-0K040 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90080-30093 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 44338 - UNION, PRESSURE PORT | ||||
| 44338-33090 |
GUN12#,135..LHD..(SADCB,THDCB) |
1 | ||
| 44338-71010 |
GUN135..(SADCB,THDCB)..6F..HDCR;GUN125..LHD..(SADCB,THDCB)..6F..S..HDCR;GUN12#..LHD..(SADCB,THDCB)..(H,M,X)..HDCR |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-06010 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-0K050 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 44369A - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44390-0K010 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 89438D - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-71010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 89438-33010 |
GUN12#,135 |
1 | ||
| Common parts | ||||
| 90080-10265 | ||||
| 90080-11505 | ||||
| 90119-T0130 | ||||
| 90119-T0196 | ||||
| 90119-T0344 | ||||
| 96341-41603 | ||||
| Linked diagrams | ||||
| 4503 | ||||
