Toyota Hilux GUN125 SHIFT LEVER & RETAINER

GUN125L-DTTMHW (2015)

Toyota Hilux

Production Jun 2015 - May 2020

Engine 2GDFTV

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

Part #	Description	Period	Qty
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-0K120C0	GUN12#,135..THDCB..6FC..(H,M) BLACK,TRIM2#,3#	06/2015 - 01/2018	1
33504-0K141C0	GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK),BLACK,TRIM2#	02/2018 - 05/2019	1
33504-0K140C0	GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK),BLACK,TRIM2#	12/2017 - 01/2018	1
33504-0K100C0	GUN125,135..THDCB..6F..M..HDCR BLACK,TRIM2#,3#	06/2015 - 06/2019	1
33505B - SEAT SUB-ASSY, SHIFT LEVER
33505-0K010	GUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F TYPE A:REFER 33-01	06/2015 - 09/2020	1
33505-0K010	GUN125..6F;GUN135..SAXTR..S..HDCR;GUN135..(SADCB,SASCB,THDCB)..6F..HDCR TYPE B:REFER 33-01	06/2015 - 09/2020	1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33570-0K110	GUN125..6F TYPE A:REFER 33-01	06/2015 - 06/2019	1
33570-0K120	GUN125..6F TYPE B:REFER 33-01	06/2015 - 12/2018	1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-0K690	GUN125..6F	06/2015 - 08/2019	1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-22020	GUN125..6F	06/2015 - 09/2020	1
33584F - GASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)
33584-0K010	GUN125..6F TYPE B:REFER 33-01,TYPE A:REFER 33-01	06/2015 - 09/2020	1
Common parts
90105-T0334

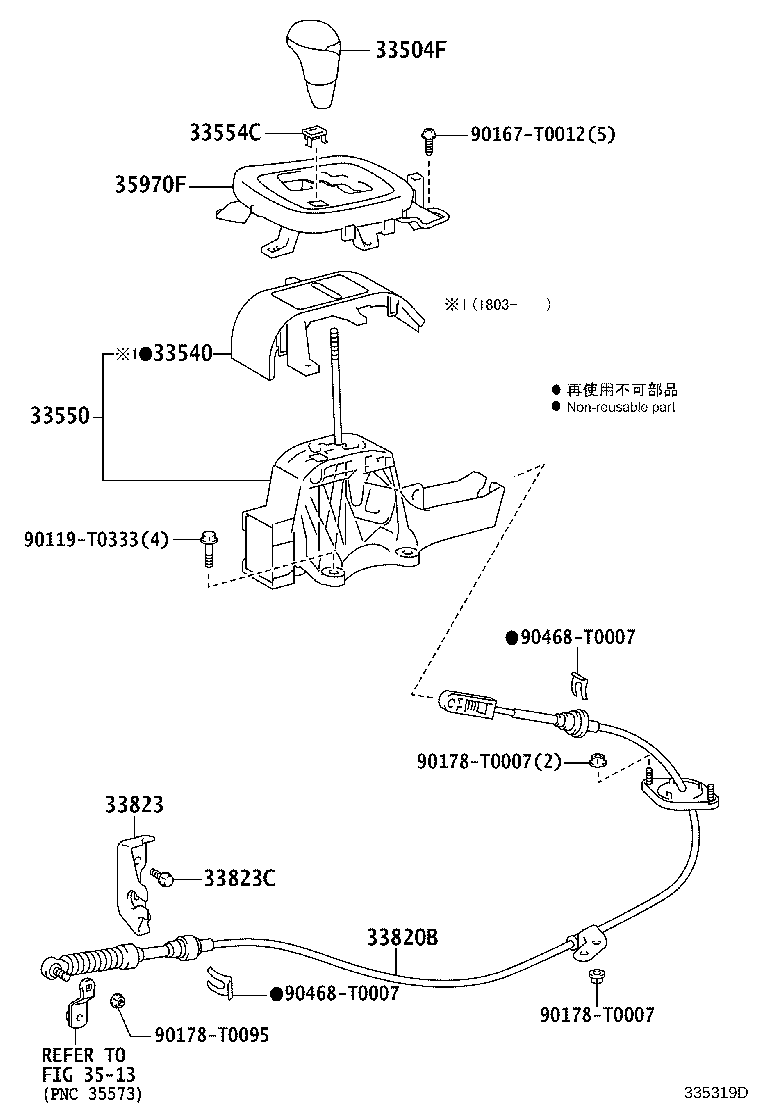

Click highlighted areas on diagram

Part #	Description	Period	Qty
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-0K120C0	GUN12#,135..THDCB..6FC..(H,M) BLACK,TRIM2#,3#	06/2015 - 01/2018	1
33504-0K141C0	GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK),BLACK,TRIM2#	02/2018 - 05/2019	1
33504-0K140C0	GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK),BLACK,TRIM2#	12/2017 - 01/2018	1
33504-0K100C0	GUN125,135..THDCB..6F..M..HDCR BLACK,TRIM2#,3#	06/2015 - 06/2019	1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-0K180	GUN12#,135..LHD..6FC..(M,S)	06/2015 - 09/2020	1
33550-0K190	GUN12#..LHD..6FC..H	06/2015 - 09/2020	1
33554C - COVER, SHIFT LOCK RELEASE BUTTON
33554-0K020	GUN12#,135..6FC	06/2015 - 09/2020	1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-0K170	GUN12#..6FC	06/2015 - 08/2016	1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-KK010	GUN12#,135..6FC	06/2015 - 09/2020	1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
90119-T0102	GUN12#,135..6FC	06/2015 - 09/2020	2
35970F - HOUSING ASSY, POSITION INDICATOR
35970-0K410	GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)	12/2017 - 05/2019	1
35970-0K260	GUN12#,135..LHD..6FC..(H,M)	06/2015 - 09/2020	1
35970-0K410	GUN12#,135..THDCB..6FC..M "BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)	05/2019 - 05/2020	1
Common parts
90119-T0333
90167-T0012
90178-T0007
90178-T0095
90468-T0007
Linked diagrams
3513
