GUN125L-DTTMHW (2015)

Toyota Hilux

Production Jun 2015 - May 2020
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )1GDFTV,2GDFTV..HDCR

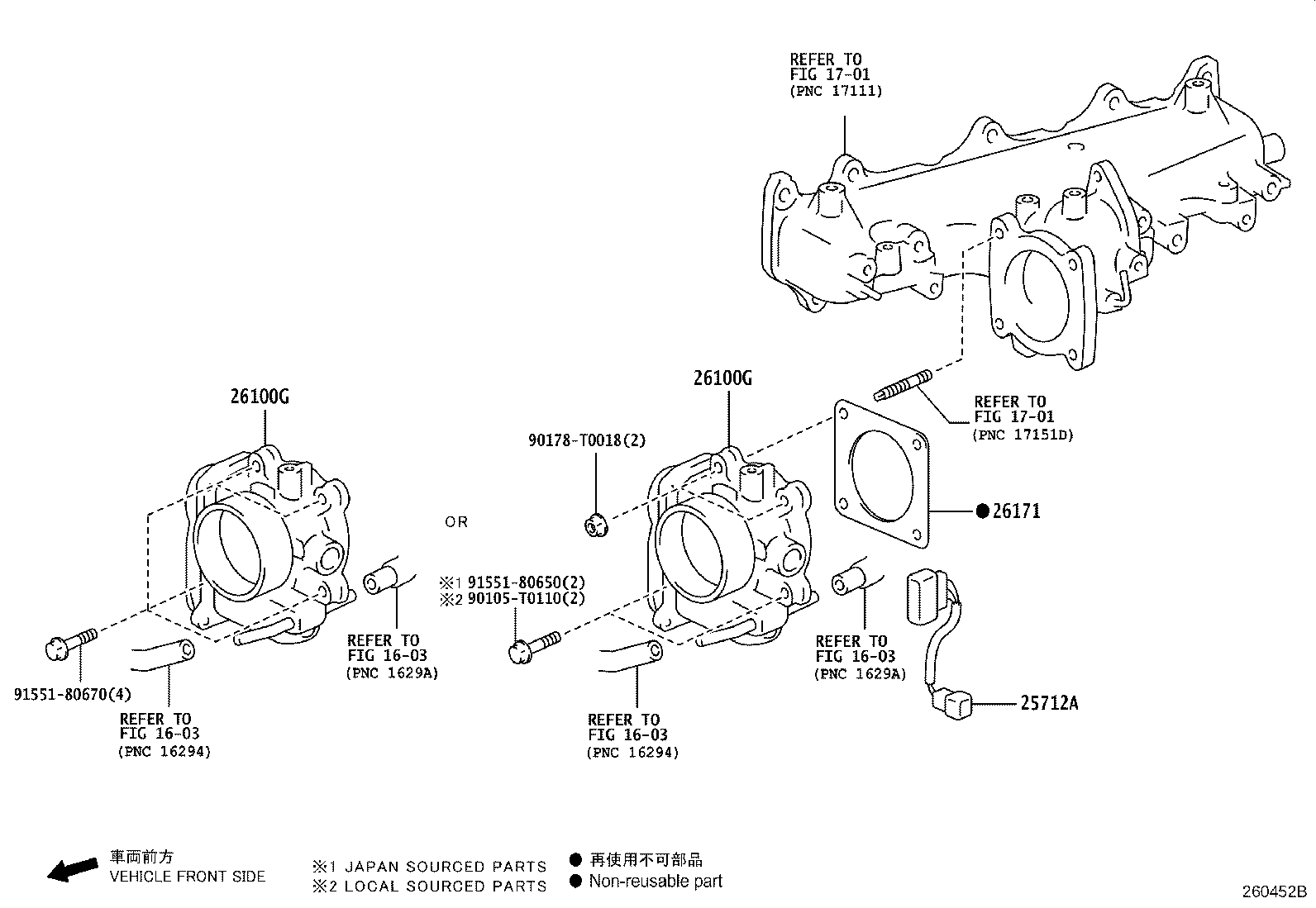

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1701 1701 25712A 26100G 26100G 26171 90105T0110 90178T0018 9155180650 9155180670
Part # Description Qty Price
25712A - WIRE, EMISSION CONTROL VALVE
25712-0E020

2GDFTV..GUN125..THDCB..6F..HDCR

RUSSIA & UKRAINE SPEC,*502

 1
25712-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

*582

 1
26100G - BODY ASSY, DIESEL THROTTLE
26100-0E010

2GDFTV..GUN125..THDCB..6F..HDCR

RUSSIA & UKRAINE SPEC

 1
26100-0E040

2GDFTV..GUN125..THDCB..6F..S;1GDFTV,2GDFTV..GUN12#..THDCB..(H,M)

*582

 1
26100-0E010

2GDFTV..GUN125;1GDFTV..GUN126..THDCB;2GDFTV..GUN135..SAXTR..S;2GDFTV..GUN135..SADCB,SASCB,THDCB

*582

 1
26100-0E010

1GDFTV,2GDFTV..GUN12#..HDCR

*582

 1
26100G - BODY ASSY, DIESEL THROTTLE
26100-0E010

2GDFTV..GUN125..THDCB..6F..HDCR

RUSSIA & UKRAINE SPEC

 1
26100-0E040

2GDFTV..GUN125..THDCB..6F..S;1GDFTV,2GDFTV..GUN12#..THDCB..(H,M)

*582

 1
26100-0E010

2GDFTV..GUN125;1GDFTV..GUN126..THDCB;2GDFTV..GUN135..SAXTR..S;2GDFTV..GUN135..SADCB,SASCB,THDCB

*582

 1
26100-0E010

1GDFTV,2GDFTV..GUN12#..HDCR

*582

 1
26171 - GASKET, VENTURI
26171-0E010

1GDFTV,2GDFTV..GUN12#..HDCR

*582

 1
26171-0E010

2GDFTV..GUN125;1GDFTV..GUN126..THDCB;2GDFTV..GUN135..SAXTR..S;2GDFTV..GUN135..SADCB,SASCB,THDCB

*582

 1
26171-0E030

2GDFTV..GUN125..THDCB..6F..S;1GDFTV,2GDFTV..GUN12#..THDCB..(H,M)

*582

 2
26171-0E020

2GDFTV..GUN125..THDCB..6F..HDCR

RUSSIA & UKRAINE SPEC

 1
Common parts
90105-T0110
90178-T0018
91551-80650
91551-80670
Linked diagrams
1603
1701

(1810- )

Click highlighted areas on diagram

diagram 1603 1603 1701 1703 25712A 26100G 26171 26171 9155180670
Part # Description Qty Price
25712A - WIRE, EMISSION CONTROL VALVE
25712-0E020

2GDFTV..GUN125..THDCB..6F..HDCR

RUSSIA & UKRAINE SPEC,*502

 1
25712-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

*582

 1
26100G - BODY ASSY, DIESEL THROTTLE
26100-0E010

2GDFTV..GUN125..THDCB..6F..HDCR

RUSSIA & UKRAINE SPEC

 1
26100-0E040

2GDFTV..GUN125..THDCB..6F..S;1GDFTV,2GDFTV..GUN12#..THDCB..(H,M)

*582

 1
26100-0E010

2GDFTV..GUN125;1GDFTV..GUN126..THDCB;2GDFTV..GUN135..SAXTR..S;2GDFTV..GUN135..SADCB,SASCB,THDCB

*582

 1
26100-0E010

1GDFTV,2GDFTV..GUN12#..HDCR

*582

 1
26171 - GASKET, VENTURI
26171-0E010

1GDFTV,2GDFTV..GUN12#..HDCR

*582

 1
26171-0E010

2GDFTV..GUN125;1GDFTV..GUN126..THDCB;2GDFTV..GUN135..SAXTR..S;2GDFTV..GUN135..SADCB,SASCB,THDCB

*582

 1
26171-0E030

2GDFTV..GUN125..THDCB..6F..S;1GDFTV,2GDFTV..GUN12#..THDCB..(H,M)

*582

 2
26171-0E020

2GDFTV..GUN125..THDCB..6F..HDCR

RUSSIA & UKRAINE SPEC

 1
26171 - GASKET, VENTURI
26171-0E010

1GDFTV,2GDFTV..GUN12#..HDCR

*582

 1
26171-0E010

2GDFTV..GUN125;1GDFTV..GUN126..THDCB;2GDFTV..GUN135..SAXTR..S;2GDFTV..GUN135..SADCB,SASCB,THDCB

*582

 1
26171-0E030

2GDFTV..GUN125..THDCB..6F..S;1GDFTV,2GDFTV..GUN12#..THDCB..(H,M)

*582

 2
26171-0E020

2GDFTV..GUN125..THDCB..6F..HDCR

RUSSIA & UKRAINE SPEC

 1
Common parts
91551-80670
Linked diagrams
1603
1701
1703
