GUN125L-DTTMHW (2015)
Toyota Hilux

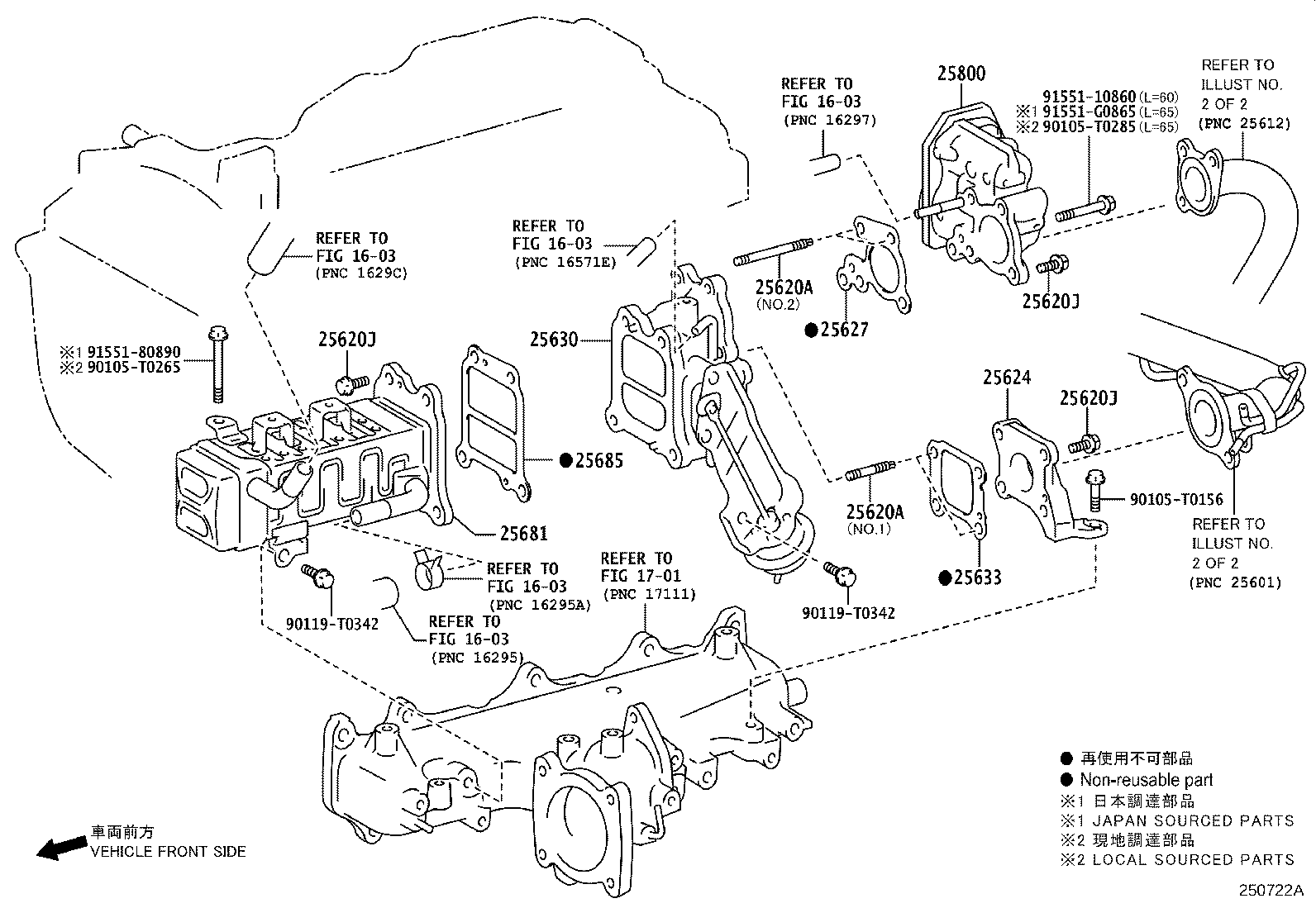

ILLUST NO. 1 OF 2(1506- )1GDFTV,2GDFTV..HDCR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25620A - BOLT, STUD(FOR EGR VALVE) | ||||
| 90126-08047 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB NO.1 |
2 | ||
| 90126-T0018 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB (L),NO.2 |
2 | ||
| 25620A - BOLT, STUD(FOR EGR VALVE) | ||||
| 90126-08047 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB NO.1 |
2 | ||
| 90126-T0018 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB (L),NO.2 |
2 | ||
| 25620J - BOLT(FOR EGR VALVE) | ||||
| 90119-T0238 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC |
7 | ||
| 90119-T0238 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB (L) |
7 | ||
| 25620J - BOLT(FOR EGR VALVE) | ||||
| 90119-T0238 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC |
7 | ||
| 90119-T0238 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB (L) |
7 | ||
| 25620J - BOLT(FOR EGR VALVE) | ||||
| 90119-T0238 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC |
7 | ||
| 90119-T0238 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB (L) |
7 | ||
| 25624 - ADAPTER, EGR VALVE | ||||
| 25624-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB THA SOURCED PARTS |
1 | ||
| 25624-0E020 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,IND SOURCED PARTS |
1 | ||
| 25627 - GASKET, EGR VALVE | ||||
| 25627-0E020 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,IND SOURCED PARTS |
1 | ||
| 25627-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB THA SOURCED PARTS |
1 | ||
| 25630 - VALVE ASSY, EGR, NO.2 | ||||
| 25630-0E020 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,IND SOURCED PARTS |
1 | ||
| 25630-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB IDN SOURCED PARTS |
1 | ||
| 25633 - GASKET, EGR VALVE | ||||
| 25633-0E020 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,IND SOURCED PARTS |
1 | ||
| 25633-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB THA SOURCED PARTS |
1 | ||
| 25681 - COOLER, EGR, NO.1 | ||||
| 25681-0E010 |
2GDFTV..GUN125..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR THA SOURCED PARTS |
1 | ||
| 25685 - GASKET, EGR COOLER, NO.1 | ||||
| 25685-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB THA SOURCED PARTS |
1 | ||
| 25685-0E020 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,IND SOURCED PARTS |
1 | ||
| 25800 - VALVE ASSY, ELECTRIC EGR CONTROL | ||||
| 25800-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB (L) |
1 | ||
| Common parts | ||||
| 90105-T0156 | ||||
| 90105-T0265 | ||||
| 90105-T0285 | ||||
| 90119-T0342 | ||||
| 91551-10860 | ||||
| 91551-80890 | ||||
| 91551-G0865 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1701 | ||||
ILLUST NO. 2 OF 2(1506- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25601 - PIPE SUB-ASSY, EGR, NO.1 | ||||
| 25601-11050 |
2GDFTV..GUN125;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB |
1 | ||
| 25601 - PIPE SUB-ASSY, EGR, NO.1 | ||||
| 25601-11050 |
2GDFTV..GUN125;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB |
1 | ||
| 25612 - PIPE, EGR, NO.2 | ||||
| 25612-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB THA SOURCED PARTS |
1 | ||
| 25612-0E020 |
2GDFTV..GUN125..6F..HDCR RUSSIA & UKRAINE SPEC,IND SOURCED PARTS |
1 | ||
| 25625 - BRACKET, EGR VALVE | ||||
| 25625-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB THA SOURCED PARTS |
1 | ||
| 25625-0E020 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,IND SOURCED PARTS |
1 | ||
| 25628 - GASKET, EGR INLET | ||||
| 25628-0E020 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,IND SOURCED PARTS |
1 | ||
| 25628-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB THA SOURCED PARTS |
1 | ||
| 25629A - GASKET, EGR PIPE, NO.2 | ||||
| 25629-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB (L) |
1 | ||
| 25634 - GASKET, EGR PIPE | ||||
| 25634-0E010 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR (L) |
1 | ||
| 25639 - GASKET, EGR PIPE, NO.3 | ||||
| 25639-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB THA SOURCED PARTS |
1 | ||
| 25639-0E020 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,IND SOURCED PARTS |
1 | ||
| Common parts | ||||
| 90105-T0285 | ||||
| 90119-T0237 | ||||
| 90119-T0260 | ||||
| 90126-08050 | ||||
| 90126-08053 | ||||
| 90178-T0019 | ||||
| 90179-08119 | ||||
| 91551-80870 | ||||
| 91551-G0865 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1701 | ||||
