GUN125L-DTTMHW (2015)
Toyota Hilux

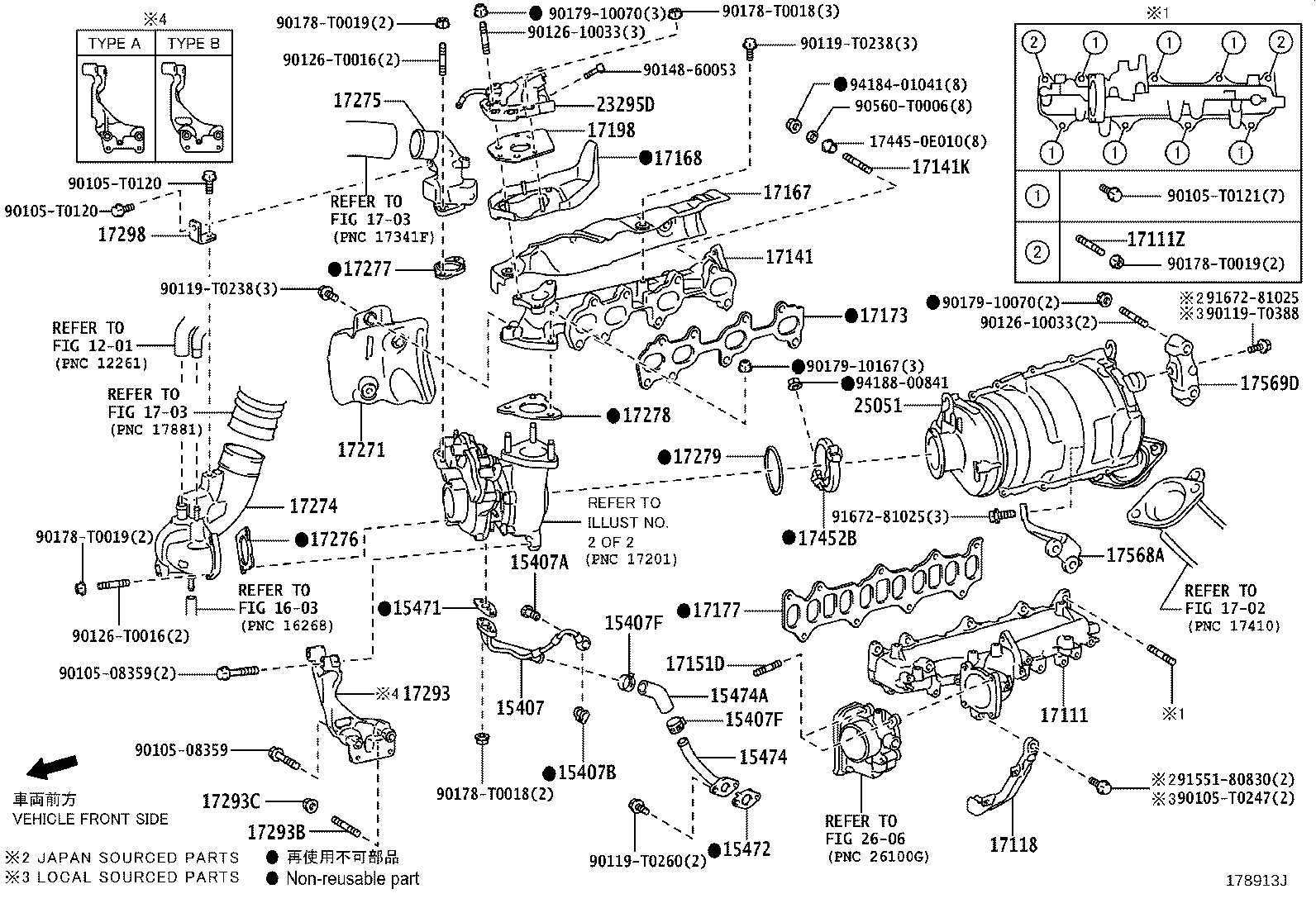

ILLUST NO. 1 OF 2(1506- )1GDFTV,2GDFTV..HDCR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-11030 |
1GDFTV,2GDFTV..GUN12#,135 *582 |
1 | ||
| 15407-11030 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..S;2GDFTV..GUN135..SADCB,SASCB,THDCB (J),*582 |
1 | ||
| 15407-11030 |
2GDFTV..GUN125..THDCB..6F RUSSIA & UKRAINE SPEC,(J) |
1 | ||
| 15407-0E020 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,(L) |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90401-T0004 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 90401-T0004 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-T0006 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 90430-T0006 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 15407F - CLAMP OR CLIP, OIL HOSE | ||||
| 96137-42501 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB |
2 | ||
| 15407F - CLAMP OR CLIP, OIL HOSE | ||||
| 96137-42501 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB |
2 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 15471-0E020 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15472-0E020 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 15472-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 15474 - PIPE, TURBO OIL OUTLET | ||||
| 15474-0E020 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 15474-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 15474A - HOSE, TURBO OIL OUTLET | ||||
| 15491-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 15491-0E020 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-0E030 |
2GDFTV..GUN125..THDCB..6F RUSSIA & UKRAINE SPEC |
1 | ||
| 17101-0E010 |
2GDFTV..GUN125;2GDFTV..GUN135..SAXTR..S;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 17101-0E030 |
2GDFTV..GUN125..6F..HDCR RUSSIA & UKRAINE SPEC,MADE IN INDIA |
1 | ||
| 17101-0E011 |
2GDFTV..GUN125..6F..HDCR RUSSIA & UKRAINE SPEC,MADE IN THAILAND |
1 | ||
| 17101-0E040 |
2GDFTV..GUN125..6F..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 92122-80822 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB (J) |
2 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-0E010 |
2GDFTV..GUN125..THDCB..6F RUSSIA & UKRAINE SPEC |
1 | ||
| 17118-0E010 |
2GDFTV..GUN125..6F..HDCR RUSSIA & UKRAINE SPEC,MADE IN THAILAND |
1 | ||
| 17118-0E040 |
2GDFTV..GUN125..6F..HDCR RUSSIA & UKRAINE SPEC,MADE IN INDIA |
1 | ||
| 17118-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-0E020 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 17141-0E020 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,*502 |
1 | ||
| 17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-10034 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,*502 |
8 | ||
| 90126-10034 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
8 | ||
| 17151D - BOLT, STUD(MANIFOLD TO THROTTLE BODY) | ||||
| 90126-T0015 |
2GDFTV..GUN125;2GDFTV..GUN135..SAXTR..S;2GDFTV..GUN135..SADCB,SASCB,THDCB (L) |
2 | ||
| 90126-06026 |
2GDFTV..GUN125;1GDFTV..GUN126..THDCB;2GDFTV..GUN135..SAXTR..S;2GDFTV..GUN135..SADCB,SASCB,THDCB (J) |
2 | ||
| 90126-06026 |
1GDFTV,2GDFTV..GUN12#,135 |
2 | ||
| 90126-T0015 |
2GDFTV..GUN125..THDCB..6F RUSSIA & UKRAINE SPEC,(L) |
2 | ||
| 90126-T0015 |
2GDFTV..GUN125..HDCR (L) |
2 | ||
| 90126-06026 |
1GDFTV,2GDFTV..GUN12#..HDCR (J) |
2 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-0E020 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 17167-0E020 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,*502 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 17168-0E010 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,*502 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 17173-0E020 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,*502 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-0E020 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 17177-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 17198 - GASKET, EXHAUST MANIFOLD, NO.2 | ||||
| 17198-0E010 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,*502 |
1 | ||
| 17198-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-0E010 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,*502 |
1 | ||
| 17271-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 17274 - ELBOW, COMPRESSOR INLET | ||||
| 17274-0E020 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,*502 |
1 | ||
| 17274-0E020 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR *582 |
1 | ||
| 17275 - ELBOW, COMPRESSOR OUTLET | ||||
| 17275-0E020 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,*502 |
1 | ||
| 17275-0E040 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..S;2GDFTV..GUN135..SADCB,SASCB *582,PNC17293=TYPE A |
1 | ||
| 17275-0E010 |
1GDFTV,2GDFTV..GUN12#..HDCR *582 |
1 | ||
| 17275-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..S;2GDFTV..GUN135..SADCB,SASCB,THDCB *582,PNC17293=TYPE B |
1 | ||
| 17276 - GASKET, COMPRESSOR INLET | ||||
| 17276-0L010 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR (L) |
1 | ||
| 17277 - GASKET, COMPRESSOR OUTLET | ||||
| 17277-0E020 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,*502 |
1 | ||
| 17277-0E010 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR *582 |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-0E010 |
1GDFTV,2GDFTV..GUN12#,135 *582 |
1 | ||
| 17278-0E011 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,*502 |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-11020 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB |
1 | ||
| 17279-11020 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,*502 |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-0E050 |
2GDFTV..GUN125..6F..HDCR RUSSIA & UKRAINE SPEC,TYPE A,*650 |
1 | ||
| 17293-0E020 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,TYPE B,*650 |
1 | ||
| 17293-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..S;2GDFTV..GUN135..SADCB,SASCB,THDCB TYPE B,*652 |
1 | ||
| 17293B - BOLT(FOR TURBOCHARGER STAY) | ||||
| 90179-08119 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,TYPE B:REFER ILLUST. |
1 | ||
| 17293C - NUT(FOR TURBOCHARGER STAY) | ||||
| 90126-08056 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,TYPE B:REFER ILLUST. |
1 | ||
| 17298 - STAY, COMPRESSOR ELBOW | ||||
| 17298-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 17298-0E020 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,*502 |
1 | ||
| 17452B - CLAMP, EXHAUST PIPE | ||||
| 17452-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 17452-0E010 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,*502 |
1 | ||
| 17568A - STAY, EXHAUST PIPE SUPPORT | ||||
| 17568-0E030 |
2GDFTV..GUN125..6F..HDCR RUSSIA & UKRAINE SPEC,IND SOURCED PARTS |
1 | ||
| 17568-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB THA SOURCED PARTS |
1 | ||
| 17569D - STAY, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17569-0E020 |
2GDFTV..GUN125;1GDFTV..GUN126..SADCB;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB THA SOURCED PARTS |
1 | ||
| 17569-0E020 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 17569-0E050 |
2GDFTV..GUN125..6F..HDCR RUSSIA & UKRAINE SPEC,IND SOURCED PARTS |
1 | ||
| 23295D - HOLDER, INJECTOR, NO.1 | ||||
| 23295-11020 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB (J),NO MARK |
1 | ||
| 23295-0E020 |
2GDFTV..GUN135..DCRE;1GDFTV,2GDFTV..GUN12# (L),NO MARK |
1 | ||
| 25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD | ||||
| 25051-0E020 |
2GDFTV..GUN125..THDCB..(H,S);2GDFTV..GUN125..THDCB..6FC..M *114=TOYOTA/*395/Y,ISRAEL SPEC(EURO 5 REGULATION) |
1 | ||
| 25051-0E020 |
1GDFTV..GUN126..THDCB;2GDFTV..GUN135..THDCB..6F;2GDFTV..GUN125..THDCB..6F..M *114=TOYOTA/*395/Y |
1 | ||
| 25051-0E040 |
2GDFTV..GUN135..THDCB..6F;2GDFTV..GUN125..THDCB..6F..M *114=TOYOTA/*396/Y,TURKEY SPEC(EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6,*582 |
1 | ||
| 25051-0E040 |
2GDFTV..GUN125..THDCB..6F..M *114=TOYOTA/*396/Y,UKRAINE SPEC(EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6,*582 |
1 | ||
| 25051-0E040 |
2GDFTV..GUN125..(H,S,X)..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN125,135..6FC..M..HDCR;2GDFTV..GUN135..(SADCB,SASCB)..HDCR;2GDFTV..GUN125..(SADCB,SAXTR)..6F..M..HDCR *114=TOYOTA/*396/Y,*582 |
1 | ||
| 25051-0E040 |
2GDFTV..GUN135..THDCB..6F..HDCR;2GDFTV..GUN125..THDCB..6F..M..HDCR *114=TOYOTA/*396/Y,*582 |
1 | ||
| 25051-0E130 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),*582 |
1 | ||
| 25051-0E130 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,*502 |
1 | ||
| Common parts | ||||
| 17445-0E010 | ||||
| 90105-08359 | ||||
| 90105-T0120 | ||||
| 90105-T0121 | ||||
| 90105-T0247 | ||||
| 90119-T0238 | ||||
| 90119-T0260 | ||||
| 90119-T0388 | ||||
| 90126-10033 | ||||
| 90126-T0016 | ||||
| 90148-60053 | ||||
| 90178-T0018 | ||||
| 90178-T0019 | ||||
| 90179-10070 | ||||
| 90179-10167 | ||||
| 90560-T0006 | ||||
| 91551-80830 | ||||
| 91672-81025 | ||||
| 94184-01041 | ||||
| 94188-00841 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1603 | ||||
| 1702 | ||||
| 1703 | ||||
| 2606 | ||||
ILLUST NO. 2 OF 2(1506- )1GDFTV,2GDFTV..HDCR
TURBOCHARGER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-0E022 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR |
1 | ||
| 04175-0E021 |
1GDFTV,2GDFTV..GUN12#,135 |
1 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-11070 |
2GDFTV..GUN125..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR |
1 | ||
| 89674 - MOTOR, TURBOCHARGER VARIABLE NOZZLE | ||||
| 89674-71020 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| Common parts | ||||
| 90116-06048 | ||||
| 90116-10175 | ||||
| 90523-04002 | ||||
| 91551-80614 | ||||
