GUN125L-DTTMHW (2015)
Toyota Hilux

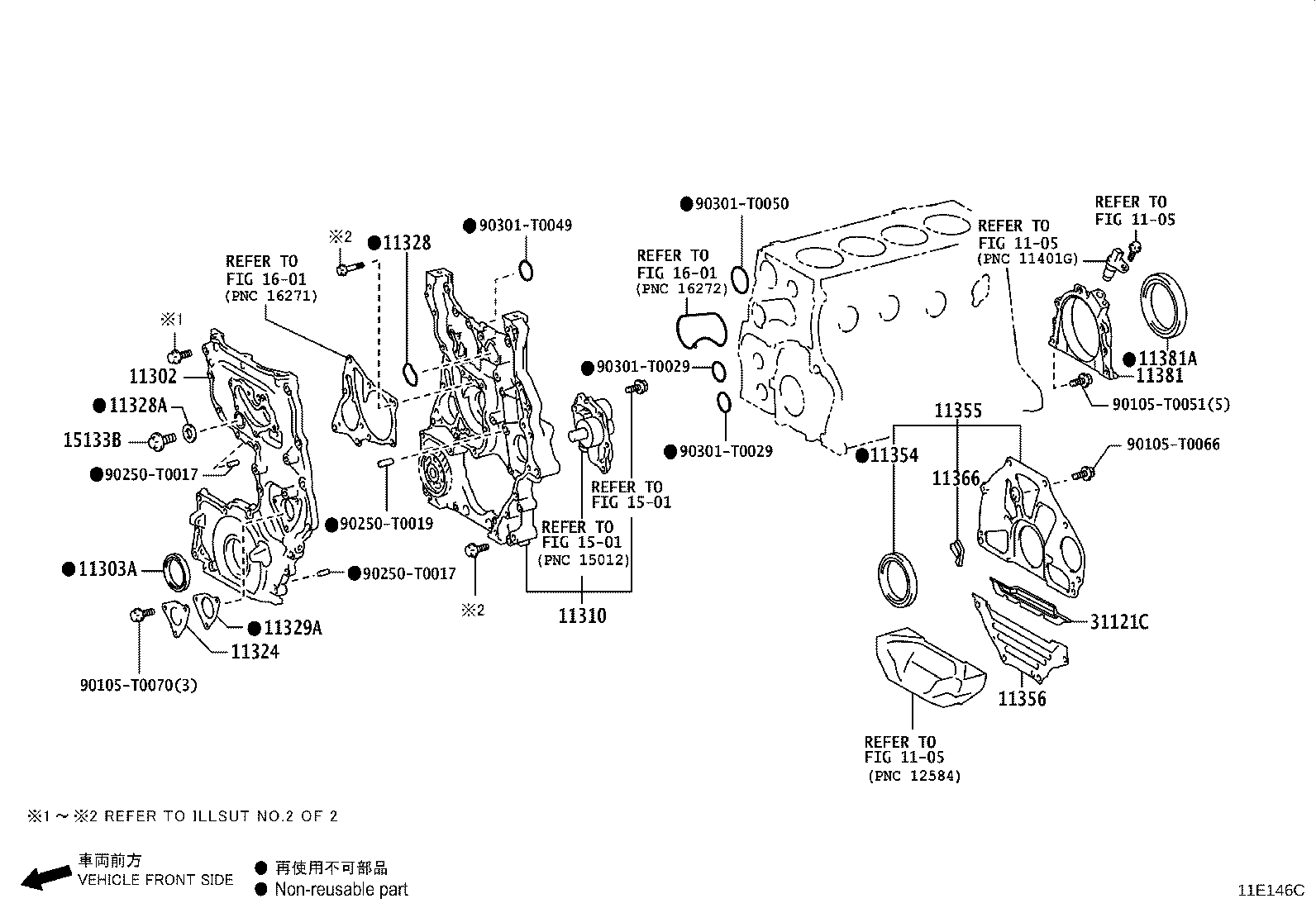

ILLUST NO. 1 OF 2(1506- )1GDFTV,2GDFTV..HDCR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11321-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 11321-0E020 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 11303A - SEAL, OIL(FOR CRANKSHAFT FRONT) | ||||
| 90311-T0054 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 90311-T0054 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 11310 - COVER ASSY, TIMING CHAIN | ||||
| 11310-0E010 |
2GDFTV..GUN125..THDCB..6F RUSSIA & UKRAINE SPEC,*502 |
1 | ||
| 11310-0E010 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR *582 |
1 | ||
| 11310-0E010 |
2GDFTV..GUN125..6F..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 11324 - PLATE, TIMING CHAIN COVER | ||||
| 11324-0E020 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 11324-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-0E020 |
2GDFTV..GUN125..THDCB..6F RUSSIA & UKRAINE SPEC,*502 |
1 | ||
| 11328-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 11328-0E020 |
2GDFTV..GUN125..6F..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 11328A - GASKET, TIMING BELT COVER, NO.1 | ||||
| 11328-11080 |
2GDFTV..GUN125..6F..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 11328-38030 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 11328-38030 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 11329A - GASKET, TIMING BELT OR CHAIN COVER, NO.2 | ||||
| 11329-0E020 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 11329-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 11354 - SEAL, FLYWHEEL HOUSING DUST | ||||
| 11354-0L020 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 11354-0L020 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,(L),*502 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-0E050 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,(L),*502 |
1 | ||
| 11355-0E010 |
2GDFTV..GUN125..6F;2GDFTV..GUN135..SAXTR..S;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..6F *582 |
1 | ||
| 11355-0E010 |
1GDFTV,2GDFTV..GUN12#,135..6FC *582 |
1 | ||
| 11356 - PLATE, REAR END, NO.2 | ||||
| 11356-0L011 |
1GDFTV,2GDFTV..GUN12#,135..THDCB |
1 | ||
| 11356-0L012 |
1GDFTV,2GDFTV..GUN12#,135..THDCB |
1 | ||
| 11366 - SEAL, FLYWHEEL HOUSING UNDER COVER DUST | ||||
| 11366-0E010 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,*502 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 11381-0E010 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 11381-0E040 |
2GDFTV..GUN125..6F..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-T0046 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 90311-T0046 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 15133B - PLUG, OIL PUMP RELIEF VALVE | ||||
| 15133-38071 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB |
1 | ||
| Common parts | ||||
| 90105-T0051 | ||||
| 90105-T0066 | ||||
| 90105-T0070 | ||||
| 90250-T0017 | ||||
| 90250-T0019 | ||||
| 90301-T0029 | ||||
| 90301-T0049 | ||||
| 90301-T0050 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1501 | ||||
| 1601 | ||||
ILLUST NO. 2 OF 2(1506- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08056 | ||||
| 90105-T0116 | ||||
| 90105-T0121 | ||||
| 90105-T0130 | ||||
| 90105-T0159 | ||||
| 90105-T0168 | ||||
| 90105-T0285 | ||||
| 91551-G0865 | ||||
