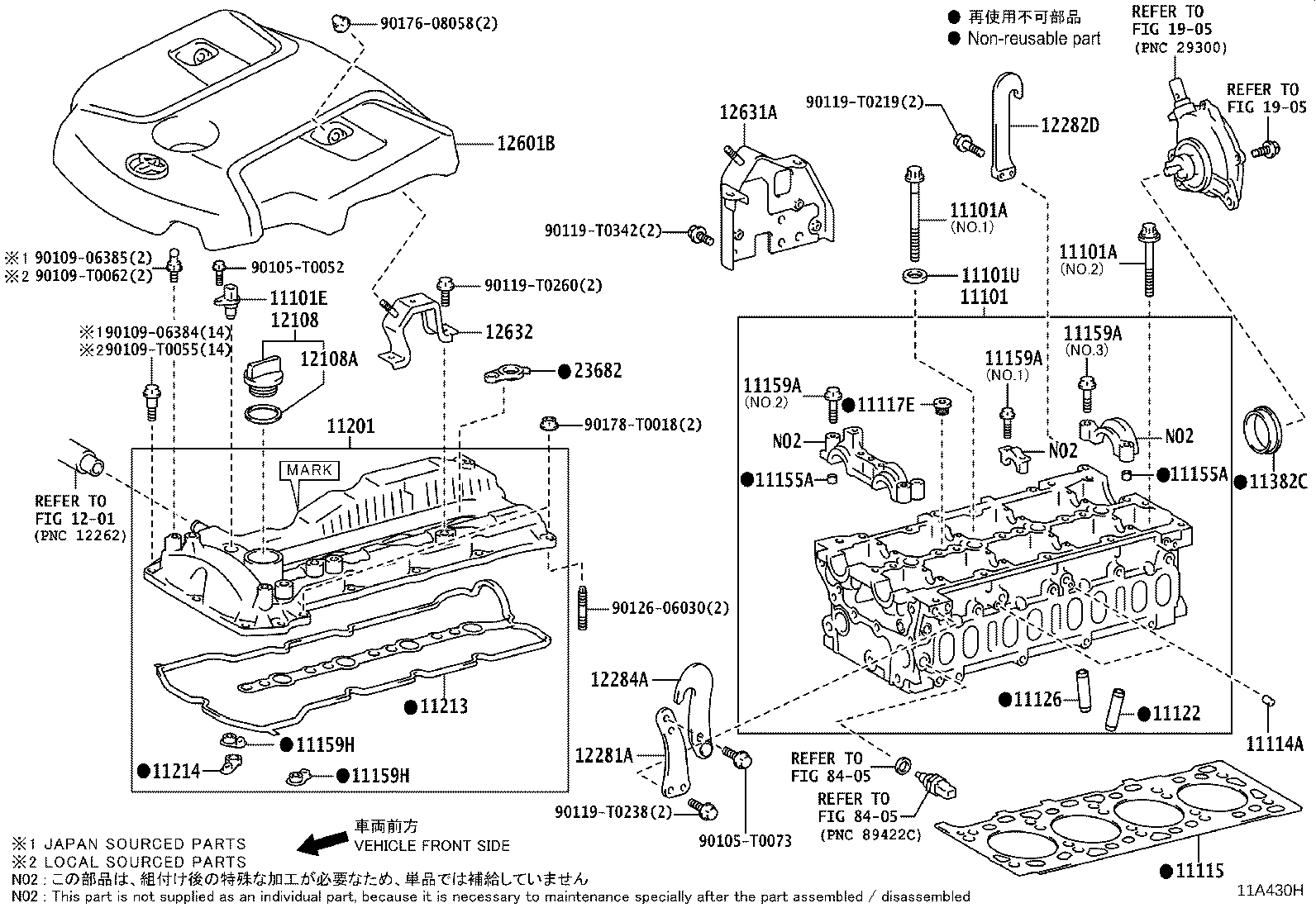

GUN125L-DTTMHW (2015)
Toyota Hilux
(1506- )1GDFTV,2GDFTV..HDCR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-0E020 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 11101-0E021 |
2GDFTV..GUN125..6F..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 11101-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-T2010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582,NO.1 |
6 | ||
| 90910-T2011 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,NO.2 |
4 | ||
| 90910-T2010 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,NO.1 |
6 | ||
| 90910-T2011 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582,NO.2 |
4 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-T2010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582,NO.1 |
6 | ||
| 90910-T2011 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,NO.2 |
4 | ||
| 90910-T2010 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,NO.1 |
6 | ||
| 90910-T2011 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582,NO.2 |
4 | ||
| 11101E - SENSOR, CAM POSITION | ||||
| 90919-05060 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 90919-05060 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 11101U - SPACER(FOR CYLINDER HEAD SET BOLT) | ||||
| 90560-T0026 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
6 | ||
| 90560-T0026 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC |
6 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90250-T0011 |
2GDFTV..GUN125..THDCB..6F..HDCR L=8,OD=5,RUSSIA & UKRAINE SPEC |
2 | ||
| 90250-T0011 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB L=8,OD=5,*582 |
2 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-11110B0 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN125,135..THDCB..DCRE;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR MARK B,(J) |
1 | ||
| 11115-0E010B0 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN125,135..THDCB..DCRE;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR MARK B,(L) |
1 | ||
| 11115-11110C0 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN125,135..THDCB..DCRE;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR MARK C,(J) |
1 | ||
| 11115-11110E0 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN125,135..THDCB..DCRE;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR MARK E,(J) |
1 | ||
| 11115-0E010A0 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN125,135..THDCB..DCRE;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR MARK A,(L) |
1 | ||
| 11115-0E010C0 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,MARK C,(L) |
1 | ||
| 11115-11110D0 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN125,135..THDCB..DCRE;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR MARK D,(J) |
1 | ||
| 11115-0E010E0 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,MARK E,(L) |
1 | ||
| 11115-11110A0 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN125,135..THDCB..DCRE;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR MARK A,(J) |
1 | ||
| 11115-0E010B0 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,MARK B,(L) |
1 | ||
| 11115-0E010A0 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,MARK A,(L) |
1 | ||
| 11115-0E010C0 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN125,135..THDCB..DCRE;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR MARK C,(L) |
1 | ||
| 11115-0E010E0 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN125,135..THDCB..DCRE;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR MARK E,(L) |
1 | ||
| 11115-11110 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,(J) |
1 | ||
| 11115-0E010D0 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN125,135..THDCB..DCRE;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR MARK D,(L) |
1 | ||
| 11115-0E010D0 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,MARK D,(L) |
1 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-T0005 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC |
4 | ||
| 90341-T0005 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
4 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-30020 |
2GDFTV..GUN125..THDCB..6F..HDCR O/S 0.05,RUSSIA & UKRAINE SPEC |
8 | ||
| 11123-30020 |
2GDFTV..GUN125..THDCB..6F..HDCR STD,RUSSIA & UKRAINE SPEC |
8 | ||
| 11123-30020 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB STD |
8 | ||
| 11122-30020 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB O/S 0.05 |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11123-30020 |
2GDFTV..GUN125..THDCB..6F..HDCR STD,RUSSIA & UKRAINE SPEC |
8 | ||
| 11122-30020 |
2GDFTV..GUN125..THDCB..6F..HDCR O/S 0.05,RUSSIA & UKRAINE SPEC |
8 | ||
| 11123-30020 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB STD |
8 | ||
| 11122-30020 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB O/S 0.05 |
8 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11021 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB |
4 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11021 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB |
4 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-T0130 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582,NO.3 |
2 | ||
| 90105-T0130 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,NO.3 |
2 | ||
| 90109-06080 |
1GDFTV,2GDFTV..GUN12#,135 *582,NO.1 |
16 | ||
| 90119-T0551 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,NO.1 |
16 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-T0130 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582,NO.3 |
2 | ||
| 90105-T0130 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,NO.3 |
2 | ||
| 90109-06080 |
1GDFTV,2GDFTV..GUN12#,135 *582,NO.1 |
16 | ||
| 90119-T0551 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,NO.1 |
16 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-T0130 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582,NO.3 |
2 | ||
| 90105-T0130 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,NO.3 |
2 | ||
| 90109-06080 |
1GDFTV,2GDFTV..GUN12#,135 *582,NO.1 |
16 | ||
| 90119-T0551 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC,NO.1 |
16 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 11159-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
2 | ||
| 11159-0E010 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC |
2 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 11159-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
2 | ||
| 11159-0E010 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC |
2 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..S;2GDFTV..GUN135..SADCB,SASCB,THDCB MARK=11201-0E010 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 11213-0E010 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11214-0E010 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 11214-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 11382C - RETAINER, CAMSHAFT OIL SEAL | ||||
| 11382-0E010 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 11382-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-0H020 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 12180-0H020 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90080-43027 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 90080-43027 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
1 | ||
| 12281-0E020 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB BLACK |
1 | ||
| 12284A - HANGER, ENGINE, NO.1 UPPER | ||||
| 12284-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *231,*501,SILVER |
1 | ||
| 12601B - COVER SUB-ASSY, ENGINE, NO.1 | ||||
| 12601-0E010 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR |
1 | ||
| 12631A - BRACKET, ENGINE COVER | ||||
| 12631-0E020 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC |
1 | ||
| 12631-0E010 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR *582 |
1 | ||
| 12632 - BRACKET, ENGINE COVER, NO.2 | ||||
| 12632-0E010 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR |
1 | ||
| 23682 - GASKET, NOZZLE HOLDER | ||||
| 23682-0E010 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB *582 |
4 | ||
| 23682-0E010 |
2GDFTV..GUN125..THDCB..6F..HDCR RUSSIA & UKRAINE SPEC |
4 | ||
| Common parts | ||||
| 90105-T0052 | ||||
| 90105-T0073 | ||||
| 90109-06384 | ||||
| 90109-06385 | ||||
| 90109-T0055 | ||||
| 90109-T0062 | ||||
| 90119-T0219 | ||||
| 90119-T0238 | ||||
| 90119-T0260 | ||||
| 90119-T0342 | ||||
| 90126-06030 | ||||
| 90176-08058 | ||||
| 90178-T0018 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1905 | ||||
| 8405 | ||||
