GUN125L-DTTHXW (2019)

Toyota Hilux

Production May 2019 - May 2020
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1905- )DCRE

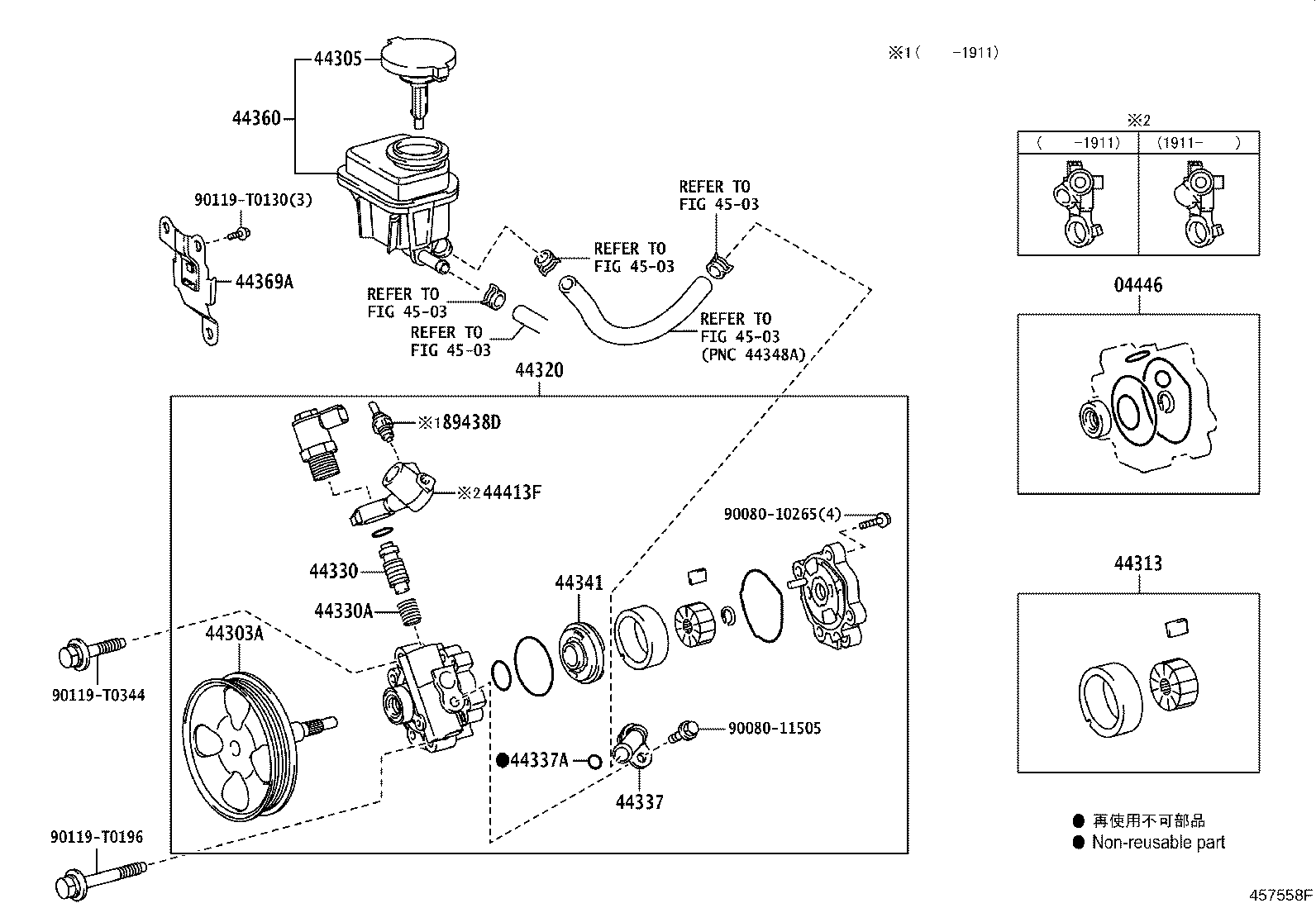

Click highlighted areas on diagram

diagram 04446 44303A 44305 44313 44320 44330 44330A 44337 44337A 44341 44360 44369A 44413F 4503 4503 4503 4503 4503 89438D 9008010265 9008011505 90119T0130 90119T0196 90119T0344
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-06110

GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE

 1
44303A - SHAFT SUB-ASSY, W/PULLEY
44303-06040

GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-0K030

GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE

 1
44313 - ROTOR, VANE PUMP
44313-09010

GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE

 1
44320 - PUMP ASSY, VANE
44310-0K141

GUN125,135..DCRE

 1
44310-0K140

GUN125,135..DCRE

 1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-T0001

GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-0K040

GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE

 1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90080-30093

GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE

 1
44341 - PLATE, VANE PUMP SIDE, FRONT
44341-06010

GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE

 1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-0K050

GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE

 1
44369A - BRACKET, OIL RESERVOIR, NO.1
44390-0K010

GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE

 1
44413F - TUBE, PRESSURE FEED, NO.2
44413-0K011

GUN125,135..DCRE

 1
44413-0K010

GUN125,135..DCRE

 1
89438D - SWITCH, POWER STEERING OIL PRESSURE
89438-33010

GUN12#,135

 1
Common parts
90080-10265
90080-11505
90119-T0130
90119-T0196
90119-T0344
Linked diagrams
4503
