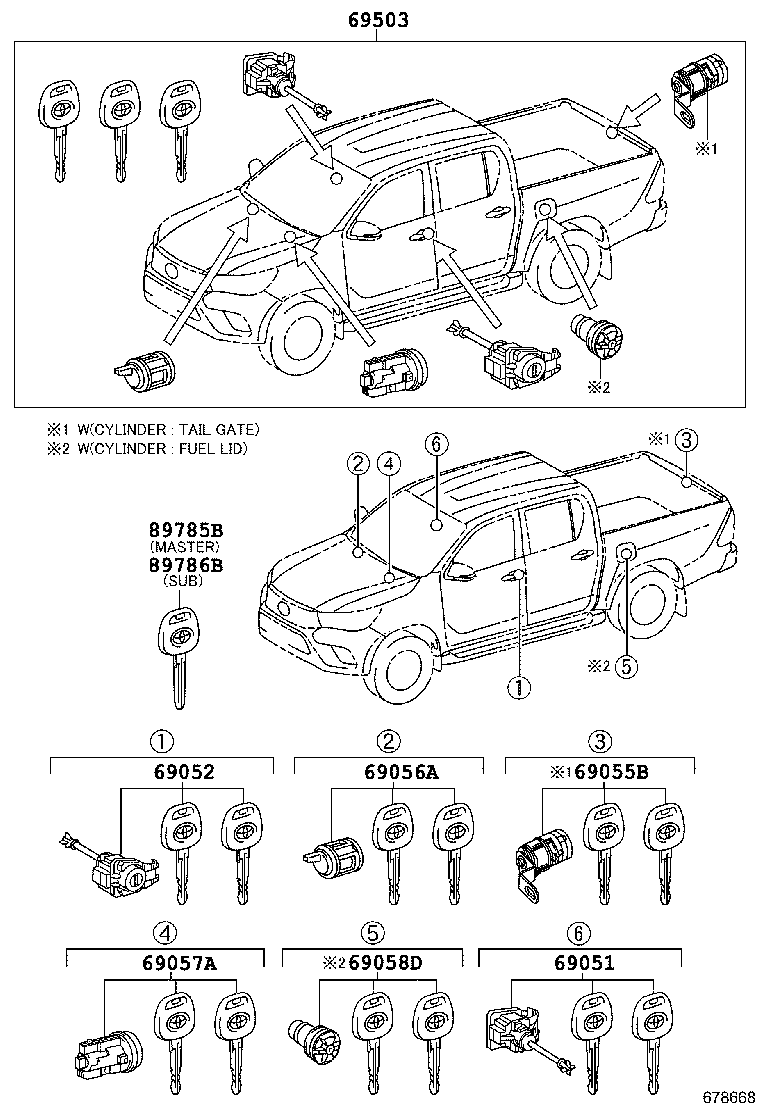

GUN125L-DTTHHW (2015)
Toyota Hilux
(1506- )LHD
WITH(SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-0K070 |
GUN12#..LHD..H |
1 | ||
| 69052-0K060 |
GUN12#..LHD..(M,S);GUN135..(M,S)..CBU |
1 | ||
| 69055B - CYLINDER & KEY SET, BACK DOOR LOCK | ||||
| 69055-0K070 |
GUN12#,135..(SADCB,SAXTR,THDCB)..(M,S)..CBU |
1 | ||
| 69055-0K080 |
GUN12#..H |
1 | ||
| 69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-0K060 |
GUN12#..H |
1 | ||
| 69056-0K050 |
GUN12#..M,S;GUN135..(M,S)..CBU |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-0KD10 |
GUN12#..LHD..H |
1 | ||
| 89704-0KK60 |
GUN12#,135..LHD..(SADCB,SAXTR,THDCB)..(M,S)..CBU |
1 | ||
| 69503A - KEY, BLANK | ||||
| 69515-0K100 |
GUN12#..H MASTER KEY,W(*68),SMART KEY,INSIDE CUT |
1 | ||
| 69515-0K130 |
GUN12#..H MASTER KEY,W(*68),INSIDE CUT TYPE |
1 | ||
| 69503A - KEY, BLANK | ||||
| 69515-0K100 |
GUN12#..H MASTER KEY,W(*68),SMART KEY,INSIDE CUT |
1 | ||
| 69515-0K130 |
GUN12#..H MASTER KEY,W(*68),INSIDE CUT TYPE |
1 | ||
| 69503B - KEY, CUT | ||||
| 69515-0K120 |
GUN12#..H MASTER KEY,W(*68),INSIDE CUT TYPE |
2 | ||
| 69515-0K070 |
GUN12#..LHD..H MASTER KEY,W(*68),SMART KEY,INSIDE CUT |
2 | ||
| 69503B - KEY, CUT | ||||
| 69515-0K120 |
GUN12#..H MASTER KEY,W(*68),INSIDE CUT TYPE |
2 | ||
| 69515-0K070 |
GUN12#..LHD..H MASTER KEY,W(*68),SMART KEY,INSIDE CUT |
2 | ||
| 89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY) | ||||
| 89072-0K720 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK) |
2 | ||
| 89072-0K590 |
GUN12#..H |
2 | ||
| 89745C - BATTERY, TRANSMITTER | ||||
| 89745-0K010 |
GUN12#..H CR2032 |
1 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-0K320 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK) |
2 | ||
| 89751-0K120 |
GUN12#..H |
2 | ||
| 89752A - CASE, TRANSMITTER HOUSING | ||||
| 89752-0K320 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK) |
2 | ||
| 89752-0K180 |
GUN12#..H |
2 | ||
| 89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY | ||||
| 89904-0K560 |
GUN12#..THDCB..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK) |
2 | ||
| 89904-0K490 |
GUN12#..H |
2 | ||

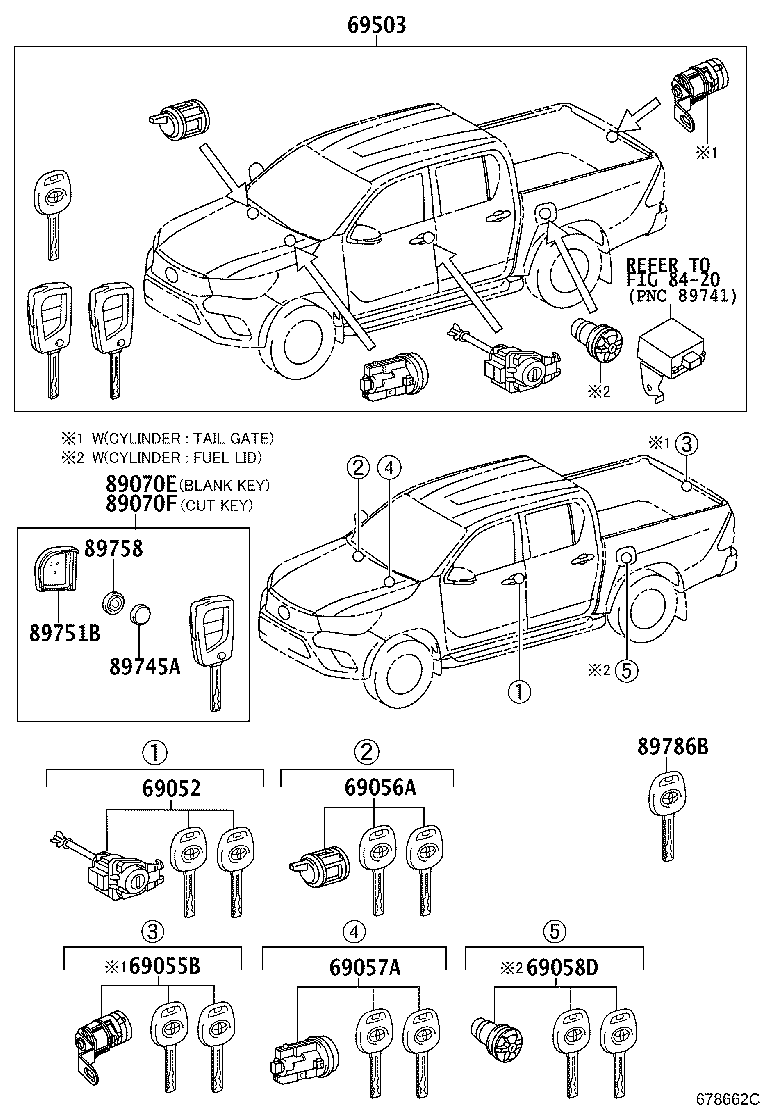

(1506- )LHD
WITH(WIRELESS DOOR LOCK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-0K070 |
GUN12#..LHD..H |
1 | ||
| 69052-0K060 |
GUN12#..LHD..(M,S);GUN135..(M,S)..CBU |
1 | ||
| 69055B - CYLINDER & KEY SET, BACK DOOR LOCK | ||||
| 69055-0K070 |
GUN12#,135..(SADCB,SAXTR,THDCB)..(M,S)..CBU |
1 | ||
| 69055-0K080 |
GUN12#..H |
1 | ||
| 69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-0K060 |
GUN12#..H |
1 | ||
| 69056-0K050 |
GUN12#..M,S;GUN135..(M,S)..CBU |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-0K220 |
GUN12#..M,S;GUN135..(M,S)..CBU |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-0KD10 |
GUN12#..LHD..H |
1 | ||
| 89704-0KK60 |
GUN12#,135..LHD..(SADCB,SAXTR,THDCB)..(M,S)..CBU |
1 | ||
| 89070E - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-0KB10 |
GUN12#..M,S;GUN135..(M,S)..CBU |
1 | ||
| 89070F - TRANSMITTER ASSY, DOOR CONTROL (CUT KEY) | ||||
| 89070-0K680 |
GUN12#..M,S;GUN135..(M,S)..CBU |
1 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-0D040 |
GUN12#..M,S;GUN135..(M,S)..CBU CR1620 |
1 | ||
| 89751B - COVER, TRANSMITTER HOUSING | ||||
| 89751-0K190 |
GUN12#..M,S;GUN135..(M,S)..CBU |
2 | ||
| 89758 - PACKING, DOOR CONTROL TRANSMITTER | ||||
| 89758-02010 |
GUN12#..M,S;GUN135..(M,S)..CBU |
2 | ||
| 89786B - TRANSMITTER, TRANSPONDER KEY SUB | ||||
| 89786-0K150 |
GUN12#..M,S;GUN135..(M,S)..CBU CUT KEY |
1 | ||
| Linked diagrams | ||||
| 8420 | ||||
(1506- )LHD
WITHOUT(WIRELESS OR SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-0K070 |
GUN12#..LHD..H |
1 | ||
| 69052-0K060 |
GUN12#..LHD..(M,S);GUN135..(M,S)..CBU |
1 | ||
| 69055B - CYLINDER & KEY SET, BACK DOOR LOCK | ||||
| 69055-0K070 |
GUN12#,135..(SADCB,SAXTR,THDCB)..(M,S)..CBU |
1 | ||
| 69055-0K080 |
GUN12#..H |
1 | ||
| 69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-0K060 |
GUN12#..H |
1 | ||
| 69056-0K050 |
GUN12#..M,S;GUN135..(M,S)..CBU |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-0K220 |
GUN12#..M,S;GUN135..(M,S)..CBU |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-0KD10 |
GUN12#..LHD..H |
1 | ||
| 89704-0KK60 |
GUN12#,135..LHD..(SADCB,SAXTR,THDCB)..(M,S)..CBU |
1 | ||
| 89786B - TRANSMITTER, TRANSPONDER KEY SUB | ||||
| 89786-0K150 |
GUN12#..M,S;GUN135..(M,S)..CBU CUT KEY |
1 | ||
