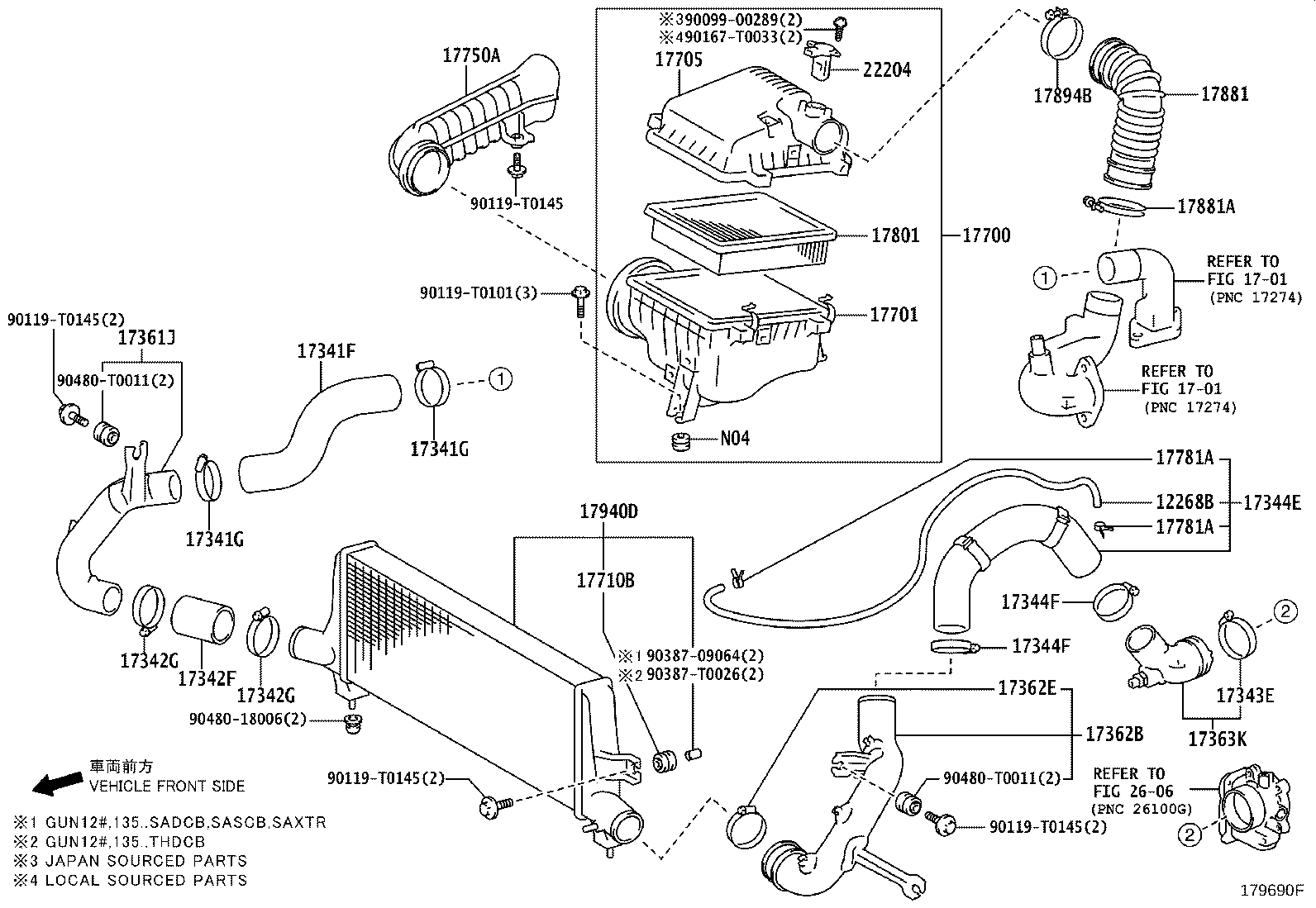

GUN125L-DTTHHW (2015)
Toyota Hilux
(1506- )1GDFTV,2GDFTV..HDCR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12268B - HOSE, OIL RETURN | ||||
| 12268-0L020 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR |
1 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-0L020 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-65012 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-65012 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR |
2 | ||
| 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) | ||||
| 17342-0L020 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR |
1 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90460-65012 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR |
2 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90460-65012 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR |
2 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-80006 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR |
1 | ||
| 17344E - HOSE, AIR, NO.4 | ||||
| 17344-0L020 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR |
1 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90460-65012 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR |
2 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90460-65012 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR |
2 | ||
| 17361J - TUBE, AIR, NO.1 | ||||
| 17361-0L021 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR |
1 | ||
| 17362B - TUBE, AIR, NO.2 | ||||
| 17362-0L020 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR |
1 | ||
| 17362E - CLAMP, NO.2(FOR AIR TUBE, NO.2) | ||||
| 90460-67008 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR |
1 | ||
| 17363K - TUBE, AIR, NO.3(FOR INTERCOOLER) | ||||
| 17363-0L020 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-0L350 |
1GDFTV,2GDFTV..GUN12#,135..THDCB |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-0C170 |
1GDFTV,2GDFTV..GUN12#,135..THDCB |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0L290 |
1GDFTV,2GDFTV..GUN12#,135..THDCB |
1 | ||
| 17710B - GROMMET | ||||
| 90480-T0011 |
1GDFTV,2GDFTV..GUN12#,135..THDCB..HDCR (L) |
2 | ||
| 90480-11016 |
1GDFTV,2GDFTV..GUN12#,135..THDCB (L) |
2 | ||
| 17750A - INLET ASSY, AIR CLEANER | ||||
| 17750-0L060 |
1GDFTV,2GDFTV..GUN12#,135..THDCB |
1 | ||
| 17781A - CLAMP, HOSE | ||||
| 90466-07002 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR |
2 | ||
| 17781A - CLAMP, HOSE | ||||
| 90466-07002 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR |
2 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0L040 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0L120 |
1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN125,135..THDCB..DCRE;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-T0005 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB |
1 | ||
| 17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2) | ||||
| 90460-T0020 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-0L110 |
1GDFTV,2GDFTV..GUN12#,135..THDCB..HDCR |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-30030 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-T0101 | ||||
| 90119-T0145 | ||||
| 90167-T0033 | ||||
| 90387-09064 | ||||
| 90387-T0026 | ||||
| 90480-18006 | ||||
| 90480-T0011 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 2606 | ||||
