GUN125L-DNFSHW (2016)

Toyota Hilux

Production Apr 2016 - May 2019
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1604-1704)GUN125,135..LHD..SADCB,SAXTR ; (1608-1706)THDCB..S ; (1704- )THDCB..S

Click highlighted areas on diagram

5-LEAF,1 TON PAY LOAD PACKAGE

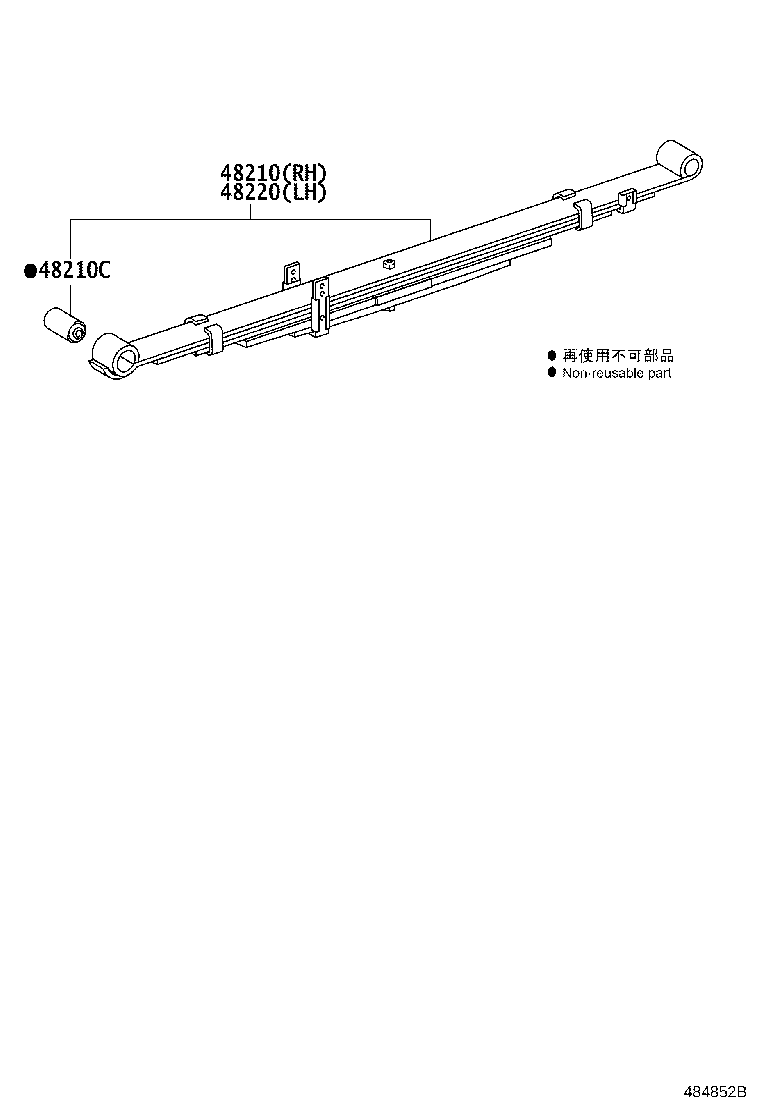

diagram 48210 48210C 48220
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-0K630

GUN12#,135..SADCB..(M,S,X)

5-LEAF

 1
48210-0K860

GUN125,135..LHD..(SADCB,SAXTR)

5-LEAF,1 TON PAY LOAD PACKAGE

 1
48210-0K270

GUN125,135..LHD..(SADCB,SAXTR)..(M,S,X)

5-LEAF,1 TON PAY LOAD PACKAGE

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-T0005

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 2
48220 - SPRING ASSY, REAR LH
48210-0K860

GUN125,135..LHD..(SADCB,SAXTR)

5-LEAF,1 TON PAY LOAD PACKAGE

 1
48210-0K270

GUN125,135..LHD..(SADCB,SAXTR)..(M,S,X)

5-LEAF,1 TON PAY LOAD PACKAGE

 1
48210-0K630

GUN12#,135..SADCB..(M,S,X)

5-LEAF

 1
