GUN125L-CNFSXW (2020)

Toyota Hilux

Production Sep 2020 - Sep 2021
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2009- )SAXTR

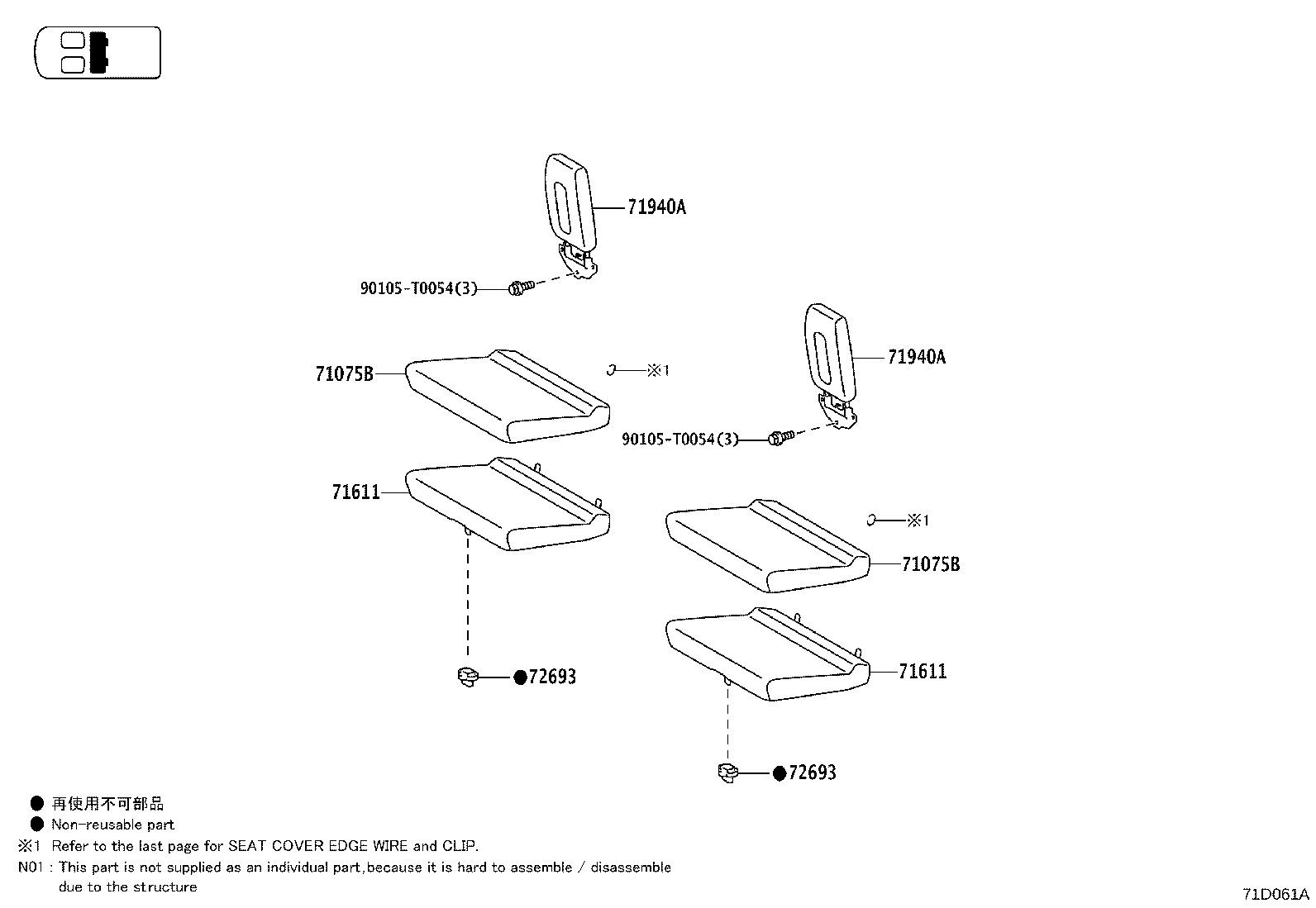

Click highlighted areas on diagram

REAR SEAT

diagram 71075B 71075B 71611 71611 71940A 71940A 72693 72693 90105T0054 90105T0054
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-0K160C0

GUN12#..SAXTR..H

REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION),BLACK,TRIM2#,RH

 2
71075-0K160C0

GUN125,135..SAXTR..(L,S)

REAR SEAT-WITH(BACK PANEL CUSHION ONLY),BLACK,TRIM2#,RH

 2
71075-0K160C0

GUN125,135..SAXTR..(L,S)

BLACK,TRIM2#,RH

 2
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-0K160C0

GUN12#..SAXTR..H

REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION),BLACK,TRIM2#,RH

 2
71075-0K160C0

GUN125,135..SAXTR..(L,S)

REAR SEAT-WITH(BACK PANEL CUSHION ONLY),BLACK,TRIM2#,RH

 2
71075-0K160C0

GUN125,135..SAXTR..(L,S)

BLACK,TRIM2#,RH

 2
71611 - PAD, REAR SEAT CUSHION
71503-0K030

GUN125,135..SAXTR..(L,S)

REAR SEAT-WITH(BACK PANEL CUSHION ONLY)

 2
71503-0K030

GUN12#..SAXTR..H

REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION)

 2
71503-0K030

GUN125,135..SAXTR..(L,S)

 2
71611 - PAD, REAR SEAT CUSHION
71503-0K030

GUN125,135..SAXTR..(L,S)

REAR SEAT-WITH(BACK PANEL CUSHION ONLY)

 2
71503-0K030

GUN12#..SAXTR..H

REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION)

 2
71503-0K030

GUN125,135..SAXTR..(L,S)

 2
71940A - HEADREST ASSY, REAR SEAT
71940-0KL90C1

GUN125,135..SAXTR..(L,S)

BLACK,TRIM2#

 2
71940-0KL90C1

GUN12#..SAXTR..H

REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION),BLACK,TRIM2#

 2
71940-0KL90C1

GUN125,135..SAXTR..(L,S)

REAR SEAT-WITH(BACK PANEL CUSHION ONLY),BLACK,TRIM2#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-0KL90C1

GUN125,135..SAXTR..(L,S)

BLACK,TRIM2#

 2
71940-0KL90C1

GUN12#..SAXTR..H

REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION),BLACK,TRIM2#

 2
71940-0KL90C1

GUN125,135..SAXTR..(L,S)

REAR SEAT-WITH(BACK PANEL CUSHION ONLY),BLACK,TRIM2#

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-0K120

GUN12#..SAXTR..H

REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION)

 2
72693-0K120

GUN125,135..SAXTR..(L,S)

 2
72693-0K120

GUN125,135..SAXTR..(L,S)

REAR SEAT-WITH(BACK PANEL CUSHION ONLY)

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-0K120

GUN12#..SAXTR..H

REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION)

 2
72693-0K120

GUN125,135..SAXTR..(L,S)

 2
72693-0K120

GUN125,135..SAXTR..(L,S)

REAR SEAT-WITH(BACK PANEL CUSHION ONLY)

 2
Common parts
90105-T0054
