GUN125L-CNFSHW3 (2016)

Toyota Hilux

Production Apr 2016 - May 2019
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

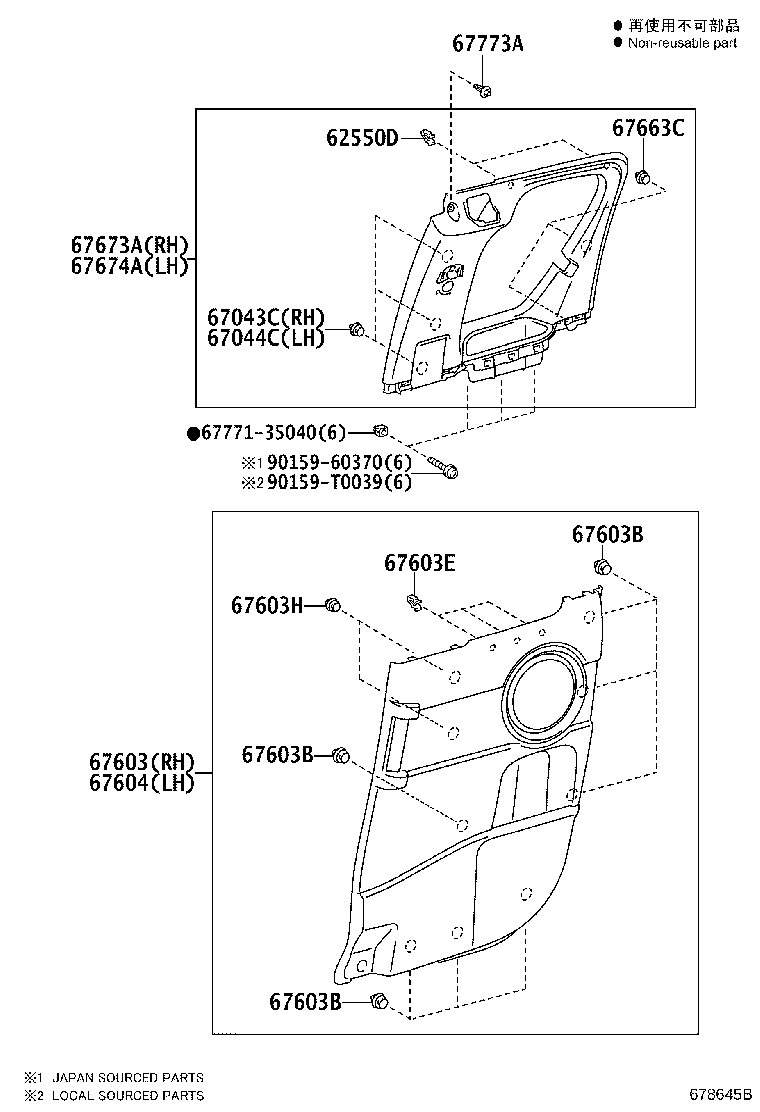

ILLUST NO. 2 OF 2(1604- )SAXTR

Click highlighted areas on diagram

DOOR TRIM

diagram 62550D 67043C 67044C 67603 67603B 67603B 67603B 67603E 67603H 67604 67663C 67673A 67674A 6777135040 67773A 9015960370 90159T0039
Part # Description Qty Price
Common parts
67771-35040
90159-60370
90159-T0039

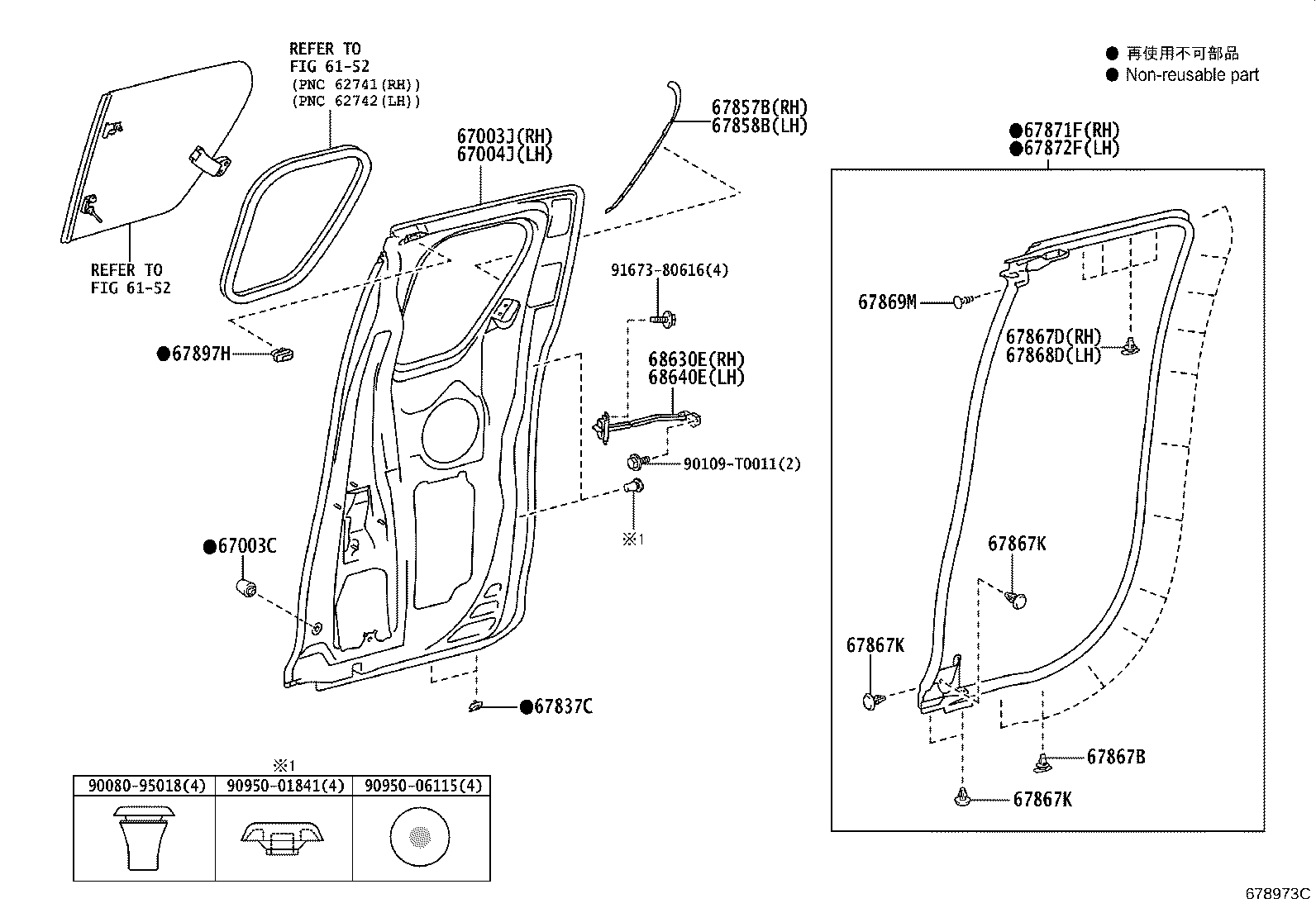

ILLUST NO. 1 OF 2(1604- )SAXTR

Click highlighted areas on diagram

DOOR PANEL

diagram 6152 6152 67003C 67003J 67004J 67837C 67857B 67858B 67867B 67867D 67867K 67867K 67867K 67868D 67869M 67871F 67872F 67897H 68630E 68640E 9008095018 90109T0011 9095001841 9095006115 9167380616
Part # Description Qty Price
67003C - CUSHION, REAR DOOR PANEL
90541-09131

GUN135..SAXTR..DCRE..IV3;GUN12#..SADCB,SAXTR,THDCB;GUN135..(SADCB,SAXTR,THDCB)..(M,S)

 2
67003J - PANEL SUB-ASSY, ACCESS PANEL, RH
67003-KK020

GUN125,135..SAXTR..(M,S)

 1
67004J - PANEL SUB-ASSY, ACCESS PANEL, LH
67004-KK020

GUN125,135..SAXTR..(M,S)

 1
67837C - SEAL, REAR DOOR DUST PROOF
67837-0K101

GUN125,135..SAXTR

 4
67837-0K100

GUN125,135..SAXTR

 4
67869M - CLIP, DOOR WEATHERSTRIP
67867-12150

GUN12#,135

 8
68630E - CHECK ASSY, ACCESS PANEL, RH
68640-0K100

GUN125,135..SAXTR..(M,S)

 1
68640E - CHECK ASSY, ACCESS PANEL, LH
68640-0K100

GUN125,135..SAXTR..(M,S)

 1
Common parts
90080-95018
90109-T0011
90950-01841
90950-06115
91673-80616
Linked diagrams
6152
