GUN125L-CNFHXW (2020)

Toyota Hilux

Production Sep 2020 - Sep 2021
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2009- )SAXTR

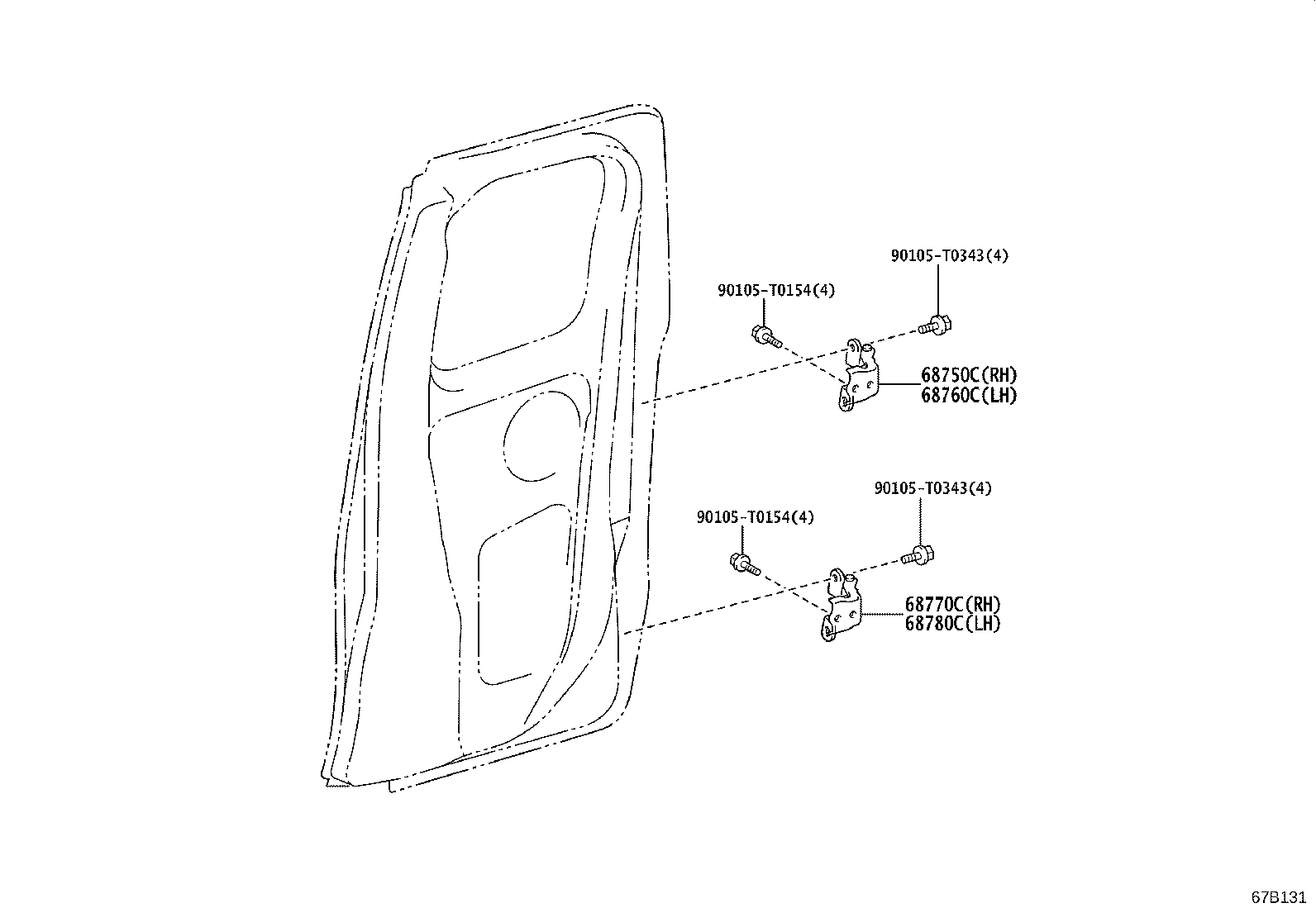

Click highlighted areas on diagram

diagram 68750C 68760C 68770C 68780C 90105T0154 90105T0154 90105T0343 90105T0343
Part # Description Qty Price
68750C - HINGE ASSY, ACCESS PANEL, UPPER RH
68750-0K070

GUN12#,135..SAXTR

 1
68760C - HINGE ASSY, ACCESS PANEL, UPPER LH
68760-0K070

GUN12#,135..SAXTR

 1
68770C - HINGE ASSY, ACCESS PANEL, LOWER RH
68760-0K070

GUN12#,135..SAXTR

 1
68780C - HINGE ASSY, ACCESS PANEL, LOWER LH
68750-0K070

GUN12#,135..SAXTR

 1
Common parts
90105-T0154
90105-T0343
