GUN125L-BNFSXW3 (2020)

Toyota Hilux

Production Sep 2020 - Sep 2021
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2009- )SASCB

Click highlighted areas on diagram

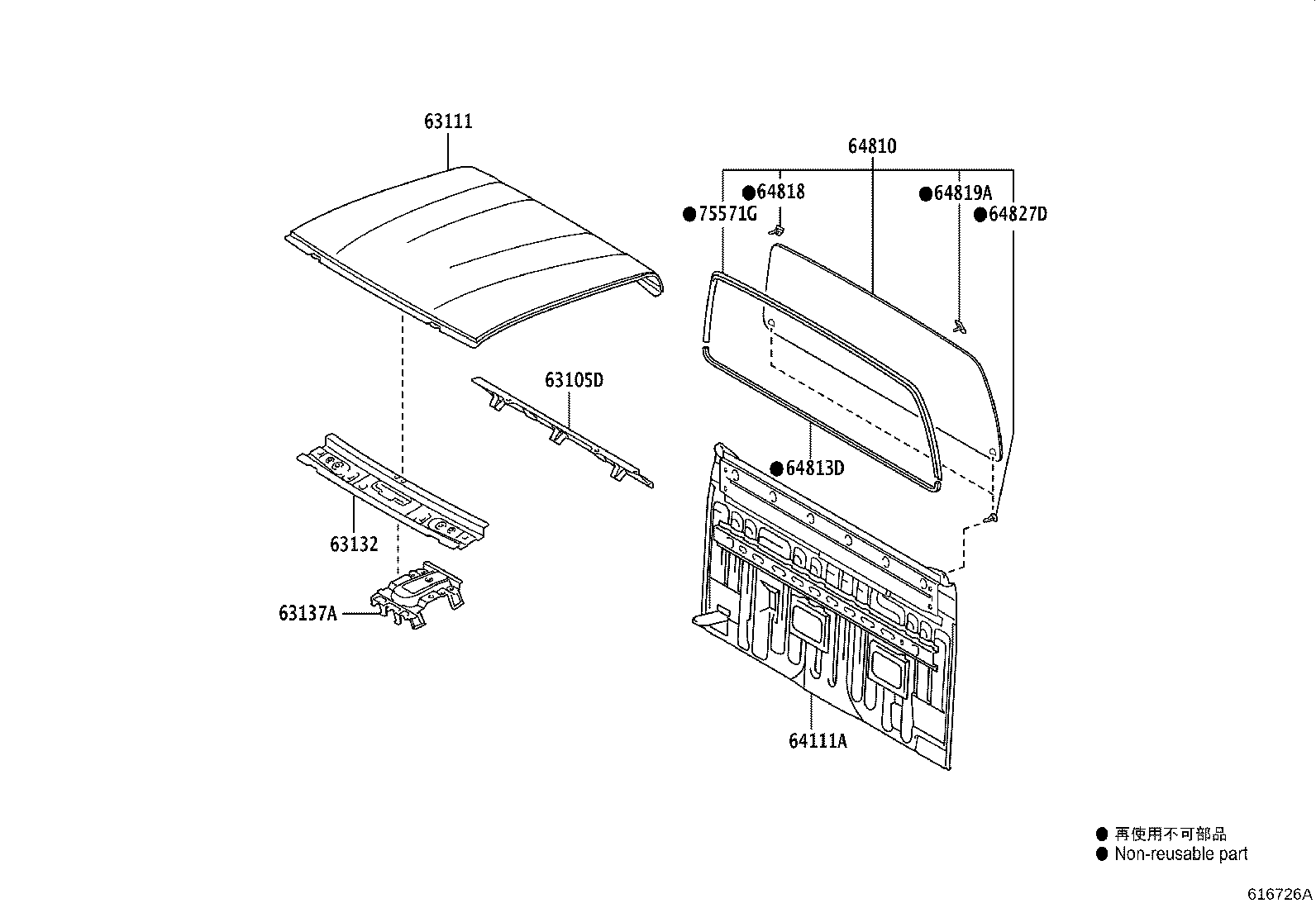

diagram 63105D 63111 63132 63137A 64111A 64810 64813D 64818 64819A 64827D 75571G
Part # Description Qty Price
63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER
63105-KK040

GUN125,135..SASCB

 1
63111 - PANEL, ROOF
63111-KK020

GUN125,135..SASCB

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-KK900

GUN12#,135

 1
63137A - BRACKET, DOME LAMP, NO.1
63137-KK010

GUN12#,135

 1
64111A - PANEL, BACK
64101-KK030

GUN125,135..SASCB

 1
64810 - WINDOW ASSY, BACK
64801-0K140

GUN125,135..(SADCB,SASCB,SAXTR)..(L,S)

 1
64813D - DAM, BACK WINDOW GLASS ADHESIVE
56117-KK040

GUN12#,135

 1
64818 - SPACER, BACK WINDOW GLASS
64818-0K100

GUN12#,135..SADCB,SASCB,SAXTR

 1
64819A - SPACER, BACK WINDOW GLASS, NO.2
64819-0K120

GUN12#,135..SADCB,SASCB,SAXTR

 1
64827D - CLIP, BACK WINDOW GLASS
64827-0K120

GUN12#,135..SADCB,SASCB,SAXTR

 2
75571G - MOULDING, BACK WINDOW, OUTSIDE UPPER, NO.1
75571-0K080

GUN12#,135

 1
