GUN125L-BNFSXW (2020)

Toyota Hilux

Production Sep 2020 - Sep 2021
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2009- )SASCB

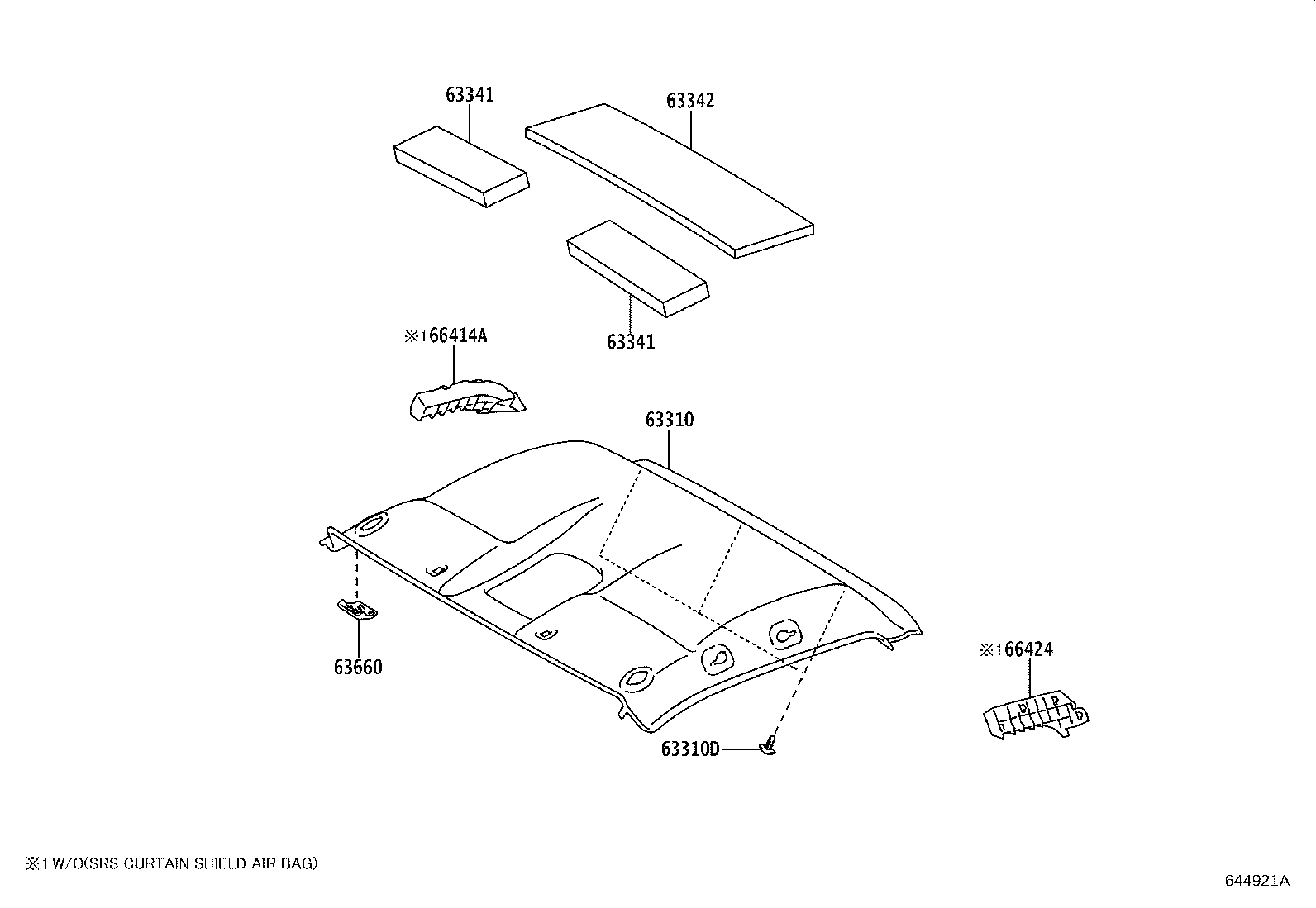

Click highlighted areas on diagram

diagram 63310 63310D 63341 63341 63342 63660 66414A 66424
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-0KA60B0

GUN125,135..SASCB

ACTIVE SAFETY PACKAGE-WITHOUT,LT. GRAY,TRIM2#

 1
63310-0KN41B0

GUN125,135..LHD..SASCB

LT. GRAY,TRIM2#

 1
63310D - CLIP, ROOF HEADLINING
90467-T0004B0

GUN125,135..(SASCB,SAXTR)..(L,S)

LT.GRAY,TRIM2#

 3
63341 - PAD, ROOF SILENCER, NO.1
63342-0K420

GUN12#,135..SADCB,SASCB,SAXTR

 2
63341 - PAD, ROOF SILENCER, NO.1
63342-0K420

GUN12#,135..SADCB,SASCB,SAXTR

 2
63342 - PAD, ROOF SILENCER, NO.2
63342-0K430

GUN12#,135..SADCB,SASCB,SAXTR

 1
