GSU75R-ARZNHQ (2020)

Toyota Highlander/Kluger

Production Dec 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

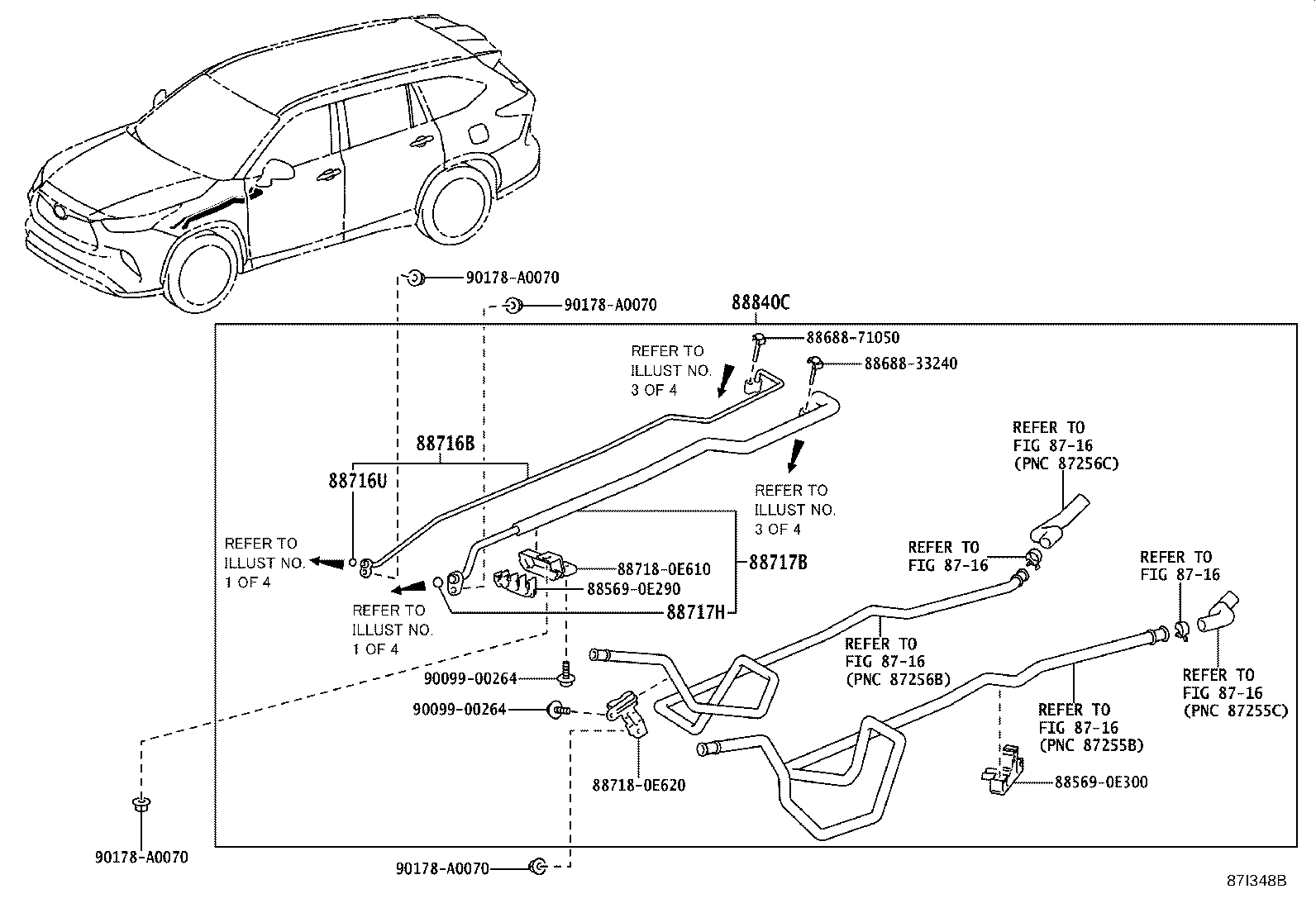

ILLUST NO. 2 OF 4(2012- )GSU7#..ARL

Click highlighted areas on diagram

REAR 1/3

diagram 8716 8716 8716 8716 8716 8716 885690E290 885690E300 8868833240 8868871050 88716B 88716U 88717B 88717H 887180E610 887180E620 88840C 9009900264 9009900264 90178A0070 90178A0070 90178A0070 90178A0070
Part # Description Qty Price
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-0E540

GSU7#..ARL

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-0E310

GSU7#..ARL

 1
88840C - ACCESSORY ASSY, AIR CONDITIONER, NO.1
88710-0E530

GSU7#..ARL

 1
Common parts
88569-0E290
88569-0E300
88688-33240
88688-71050
88718-0E610
88718-0E620
90099-00264
90178-A0070
Linked diagrams
8716

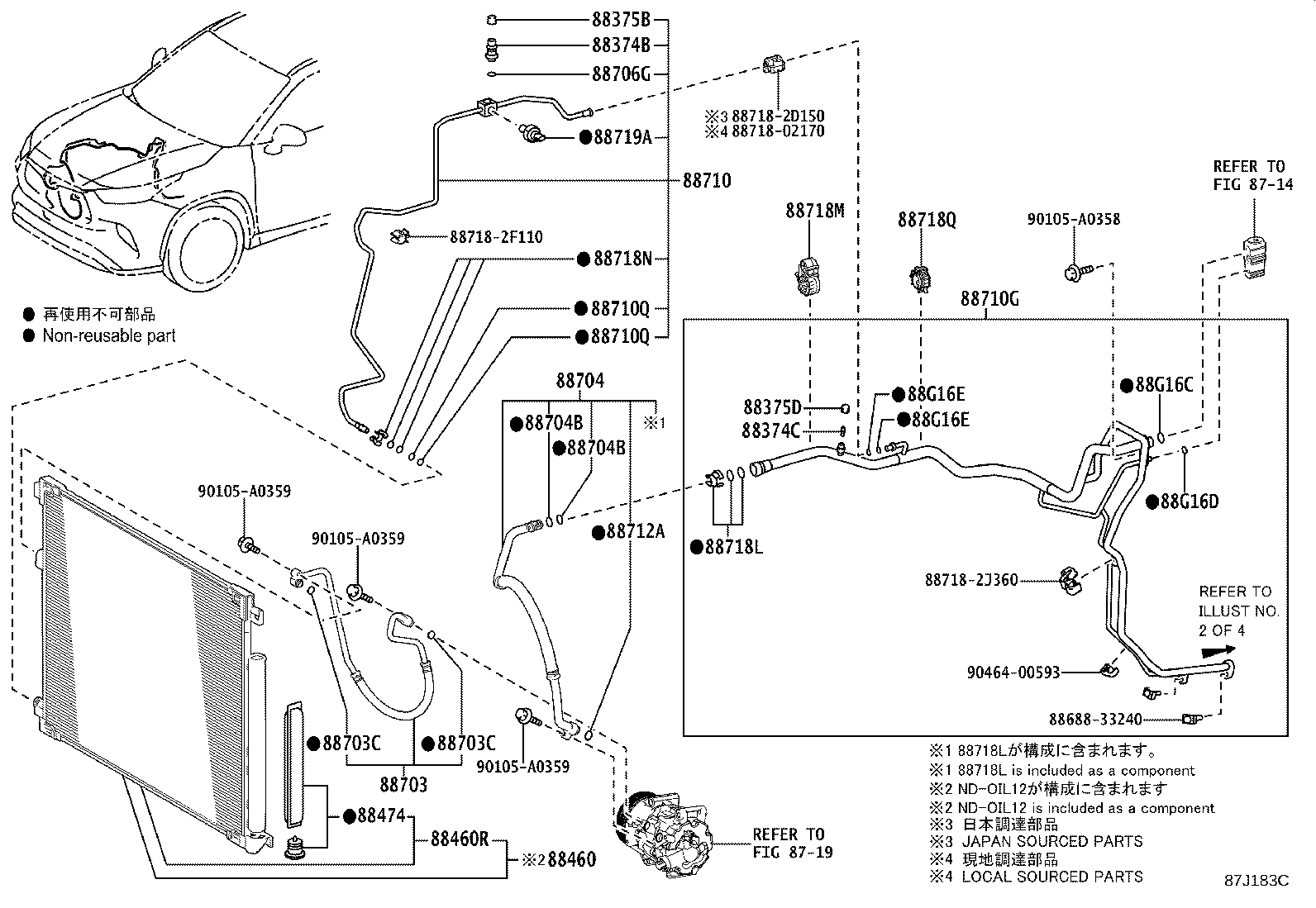

ILLUST NO. 1 OF 4(2012- )GSU7#..ARL

Click highlighted areas on diagram

FRONT

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88460R 88474 8868833240 88703 88703C 88703C 88704 88704B 88704B 88706G 88710 88710G 88710Q 88710Q 88712A 8871802170 887182D150 887182F110 887182J360 88718L 88718M 88718N 88718Q 88719A 88G16C 88G16D 88G16E 88G16E 90105A0358 90105A0359 90105A0359 90105A0359 9046400593
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

AXUH7#,GSU7#

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

AXUH7#,GSU7#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30320

AXUH7#,GSU7#

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30310

AXUH7#,GSU7#

 1
88460 - CONDENSER ASSY, COOLER
884A0-0E060

GSU7#

 1
88703C - RING, O(FOR DISCHARGE HOSE)
90069-08007

AXUH7#,GSU7#

ID=10.8,OD=15.6

 2
88703C - RING, O(FOR DISCHARGE HOSE)
90069-08007

AXUH7#,GSU7#

ID=10.8,OD=15.6

 2
88704B - RING, O(FOR SUCTION HOSE)
90099-14157

AXUH7#,GSU7#

ID=13.4,OD=18.2

 2
88704B - RING, O(FOR SUCTION HOSE)
90099-14157

AXUH7#,GSU7#

ID=13.4,OD=18.2

 2
88706G - RING, O(FOR LIQUID TUBE)
90099-14122

AXUH7#,GSU7#

ID=10.6,OD=14.16

 1
90069-08011

AXUH7#,GSU7#

ID=6.7,OD=10.3

 1
88710G - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2
88710-0E580

GSU7#..ARL

 1
88710Q - RING, O(FOR TUBE ASSY, AIR CONDITIONER)
90099-14158

AXUH7#,GSU7#

ID=6.7,OD=10.3

 2
88710Q - RING, O(FOR TUBE ASSY, AIR CONDITIONER)
90099-14158

AXUH7#,GSU7#

ID=6.7,OD=10.3

 2
88712A - RING, O(FOR COOLER REFRIGERANT SUCTION HOSE)
90069-08009

AXUH7#,GSU7#

 1
88718L - CLAMP, PIPING
88718-52280

AXUH7#,GSU7#

 1
88718N - CLAMP, PIPING
88718-1E150

AXUH7#,GSU7#

 1
88718Q - CLAMP, PIPING
88718-33530

GSU7#..ARL

PAINTED=BULE

 1
88718-33540

GSU7#..ARL

PAINTED=NOTHING

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-11010

AXUH7#,GSU7#

 1
88G16C - RING, O, NO.1(FOR TUBE ASSY, AIR CONDITIONER)
90069-08009

AXUH7#,GSU7#

ID=13.4,OD=18.2

 1
88G16D - RING, O, NO.2(FOR TUBE ASSY, AIR CONDITIONER)
90069-08011

AXUH7#,GSU7#

ID=6.7,OD=10.3

 1
Common parts
88688-33240
88718-02170
88718-2D150
88718-2F110
88718-2J360
90105-A0358
90105-A0359
90464-00593
Linked diagrams
8714
8719
